Screw Jack Gearbox SWLD100 SWL100

The Screw Jack Gearbox SWLD100 SWL100 is a premium gearbox, specifically manufactured for heavy industrial systems that require stable, continuous, and precise operation. As a 1-Stage gearbox utilizing an advanced screw-worm gear mechanism, it converts the rotational motion of the electric motor into translational motion or slow rotation with extremely high torque.

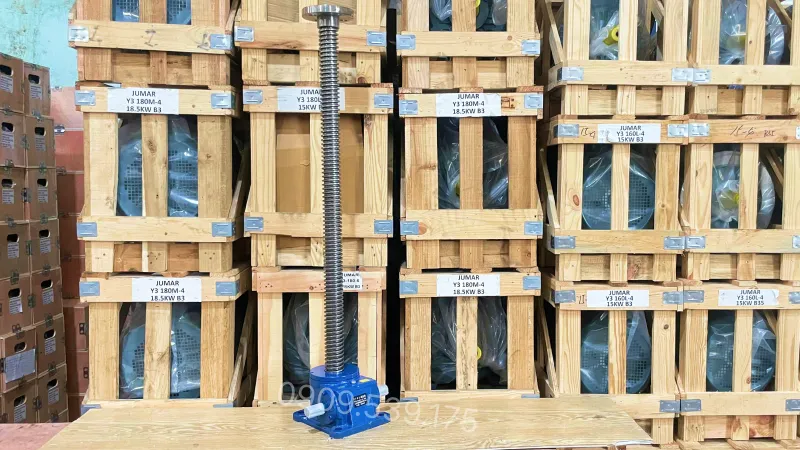

Overview of the Screw Jack Gearbox SWLD100 SWL100

The SWLD100 SWL100 screw jack is built with a solid cast iron or aluminum alloy housing, providing absolute rigidity, high load capacity, and rapid heat dissipation during continuous operation. The surface of the screw jack gearbox is coated with high-grade electrostatic paint, effectively preventing rust and corrosion, keeping the device durable, and maintaining its color and gloss over time.

In particular, the screw shaft is designed with a spiral form (precision helical thread), ensuring uniform and stable force transmission, reducing friction during operation, and enhancing translational motion efficiency. This spiral structure also helps heavy loads lift and lower more smoothly, minimizing vibration and increasing the lifespan of the entire transmission mechanism.

The input and output shafts of the gearbox are meticulously machined using modern CNC technology, ensuring high concentricity and perfect meshing with other transmission components. As a result, the device operates stably, minimizes wear, and easily combines with 3-phase electric motors in various industrial systems.

Internal structure of the Screw Jack Gearbox SWLD100 SWL100

The screw shaft is the central component in the transmission mechanism of the Screw Jack Gearbox SWLD100 SWL100, responsible for converting rotational motion from the worm shaft into precise and stable translational motion. The screw structure includes:

• The screw housing encloses and protects the entire internal transmission mechanism of the Screw Jack Gearbox SWLD100 SWL100, playing a crucial role in ensuring the durability, precision, and stable operation of the device.
• Drive shaft: Includes the input shaft (receiving motion from the motor) and the output shaft (connecting to the screw or worm gear).
• Nut (screw nut): The component meshing with the screw thread, typically made of copper alloy or wear-resistant steel with good mechanical strength, helping the screw operate stably over a long period.
• Bearings and oil seals: Arranged at both ends of the shaft to maintain stable rotational direction, reduce vibration, and prevent dust and grease from entering the mechanism.

Technical specifications of the Screw Jack Gearbox SWLD100 SWL100

The SWLD100 and SWL100 screw jack gearboxes are designed with two mounting styles: flange and foot mount, meeting various lifting requirements. Below are the technical specifications for each version.

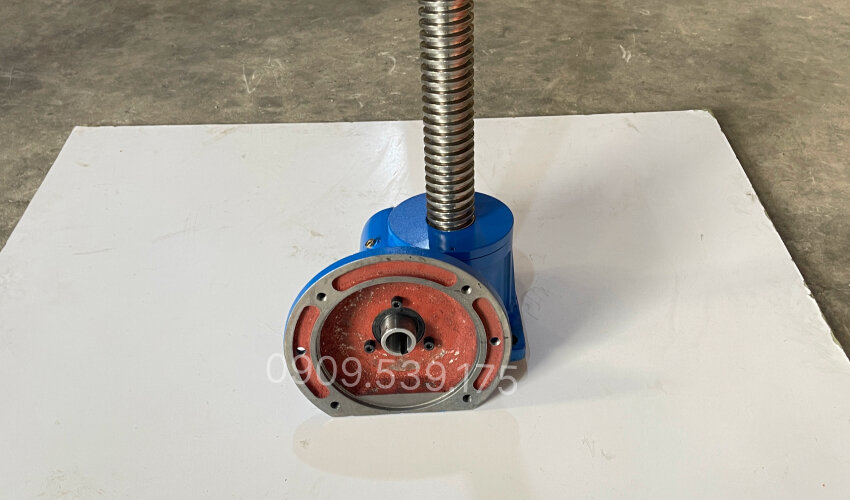

Technical specifications of the SWLD100 lifting gearbox (Flange type)

The technical specifications of the flange-mounted SWLD100 version are presented below to facilitate selection and installation.

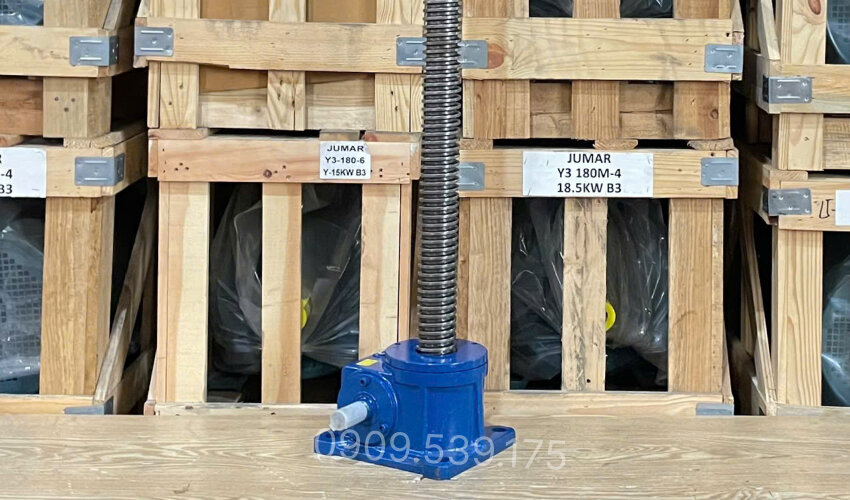

Technical specifications of the SWL100 lifting gearbox (Foot mount type)

Below are the technical specifications of the foot-mounted SWL100 version, helping users easily refer to and select according to application requirements.

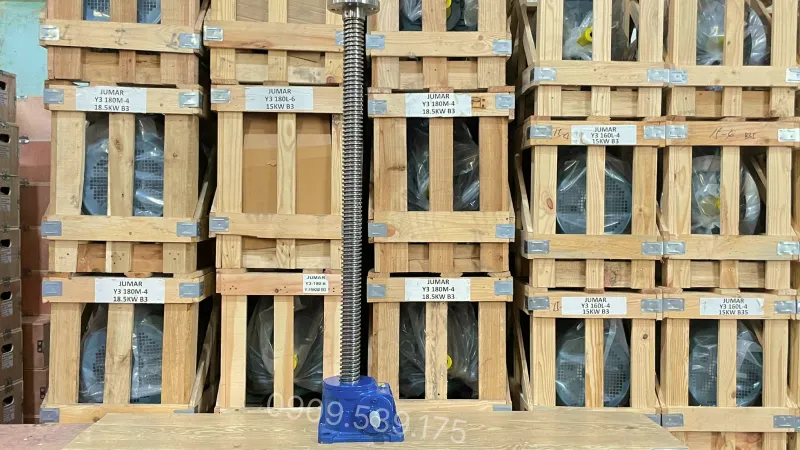

Practical applications of the SWLD100 SWL100 lifting screw jack gearbox

The worm gearbox is combined with an electric motor to form a gear motor that is trusted by customers in many industrial systems thanks to its high durability and stable performance:

• Presses, rolling machines, bending machines.
• Gate valves, hydropower – water treatment systems.
• Metallurgical industry, precision mechanics.
• Lifting tables, heavy load lifting mechanisms.

Decoding the nameplate on the screw jack gearbox

• MODEL – SWLD: This is the product series designation. Model SWLD (or SWL) is a type of lifting worm gearbox widely applied in mechanical lifting mechanisms.
• TYPE – 10T: Indicates the size or load capacity of the device. The 10T designation corresponds to a maximum lifting force of 10 tons (or 100 kN).
• RATIO – 8: This is the gear ratio of the gearbox. The number 8 means that the input speed will be reduced by 8 times when reaching the output shaft, while proportionally increasing the torque (pulling/pushing force).
• MFG.NO – YX-20241027: This is the manufacturing serial number. This code line is used by the manufacturer to manage products, trace origin, or support warranty. Among them, the number cluster “20241027” usually indicates the manufacturing date of October 27, 2024.

The Screw Jack Gearbox SWLD100 SWL100 well meets heavy load lifting systems requiring stable and continuous operation in industrial environments. Customers can refer to additional gearbox videos from Thanh Thai Motor to explore various other equipment lines. In addition, the comprehensive video library also updates diverse products, supporting the selection of solutions tailored to usage needs.
