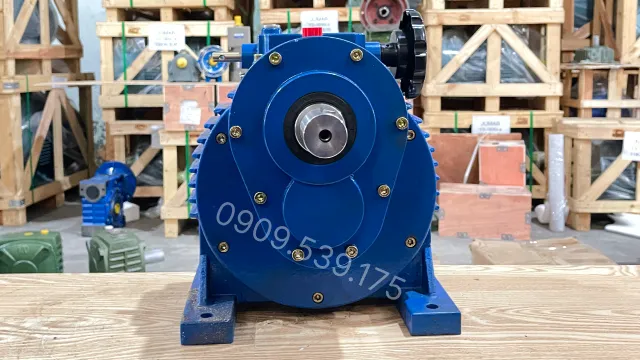

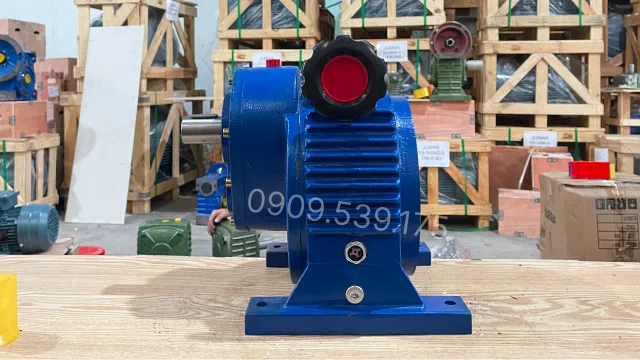

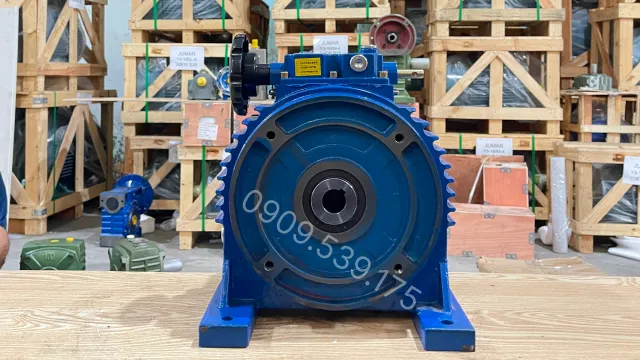

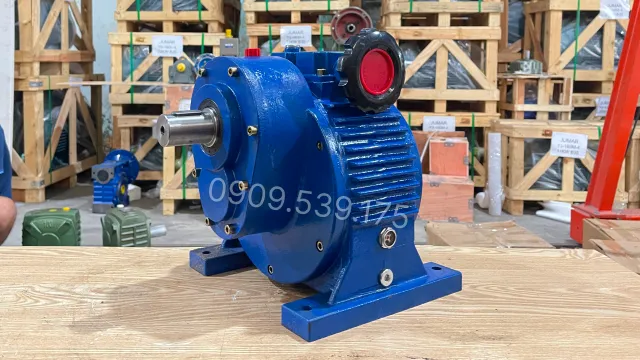

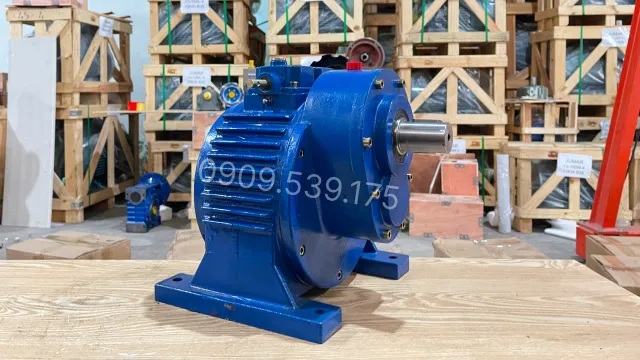

Mechanical Speed Variator 5.5kW 7.5Hp

The Mechanical Speed Variator 5.5kW 7.5Hp is an indispensable and crucial device in many modern industrial transmission systems. With a compact design, easy installation, and flexible operation capabilities, this Mechanical Speed Variator is widely applied in automated production lines, conveyor systems, food processing machinery, and various other types of equipment. Notably, it helps control motor speed effectively, ensuring stable operation and energy savings.

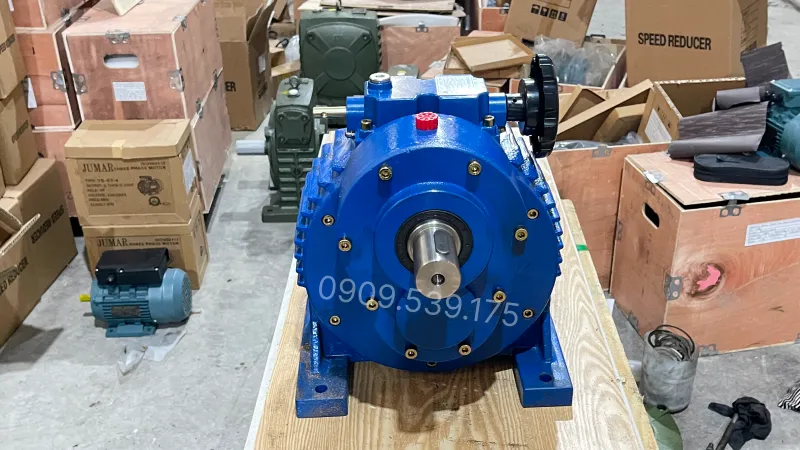

Overview design of the Mechanical Speed Variator 5.5kW 7.5Hp

The Mechanical Speed Variator 5.5kW 7.5Hp features a modern design with a signature blue color that creates a solid and professional feel, highly appreciated by many users. The gearbox housing is manufactured from high-quality aluminum alloy, providing superior heat dissipation and helping reduce overall weight. Internal components, especially the transmission mechanism, undergo heat treatment to increase hardness and durability during long-term use.

The Mechanical Speed Variator is an effective solution when combining a mechanical speed variator with an electric motor to form a gear motor, serving systems that require flexible speed adjustments. The coordination between these devices helps optimize working performance, extend equipment lifespan, and ensure stable system operation, especially in industrial environments with continuously variable loads.

Internal structure of the Mechanical Speed Variator 5.5kW 7.5Hp

The internal structure of the Mechanical Speed Variator 5.5kW 7.5Hp is characterized by two main parts: the motor gears and the adjustment knob:

• Motor gears: This is a crucial component that dictates the machine’s operation. Designed with multiple gears cooperating smoothly with one another, it creates reduction gear ratios.
• Adjustment knob: An equally essential component. With its flexible, easy-to-operate nature and its separate location outside the motor, the Mechanical Speed Variator 5.5kW 7.5Hp is favored because adjustments can be made without stopping the machine’s operation.

Technical specifications of the Mechanical Speed Variator 5.5kW 7.5Hp

The parameters below help select the correct mounting type and connection with the motor in each transmission system.

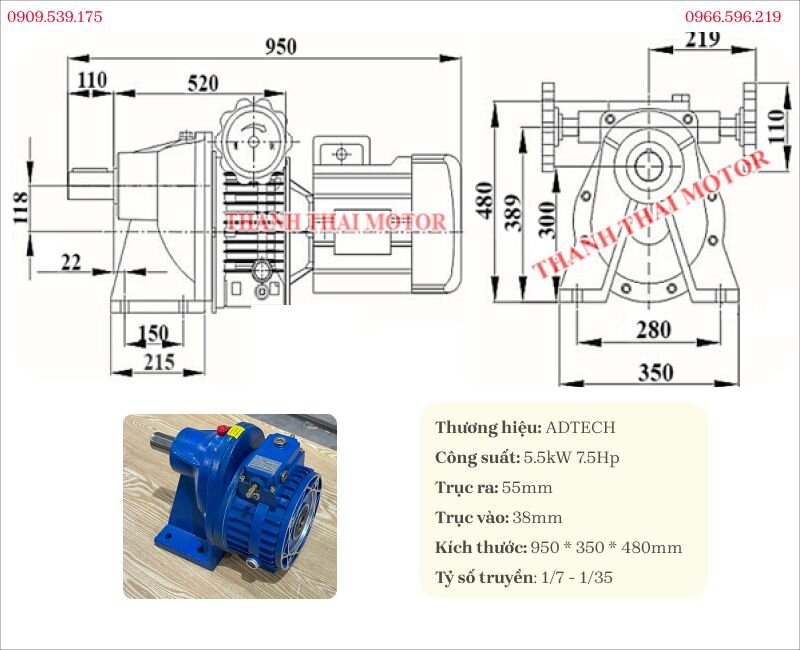

Foot-mounted Mechanical Speed Variator 5.5kW 7.5Hp

Technical specifications:

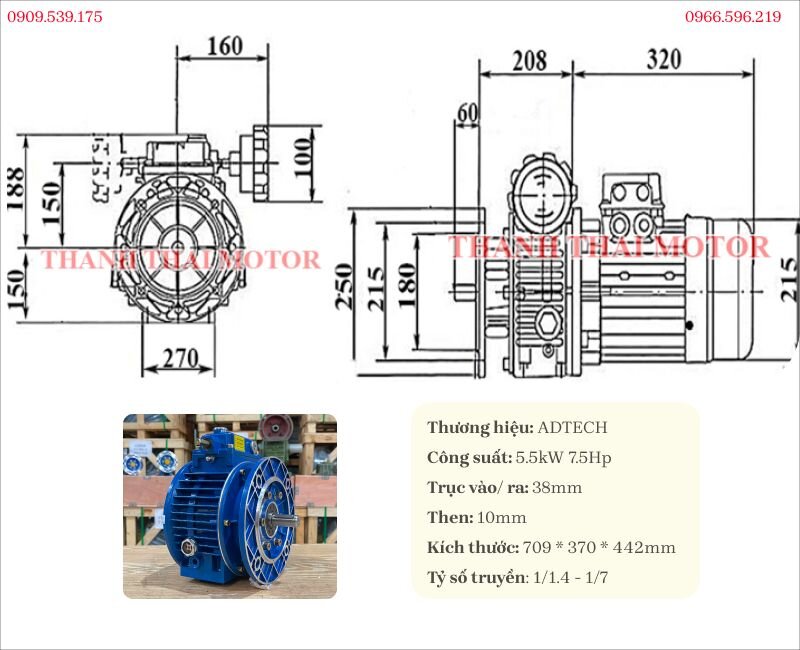

Flange-mounted Mechanical Speed Variator 5.5kW 7.5Hp

Technical specifications:

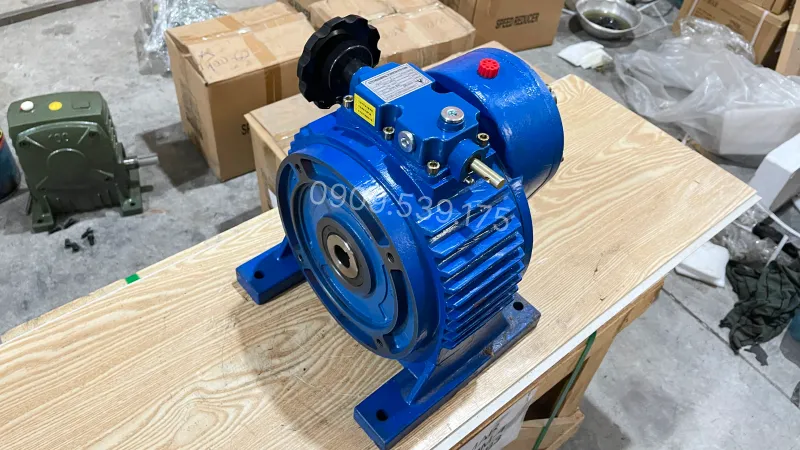

Functions and applications of the Mechanical Speed Variator 5.5kW 7.5Hp

Thanks to its stepless speed adjustment capability, the Mechanical Speed Variator 5.5kW 7.5Hp is applied in various transmission systems requiring stable and precise operation.

• Adjusting the rotation speed of a 3-phase electric motor: Allows changing the output speed according to each production stage, helping equipment operate flexibly and meet various requirements without changing the motor.
• Installing for conveyor systems: Easily adjusts the transport speed of materials, goods, or products on the line, contributing to increased productivity and minimizing congestion during production.
• Application on agitators, mixers, and grinders: Controls the rotational speed to suit each type of raw material, helping the mixing or grinding process achieve higher efficiency while minimizing equipment damage.

Decoding all symbols on the gearbox

To understand the meaning of symbols on the gearbox, inspect each piece of information shown on the nameplate and gearbox body through the following steps:

Step 1: Identify the gearbox code

Observe the product’s symbol code to determine the gearbox series, size, and basic configuration of the device.

Step 2: Check the gear ratio

View the gear ratio value specified by the manufacturer to understand the reduction level and output shaft speed.

Step 3: Review rated parameters

Read input speed information, allowable torque, working power, and related technical parameters on the product label.

Step 4: Determine the mounting type and shaft position

Check the symbols for mounting style, shaft direction, flange, or foot to choose the appropriate installation method for the transmission system.

Besides this article, you can refer to the gearbox video to see how to read symbols and recognize parameters on each product line. At the same time, the comprehensive video on the Thanh Thai Motor channel will provide more content about motors, gearboxes, and practical transmission applications.
