WPO 60 Gear Motor 0.37kW 0.5Hp

The WPO 60 Gear Motor 0.37kW 0.5Hp is a combination of an electric motor and a gearbox, the gear motor helps reduce the output shaft rotation speed and increase torque, thereby helping machinery operate more powerfully and stably over long periods.

The motor combined with the worm gearbox can be a 1-Phase Electric Motor or a 3-Phase Electric Motor depending on usage requirements. This worm gear motor belongs to the gear motor under 1.1kW line, suitable for medium and light load machines in production workshops, conveyor systems, mixers, or lifting equipment.

General design of the WPO 60 Gear Motor 0.37kW 0.5Hp

Motor giảm tốc WPO 60 0.37kW 0.5Hp is designed to be compact yet sturdy. The housing is made of solid cast iron, with good load-bearing and corrosion resistance, helping protect the equipment in harsh working environments.

The outer powder coating helps prevent rust, minimizes scratches, and ensures aesthetics and durability for the equipment. The output shaft is meticulously machined, ensuring high precision, smooth rotation, and reduced noise during operation. Thanks to its neat structure, the device is easily installed in various types of machines such as mixers, packaging machines, cargo conveyors, turntables…

Detailed structure of the gear motor

The WPO 60 Gear Motor 0.37kW 0.5Hp consists of two main parts:

• Electric motor: It is a 1-phase electric motor 0.37kW 0.5Hp or a 3-phase electric motor 0.37kW 0.5Hp
  • Stator (Stationary part): Wound with pure copper wire, creating a strong and stable magnetic field during operation, providing the main power for the entire device.
  • Rotor (Rotating part): Consists of tightly assembled technical steel sheets, rotating under the influence of the magnetic field, directly transmitting torque to the motor shaft.
  • Rear cooling fan system helps cool the motor, maintaining a stable temperature during long-term operation.

• WPO 60 worm gearbox (WPO 60 worm gear speed reducer)
  • The worm shaft is made of high-strength alloy steel, heat-treated to increase hardness and wear resistance.
  • The worm wheel is made of bronze or a special alloy, helping it mesh smoothly with the worm shaft, ensuring smooth transmission, reduced friction, and low noise.
  • Inside the gearbox, there is specialized lubricating oil to help cool, reduce wear, and increase the lifespan of the equipment.

Technical specifications of the WPO 60 0.37kW 0.5Hp gear motor

Accurately evaluating the technical specifications of the WPO 60 gear motor with 0.37kW power is a mandatory basis for calculating voltage connection plans and setting up appropriate load modes. Below are the details of the geometric size standards, shaft diameters, and load-bearing limits of the entire drive assembly.

3-phase electric motor 0.37kW 0.5Hp technical specifications

Thanks to the integration of IP55 protection class and Class F insulation class, the device ensures electrical safety and maintains stability even when operating continuously in harsh workshop environments.

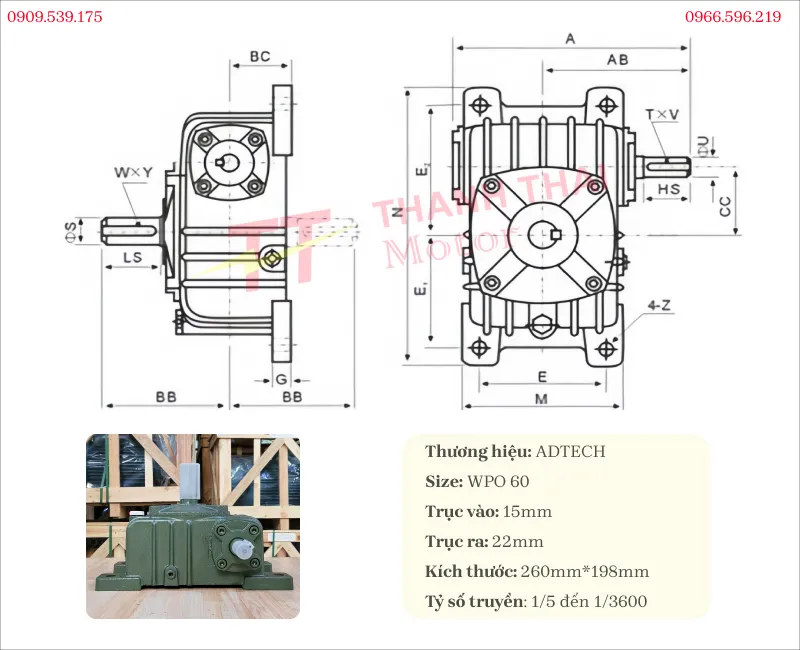

WPO 60 gearbox technical specifications

Receiving direct traction from the motor, the WPO size 60 gearbox performs the task of transforming angular velocity to powerfully increase torque at the output shaft.

Practical applications of the WPO 60 0.37kW 0.5Hp gear motor

Thanks to its stable operation, the 1-phase gear motor or 3-phase gear motor is used in many production fields such as:

• Conveyors and transport belts for goods in factories.
• Mixers and agitators for materials in food, pharmaceutical, and chemical industries.
• Packaging, pressing, and winding equipment in production lines.
• Food roasters such as chicken roasters, duck roasters, and meat marinating machines.
• Lifting tables, rotating equipment, and cargo lifting machines in warehouses.

Durability and optimal energy consumption make the WPO 60 Gear Motor 0.37kW 0.5Hp a perfect piece in the mechanical structure of automated production lines. Thanks to the smoothly meshing worm gear structure, this product line maintains good transmission efficiency and minimizes noise during continuous load running.

To update more detailed review clips or wiring instructions, please visit our gear motor video corner. In addition, our available comprehensive video data repository will provide complete specifications of other motor lines to help you easily compare.

Warranty, Shipping, and Commitment Policies at Thanh Thai Motor

When purchasing gearmotors at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 Months

All gearmotor products at Thanh Thai Motor come with an official 24-month warranty. We are committed to clear after-sales service, with quick and transparent processing procedures – ensuring customer peace of mind during use.

Nationwide Delivery

No matter which province or city you are in, Thanh Thai Motor is always ready to support fast delivery, ensuring on-time delivery, careful packaging, and safe transportation. We supply a full range of 220V gearmotors, variable speed motors, etc., for the diverse needs of customers nationwide.

Products Meet European Quality Standards with German Technology

Our products are manufactured using modern German technology, meeting European standards. Models such as integrated gearmotors, variable speed motors, or 220V gearmotors all ensure stable operation and superior durability.

Competitive Pricing, Good Discounts for Dealers and Bulk Purchasers

We offer affordable gearmotors, suitable for projects with limited budgets. In addition, Thanh Thai Motor has special policies and offers for dealers and bulk purchasers.

Quality Commitment

All 220V gearmotors here are wound with pure copper wire. This ensures powerful, smooth operation and energy savings.

Full Certification Documents: CO, CQ,...

All products such as integrated gearmotors, conveyor motors, or speed reducers come with full Certificates of Origin (CO) and Quality (CQ), meeting stringent technical requirements in industry.
