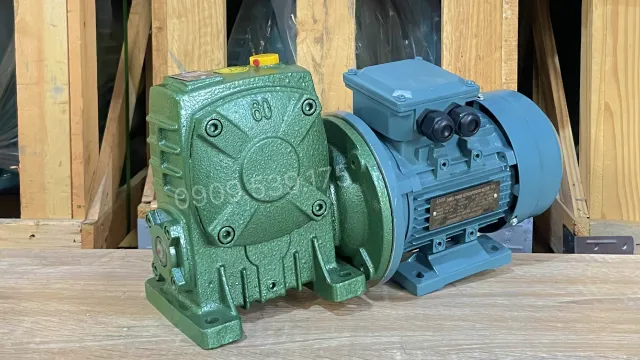

WPDA 60 Gear Motor 0.25kW 0.34Hp

The WPDA 60 Gear Motor 0.25kW 0.34Hp is a perfect combination of an electric motor and a gearbox. This combination creates a powerful gear motor capable of efficient rotational speed reduction while ensuring high working capacity.

The worm gearbox can be flexibly coupled with a 1-phase electric motor or a 3-phase electric motor, depending on the requirements of each working system.

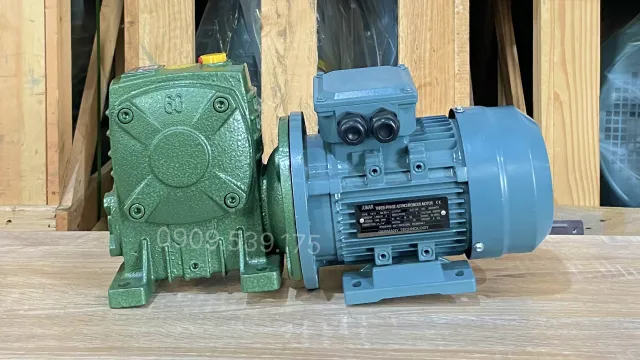

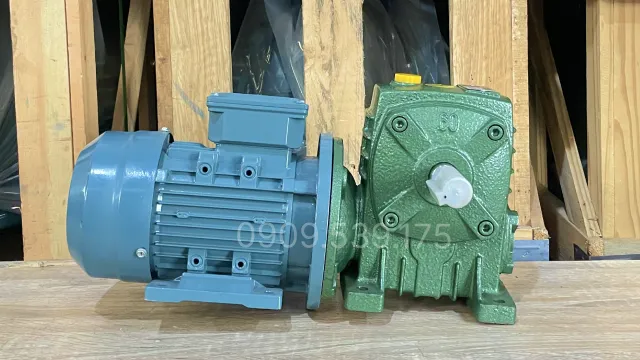

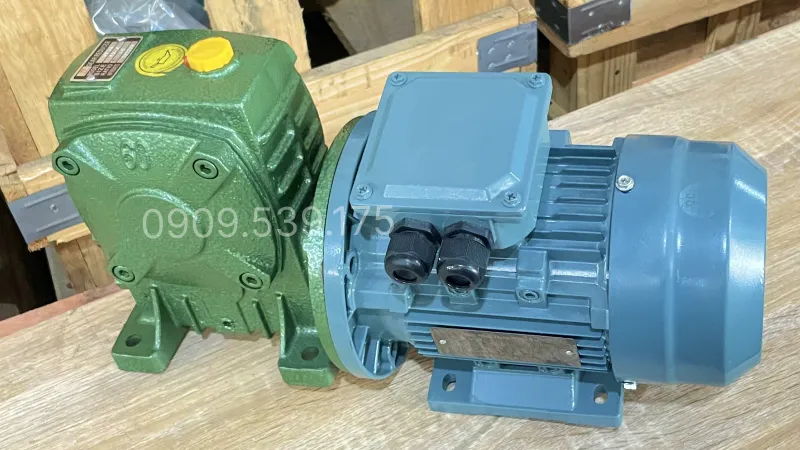

General appearance of the WPDA 60 Gear Motor 0.25kW 0.34Hp

The worm gear motor features a neat design with a right-angle shaft structure, making the equipment easy to install and operate stably in various environments. The outer shell is made of aluminum alloy or solid cast iron, coated with a characteristic blue powder coating to prevent rust and enhance mechanical durability.

Inside the core is a 100% pure copper winding, ensuring efficient electrical transmission and reduced energy loss. The motor shaft is made of hardened steel for high load capacity and reduced wear during continuous operation. The motor and gearbox are directly assembled via the unit’s flange, and the solid structure provides smooth, low-vibration operation, suitable for production lines requiring high precision.

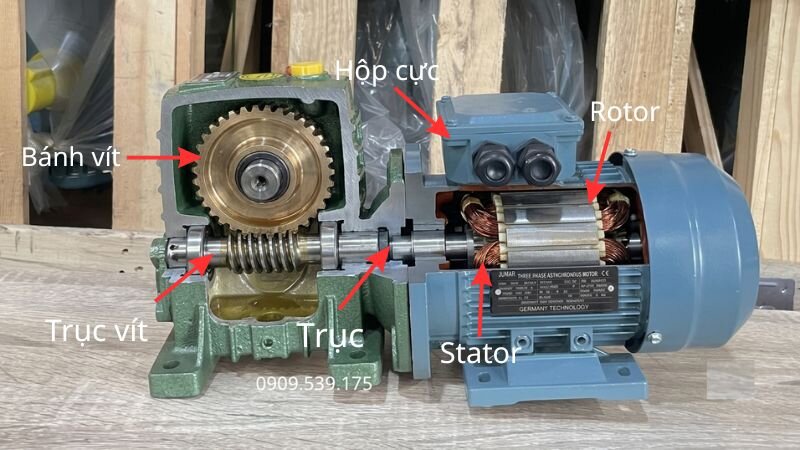

Detailed structure of the WPDA 60 Gear Motor 0.25kW 0.34Hp

The WPDA 60 Gear Motor 0.25kW 0.34Hp belongs to the low-power line – gear motor under 1.1kW, structured with the main components as follows:

• 1-Phase electric motor 0.25kW 0.34Hp or 3-Phase electric motor 0.25kW 0.34Hp:
  • Outer housing: The outer shell is made of high-grade cast iron or cast aluminum, with good impact resistance, coated with an anti-oxidation layer to limit scratches and rust, increasing equipment lifespan.
  • Stator – Stationary part: Uses pure copper windings to create a stable magnetic field during operation.
  • Rotor – Rotating part: Made of laminated technical steel, thin steel sheets are tightly pressed into a block, smoothly and efficiently transmitting torque to the motor shaft.

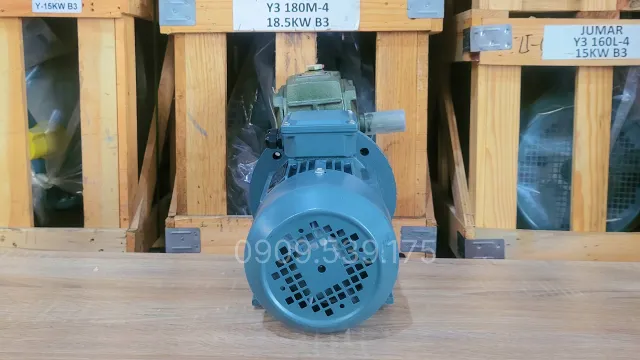

  • Cooling fan: A cooling fan system is installed behind the motor, supporting rapid heat dissipation, keeping the machine temperature stable, and preventing the equipment from overheating during continuous operation.
• WPDA 60 worm gearbox includes:

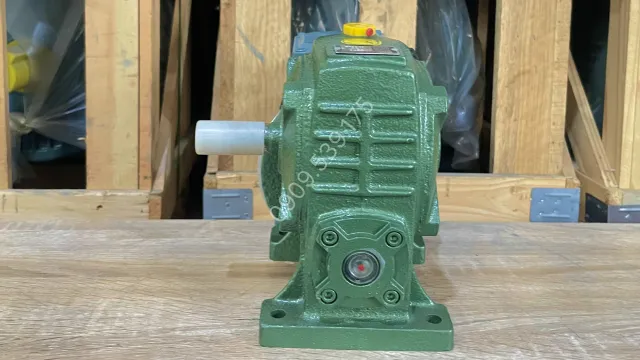

  • Gearbox housing: Made of solid cast iron, surface coated with powder coating to prevent scratches and corrosion.
  • Worm shaft: Machined from heat-treated alloy steel with high hardness and meticulous workmanship, ensuring smooth and durable operation.
  • Worm gear: Cast from high-grade bronze, perfectly meshing with the worm shaft to ensure stable power transmission.
  • Lubricating oil and oil seals: Equipped with internal lubricating oil to reduce friction and ensure smooth operation; oil seals prevent oil leakage to the outside and limit dust entering to cause damage, thereby increasing the lifespan of the drive system.

Technical specifications of the WPDA 60 Gear Motor 0.25kW 0.34Hp

Below is the technical specification table and drawing of the WPDA 60 gear motor

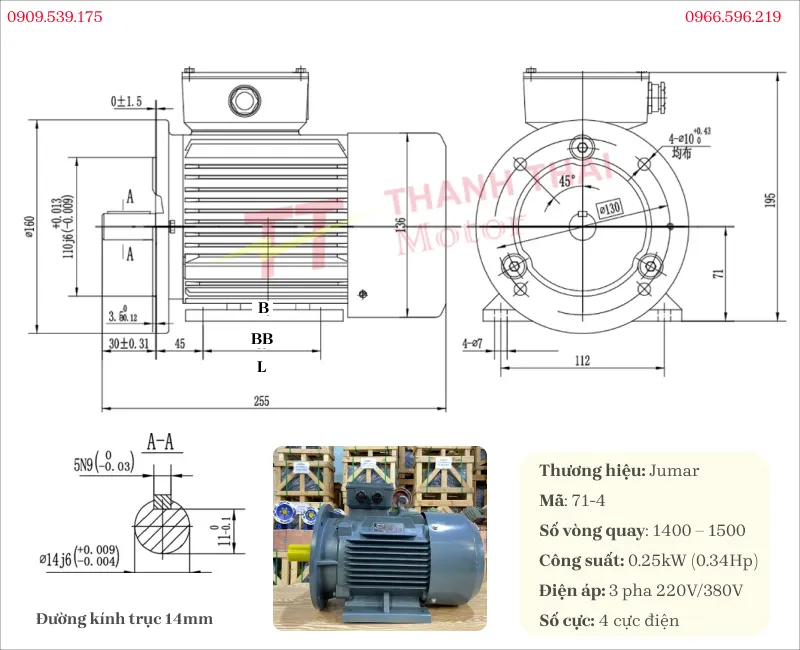

Technical specifications of 3-Phase electric motor 0.25kW 0.34Hp

The 3-phase electric motor 0.25kW 0.34Hp features a robust design and technical specifications

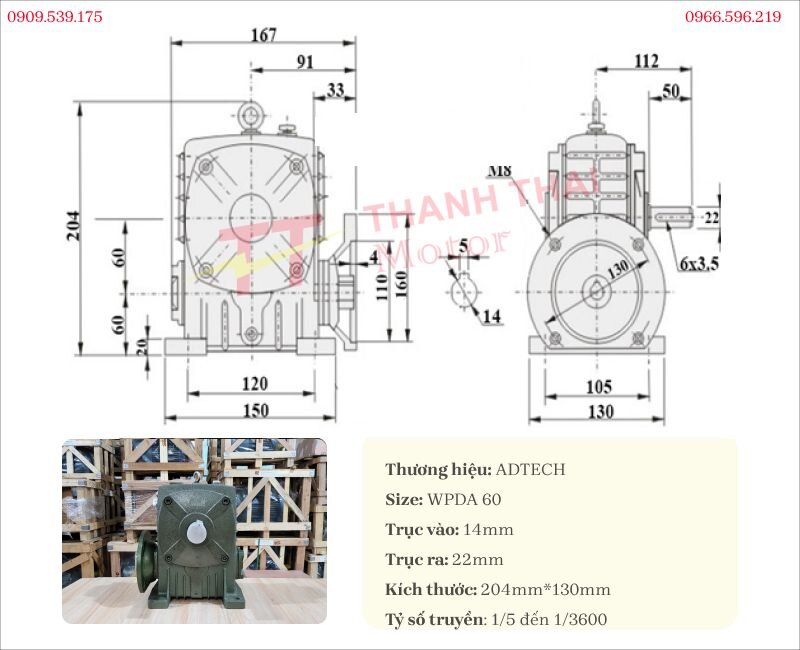

Technical specifications of WPDA 60 gearbox

The WPDA 60 gearbox features a sustainable design and sturdy structure. Below are its specifications and drawing

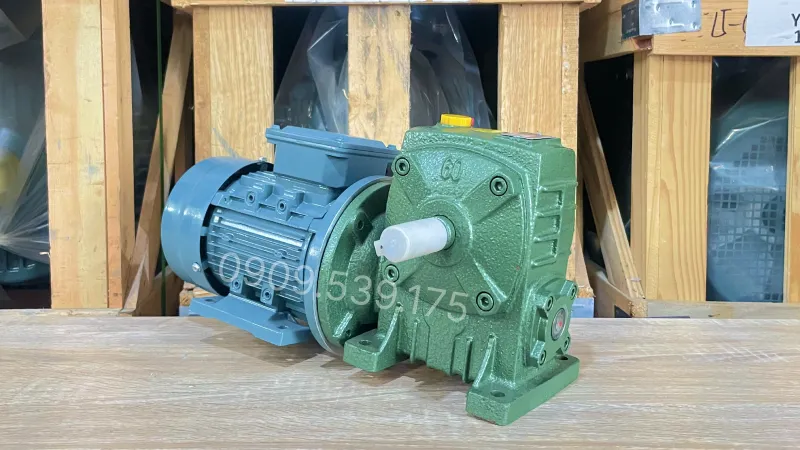

Practical applications of the WPDA 60 Gear Motor 0.25kW 0.34Hp

The 1-phase gear motor or 3-phase gear motor is widely applied in various fields thanks to its stable, durable, and energy-saving performance:

• Installed in conveyor and belt systems for material handling in manufacturing plants.
• Used for mixers, agitators, and material crushers in the food, pharmaceutical, and chemical industries.
• Installed in small-scale packaging machines, filling machines, and automatic labeling machines in production workshops.
• Used for lifting equipment, light-load pulling, and cable winding machines.
• Agricultural machinery, mechanical engineering, wood processing, and small automation equipment.

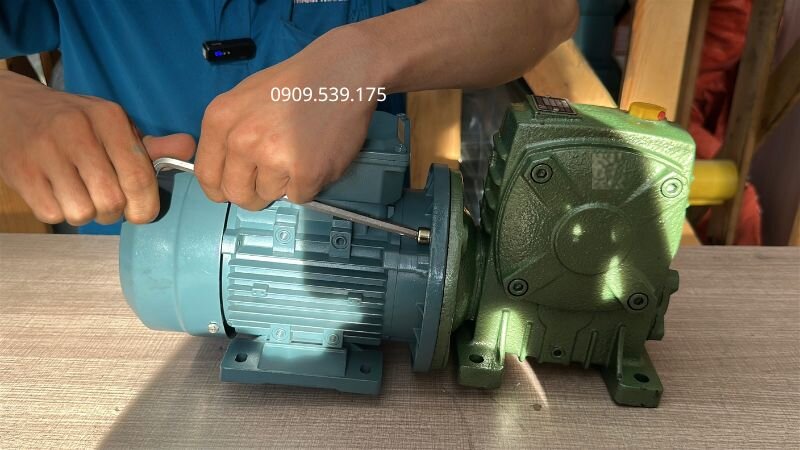

Instructions for assembling the electric motor with the WPDA gearbox

For the WPDA drive system to operate stably and achieve optimal efficiency, the connection process must be carried out technically according to the following steps:

• Step 1: Prepare the electric motor, WPDA gearbox, and necessary installation accessories. Check the mechanical condition, cleanliness of mating surfaces, and shaft accuracy to ensure a smooth assembly process.
• Step 2: Accurately align the motor shaft with the input shaft of the gearbox on center, then secure it tightly with the flange and bolts. Finish by checking the connection rigidity and smooth rotation of the shaft before operation.

The gear motor installation guide video from Thanh Thai Motor provides realistic footage of each construction stage, helping viewers easily follow from preparation to completion. The content assists users in executing the correct technical process, minimizing installation errors, and enhancing the durability and working performance of the drive system. Users can refer to other technical compilation videos for more practical application solutions.

Warranty, Shipping, and Commitment Policies at Thanh Thai Motor

When purchasing gearmotors at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 Months

All gearmotor products at Thanh Thai Motor come with an official 24-month warranty. We are committed to clear after-sales service, with quick and transparent processing procedures – ensuring customer peace of mind during use.

Nationwide Delivery

No matter which province or city you are in, Thanh Thai Motor is always ready to support fast delivery, ensuring on-time delivery, careful packaging, and safe transportation. We supply a full range of 220V gearmotors, variable speed motors, etc., for the diverse needs of customers nationwide.

Products Meet European Quality Standards with German Technology

Our products are manufactured using modern German technology, meeting European standards. Models such as integrated gearmotors, variable speed motors, or 220V gearmotors all ensure stable operation and superior durability.

Competitive Pricing, Good Discounts for Dealers and Bulk Purchasers

We offer affordable gearmotors, suitable for projects with limited budgets. In addition, Thanh Thai Motor has special policies and offers for dealers and bulk purchasers.

Quality Commitment

All 220V gearmotors here are wound with pure copper wire. This ensures powerful, smooth operation and energy savings.

Full Certification Documents: CO, CQ,...

All products such as integrated gearmotors, conveyor motors, or speed reducers come with full Certificates of Origin (CO) and Quality (CQ), meeting stringent technical requirements in industry.
