WPDS 60 Gear Motor 0.25kW 0.34Hp

Thành Thái Motor would like to introduce to our customers another gear motor product line with a unique design assembled between an electric motor and a gearbox, creating the WPDS 60 Gear Motor 0.25kW 0.34Hp, featuring powerful performance and ease of use.

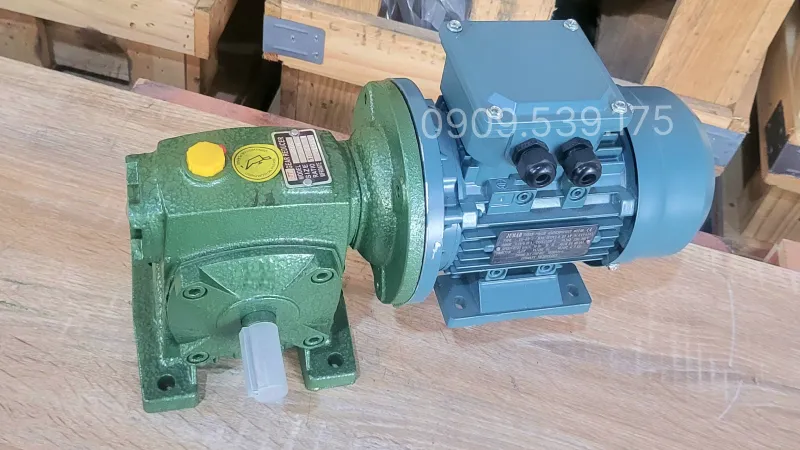

Design Overview of WPDS 60 Gear Motor 0.25kW 0.34Hp

The worm gear motor features an outer housing made of cast iron or aluminum, coated with an electrostatic paint layer to help prevent scratches and fading.

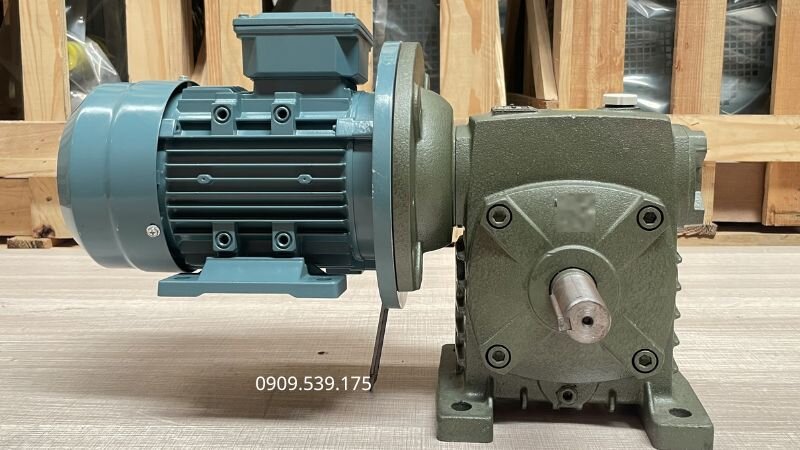

Structure of WPDS 60 Gear Motor 0.25kW 0.34Hp

The 1-phase gear motor or 3-phase gear motor is designed by assembling a 1-phase electric motor or 3-phase electric motor with a worm gearbox connected through the flange of the WPDS gearbox, along with hollow and solid shafts attached to the electric motor featuring a flange mounting type.

• 1-Phase Electric Motor 0.25kW 0.34Hp and 3-Phase Electric Motor 0.25kW 0.34Hp:
  • Stator: The stationary part, wound with 100% pure copper wire.
  • Rotor: The rotating part, the internal structure of the motor, made of laminated steel sheets.
  • At the rear of the motor, a cooling fan is attached to cool the motor and prevent explosion hazards.
• WPDS 60 Gearbox:
  • Gearbox housing: Cast from cast iron or aluminum alloy with high hardness, helping protect internal components. The surface is powder-coated to prevent rust and minimize external environmental impacts.
  • Worm shaft: Made from heat-treated alloy steel, offering high hardness and good wear resistance. This component plays the role of transmitting motion from the motor to the worm gear.
  • Worm gear: Usually made from copper or copper alloy, helping reduce friction when meshing with the worm shaft while enhancing smooth operation.
  • Bearing system: Bearings are installed at rotating shaft positions to reduce friction, keep movement stable, and increase equipment lifespan.

Technical Specifications of WPDS 60 Gear Motor 0.25kW 0.34Hp

Below are the specification table and drawing of the WPDS 60 Gear Motor 0.25kW 0.34Hp

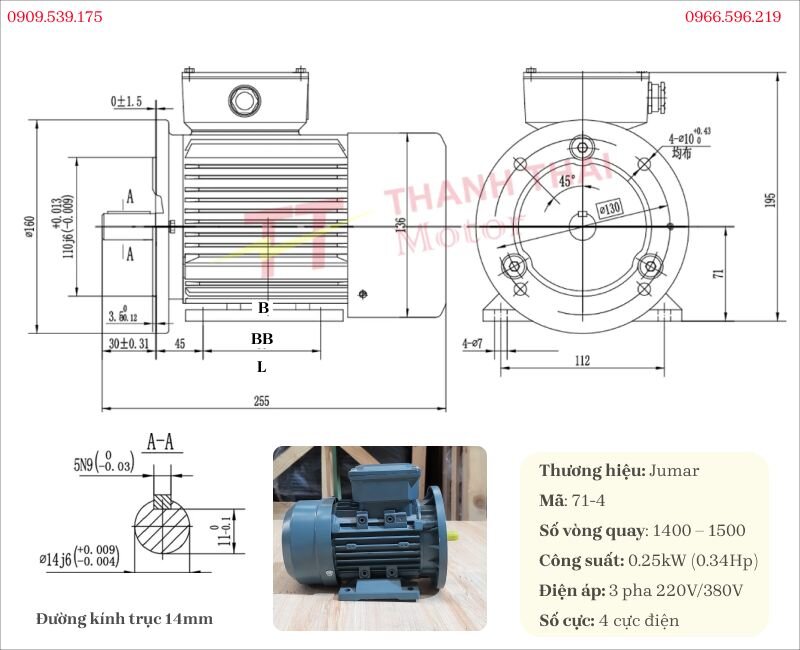

Technical Specifications of 3-Phase Electric Motor 0.25kW 0.34Hp

Below are the drawing and technical specifications of the 3-phase electric motor 0.25kW 0.34Hp

Technical Specifications of WPDS 60 Gearbox

Specification table and drawing of the WPDS 60 gearbox

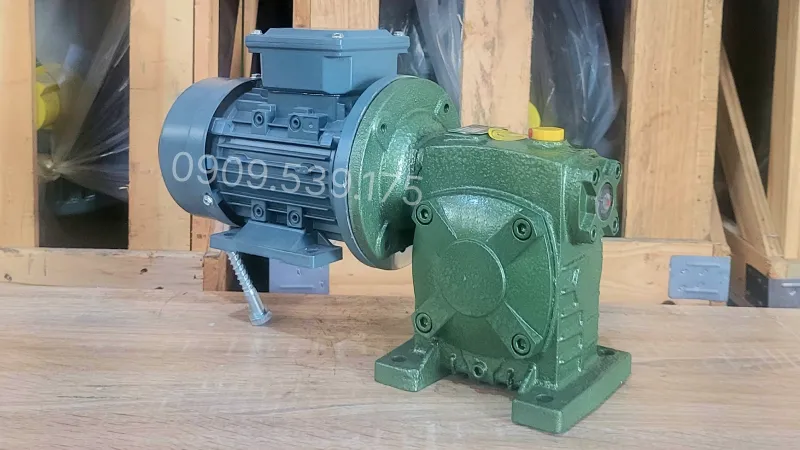

Common Applications of WPDS 60 Gear Motor 0.25kW 0.34Hp

The WPDS 60 Gear Motor 0.25kW 0.34Hp is a gear motor under 1.1kW with many common applications as follows:

• Conveyor systems for material transport in cement manufacturing, animal feed, and fertilizer plants.
• Conveyor systems for heavy material transport in cement, brick, or mineral plants.

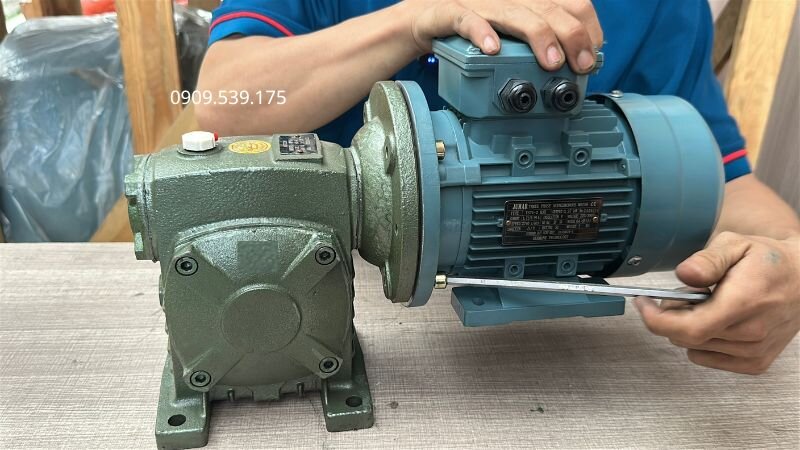

Installation Guide for Electric Motor with WPDS Gearbox

To ensure the WPDS gear motor system operates stably and minimizes damage during use, it is necessary to perform technically correct installation from the beginning, especially at the connection between the motor and the gearbox.

• Step 1: Place the electric motor and the WPDS gearbox in the correct installation position. Thoroughly check details such as shafts, flanges, keys, and bolts to ensure they are not warped, misaligned, or damaged before installation.
• Step 2: Proceed to insert the motor shaft into the input end of the gearbox. Properly align the shaft center between the two devices, then tighten the fixing bolts. Finally, rotate manually to test for smoothness, avoiding binding or vibration during operation.

The gear motor video guiding the installation of the WPDS gear motor by Thành Thái Motor helps viewers grasp the basic practical implementation steps. The content focuses on main operations such as alignment, coupling, and fixing the equipment. Suitable for technical technicians and beginners learning about the WPDS gear motor. Users can watch other summary videos at Thành Thái Motor to refer to more ways of installing and using the equipment.

Warranty, Shipping, and Commitment Policies at Thanh Thai Motor

When purchasing gearmotors at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 Months

All gearmotor products at Thanh Thai Motor come with an official 24-month warranty. We are committed to clear after-sales service, with quick and transparent processing procedures – ensuring customer peace of mind during use.

Nationwide Delivery

No matter which province or city you are in, Thanh Thai Motor is always ready to support fast delivery, ensuring on-time delivery, careful packaging, and safe transportation. We supply a full range of 220V gearmotors, variable speed motors, etc., for the diverse needs of customers nationwide.

Products Meet European Quality Standards with German Technology

Our products are manufactured using modern German technology, meeting European standards. Models such as integrated gearmotors, variable speed motors, or 220V gearmotors all ensure stable operation and superior durability.

Competitive Pricing, Good Discounts for Dealers and Bulk Purchasers

We offer affordable gearmotors, suitable for projects with limited budgets. In addition, Thanh Thai Motor has special policies and offers for dealers and bulk purchasers.

Quality Commitment

All 220V gearmotors here are wound with pure copper wire. This ensures powerful, smooth operation and energy savings.

Full Certification Documents: CO, CQ,...

All products such as integrated gearmotors, conveyor motors, or speed reducers come with full Certificates of Origin (CO) and Quality (CQ), meeting stringent technical requirements in industry.
