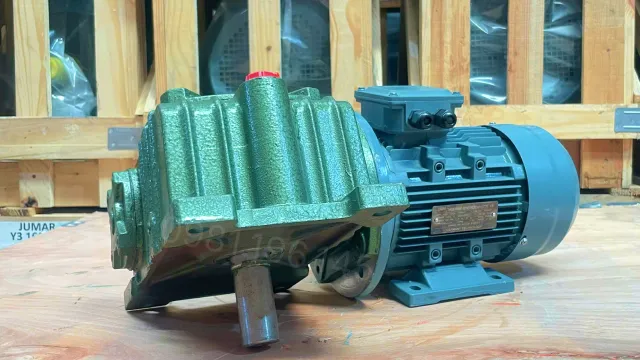

WPDX 50 Gear Motor 0.18kW 0.25Hp

The WPDX 50 Gear Motor 0.18kW 0.25Hp is a combination of an electric motor and a gearbox. This gear motor can be used with a 1-phase electric motor or a 3-phase electric motor, depending on the requirements and working environment. This combination helps create strong torque, slows down the rotational speed of the motor shaft, and increases pulling force, making it suitable for various industrial applications.

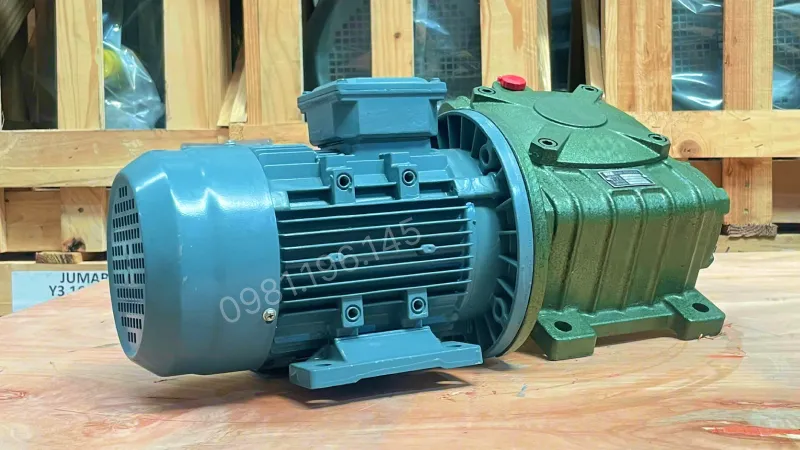

Overview of the WPDX 50 Gear Motor 0.18kW 0.25Hp

This gear motor belongs to the group of gear motors under 1.1kW, featuring a durable design and long service life. The outer casing is made of aluminum alloy or solid cast iron, coated with anti-corrosion electrostatic paint.

Inside is a 100% copper wire core combined with a hardened steel shaft, ensuring stable operation, power savings, and smooth performance over a long period. These two devices are assembled directly through two flange faces.

Detailed Structure of the Gear Motor

The worm gear motor has a simple structure consisting of the following parts:

• Electric motor: It is a 1-phase electric motor 0.18kW 0.25Hp or a 3-phase electric motor 0.18kW 0.25Hp
  • Outer casing: The entire outer casing is made of thick cast iron or aluminum, providing good impact resistance. The surface is coated with electrostatic paint to enhance aesthetics and prevent rust.
  • Stator (Stationary part): Pure copper windings wrapped around the core, creating a stable and strong magnetic field when current passes through.
  • Rotor (Rotating part): Consists of tightly pressed electrical steel laminations; the magnetic field acts to rotate the rotor, efficiently transmitting torque to the motor shaft.
  • Cooling fan: Equipped with a fan blade at the rear of the motor, helping to dissipate heat quickly, cool the motor effectively, and prevent thermal overload.

• Worm gearbox (Worm gear reducer) – WPDX 50 worm gearbox:
  • Outer casing: The gearbox casing is made of thick cast iron, externally coated with a dark blue electrostatic paint to enhance prominence and limit scratches.

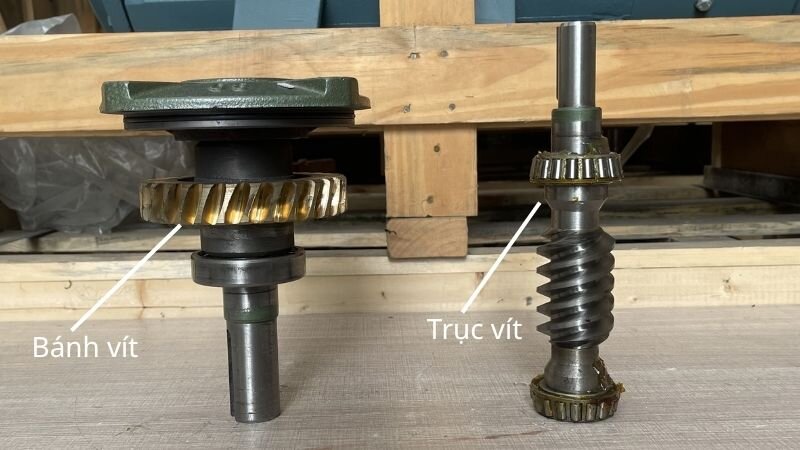

  • Worm shaft: A shaft made of high-temperature refined steel with high hardness and a smooth surface, helping the device operate smoothly.
  • Worm gear: The worm gears are manufactured with precision and mesh perfectly, ensuring quiet operation and reduced noise.
  • Lubricating oil and oil seal: The inside is equipped with specialized oil to lubricate the equipment, ensure smooth operation, and increase lifespan. Along with that, the oil seal prevents dust from entering and limits oil spilling outside, which could damage the gearbox.

Technical Specifications of the WPDX 50 0.18kW 0.25Hp Motor

The specification table of the WPDX 50 0.18kW gear motor helps engineers accurately determine the installation dimensions and actual load capacity. This data is an important basis for calculating torque and planning suitable mechanical connection solutions for mini systems.

Technical Specifications of the 3-Phase Electric Motor 0.18kW 0.25Hp

With an 11mm shaft and flexible flange type, the 0.25Hp electric motor allows for quick assembly into the gearbox structure. The Class F insulation standard helps the device withstand heat well, minimizing risks when operating in enclosed environments.

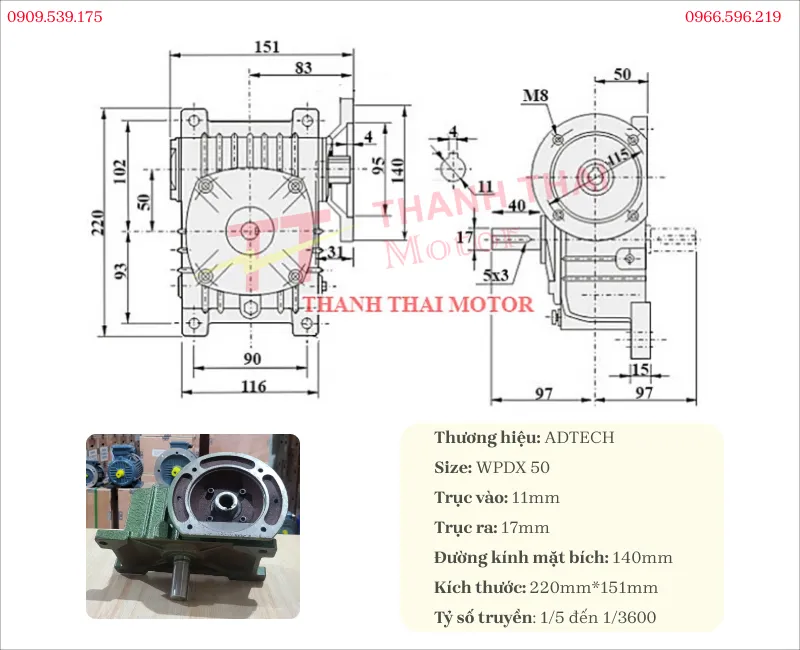

Technical Specifications of the WPDX 50 Gearbox

Below are the detailed specifications of the WPDX size 50 gearbox

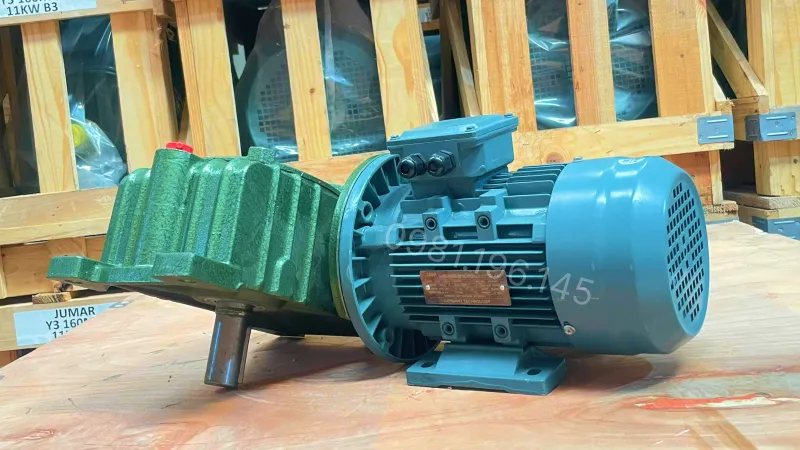

Practical Applications of the WPDX 50 Gear Motor 0.18kW 0.25Hp

This 1-phase gear motor or 3-phase gear motor is applied in many activities such as:

• Used in conveyors and conveyor belts for transporting goods.
• Agitators and mixers in the food and chemical industries.
• Mini cranes, lifting machines, and material handling systems.
• Small industrial pumps, packaging equipment, stamping, and labeling machines.

How to Assemble the WPDX Worm Gearbox with an Electric Motor to Form a Gear Motor

Proper handling helps protect the durability of the machinery; check out the guide below on how to assemble the gearbox with the electric motor to form the WPDX gear motor:

• Shaft alignment: Confirm absolute compatibility regarding shaft dimension standards between the two equipment units before starting.
• Position preparation: Hold the motor and WPDX gearbox in a fixed position to avoid vibration while inserting the shaft.
• Center alignment: Aim the protruding shaft of the electric motor directly at the center of the connection hole of the gearbox.
• Mechanical shaft insertion: Insert the motor shaft snugly into the gearbox decisively and carefully to avoid scratching the shaft.
• Lock the flange joint: Press the two machine blocks closely together so that the flanges fit tightly, creating maximum tightness for the contact surface.
• Tighten anchor bolts: Install nuts into the positioning holes around the flange and tighten them firmly to completely eliminate backlash during operation.

The combination of the electric motor and the worm gearbox helps the WPDX 50 Gear Motor 0.18kW 0.25Hp generate effective torque, well meeting the demands of mini conveyors, packaging machines, labeling machines, and many other automation applications.

For more information before making a selection, customers can refer to the compilation video of actual products or watch the gear motor video to learn in detail about the structure, technical specifications, and operating capabilities under each usage condition.

Warranty, Shipping, and Commitment Policies at Thanh Thai Motor

When purchasing gearmotors at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 Months

All gearmotor products at Thanh Thai Motor come with an official 24-month warranty. We are committed to clear after-sales service, with quick and transparent processing procedures – ensuring customer peace of mind during use.

Nationwide Delivery

No matter which province or city you are in, Thanh Thai Motor is always ready to support fast delivery, ensuring on-time delivery, careful packaging, and safe transportation. We supply a full range of 220V gearmotors, variable speed motors, etc., for the diverse needs of customers nationwide.

Products Meet European Quality Standards with German Technology

Our products are manufactured using modern German technology, meeting European standards. Models such as integrated gearmotors, variable speed motors, or 220V gearmotors all ensure stable operation and superior durability.

Competitive Pricing, Good Discounts for Dealers and Bulk Purchasers

We offer affordable gearmotors, suitable for projects with limited budgets. In addition, Thanh Thai Motor has special policies and offers for dealers and bulk purchasers.

Quality Commitment

All 220V gearmotors here are wound with pure copper wire. This ensures powerful, smooth operation and energy savings.

Full Certification Documents: CO, CQ,...

All products such as integrated gearmotors, conveyor motors, or speed reducers come with full Certificates of Origin (CO) and Quality (CQ), meeting stringent technical requirements in industry.
