WPDA 135 Gear Motor 4kW 5.5Hp

WPDA 135 Gear Motor 4kW 5.5Hp is the perfect combination of an electric motor – 3-phase electric motor and a gearbox – worm gearbox, creating a synchronous, efficient, and easy-to-use drive system.

The gear motor is manufactured with high precision, helping to reduce the rotational speed of the output shaft while transmitting high torque to machinery components. The device operates smoothly, with low vibration and noise, and is highly rated for its stability, power-saving capability, and suitability for various modern industrial production systems.

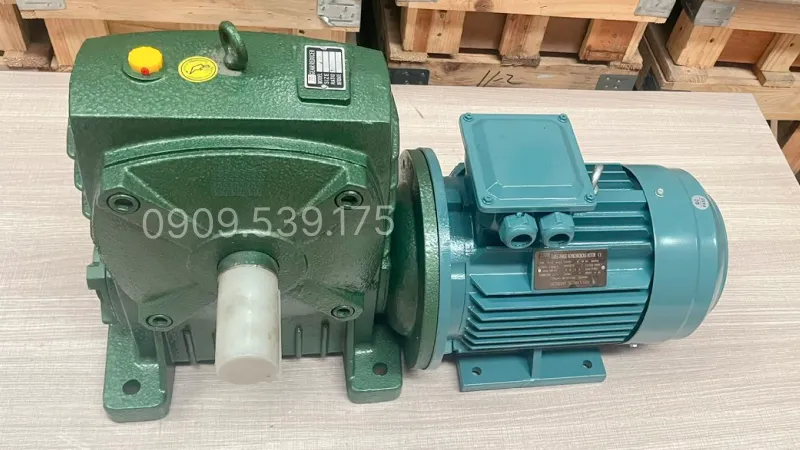

Overview of WPDA 135 Gear Motor 4kW 5.5Hp

The worm gear motor features a robust construction, excellent load capacity, and efficient operation under various working conditions. Thanks to its sturdy design and quality materials, this 3-phase gear motor can operate continuously for long periods without affecting performance.

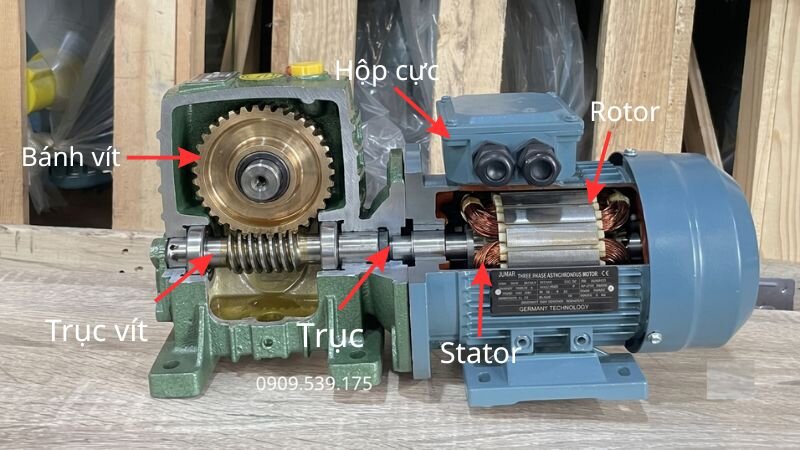

Detailed structure of WPDA 135 Gear Motor 4kW 5.5Hp

As a gear motor line above 3.7kW, the WPDA 135 Gear Motor 4kW 5.5Hp consists of the following main components:

• 3-phase electric motor 4.0kW 5.5Hp
  • Outer housing: Made of sturdy cast iron or die-cast aluminum, powder-coated to prevent oxidation, suitable for dusty or humid environments.
  • Stator (Stationary part): Contains copper windings wrapped around a steel core, creating a strong magnetic field to help the motor run smoothly and stably.
  • Rotor (Rotating part): Made of engineering steel, ensuring high precision during motion transmission.
  • Cooling fan: Installed at the rear of the motor to help dissipate heat quickly and maintain a safe temperature during continuous operation.
• WPDA 135 worm gearbox
  • Gearbox housing: Thick cast housing with a protective surface painted to prevent wear and limit rust.
  • Worm shaft: Made of high-grade alloy steel, possessing high hardness and heavy load capacity.
  • Worm gear: Made of pure bronze, accurately meshed, running smoothly and reducing friction.
  • Lubricating oil and oil seals: Help the equipment operate smoothly and seamlessly. The seals help prevent oil leakage, avoid contaminating and damaging the housing, and extend the lifespan of the entire system.

Specifications of WPDA 135 Gear Motor 4kW 5.5Hp

Below are the specification table and drawing of the WPDA 135 Gear Motor 4kW 5.5Hp

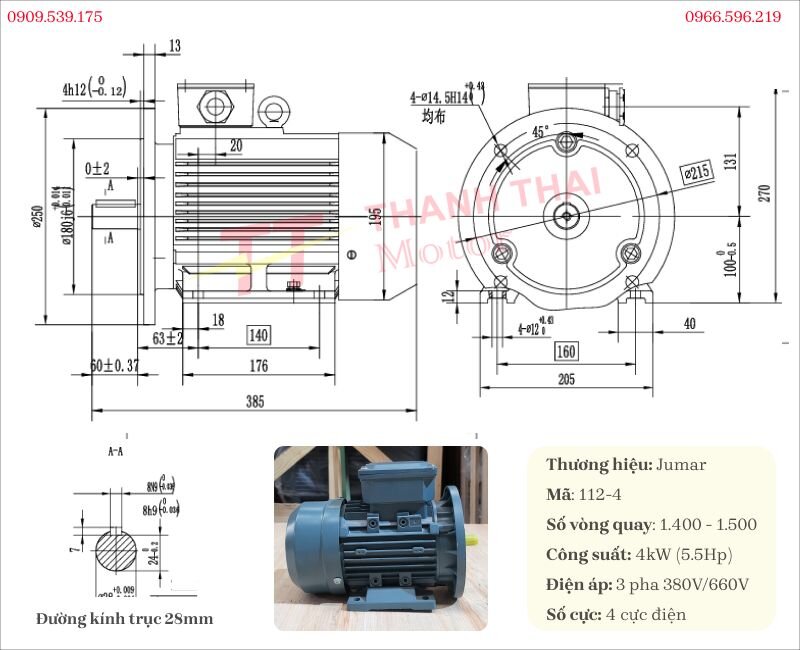

Specifications of 3-phase electric motor 4kW 5.5Hp

The 3-phase electric motor 4kW 5Hp features a sturdy design

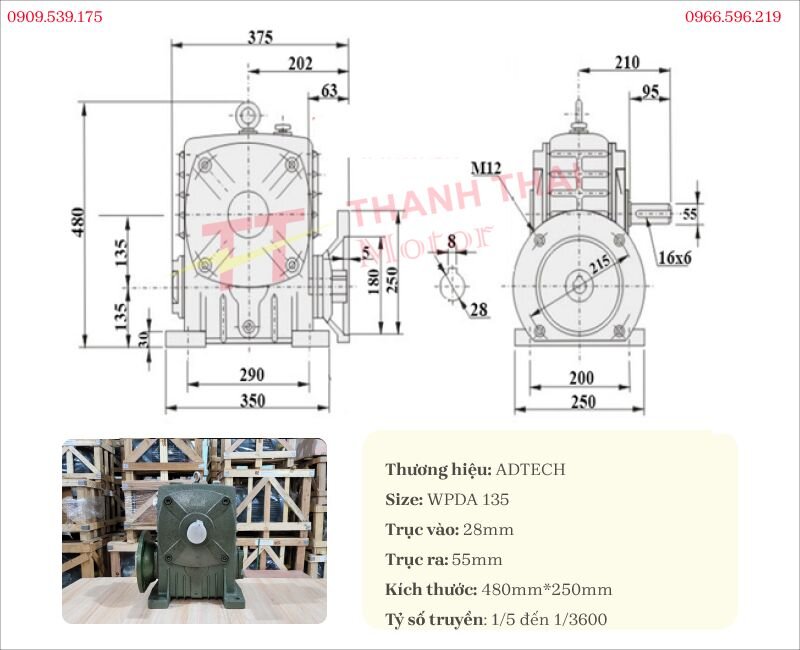

WPDA 135 gearbox specifications

The WPDA 135 gearbox features a sustainable design, precision machining, and good load capacity, helping to transmit torque efficiently, operate smoothly, and maintain high stability in various industrial applications.

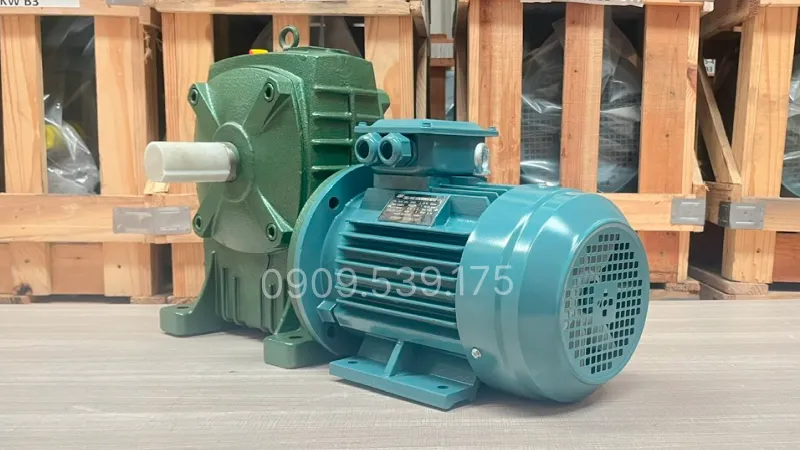

Practical applications of WPDA 135 Gear Motor 4kW 5.5Hp

The WPDA 135 Gear Motor 4kW 5.5Hp is commonly used in many industries:

• Conveyor lines and conveyor belts in goods manufacturing plants.
• Mixers, crushers, and agitators in the food, chemical, and building materials industries.
• Automatic packaging, filling, and labeling machines in modern production lines.
• Lifting systems, winches, hydraulic lifting tables, industrial doors, or overhead cranes.

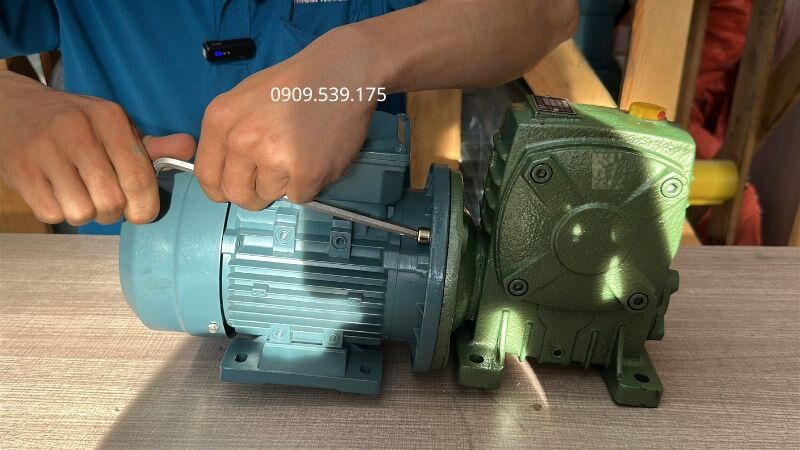

Instructions for installing electric motor to speed reducer

The process of connecting the electric motor to the worm gearbox is carried out as follows:

• Step 1: Place the electric motor and the WPDA gearbox on a flat surface, check and adjust the position so that the motor shaft aligns with the input shaft of the gearbox.
• Step 2: Proceed to install and tighten the connecting bolts between the motor and gearbox, ensuring the drive assembly is securely fixed before operation.

The gear motor video guiding the installation of the WPDA gear motor presents all stages from preparation, alignment to complete assembly. The content is illustrated practically, helping users easily perform proper techniques, improve work efficiency, and extend equipment lifespan. Discover more useful instructional video compilations at Thanh Thai Motor.
