WPDO 155 5.5kW 7.5Hp Gear Motor

The WPDO 155 5.5kW 7.5Hp Gear Motor is a product of Thanh Thai Motor company, featuring versatile functions, a compact design, popular applications, and various advantages to meet the diverse usage needs of customers.

General design overview of WPDO 155 5.5kW 7.5Hp Gear Motor

As a gear motor assembled from an electric motor combined with a gearbox featuring a unique design, powerful operation, and long equipment lifespan, it has a sturdy cast iron outer housing and an electrostatic powder coating to protect the equipment against scratches and rust.

Detailed structure of WPDO 155 5.5kW 7.5Hp Gear Motor

The worm gear motor, more specifically a 3-phase gear motor line, is a combination of a 3-phase electric motor installed with a WPDO worm gearbox, commonly used in large-scale industrial factories.

3-phase electric motor 5.5kW 7.5Hp:

• The exterior housing is made of cast iron or high-grade engineered aluminum, featuring a compact and convenient exterior design.
• Stator: Cast from 100% solid copper, it is the stationary part, and the stator operates when current passes through.
• Rotor: The rotating inner part of the motor, constructed from high-tech steel laminations, rotates thanks to the magnetic field generated by the stator.

WPDO 155 worm gearbox:

• The outer housing is made of high heat-resistant cast iron, coated with a gray paint layer, helping to prevent rust, resist moisture, and effectively resist corrosion in dusty environments or mild chemicals.
• Worm gear: Sturdily designed, constructed from copper alloy, helping the equipment run smoother and limiting noise.
• Worm shaft: The shaft located inside the gearbox, constructed from durable steel to minimize heat generation.

Specifications of WPDO 155 5.5kW 7.5Hp Gear Motor

The specifications below help evaluate operational performance as well as select equipment suitable for specific application requirements.

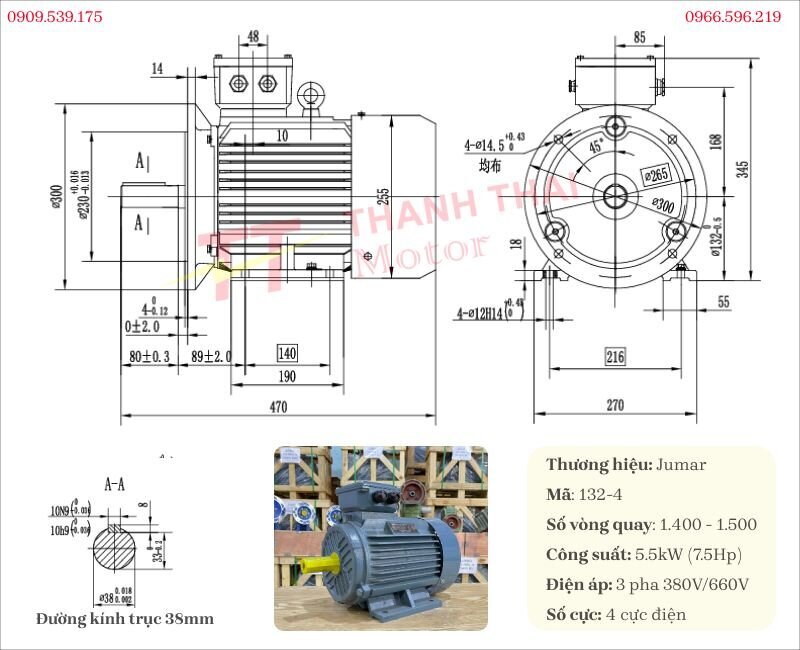

Specifications of 3-phase electric motor 5.5kW 7.5Hp

This parameter group reflects the electrical characteristics and working efficiency of the motor.

Specifications of WPDO 155 worm gearbox

The mechanical parameters of the gearbox indicate the transmission characteristics and installation features of the equipment.

Common applications of WPDO 155 5.5kW 7.5Hp Gear Motor

Being a gear motor above 3.7kW, it has many common applications as follows:

• Used in industrial rice production and packaged feed factories.
• Used in conveyor belts transporting coal, bricks, cement.
• Used in asphalt pressing and wood pressing plants.

How to install the WPDO worm gearbox onto a 3-phase electric motor

Connecting the WPDO gearbox to the 3-phase electric motor must be performed correctly to ensure transmission capacity and limit incidents during operation.

Step 1: Inspect the equipment

Prepare the gearbox, electric motor, keys, bolts, and related components thoroughly. Check the condition of parts to ensure no damage or deformation before assembly.

Step 2: Compare specifications

Check the motor shaft diameter, bore size, and assembly positions. Comparing specifications helps connect parts accurately and more conveniently.

Step 3: Perform connection

Insert the key into the shaft groove, then bring the motor into the assembly position with the gearbox. The operation should be performed gently to avoid misalignment or affecting the mating surfaces. Users can refer to the gear motor video to observe the execution process in detail.

Step 4: Complete installation

Secure the connecting bolts and tighten evenly across all positions. Then run the system for a trial to check operating capability and detect abnormal signs if any.

For more experience in equipment installation and maintenance, users should refer to the comprehensive videos related to the WPDO gearbox and 3-phase electric motor.

Warranty, Shipping, and Commitment Policies at Thanh Thai Motor

When purchasing gearmotors at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 Months

All gearmotor products at Thanh Thai Motor come with an official 24-month warranty. We are committed to clear after-sales service, with quick and transparent processing procedures – ensuring customer peace of mind during use.

Nationwide Delivery

No matter which province or city you are in, Thanh Thai Motor is always ready to support fast delivery, ensuring on-time delivery, careful packaging, and safe transportation. We supply a full range of 220V gearmotors, variable speed motors, etc., for the diverse needs of customers nationwide.

Products Meet European Quality Standards with German Technology

Our products are manufactured using modern German technology, meeting European standards. Models such as integrated gearmotors, variable speed motors, or 220V gearmotors all ensure stable operation and superior durability.

Competitive Pricing, Good Discounts for Dealers and Bulk Purchasers

We offer affordable gearmotors, suitable for projects with limited budgets. In addition, Thanh Thai Motor has special policies and offers for dealers and bulk purchasers.

Quality Commitment

All 220V gearmotors here are wound with pure copper wire. This ensures powerful, smooth operation and energy savings.

Full Certification Documents: CO, CQ,...

All products such as integrated gearmotors, conveyor motors, or speed reducers come with full Certificates of Origin (CO) and Quality (CQ), meeting stringent technical requirements in industry.
