2-Stage UDL 1.5kW – WPDO 100 Gear Motor

The 2-Stage UDL 1.5kW – WPDO 100 Gear Motor is a gear motor line combined from two devices: a 2-stage gearbox coupled with a 3-phase electric motor, featuring a robust design, smooth operation, and easy adaptability to various production environments.

The WPDO 100 gearbox features a right-angle output shaft, making it easy to install in confined spaces or machines requiring a change in transmission direction. The 2-stage UDL mechanical speed variator allows stepless speed adjustment, enabling operators to choose the appropriate speed for each stage of the production line. This is an ideal choice for systems requiring stability and flexibility.

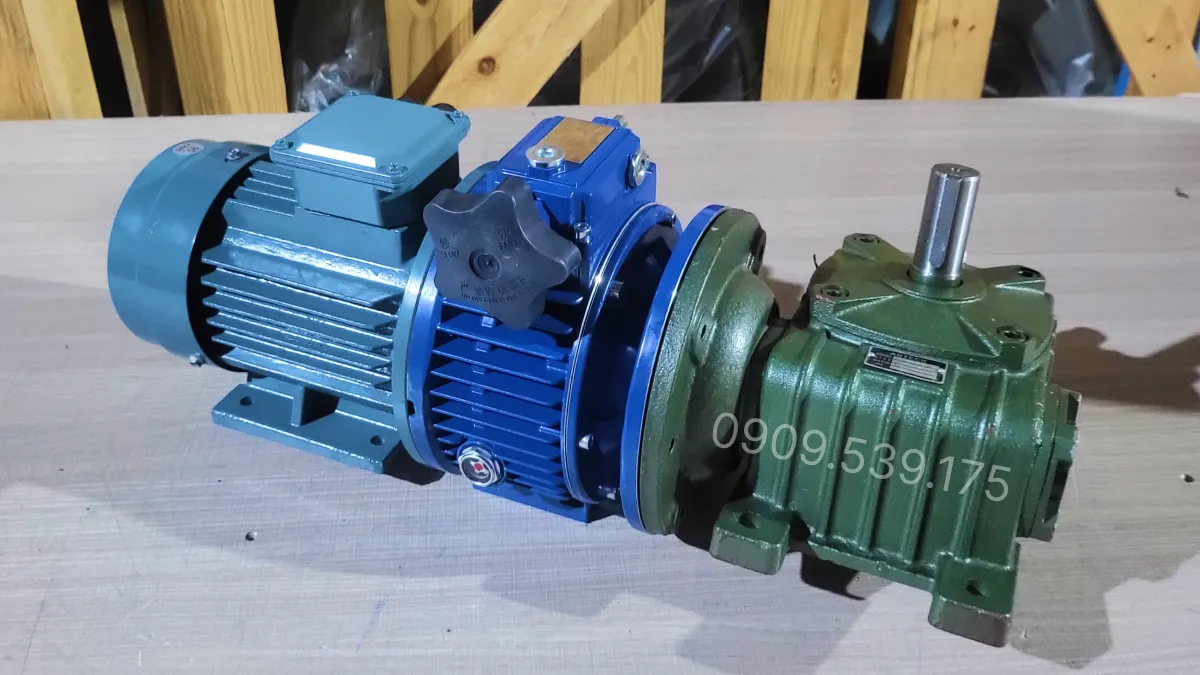

Overall design of the 2-Stage UDL 1.5kW – WPDO 100 Gear Motor

The 2-Stage UDL 1.5kW – WPDO 100 Gear Motor is a product line developed with a design focused on stability, durability, and precise transmission performance, well-meeting the operational requirements of many modern industrial systems. The product features a compact design, making it easy to install in space-restricted locations. Constructed from pure cast iron or aluminum, the exterior housing is coated with electrostatic paint to prevent scratches during operation.

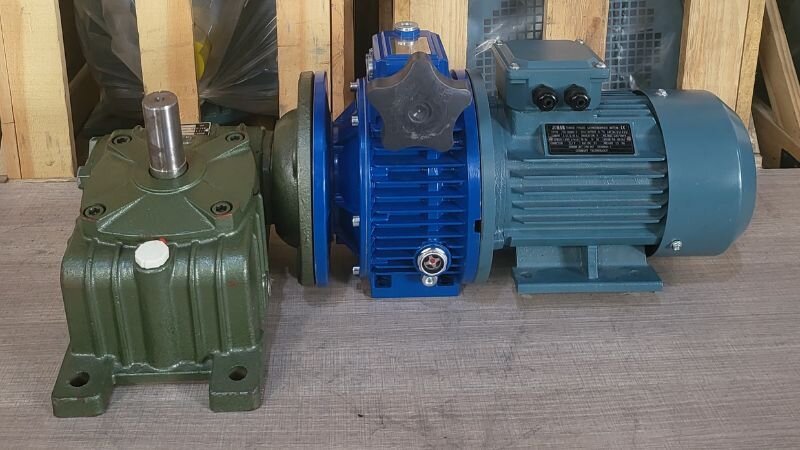

Detailed structure of the UDL – WPDO 2-stage gear motor

The 2-Stage UDL 1.5kW – WPDO 100 Gear Motor is a gear motor series ranging from 1.1kW to 3.7kW, assembled from a 3-phase 1.5kW 2Hp electric motor and a 2-stage UDL 1.5kW – WPDO 100 gearbox. The details are as follows:

Electric motor structure:

• Durable cast iron or die-cast aluminum motor housing with large cooling ribs.
• Standard 3-phase copper-wound stator creating a strong magnetic field and reducing power loss.
• Statically and dynamically balanced rotor, running smoothly and vibration-free under changing loads.
• Hardened steel shaft with anti-wear coating, suitable for industrial environments.

Gearbox structure:

• 1-Stage – 1.5kW 2Hp mechanical speed variator changing the input speed via a friction mechanism or gears before transmitting to the next stage.
• 2-Stage – Worm gearbox, specifically the WPDO 100 worm gearbox made of solid, rugged, and durable cast iron, combined with an electrostatic paint layer to prevent rust.
• Input – output shaft: The input shaft receives power from the motor; the output shaft transmits the decelerated power to the driven machine.
• Gearbox housing: Cast iron/die-cast aluminum housing enclosing the transmission, increasing rigidity and reducing vibration.

Technical specifications of the 2-Stage UDL 1.5kW – WPDO 100 Gear Motor

Below is a summary of essential information regarding the electric motor, mechanical speed variator, and gearbox, supporting the selection, installation, and high-efficiency operation process.

Technical specifications of the 3-phase 1.5kW 2Hp electric motor

Technical specifications of the UDL 1.5kW 2Hp mechanical speed variator

Technical specifications of the WPDO 100 gearbox

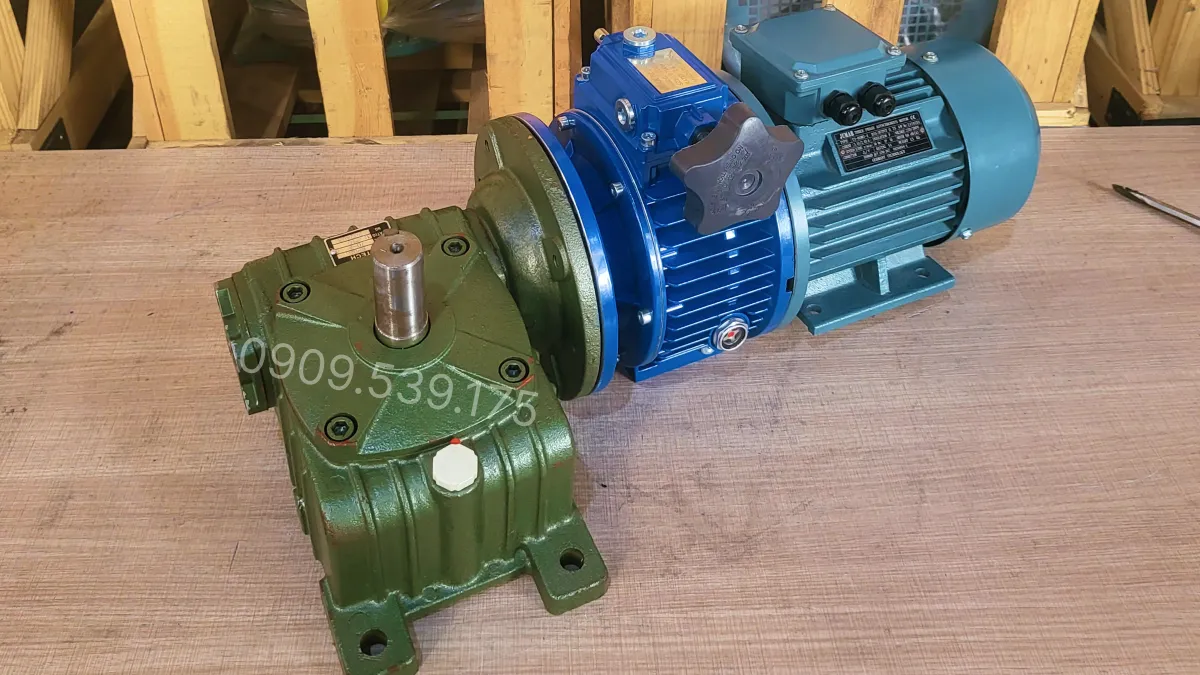

Applications of the 2-stage gear motor

With deep reduction capabilities and versatile speed adjustment, the motor is used in numerous production equipment.

• Material winding and unwinding machines.
• Slow-rotating machines and agitators in product processing or finishing.
• Screw conveyor systems for bulk material transportation.
• Slow-mixing tanks and blenders in food, chemical, and agricultural production.

How to assemble an electric motor with a mechanical speed variator and WPDO worm gearbox to form a 2-stage gear motor

Let’s couple the motor to create a 2-stage gear system with flexible speed adjustment following the step-by-step instructions below:

• Coupling motor and speed variator: Align the flange of the 3-phase motor with the input shaft end of the UDL B5 mechanical speed variator. Tighten all fixing bolts.
• Coupling speed variator & WPDO gearbox: Take the recently assembled unit and match the output section of the mechanical speed variator with the input of the WPDO gearbox. Install screws and tighten the connecting flange.
• Inspection: Check the rigidity of the couplings, ensuring that the 3 components have formed a solid coaxial 2-stage drive assembly before operation.

The right-angle transmission capability of the WPDO 100 gearbox on the 2-Stage UDL 1.5kW – WPDO 100 Gear Motor helps businesses optimize floor space in manufacturing workshops with limited space. The stepless speed control mechanism from UDL gives operators absolute initiative when they need to customize fast or slow speeds for each stage of the product finishing line.
