Explosion-Proof Motor 11kW 15Hp

The Explosion-Proof Motor 11kW 15Hp converts electrical energy into mechanical energy, allowing the motor to operate at full capacity. This product is an optimal solution widely used in large and small industrial sectors due to its high level of safety. Let’s explore this explosion-proof motor with Thanh Thai Motor!

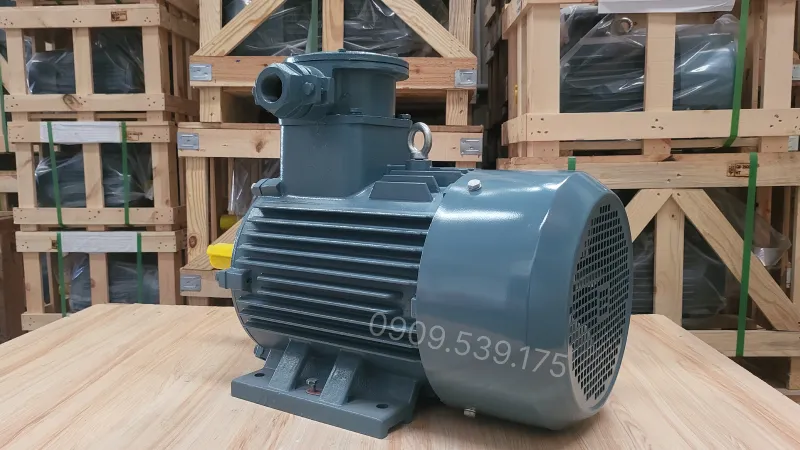

Overview Design of the 11kW 15Hp Explosion-Proof Motor

As an explosion-proof motor product belonging to the category of explosion-proof motors above 3.7kW, it features a thick cast iron outer casing designed to ensure the internal parts remain safe and withstand impact factors.

Inside the electric motor, larger copper windings are equipped compared to conventional motors, providing better heat resistance and stable operation in high-temperature environments.

Additionally, the explosion-proof motor is specially designed to prevent the risk of fire and explosion in the event of an electrical short circuit, meeting strict safety standards in hazardous environments such as mines, chemical plants, petroleum warehouses, etc.

Internal Structure of the 11kW 15Hp Explosion-Proof Motor

To maintain continuous operating performance at 11kW and ensure absolute safety in chemical or gas environments, all internal components of the motor must meet explosion-proof certifications.

• Stator: The stationary magnetic field core is pressed from low-loss electrical steel sheets. The pure copper winding is coated with a thick insulation layer and impregnated with multi-layer Class F vacuum varnish to withstand high temperatures and completely prevent electrical discharge.
• Rotor: The robust solid-cast squirrel-cage rotating core features an extremely smooth surface finish and computer dynamic balancing to completely eliminate mechanical friction that causes sparks inside the motor chamber.
• Bearings: Assembled with heavy-duty bearings from world-leading brands. The bearing system is integrated with multi-layer oil seals and non-flammable lubricating grease to prevent dust and gas from entering the shaft.
• Cooling system: The centrifugal cooling fan blades must be made of anti-static plastic or specialized aluminum alloy material to avoid generating static sparks when rubbing against the air.

What Types of 11kW 15Hp Explosion-Proof Motors Are Available?

The 11kW 15Hp explosion-proof motor product line is manufactured with 4 different rotational speed segments, helping engineers easily match the transmission characteristics of each industrial machine. Below are the standard technical specifications for each type:

Explosion-Proof Motor 11kW 15Hp 2 Poles (2,800 – 3,000 rpm)

This line focuses on high speed, suitable for equipment requiring large flow rates in a short time.

Technical specifications:

Model	160M
Shaft diameter	42mm
Keyway	12mm
Flange diameter	350mm
Weight	105kg
Dimensions	615 x 315 x 410 mm
Mounting type	Foot mount (B3), Flange mount (B35, B5, B14)
Protection class	IP55
Insulation class	Class F

Applications:

• Operating equipment for centrifugal air compressors in industrial gas lines to ensure stable flow transport.
• Supporting centrifugal pumps operating in explosive filling station conditions without generating high heat.
• Participating in boost ventilation systems to quickly circulate air for mines to immediately release toxic gases.

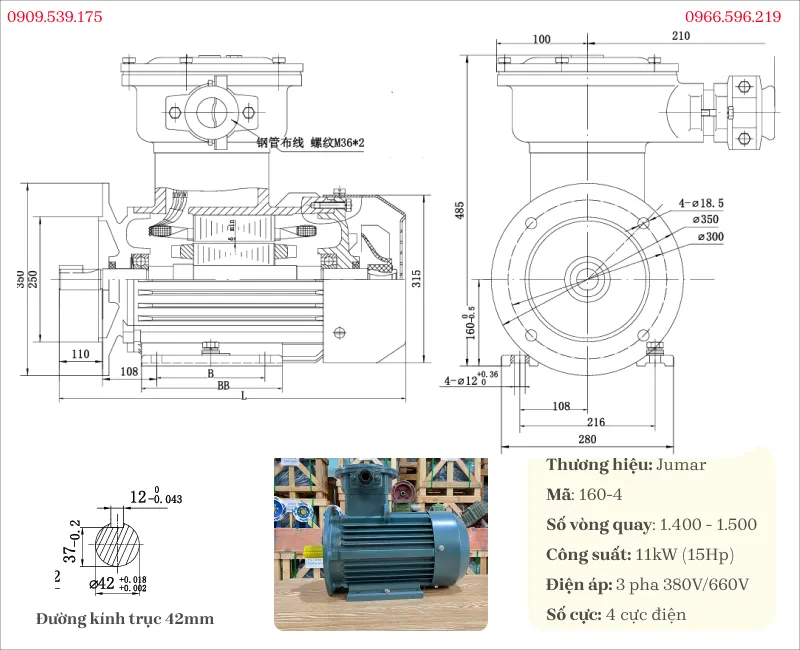

Explosion-Proof Motor 11kW 15Hp 4 Poles (1,400 – 1,500 rpm)

This is the standard rotational speed, providing optimal balance between torque and mechanical durability for heavy-duty equipment.

Technical specifications:

Model	160M
Shaft diameter	42mm
Keyway	12mm
Flange diameter	350mm
Weight	110kg
Dimensions	615 x 315 x 410 mm
Mounting type	Foot mount (B3), Flange mount (B35, B5, B14)
Protection class	IP55
Insulation class	Class F

Applications:

• Driving continuous mine ore transport conveyors underground without worrying about electrical short circuits.
• Used for screw air compressors in environments with high chemical vapor concentrations requiring absolute explosion safety.
• Operating large-scale industrial mixing machines in workshops to maintain stable mixing force throughout the working shift.

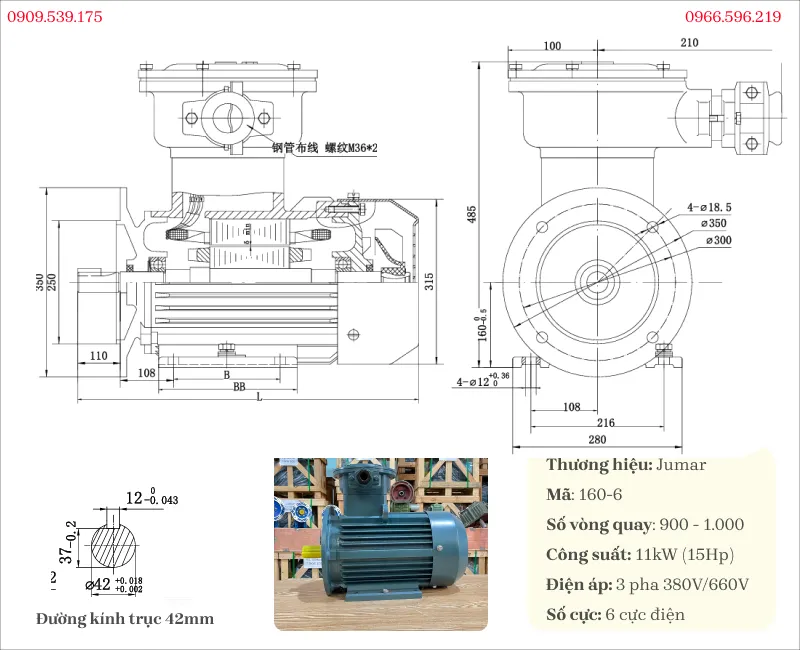

Explosion-Proof Motor 11kW 15Hp 6 Poles (900 – 1,000 rpm)

This line is designed to create extremely strong torque, serving equipment with large loads and high inertia.

Technical specifications:

Model	160L
Shaft diameter	42mm
Keyway	12mm
Flange diameter	350mm
Weight	125kg
Dimensions	670 x 315 x 410 mm
Mounting type	Foot mount (B3), Flange mount (B35, B5, B14)
Protection class	IP55
Insulation class	Class F

Specialized applications:

• Ore grinding machines operating with heavy loads in flammable coal dust environments.
• Heavy-duty chain conveyors transporting raw ore from mining areas to storage yards.
• Bucket elevators lifting raw materials at industrial chemical mixing stations.
• Large-volume material mixers operating continuously in areas with high explosive dust concentrations.

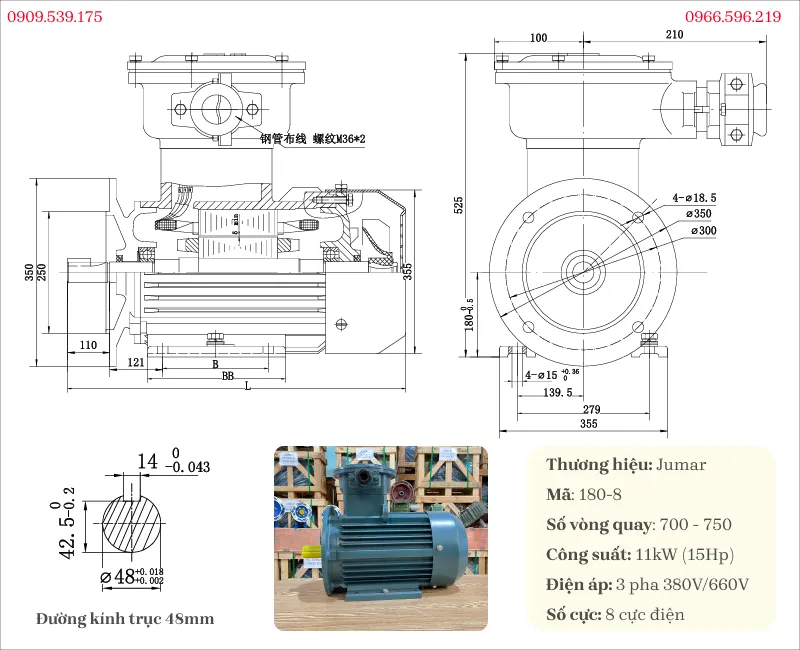

Explosion-Proof Motor 11kW 15Hp 8 Poles (700 – 750 rpm)

The slowest speed, providing the largest starting torque, optimal for movements requiring high precision and strong thrust.

Technical specifications:

Model	180L
Shaft diameter	48mm
Keyway	14mm
Flange diameter	350mm
Weight	160kg
Dimensions	700 x 360 x 440 mm
Mounting type	Foot mount (B3), Flange mount (B35, B5, B14)
Protection class	IP55
Insulation class	Class F

Applications:

• Cargo winch systems at mining ports helping move super-heavy load materials with well-controlled speeds.
• Lifting mechanisms in weapon or explosive material warehouses requiring high safety and slowness in every operation.
• Material calcining rotary kilns in industrial gas environments helping materials cook evenly thanks to slow rotation speed and strong pulling force.

Which Gearbox Does the 11kW 15Hp Explosion-Proof Motor Combine With?

Pairing the 11kW explosion-proof motor with transmission equipment requires extremely strict safety factor calculations to ensure the gearbox is not broken under the pulling force of the 15Hp motor.

• Helical gear heavy-duty gearbox: This is the standard option. Large gearbox models such as R77, R87 or K77, K87 fully immersed in oil are often used to pull mining conveyor systems.
• Hollow shaft worm gearbox: Can be paired with vertical worm gearboxes models WPA, WPS size 135 or 155 used in large-capacity mixing tanks.
• Drive coupling: It is mandatory to use hydraulic couplings or explosion-proof standard steel disc couplings for smooth starting, eliminating mechanical shock loads, and preventing friction-induced sparks.

Guide on How to Wire the Explosion-Proof Motor

To ensure the practical process is safe and accurate, follow the 5-step procedure directly below:

Step 1: Read equipment specifications

Before operating, you should watch the electric motor video to clearly understand the structure and technical indices of the motor. Understanding the equipment helps you choose the most correct wiring method.

Step 2: Open the terminal box cover

Use mechanical tools to remove the fixing bolts and take out the wiring box cover. The identification sign of this machine line’s terminal box is the letter “EX” printed on the cover.

Step 3: Locate the terminal studs

Observe the inside of the just-opened terminal box. You need to find and accurately identify the 3 copper contact studs marked with U, V, and W.

Step 4: Connect the power cable

Connect the 3 power wires respectively to the 3 newly found U, V, and W studs. Note that you must tighten the connection ends securely to avoid looseness causing electrical sparking during operation.

Step 5: Completion

Thus, you have completed the basic electrical wiring. To refer to more wiring diagrams for other machine lines, you can search for and watch technical summary videos on the Thanh Thai Motor channel.

Warranty, shipping and commitment policy at Thanh Thai Motor

Warranty up to 24 months

All electric motor products distributed by Thanh Thai Motor are covered by a genuine warranty for up to 24 months. Customers who purchase electric motors can completely rest assured with a transparent, fast, and professional after-sales policy.

Nationwide Shipping

Thanh Thai Motor supports nationwide shipping for all electric motors sold, ensuring safe and on-time delivery to every province across the country. Whether you are in the North, Central, or South, we are ready to serve you.

European Standard Quality – German Technology

Thanh Thai Motor sells electric motors manufactured with German technology, meeting European quality standards, ensuring durability, high efficiency, and stable operation for a long period – suitable for the strict requirements of industrial electric motors.

Competitive Prices – Attractive Offers for Dealers and Wholesale Customers

We commit to reasonable motor prices, offering the best electric motor products with high discount policies for bulk purchasers and distribution units. The more you buy – the better the profit.

Quality Commitment – Powerful Operation, Power Saving

Thanh Thai Motor sells electric motors wound with 100% copper wire, helping the machine run powerfully, consume less electricity, operate smoothly, and effectively reduce vibration – extending equipment lifespan. When purchasing an electric motor, prioritizing products with 100% copper core will be a wise decision, bringing long-term value.

At Thanh Thai Motor, we provide a full range of products, with various phases and capacities, such as:

• 220V electric motors (or 220V 1-Phase electric motors) are 1-Phase electric motors commonly chosen for many household appliances and light industrial equipment, offering convenience and efficiency.
• 380V electric motors are 3-Phase electric motors using three-phase power, commonly used in heavy industrial applications.

Full CO, CQ Certification Documents

Thanh Thai Motor provides the best quality electric motors. Each imported electric motor product from Thanh Thai Motor comes with a Certificate of Origin (CO) and a Certificate of Quality (CQ), meeting the requirements for large projects, constructions, and strict technical documentation.

Contact for Purchase

Do you need to buy an electric motor or seek advice on choosing an affordable electric motor that suits your needs? Contact Thanh Thai Motor immediately using the methods below:

• WhatsApp: +84966596219
• Email: codienthanhthai@gmail.com

Choosing the right power explosion-proof motor not only helps equipment operate stably but also ensures absolute safety for the entire production system. With standard quality and dedicated technical services, Thanh Thai Motor is always ready to support customers as quickly as possible. Contact us immediately for advice on the most optimal solution!
