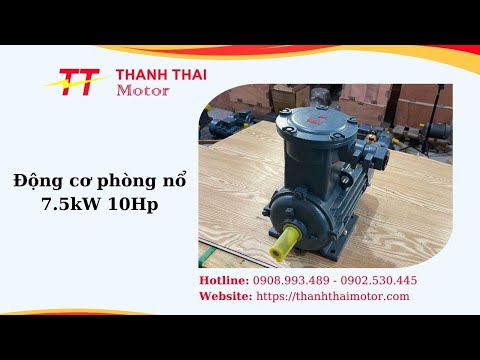

Explosion-Proof Motor 7.5kW 10Hp

The Explosion-Proof Motor 7.5kW 10Hp is a perfect solution for converting electrical energy into mechanical energy, helping the motor operate at full load and safely in explosive environments. This is an essential product in the industry, especially in areas requiring high safety and harsh working environments. Let’s learn about this product with Thanh Thai Motor!

General design of the Explosion-Proof Motor 7.5kW 10Hp

This explosion-proof motor is a product in the explosion-proof motor segment above 3.7kW, machined with a thick cast iron housing, good load-bearing and impact resistance, providing comprehensive protection for internal components.

The internal conductors are designed larger than smaller capacity lines, helping to increase heat resistance, suitable for high-temperature production environments.

In addition, this electric motor line also has a specialized structure to prevent explosions caused by electrical sparks or short-circuit incidents, ensuring maximum safety for the system and personnel during operation.

Internal structure of the Explosion-Proof Motor 7.5kW 10Hp

To maintain continuous operating performance at 7.5kW and ensure absolute safety in chemical or gas environments, the internal parts of the motor must all achieve explosion-proof certification.

• Stator: Static magnetic field block pressed from technical steel sheets with low magnetic loss. Pure copper windings are coated with a thick insulation layer, multi-layer vacuum varnish impregnated to Class F standards to withstand high temperatures and absolutely prevent electrical discharge.
• Rotor: Sturdy solid-cast squirrel cage rotating core, with an extremely smooth surface machining and computer dynamic balancing to completely eliminate mechanical friction causing sparks inside the machine chamber.
• Bearings: Assembled with heavy-duty bearings from world-leading brands. The bearing system is integrated with multi-layer seals and uses non-flammable lubricating grease to prevent dust and gas from entering the shaft.
• Cooling system: The centrifugal cooling fan blade must be made of anti-static plastic or specialized aluminum alloy material to avoid generating static sparks when rubbing against the air.

What types of explosion-proof electric motors 7.5kW 10Hp are available?

The Explosion-Proof Motor 7.5kW 10Hp product line is manufactured with 4 different rotational speed segments, helping engineers easily compatibility with the drive characteristics of each industrial machine. Below are the standard technical specifications for each type:

Explosion-proof motor 7.5kW 10Hp 2 poles (2,800 – 3,000 RPM)

This line focuses on high speed, suitable for equipment requiring large flow in a short time.

Technical specifications:

Model	132S
Shaft diameter	38mm
Keyway	10mm
Flange diameter	300mm
Weight	65kg
Dimensions	510 x 260 x 340 mm
Mounting type	Foot mount (B3), Flange mount (B35, B5, B14)
Protection class	IP55
Insulation class	Class F

Applications:

• Equipment operating centrifugal compressors in industrial gas lines to ensure stable transport flow.
• Products supporting centrifugal pumps operating in flammable filling station conditions without generating high heat.
• Motors participating in boost ventilation systems to quickly circulate air for mines to instantly release toxic hazards.

Explosion-proof motor 7.5kW 10Hp 4 poles (1,400 – 1,500 RPM)

This is the standard rotational speed, providing optimal balance between torque and mechanical durability for heavy-duty equipment.

Technical specifications:

Model	132M
Shaft diameter	38mm
Keyway	10mm
Flange diameter	300mm
Weight	75kg
Dimensions	510 x 260 x 340 mm
Mounting type	Foot mount (B3), Flange mount (B35, B5, B14)
Protection class	IP55
Insulation class	Class F

Applications:

• Products driving mine ore transport conveyors continuously in tunnels without worrying about short circuit incidents.
• Motors used for screw air compressors in environments with high chemical vapor concentrations requiring absolute explosion safety.
• Equipment operating large-scale industrial mixing machines in production workshops to maintain stable stirring force throughout the work shift.

Explosion-proof motor 7.5kW 10Hp 6 poles (900 – 1,000 RPM)

This line is designed to create extremely strong torsional force, serving equipment with large loads and high inertia.

Technical specifications:

Model	160M
Shaft diameter	42mm
Keyway	12mm
Flange diameter	350mm
Weight	125kg
Dimensions	670 x 315 x 410 mm
Mounting type	Foot mount (B3), Flange mount (B35, B5, B14)
Protection class	IP55
Insulation class	Class F

Applications:

• Ore crushers operating with heavy loads in flammable coal dust environments.
• Heavy-duty chain conveyors transporting raw ore from mining areas to storage yards.
• Elevating buckets for raw materials at industrial chemical material mixing stations.
• Large-volume raw material mixers operating continuously in areas with high explosive dust concentrations.

Explosion-proof motor 7.5kW 10Hp 8 poles (700 – 750 RPM)

The slowest speed, providing the largest starting torque, optimal for movements requiring high precision and strong thrust.

Technical specifications:

Model	160L
Shaft diameter	42mm
Keyway	12mm
Flange diameter	350mm
Weight	125kg
Dimensions	670 x 315 x 410 mm
Mounting type	Foot mount (B3), Flange mount (B35, B5, B14)
Protection class	IP55
Insulation class	Class F

Applications:

• Cargo winching systems at mining ports helping move heavy load materials with well-controlled speeds.
• Lifting mechanisms in armories or explosive materials warehouses requiring high safety and slowness in each operation.
• Material calcining rotary kilns in industrial gas environments helping materials ripen evenly thanks to slow rotation speed and strong pulling force.

Which gearbox does the 7.5kW 10Hp explosion-proof motor combine with?

Pairing the 7.5kW explosion-proof motor with drive equipment requires extremely strict safety factor calculations to ensure the gearbox is not broken under the pulling force of the 10Hp motor.

• Heavy-duty helical gearbox: This is a standard option. Large gearbox codes such as R67, R77 or K67, K77 fully immersed in oil are usually used to drive mining conveyor systems.
• Hollow shaft worm gearbox: Can be paired with vertical worm gearboxes codes WPA, WPS size 120 or 135 used in large capacity mixing tanks.
• Drive coupling: It is mandatory to use explosion-proof standard hydraulic couplings or steel disc couplings for smooth startup, eliminating mechanical load shock and preventing spark generation due to friction.

Instructions for wiring a 3-phase electric motor

Before proceeding with wiring, you should refer to electric motor videos to clearly understand the structure as well as the position of the terminal posts, helping operation to be more accurate and safer.

Step 1: Remove the terminal box cover of the electric motor

Use a suitable screwdriver to remove the 4 fixing bolts on the terminal box cover. When opening the cover, the system of wiring terminals will be exposed inside. For common 3-phase motors, this area usually has 6 wire ends clearly labeled.

Step 2: Identify the terminal posts and 380V power supply

The wire ends in the terminal box are arranged in two rows. The lower row, labeled U1, V1, W1, is the position used to connect the input power source for the motor.

Step 3: Connect 3-phase power to U1, V1, W1

Prepare 3 phase wires from the 380V power supply and proceed to connect them respectively to the U1, V1, W1 posts. It is necessary to ensure correct positioning for the motor to operate stably.

Important safety note:

Terminal lugs must be tightened to ensure good electrical contact, limiting electrical sparks causing short circuits and fires. Absolutely do not connect power to the upper terminal row (U2, V2, W2) as this may damage the motor windings.

Step 4: Close the cover and test run

After completing the connection, tightly close the terminal box cover and tighten the bolts to protect the equipment from dust and moisture. Power on to check operation. If the motor rotates in the reverse direction of desire, simply disconnect the power and swap the positions of two of the three phase wires to reverse the rotation direction.

Following the correct procedure not only helps the system operate stably but also ensures long-term safety. Electric motor videos from Thanh Thai Motor will be a useful reference source for users in practice.

To learn more about products, quotations, and detailed instructions, you can access the summary videos in the electric motor video category – where full content directly implemented by the technical team is provided.
