Submersible Pump 0.37kW 0.5Hp

Submersible Pump 0.37kW 0.5Hp belongs to the water pump line commonly known as a submersible pump (or submersible water pump) used for pumping wastewater or clean water. Water pumps (water pump motors) are widely used in many fields due to their versatile functions.

What is the general design of the Submersible Pump 0.37kW 0.5Hp?

In general, the Submersible Pump 0.37kW 0.5Hp belongs to the 1-phase water pump or 3-phase water pump line whose pump body is an electric motor, specifically a 1-phase electric motor or a 3-phase electric motor.

In addition, the outside of the pump also has a discharge head designed from cast iron or stainless steel. The submersible pump is constructed from a variety of materials, suitable for various usage needs and budgets of users.

How is the Submersible Pump 0.37kW 0.5Hp structured?

The internal structure of the Submersible Pump 0.37kW 0.5Hp includes the following main parts: impeller, inlet/outlet guide assembly, and pump shaft:

• Impeller: Consists of main types such as closed vane, semi-open vane, and fully open vane. The impeller is designed in combination with several details to form a part called the rotor.
• Pump body: It is a 1-phase electric motor 0.37kW 0.5Hp or 3-phase electric motor 0.37kW 0.5Hp with a housing made of materials such as aluminum, stainless steel, or cast iron. The outside of the motor is coated with a powder coating, helping to limit corrosion of the pump body.
• Inlet/outlet guide assembly: Also known as the water guiding component, which determines whether the pump operation delivers water evenly. This part consists of main sections such as the suction pipe, discharge pipe, and suction valve.
• Pump shaft: The pump shaft is made of stainless steel, playing a role in ensuring the pump operates stably and solidly.

Technical specifications of the Submersible Pump 0.37kW 0.5Hp

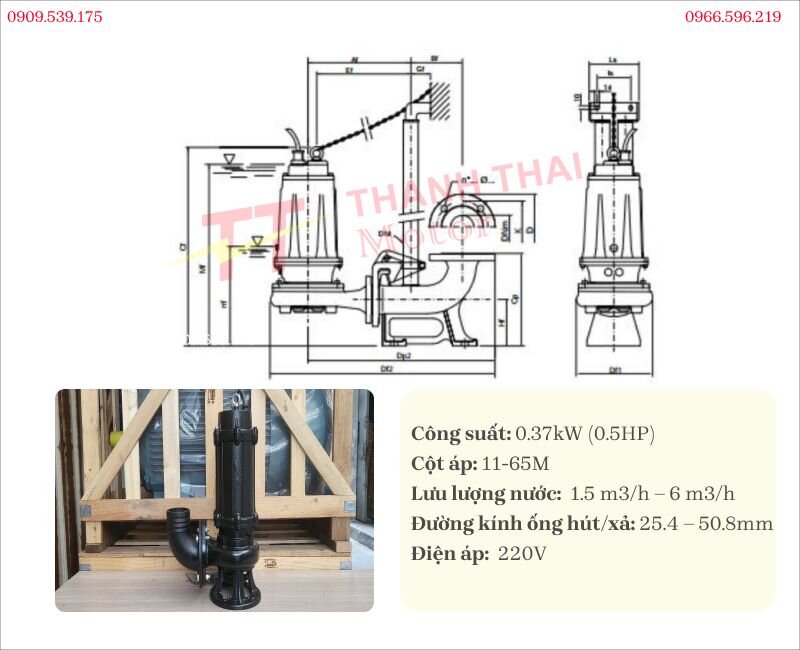

Below are the specifications and drawings of the Submersible Pump 0.37kW 0.5Hp:

Applications of the Submersible Pump 0.37kW 0.5Hp in daily life

The Submersible Pump 0.37kW 0.5Hp is widely used in various fields such as:

• Aluminum-body submersible pumps are used to extract waste from enterprises, chemical plants, and domestic wastewater from residential households, schools, hospitals, etc.
• Cast iron-body submersible pumps are used to pump large-sized waste up to 80mm such as in fish tanks, sludge extraction, or water fountains used for miniature landscapes.
• Stainless steel-body submersible pumps are used for cleaning purposes such as draining water and waste in shrimp and fish ponds, or for irrigation and water storage pumping.

Decoding the parameters on the nameplate of the submersible pump

The nameplate of the submersible pump displays important technical information, helping users select the right equipment and operate the machine safely and efficiently:

• MODEL: The model code of the pump, used to identify each product line and look up specifications from the manufacturer.
• 220V or 380V: The working voltage of the pump, depending on the model, it can use a 1-phase 220V or 3-phase 380V power supply.
• 50 Hz: Standard operating frequency, compatible with the electrical system in Vietnam.
• Head (H): The head parameter, reflecting the ability to lift water to a height or create pressure in the pipeline.
• Capacity (Q): The pump flow rate, indicating the amount of water the machine can transport within a given period.
• IP68: Complete dust and water protection rating, allowing the machine to operate stably in submerged environments.
• Insulation Class F: Insulation class F, helping the motor withstand heat well, protecting the windings and increasing durability during continuous operation.

In addition to water pump videos introducing submersible pumps, Thanh Thai Motor also provides many videos sharing experiences in selecting pumps according to practical needs, instructions on reading technical specifications, proper installation procedures, and steps for periodic inspection and maintenance. The comprehensive video library will help users better understand the operating principle of the submersible pump, thereby using the equipment efficiently, saving costs, and extending product lifespan.

Warranty, Shipping, and Commitment Policy when purchasing water pumps at Thanh Thai Motor

Up to 24-month warranty for water pumps

All water pump lines supplied by Thanh Thai Motor come with an official warranty of up to 24 months. We are committed to providing fast, transparent, and professional warranty support – ensuring complete peace of mind for customers during use.

Nationwide Delivery – Fast and Secure

We offer nationwide delivery, ensuring that pumps are carefully transported and delivered on schedule to customers in all provinces and cities across the country. From Hanoi, Da Nang to Ho Chi Minh City or industrial zones – Thanh Thai Motor is always ready to serve.

Advanced Technology – European Standard

All water pump lines at Thanh Thai Motor are manufactured with German technology, meeting European standards, ensuring high durability, stable operation, power saving, and suitability for many demanding environments such as construction sites, agriculture, manufacturing plants, etc.

Competitive Prices – Attractive Offers for Dealers, Wholesale Customers

We offer reasonable and the most competitive prices in the market. We also have a high discount policy for bulk purchasers, project customers, and long-term distribution partners.

Quality Commitment – Powerful Pump, Energy Saving

All pumps are constructed with 100% copper windings, ensuring powerful operation – low power consumption – minimal vibration – less heating, smooth and durable performance over time. Thanh Thai Motor only sells genuine products – we say no to counterfeit and low-quality goods.

Full CO, CQ Certificates

Each product comes with a Certificate of Origin (CO) and a Certificate of Quality (CQ) – fully meeting the requirements for construction projects, acceptance documents, and engineering projects.
