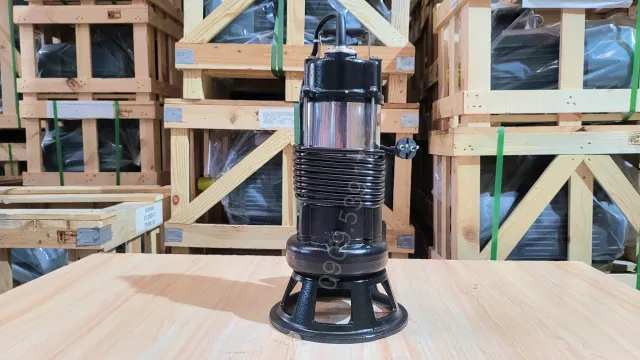

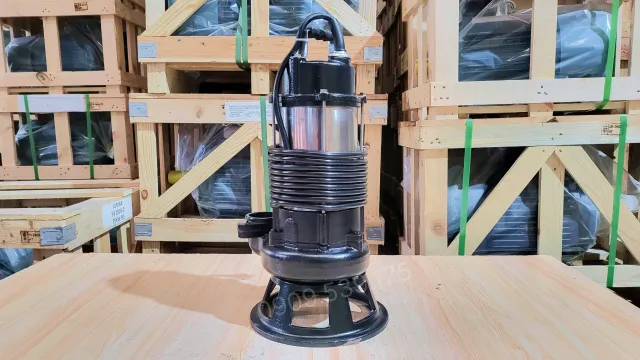

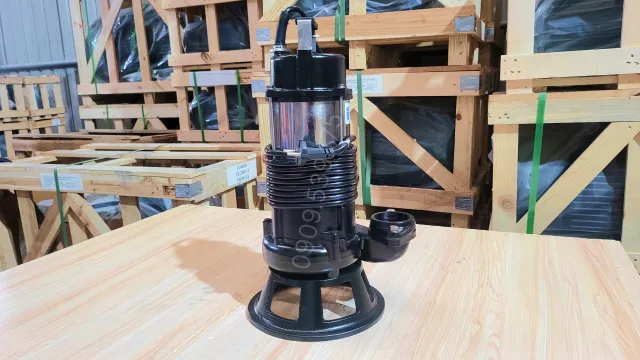

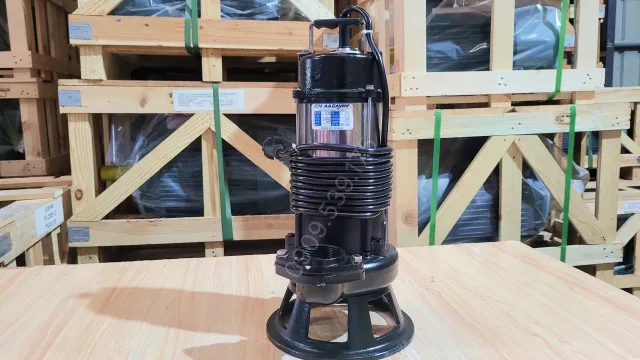

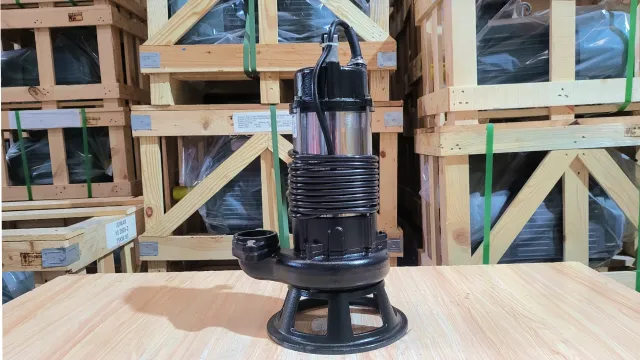

Submersible Pump 0.75kW 1Hp

The 0.75kW 1HP submersible pump is a water pump line (water pump motor) widely used in various fields such as factory wastewater systems, enterprises, irrigation, and aquaculture. This submersible pump features strong operation and energy-saving capabilities, making it highly popular.

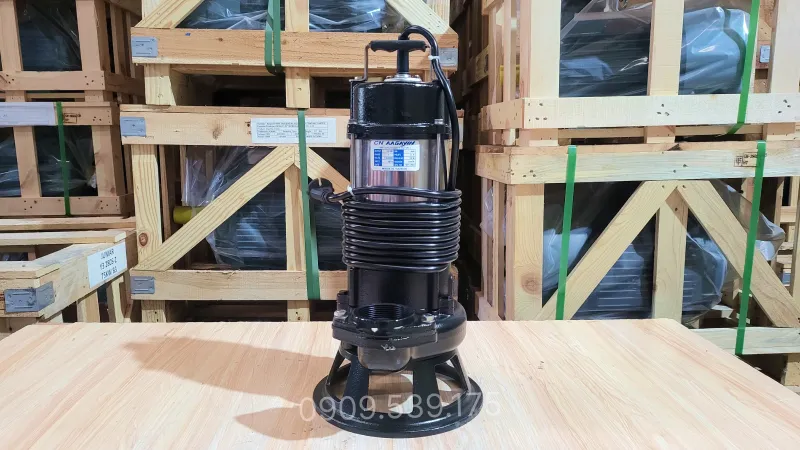

How is the 0.75kW 1HP submersible pump designed?

The body of the 0.75kW 1HP submersible pump consists of an electric motor, specifically a 3-Phase Electric Motor or a 1-Phase Electric Motor made from materials such as cast iron, stainless steel, or aluminum. On the side of the pump body is the discharge outlet, also made of durable cast iron or stainless steel.

The submersible pump housing is coated with an anti-rust powder coating by the manufacturer. Combined with the sturdy casing, it ensures that the internal parts of the pump are protected for safe and durable operation. The 0.75kW 1HP submersible pump offers the advantage of diverse structural materials, suitable for various usage needs and consumer budgets.

Internal structure of the 0.75kW 1HP submersible pump

The internal structure of the 0.75kW 1HP submersible water pump consists of 3 main parts: the impeller, the inlet/outlet guide assembly, and the pump shaft:

• 1-Phase Electric Motor 0.75kW 1HP or 3-Phase Electric Motor 0.75kW 1HP: The main power-supplying device for the water pump operation. It features a rotating core and a stationary stator with windings made of 100% pure copper.
• Impeller: Plays a role in combining with other components to form the rotor, considered the operational center of the submersible pump. The impeller has primary configurations such as closed vane, semi-open vane, and open vane.
• Inlet/Outlet Guide Assembly: Often referred to briefly as the water guide component. This plays a crucial role in determining the amount of water and wastewater being pumped and sucked. The guide assembly consists of main parts such as the suction pipe, discharge pipe, and suction valve.
• Pump Shaft: The pump shaft is responsible for connecting and ensuring that the submersible pump operates stably, firmly, and smoothly. Made of stainless steel, it allows the motor to operate optimally, powerfully, and at full capacity.

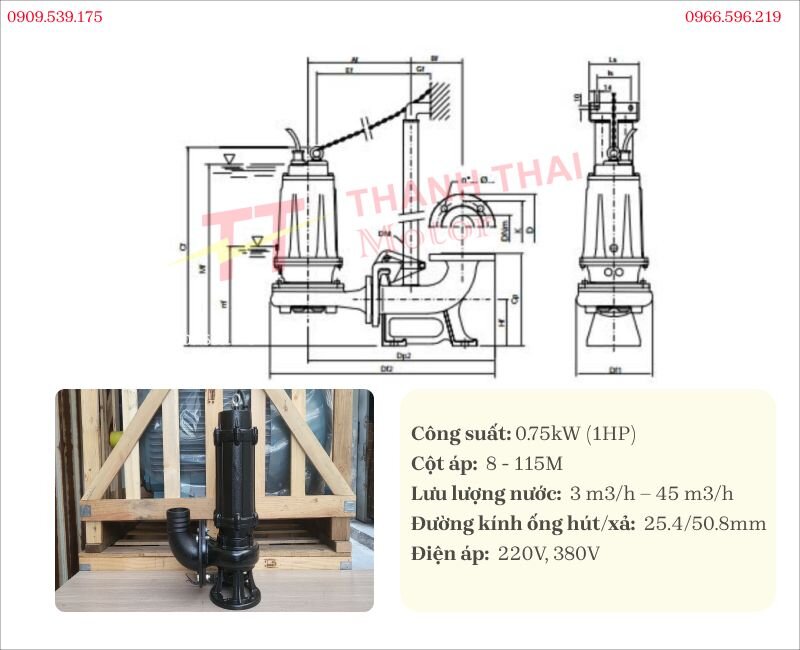

Specifications of the 0.75kW 1HP submersible pump

Below are the specifications and drawing of the 0.75kW 1HP submersible pump:

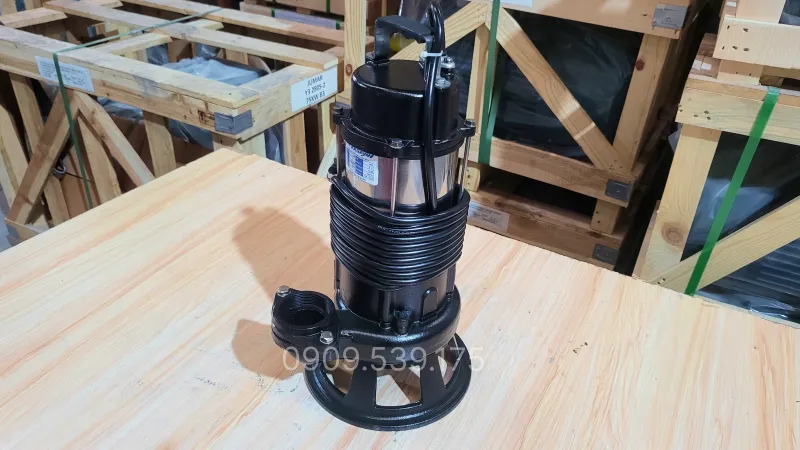

How is the 0.75kW 1HP submersible pump applied in daily life?

The 0.75kW 1HP submersible pump is widely used in various fields such as:

• Aluminum-body submersible pumps are used to suck waste and liquids from chemical manufacturing plants, domestic wastewater from households, families, and medical facilities, etc.
• Cast-iron-body submersible pumps are commonly used to pump wastes and liquids with large sizes up to 80mm, such as pumping heavy-duty waste in factories and industrial zones, and pumping waste with many impurities in large ponds and wells.
• Stainless-steel-body submersible pumps are used for cleaning or sucking corrosive wastes, such as pumping in pharmaceutical manufacturing plants, enterprises requiring acidic or alkaline wastewater discharge, cleaning shrimp and fish ponds, and cattle farms.

Decoding the parameters on the nameplate of the submersible pump

The nameplate of the submersible pump provides important technical information, helping users choose the right product and use the pump with optimal efficiency:

• MODEL: The model code of the pump, used to identify the product and look up technical specifications from the manufacturer.
• 220V or 380V: The operating voltage of the pump, depending on whether the version uses a 1-phase 220V or 3-phase 380V power source.
• 50 Hz: Standard power supply frequency, compatible with the electrical system in Vietnam.
• IP68: Complete dust-proof and waterproof protection class, allowing the machine to operate stably under continuous immersion conditions.
• Insulation Class F: Insulation class F, helping the motor withstand heat better, reducing the risk of winding damage and increasing equipment lifespan.

In addition to water pump videos introducing the submersible pump, Thanh Thai Motor has also created numerous instructional videos on how to recognize parameters on the pump nameplate, select models according to usage needs, correct technical installation procedures, pre-operation checks, and periodic maintenance methods. This comprehensive video repository will help users easily access practical knowledge, use the pump safely and stably, and maximize working performance.

Warranty, Shipping, and Commitment Policy when purchasing water pumps at Thanh Thai Motor

Up to 24-month warranty for water pumps

All water pump lines supplied by Thanh Thai Motor come with an official warranty of up to 24 months. We are committed to providing fast, transparent, and professional warranty support – ensuring complete peace of mind for customers during use.

Nationwide Delivery – Fast and Secure

We offer nationwide delivery, ensuring that pumps are carefully transported and delivered on schedule to customers in all provinces and cities across the country. From Hanoi, Da Nang to Ho Chi Minh City or industrial zones – Thanh Thai Motor is always ready to serve.

Advanced Technology – European Standard

All water pump lines at Thanh Thai Motor are manufactured with German technology, meeting European standards, ensuring high durability, stable operation, power saving, and suitability for many demanding environments such as construction sites, agriculture, manufacturing plants, etc.

Competitive Prices – Attractive Offers for Dealers, Wholesale Customers

We offer reasonable and the most competitive prices in the market. We also have a high discount policy for bulk purchasers, project customers, and long-term distribution partners.

Quality Commitment – Powerful Pump, Energy Saving

All pumps are constructed with 100% copper windings, ensuring powerful operation – low power consumption – minimal vibration – less heating, smooth and durable performance over time. Thanh Thai Motor only sells genuine products – we say no to counterfeit and low-quality goods.

Full CO, CQ Certificates

Each product comes with a Certificate of Origin (CO) and a Certificate of Quality (CQ) – fully meeting the requirements for construction projects, acceptance documents, and engineering projects.
