Vibratory equipment 2.2kW 3Hp

The Vibratory Motor 2.2kW 3HP is an electric motor that generates mechanical oscillation through an eccentric weight assembly mounted on the shaft. The device is used in screening systems, feeding systems, vibrating conveyors, vibrating hoppers, and concrete vibrating tables. With a power of 2.2kW, the motor meets applications requiring high vibration force and stable operation across multiple shifts.

Overall design of the Vibratory Motor 2.2kW 3HP

The entire machine body is cast from cast iron or aluminum alloy depending on the model, enhancing load-bearing capacity and minimizing deformation during continuous operation. Both ends of the shaft are fitted with balanced eccentric weight assemblies, protected by covers and allowing vibration force adjustment to meet specific requirements. The base uses high-strength bolts to securely anchor the motor to the machine frame.

Detailed structure of the Vibratory Motor 2.2kW 3HP

The mechanical parts and electrical components are assembled synchronously to maintain the working performance and stability of the motor.

• Stator winding: Uses Class F copper wire, ensuring insulation and heat resistance during operation.
• Rotor assembly: Machined concentrically with the shaft, transmitting rotational motion directly to the vibration generator.
• Eccentric weight assembly: Generates centrifugal force when the shaft rotates and allows changing the vibration force by adjusting the angle of the weights.
• Specialized bearings: Withstands continuous vibration loads, reduces shaft play, and increases motor lifespan.
• Weight protective cover: Shields the vibration generation assembly, minimizes dust, and ensures safety during use.

What types of Vibratory Motor 2.2kW 3HP are available?

Depending on application requirements, the motor is divided into three different rotational speed versions.

3-Phase 2-Pole (2 Poles) Vibratory Motor 2.2kW 3HP (3,000 – 3,600 rpm)

This version generates a high vibration frequency, suitable for systems requiring high productivity.

Technical specifications

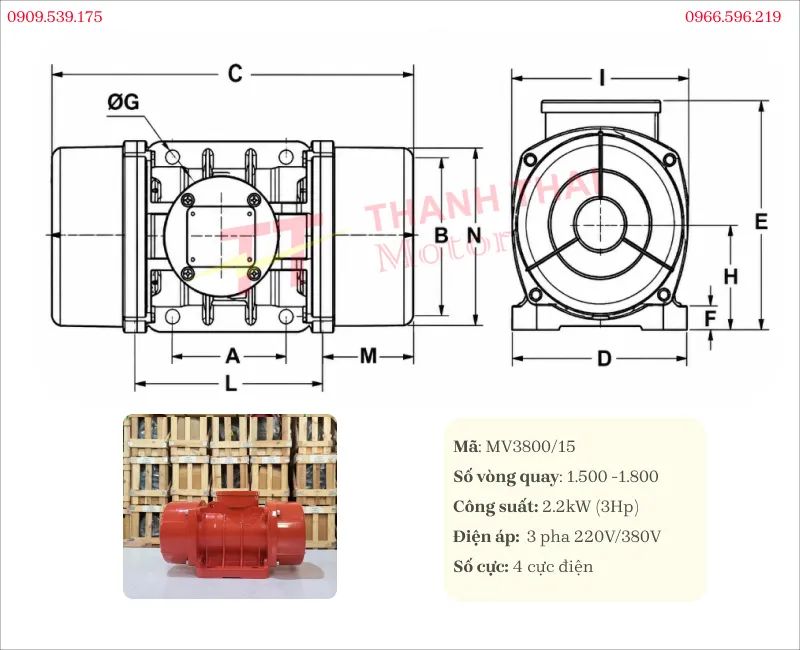

3-Phase 4-Pole (4 Poles) Vibratory Motor 2.2kW 3HP (1,500 – 1,800 rpm)

The 4-pole version is used when moderate vibration speed and stable vibration force are required.

Technical specifications

3-Phase 6-Pole (6 Poles) Vibratory Motor 2.2kW 3HP (1,000 – 1,200 rpm)

The 6-pole version is suitable for equipment requiring a large vibration amplitude and low oscillation speed.

Applications and benefits of the Vibratory Motor 2.2kW 3HP

This product line is widely used in industrial production fields such as concrete floor vibration, food vibrating machines, rock breakers, and projects requiring high load capacity,…

Using a vibratory motor to replace supporting tools will help us greatly by:

• Saving time and human effort.
• High applicability, suitable for various industrial production sectors.
• Independent, continuous operation without causing noise.
• In construction flooring: Floor vibration assists faster with sand and stone screening, making concrete beams sturdier and faster.
• In food factories: Vibrating screens can classify food sizes separately, making size selection and product categorization easier.

To explore more vibratory motor lines with various capacities and speeds, you can watch the summary video. In addition, the vibratory motor video will provide information on structure, operating principles, how to adjust vibration force, and instructions on choosing the appropriate motor for each device.

Why should you buy the Vibratory Motor 2.2kW 3HP and surface vibrator?

At Thanh Thai Motor, customers will find it easier to choose products:

• 1-phase and 3-phase vibratory motors are always available in stock with sufficient quantities and types.
• Thanh Thai Motor’s staff provides enthusiastic consultation and support.
• Durable motor quality with a long service life.
• Long-term warranty policy with product return support.
• Experienced consultants providing accurate advice.

Contact Thanh Thai Motor for the best support! Hotline: 0909539175.
