Vibratory Equipment 0.95kW

The 0.95kW vibratory equipment is a line of vibratory equipment that generates strong, uniform, and continuous vibrations, playing a crucial role in many modern industrial systems. This is an ideal choice for production lines requiring powerful vibration while demanding energy efficiency and high durability.

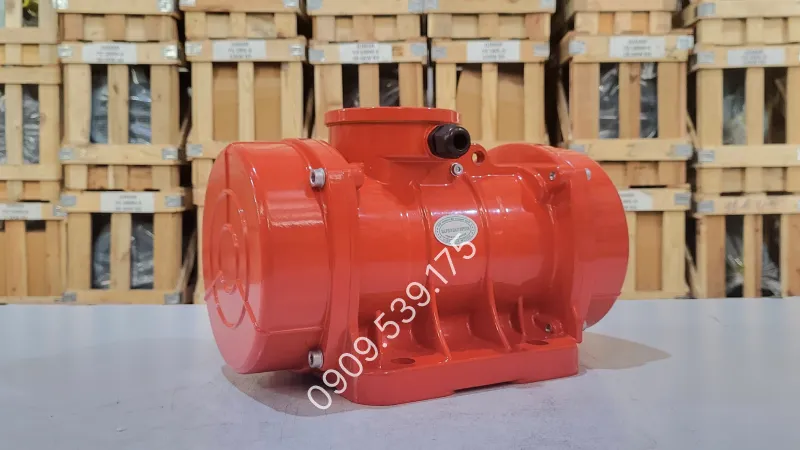

General Design of the 0.95kW Vibratory Equipment

Every detail in the design of the 0.95kW vibratory equipment is optimized to ensure vibration resistance, wear resistance, and mechanical stability in harsh industrial environments.

The motor body is manufactured from one-piece cast iron with a thick, durable structure capable of withstanding strong impacts. The entire housing exterior is powder-coated, offering excellent corrosion resistance, dust resistance, and heat tolerance.

The mounting base is industrially machined, making it easy to align and securely fix onto machine frames, vibrating screens, or feeding platforms. The motor power cable features a vibration-resistant rubber-sheathed copper core, ensuring safety when operating in continuously vibrating environments, preventing breakage and offering high heat resistance.

Internal Structure of the 0.95kW Vibratory Equipment

The 0.95kW vibratory equipment features exquisitely machined mechanical and electrical components, optimizing stability and vibration transmission efficiency:

• Rotor: Precisely machined and subjected to strict dynamic balancing to minimize eccentric vibration and prevent damage to attached equipment.
• Stator: Made of 100% copper wire with surface insulation coating, enhancing efficiency and heat resistance.
• Eccentric block: Installed at both ends of the shaft, easily adjusted for vibration force by changing the offset angle, allowing customization based on practical needs.
• Motor shaft: Forged from hardened alloy steel, wear-resistant, and warp-resistant under continuous operating conditions.
• Bearing: Uses specialized types for high-power vibratory equipment, dust-sealed, long-term lubricated, helping the machine run smoothly and extending service life.

What Types of 0.95kW Vibratory Equipment Are Available?

The equipment is manufactured in three rotational speed versions to suit different operational requirements of devices.

0.95kW 3-Phase 2-Pole Vibratory Equipment (3,000 – 3,600 rpm)

The 2-pole version generates a high vibration frequency, suitable for screening machines and high-speed feeding systems.

Specifications

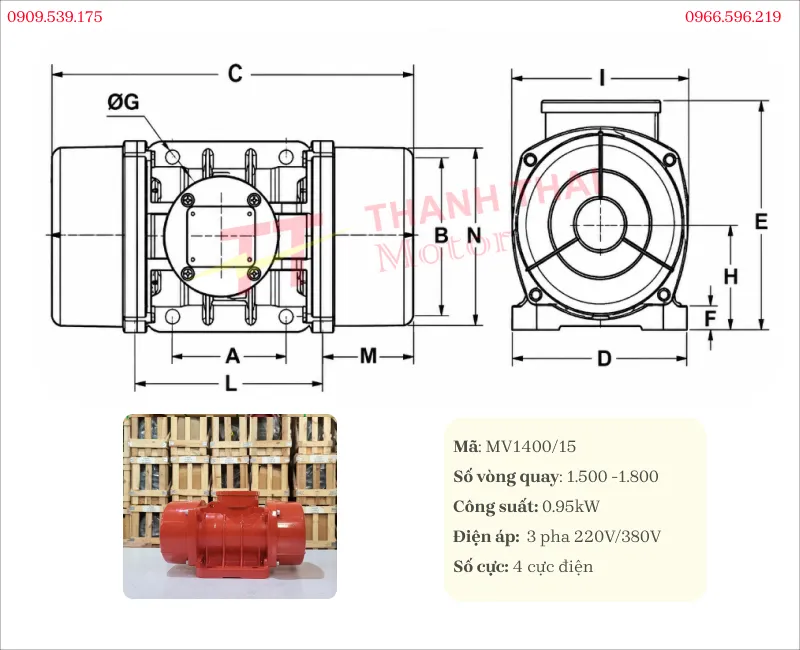

0.95kW 3-Phase 4-Pole Vibratory Equipment (1,500 – 1,800 rpm)

The 4-pole version is suitable for equipment requiring medium vibration speed and stable vibration force.

Specifications

0.95kW 3-Phase 6-Pole Vibratory Equipment (1,000 – 1,200 rpm)

The 6-pole version is suitable for applications requiring low vibration speed and large oscillation amplitude.

Specifications

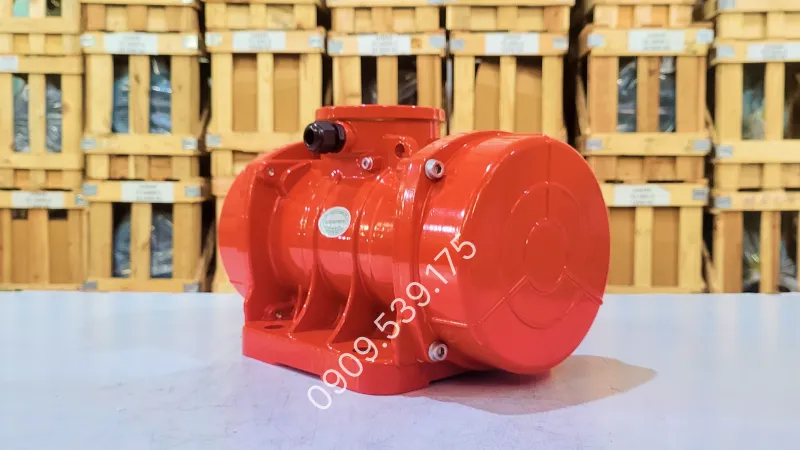

Diverse Applications of the 0.95kW Vibratory Equipment

The 0.95kW vibratory equipment delivers high operational performance across various types of equipment and working environments:

• Vibrating screening machines for classifying materials such as sand, stone, grain, recycled plastic, fertilizer, fine powder, etc.
• Vibrating hoppers and chutes used in the feeding process, ensuring a stable material flow without condensation or clogging.
• Molding and shaping equipment for products such as cement bricks, concrete, thermoformed plastics, and pelletized powder products.
• Drying, mixing, or material conveying lines in food manufacturing, pharmaceutical, and seafood processing plants.
• Vibrating impurity separation machines, material layering by size or weight in large-scale manufacturing plants.

To explore more vibratory equipment lines with various power ratings and speeds, you can watch the summary video. Additionally, the vibratory equipment video will help you learn about the structure, operating principles, vibration force adjustment methods, and product selection suitable for each application.

Warranty policy, commitments when purchasing vibratory equipment from Thanh Thai Motor

• Official Warranty up to 24 months: Each vibratory equipment product distributed by Thanh Thai Motor comes with an official warranty of up to 24 months.
• Nationwide Shipping: We deliver to all provinces and cities. Products are carefully packaged and rigorously inspected before leaving the warehouse.
• Powerful Vibration Technology: Our products utilize modern technology and are constructed from premium materials - generating strong, uniform, and powerful vibration forces.
• Best Price - High Discounts: We offer competitive prices for vibratory equipment, along with many preferential policies for customers purchasing in large quantities or entering long-term cooperation.
• Quality Commitment: All vibratory equipment supplied by Thanh Thai Motor uses 100% pure copper wire.
• Full CO - CQ Documents: We provide full Certificates of Origin (CO) and Certificates of Quality (CQ).
