Vibratory Equipment 0.66kW

The Vibratory Equipment 0.66kW is a specialized vibratory device designed for load vibration, screening, classification, and product shaping systems. With a power of 0.66kW, this motor generates uniform, stable vibration force and can operate continuously for many hours without affecting equipment performance or durability.

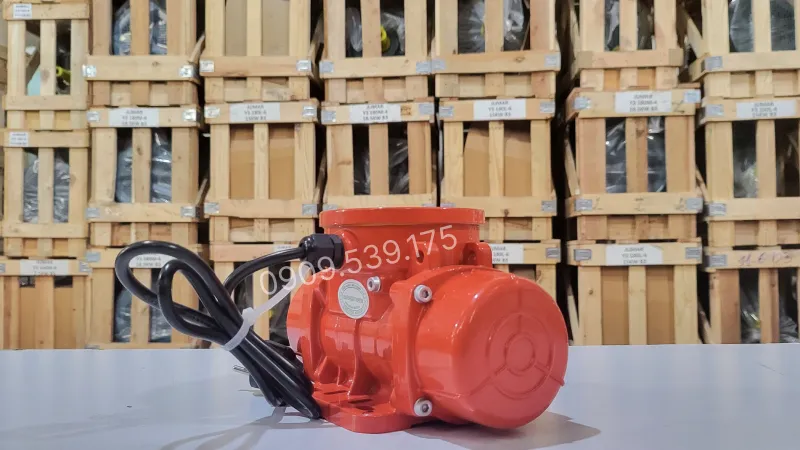

General Design of the Vibratory Equipment 0.66kW

The Vibratory Equipment 0.66kW is manufactured from high-quality materials, ensuring durable operation under various conditions. The motor housing is made of solid cast iron, cast seamlessly with industrial standard thickness, helping the motor withstand strong vibrations and impacts. The entire housing is coated with heat-resistant and chemical-resistant paint, providing effective corrosion resistance in high humidity and dusty environments.

The mounting base is machined flat and sturdy, suitable for fixed positions on machine bases, vibration hoppers, or feeding troughs. The electrical connection wiring uses a specialized anti-vibration type with a safe insulating sheath, preventing cracking during continuous motor operation. Technical labels are pasted directly on the housing, showing complete information on power, voltage, speed, and model for easy reference and replacement when necessary.

Detailed Internal Structure of the Vibratory Equipment 0.66kW

The internal mechanism of the Vibratory Equipment 0.66kW is designed according to high technical standards, ensuring stable vibration and extending equipment lifespan:

• Rotor: Concentrically machined, well dynamically balanced, minimizing misaligned vibration and reducing noise.
• Stator: Pure copper windings treated with multi-layer insulation, increasing load capacity and reducing power loss.
• Vibration weights: Fixed at both ends of the shaft, with adjustable offset angles to change vibration intensity according to specific needs.
• Shaft: Made of high-quality alloy steel, heat-treated to resist warping and wear.
• Bearings: Sealed anti-vibration bearings are used to limit dust and ensure smooth operation over a long period.

What Types of Vibratory Equipment 0.66kW Are Available?

The motor is manufactured with three different rotational speed versions to suit various application requirements.

0.66kW 3-Phase 2-Pole Vibratory Equipment (3,000 – 3,600 rpm)

The 2-pole version is suitable for systems requiring high vibration frequency and large output.

Technical Specifications

0.66kW 3-Phase 4-Pole Vibratory Equipment (1,500 – 1,800 rpm)

The 4-pole version is used for equipment requiring medium vibration speed and stable vibration force.

Technical Specifications

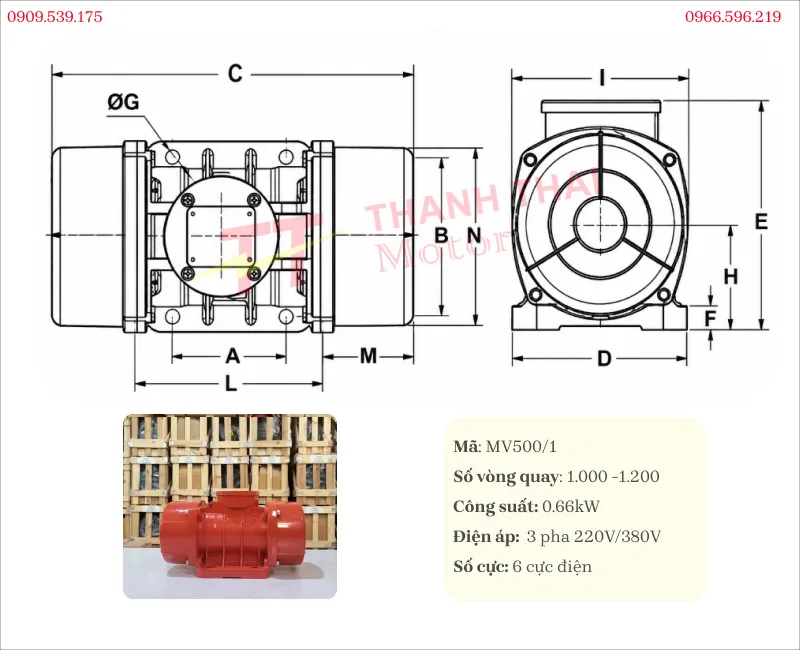

0.66kW 3-Phase 6-Pole Vibratory Equipment (1,000 – 1,200 rpm)

The 6-pole version is suitable for equipment requiring low vibration speed and large oscillation amplitude.

Technical Specifications

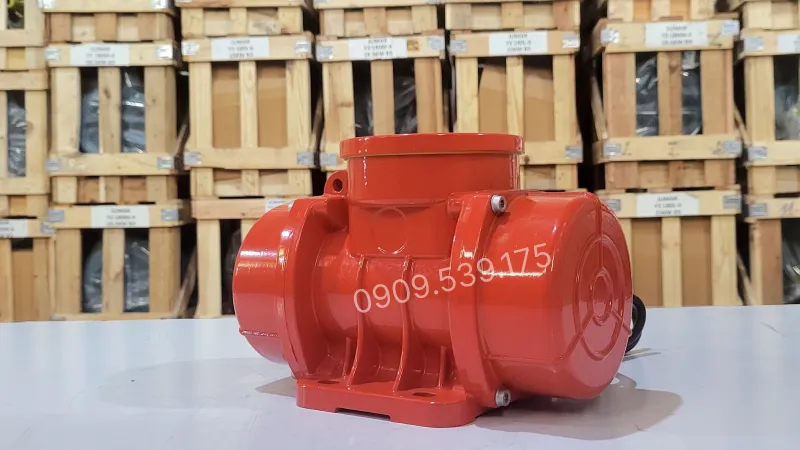

Diverse Applications of the Vibratory Equipment 0.66kW

The Vibratory Equipment 0.66kW is a suitable choice for various automated vibration equipment in industrial environments:

• Vibration hoppers and feeding troughs for material feeding, preventing clogging and caking during material transport.
• Vibrating screening machines for dry, powdery, or granular materials such as stone powder, coal, plastic pellets, sugar, coffee, etc.
• Product-shaping vibrating machines in molding industries, construction material manufacturing, and non-fired brick production.
• Dry mixing equipment or impurity-separating screening machines in fertilizer production, animal feed processing, or agricultural processing.
• Layer separation and material size classification lines in recycling plants and industrial waste treatment facilities.

To explore more vibratory equipment lines with various capacities and speeds, you can watch the summary video. At the same time, the vibratory equipment video will introduce the structure, working principle, and instructions on adjusting vibration force to suit each application.

Warranty policy, commitments when purchasing vibratory equipment from Thanh Thai Motor

• Official Warranty up to 24 months: Each vibratory equipment product distributed by Thanh Thai Motor comes with an official warranty of up to 24 months.
• Nationwide Shipping: We deliver to all provinces and cities. Products are carefully packaged and rigorously inspected before leaving the warehouse.
• Powerful Vibration Technology: Our products utilize modern technology and are constructed from premium materials - generating strong, uniform, and powerful vibration forces.
• Best Price - High Discounts: We offer competitive prices for vibratory equipment, along with many preferential policies for customers purchasing in large quantities or entering long-term cooperation.
• Quality Commitment: All vibratory equipment supplied by Thanh Thai Motor uses 100% pure copper wire.
• Full CO - CQ Documents: We provide full Certificates of Origin (CO) and Certificates of Quality (CQ).
