Schneider Variable Frequency Drive 2.2kW

A variable frequency drive (inverter) is an advanced electronic device capable of adjusting frequency, torque, and rotational direction of an electric motor, helping to optimize operating efficiency and reduce power consumption. With a power of 2.2kW, Schneider Variable Frequency Drive 2.2kW is an ideal choice for medium-load automation systems, widely applied in both industrial and civil sectors. In the article below, let’s join Thanh Thai Motor to explore in detail the outstanding features as well as practical applications of this product line!

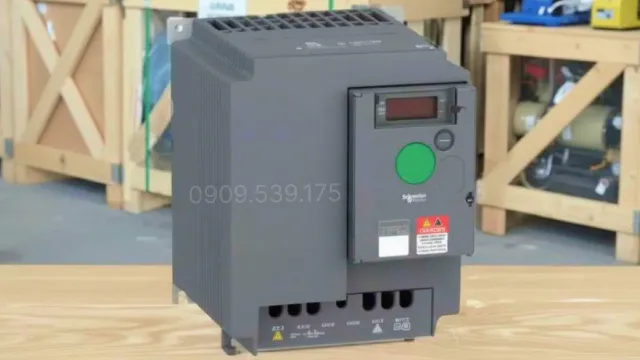

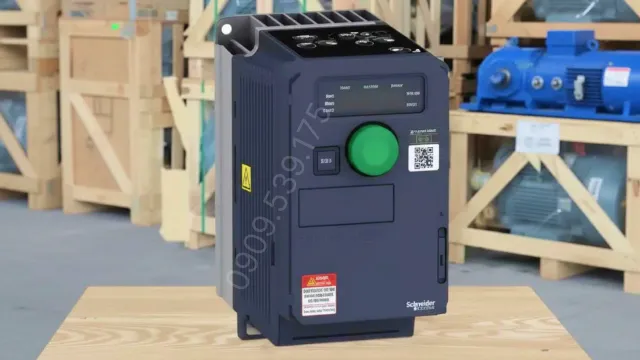

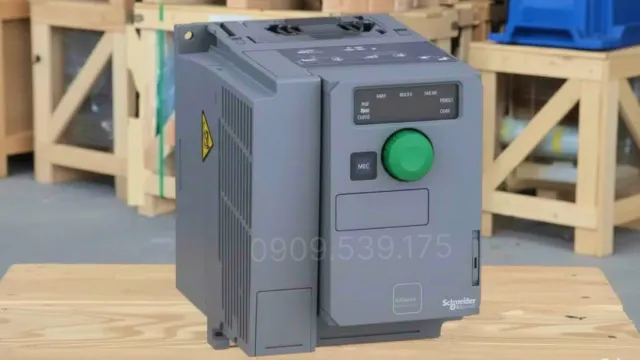

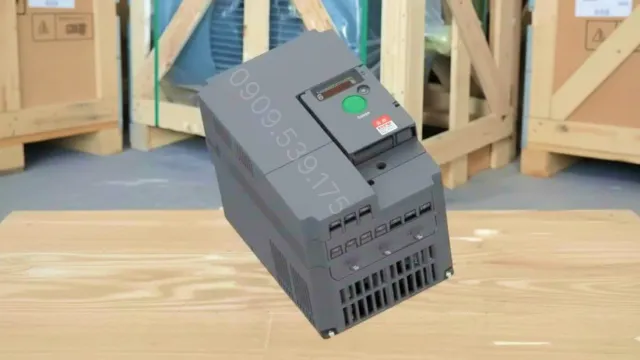

Overview of Schneider Variable Frequency Drive 2.2kW

Schneider Variable Frequency Drive under 10kW features a compact and modern design, suitable for installation in various spaces, even those with limited areas. The casing is made of dust-resistant and heat-resistant materials, ensuring durability when operating in industrial environments. The user-friendly control interface is equipped with an LED or LCD screen clearly displaying operating parameters, making monitoring and setup easier.

In addition, the connection ports are arranged reasonably, allowing convenient integration with automated control systems. The device is also equipped with an efficient cooling system, helping to maintain stable working performance for a long time.

What is the structure of Schneider Variable Frequency Drive 2.2kW?

The variable frequency drive under 10kW is composed of three main parts, playing a crucial role in controlling speed and optimizing motor performance:

• Rectifier: Converts the input alternating current (AC) into direct current (DC), which is the first step in the power processing process of the variable frequency drive.
• Inverter: Converts direct current (DC) into alternating current (AC) with adjustable frequency and voltage, helping to control the speed and torque of the motor.
• Control Unit: This is the processing and operating center for all activities of the variable frequency drive. The control unit includes a display screen, function keys, and programming software, allowing users to set parameters such as speed, acceleration/deceleration time, and operating modes suitable for each specific application.

Technical specifications of Schneider Variable Frequency Drive 2.2kW

Below are the specifications of Schneider Variable Frequency Drive 2.2kW:

Popular applications of Schneider Variable Frequency Drive 2.2kW

Schneider Variable Frequency Drive 2.2kW is widely used in many fields thanks to its ability to precisely control motor speed, save energy, and operate stably. Below are some typical applications:

• Water pump and blower systems: Adjusts speed according to actual demand, helping to reduce power consumption and extend equipment lifespan.
• Conveyors and light transmission systems: Controls smooth movement, suitable for medium-load production lines.
• Air compressors and mixers: Increases working efficiency and reduces vibration when starting or stopping the machine.
• Civil and commercial applications: Used in HVAC systems (heating, ventilation, and air conditioning), automatic doors, and building automation equipment.
• Food and pharmaceutical machinery: Supports precise speed control in processes requiring high stability and safety.

Which products can Schneider Variable Frequency Drive 2.2kW be used for?

Schneider Variable Frequency Drive 2.2kW is a motor speed control device, suitable for various industrial and civil applications. With a power of 2.2kW (equivalent to about 3HP), the product can be used effectively for the following equipment:

Electric motors such as:

• 3-Phase Electric Motor 2.2kW 3Hp
• 2.2kW Gear Motor
• Brake Motor 2.2kW 3Hp

Machinery and equipment such as:

• Industrial fan 2.2kW

Thanks to its flexible speed adjustment capability, smooth starting, and integration of multiple motor protection features, Schneider Variable Frequency Drive 2.2kW is a suitable solution for transmission systems, contributing to improving operating performance and saving energy.

User guide for Schneider Variable Frequency Drive 2.2kW

Below is the user guide for Schneider Variable Frequency Drive 2.2kW to help you operate the equipment safely, efficiently, and optimize performance for the motor system.

• Reset variable frequency drive: Perform the reset procedure to return the parameters to the manufacturer’s defaults.
• Motor parameter setting: Enter technical parameters of the electric motor such as power, frequency, and voltage, then execute the Auto-tune function for the variable frequency drive to automatically adjust and be compatible with the motor.
• Select control method: Choose a suitable control method such as speed, torque, or frequency control.
• Set digital output pins: Configure the digital output pins of the variable frequency drive to perform functions such as control or fault reporting.

After performing the above steps, it is necessary to check the operation of Schneider Variable Frequency Drive 2.2kW and make necessary adjustments to ensure the system operates stably and efficiently.

If you want to effectively utilize Schneider Variable Frequency Drive 2.2kW, you can refer to the instruction videos for variable frequency drives from Thanh Thai Motor. The content introduces how to set operating parameters, adjust motor speed according to demand, guide control signal connection, identify and troubleshoot some common errors during use. Watch more useful compilation videos at Thanh Thai Motor.

Purchasing Policy and Commitment at Thanh Thai Motor

Extended 24-Month Warranty

All VFDs (VFD cabinets or VFD units) supplied by Thanh Thai Motor are from renowned Chinese VFD manufacturers and come with an official warranty of up to 24 months. We are committed to providing absolute peace of mind with transparent, fast, and dedicated after-sales service.

Nationwide Door-to-Door Delivery

No matter where you are in Vietnam, we ensure that products are delivered to you quickly, safely, and on time, without geographical limitations.

European Standard Quality, German Technology

Thanh Thai Motor's 1-phase 220V VFDs or 3-phase 220V/380V VFDs are manufactured using advanced German technology and strictly meet European quality standards. This ensures the equipment has superior durability and stable operation over a long period, suitable for industrial VFD products.

Competitive Pricing, Discounts for Partners and Bulk Orders

We always offer reasonable VFD prices for 1-phase or 3-phase VFDs, along with many attractive discount policies exclusively for dealers and bulk buyers with the most affordable VFD prices. The more you buy, the higher the discount, helping to optimize your profit.

Complete, Transparent Documentation (CO, CQ)

Each VFD is provided with a full Certificate of Origin (CO) and Certificate of Quality (CQ). These documents are clear proof of origin and quality, providing absolute confidence to customers when purchasing VFDs for projects requiring technical documentation.
