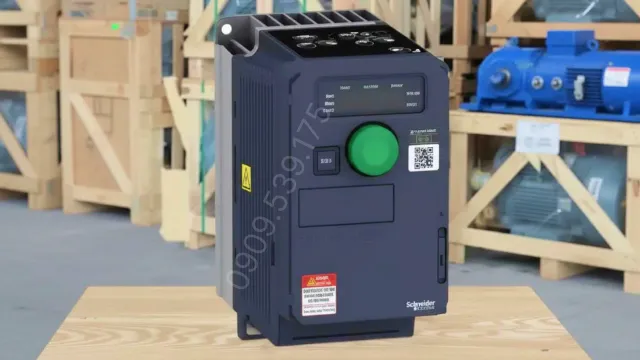

Schneider Variable Frequency Drive 1.5kW

The Schneider Variable Frequency Drive 1.5kW is an efficient motor speed control device, suitable for small to medium power applications in light industry and civil use. This variable frequency drive (inverter) allows flexible adjustment of output frequency and voltage to optimize the operating performance of the electric motor. This Schneider variable frequency drive is commonly used in industrial systems and small-scale automated production lines. Through the article below, let Thanh Thai Motor explore the details of this variable frequency drive line!

General Design of the Schneider Variable Frequency Drive 1.5kW

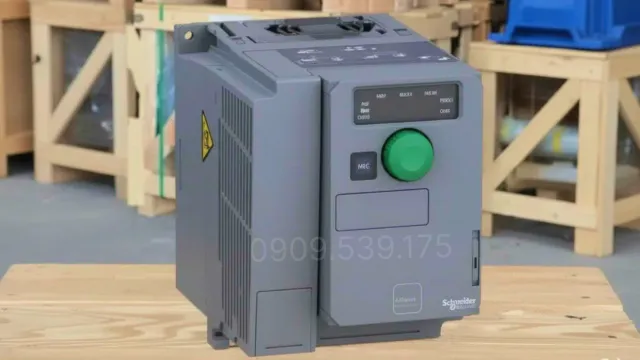

Schneider variable frequency drives under 10kW are designed to be compact, modern, and optimized for both limited installation spaces and standard industrial environments. The enclosure is made of high-grade plastic or powder-coated metal, offering good dust resistance and heat tolerance. The front of the drive integrates an LED or LCD display and intuitive control function keys, helping users easily monitor operating status and adjust parameters.

In addition, the device also supports communication ports such as Modbus, facilitating convenient connection with automated control systems. With an optimal design in both appearance and features, the Schneider Variable Frequency Drive 1.5kW is a suitable choice for many low-power motor control applications.

Structure of the Schneider Variable Frequency Drive 1.5kW

Variable frequency drives under 10kW consist of three main parts with distinct functions, helping the device operate efficiently and flexibly:

• Rectifier: Responsible for converting alternating current (AC) from the power supply into stable direct current (DC), serving as the basis for subsequent control processes.
• Inverter: Converts the rectified direct current into output alternating current, with frequency and voltage flexibly adjustable according to load requirements.
• Control Unit: Acts as the central coordination hub for all operations of the variable frequency drive. This unit includes a display screen, control buttons, and microprocessors, allowing users to set operating parameters such as speed, frequency, acceleration/deceleration time, and operating modes suitable for each application.

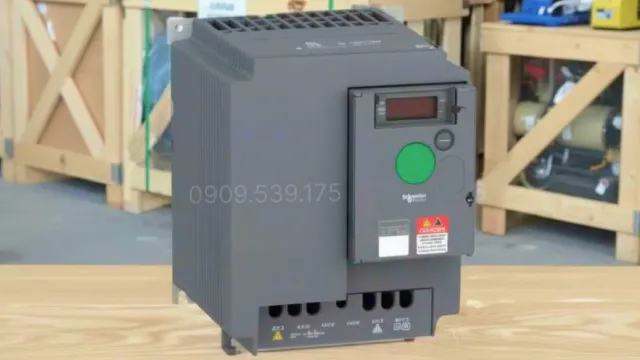

Structure of the Schneider Variable Frequency Drive 1.5kW

Technical Specifications of the Schneider Variable Frequency Drive 1.5kW

Below are the specifications of the Schneider Variable Frequency Drive 1.5kW:

Common Applications of the Schneider Variable Frequency Drive 1.5kW

The Schneider Variable Frequency Drive 1.5kW is widely used in light industrial and civil systems thanks to its flexible speed control capabilities and energy efficiency. Some typical applications include:

• Water Pump: Helps adjust flow and pressure stably according to usage needs, reducing power consumption when maximum capacity operation is not required.
• Ventilation Fans and Centrifugal Fans: Controls wind speed suitable for each specific space or ventilation requirement.
• Light-Duty Conveyor: Optimizes movement speed in food processing, packaging, or product sorting production lines.
• Mixers, Small Grinders: Controls rotational speed to achieve high uniformity and efficiency during material processing.
• Automation Control Systems: Suitable for basic automation applications in small and medium-scale production workshops.

What Products Can the Schneider Variable Frequency Drive 1.5kW Be Used For?

The Schneider Variable Frequency Drive 1.5kW is a motor speed control device, suitable for various industrial and civil applications. With a power of 1.5kW (equivalent to about 2HP), the product can be effectively used for 3 phase gear motor devices, electric motors, and water pumps:

Electric Motors Such As:

• 3 phase gear motor 1.5kW 2Hp

• Brake Motor 1.5kW 2Hp

Machinery and Equipment Such As:

• Water pump 1.5kW
• Industrial fan 1.5kW

Thanks to its precise speed control capability, stable operation, and integration of multiple motor protection functions, the Schneider Variable Frequency Drive 1.5kW is a suitable solution for drive systems, helping to save energy and enhance working efficiency.

User Guide for the Schneider Variable Frequency Drive 1.5kW

Below is the user guide for the Schneider Variable Frequency Drive 1.5kW, including the following detailed steps:

• Reset Drive: First, perform a drive reset to return parameters to the manufacturer’s defaults.
• Motor Parameter Setting: Enter the technical specifications of the electric motor such as power, frequency, and voltage, then perform the Auto-tune function for the drive to automatically adjust and match the motor.
• Select Control Method: Choose a suitable control method such as speed, torque, or frequency control.
• Configure Digital Output Pins: Set up the digital output pins of the drive to perform functions such as control or fault reporting.

After completing the above steps, it is necessary to check the operation of the Schneider Variable Frequency Drive 1.5kW and make necessary adjustments to ensure the system operates stably and efficiently.

If you are learning about the Schneider Variable Frequency Drive 1.5kW, you can refer to the instruction videos from Thanh Thai Motor. The content includes how to set basic parameters, check drive operation, and instructions on handling some common errors. Follow Thanh Thai Motor to update more compilation videos at Thanh Thai Motor.
