Fuji Variable Frequency Drive 5.5kW

A variable frequency drive (inverter) is a modern control device that plays a crucial role in controlling the speed, torque, and rotational direction of electric motors in both industrial and residential applications. Among them, variable frequency drives under 10kW are the optimal choice for systems using medium-range motors, helping ensure stable operation, energy savings, and increased accuracy. Through the following article, let’s join Thanh Thai Motor to learn more details about this Fuji variable frequency drive line and its outstanding practical applications!

General Design of the Fuji Variable Frequency Drive 5.5kW

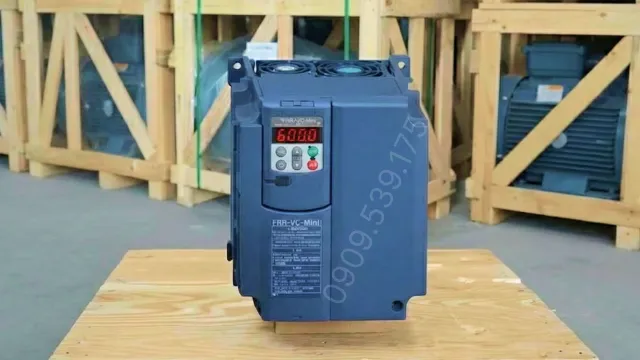

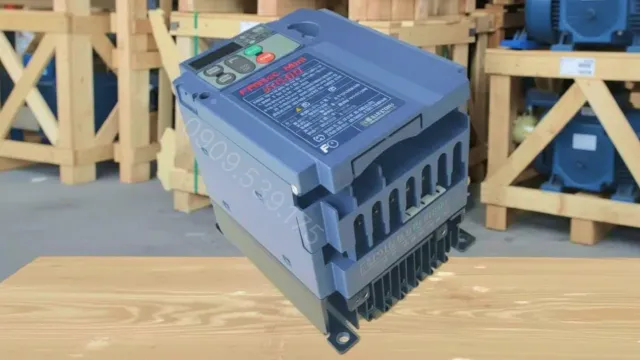

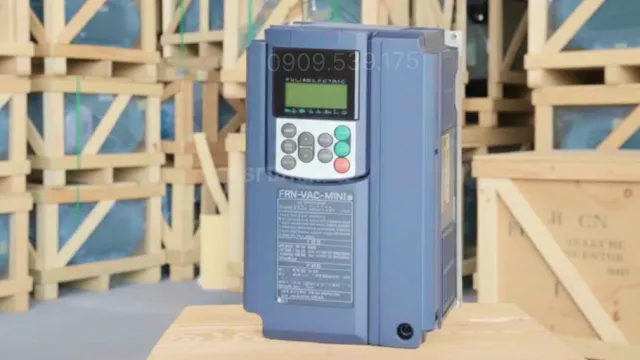

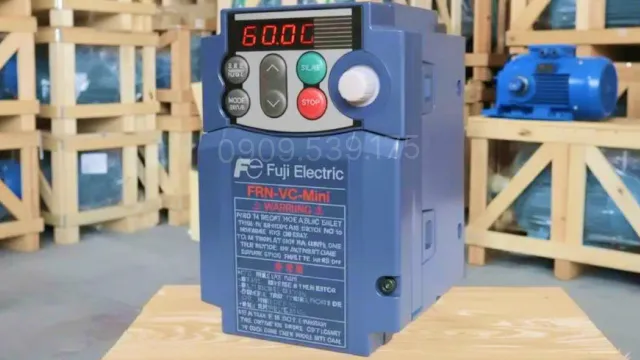

The Fuji Variable Frequency Drive 5.5kW is designed with a compact, sturdy shape, suitable for installation in industrial electrical panels or areas with limited space. The enclosure is made of good heat-insulating and dust-resistant materials, ensuring safety when operating in environments with high humidity and temperature. The front panel integrates an LED or LCD screen displaying clear parameters, along with control keys that allow users to easily set up and monitor operating statuses.

Inside, the Fuji Variable Frequency Drive 5.5kW uses high-quality electronic components such as IGBTs, large capacity capacitors, and high-speed processors, ensuring precise, stable control and energy savings. In addition, the device also integrates multiple protection functions such as overvoltage, overheating, and short-circuit protection, enhancing durability and system safety.

Internal Structure of the Fuji Variable Frequency Drive 5.5kW

The Fuji variable frequency drive under 10kW is composed of main components that play an important role in the power conversion and control process, such as:

• Rectifier: Responsible for converting the input alternating current (AC) power source into direct current (DC) through components like diodes or thyristors, ensuring a stable power supply for subsequent processing steps.
• Filter: Placed after the rectifier, it functions to smooth the DC voltage and eliminate high-frequency noise. It typically includes capacitors and inductors to improve current quality and protect the equipment.
• Control Unit: Acting as the “brain” of the variable frequency drive, it handles signal processing, adjusting the output frequency and voltage to meet load requirements. The control unit uses a microprocessor and advanced control algorithms to ensure the motor’s speed and torque remain stable.

Technical Specifications of the Fuji Variable Frequency Drive 5.5kW

Below are the specifications of the Fuji Variable Frequency Drive 5.5kW:

Popular Applications of the Fuji Variable Frequency Drive 5.5kW

The Fuji Variable Frequency Drive 5.5kW is widely applied in various fields thanks to its flexible speed control capability, energy saving, and enhanced operational efficiency. Some typical applications include:

• Industrial Fan Systems: Helps adjust the rotational speed to suit cooling or ventilation needs, thereby optimizing performance and reducing noise.
• Air Compressors: Applying a variable frequency drive helps control stable pressure, reduces startup cycles, and significantly saves electricity.
• Automated Production Lines: Enhances precision in motor control, helping improve productivity and product quality.
• Food and Material Processing Equipment: Ensures smooth operation, reduces vibration, and prevents equipment damage.
• Photocopiers and Industrial Office Equipment: The variable frequency drive controls the movement of printing and transmission mechanisms, ensuring precise speed and stable operation.

What Equipment Can Be Paired with the Fuji Variable Frequency Drive 5.5kW?

The Fuji Variable Frequency Drive 5.5kW (7.5HP) is designed to control the speed of 3-phase motors, meeting various industrial applications well, helping ensure smooth operation and power savings.

Electric Motors:

• 3-phase electric motor 5.5kW 7.5HP
• Explosion-proof motor 5.5kW 7.5HP
• Brake motor 5.5kW 7.5HP

Pump Systems:

• Booster pump 5.5kW 7.5HP
• Vacuum pump 5.5kW 7.5HP

Fan Systems:

• Industrial ventilation fan 5.5kW 7.5HP
• Air blower 5.5kW 7.5HP

The Fuji Variable Frequency Drive 5.5kW is a suitable choice for systems using 3-phase 5.5kW motors, helping effectively control speed, reduce wear and tear, and increase equipment durability.

User Guide for the Fuji Variable Frequency Drive 5.5kW

To ensure operational efficiency and the lifespan of the Fuji Variable Frequency Drive 5.5kW, users need to follow these operating instructions:

• Read the instruction manual carefully: Before installation or operation, thoroughly refer to the technical manual from the manufacturer to fully understand how to install and operate safely.
• Choose the installation location: The variable frequency drive should be installed in a dry, well-ventilated place, avoiding direct sunlight, high humidity, or dusty environments.
• Set parameters via the control interface: Use the display screen and control buttons to easily and accurately configure operating parameters such as frequency, speed, voltage, etc.
• Monitor operating indicators: Regularly check important parameters such as input/output voltage, operating temperature, and motor speed to promptly detect issues.
• Periodic cleaning and maintenance: Clean the equipment periodically to remove dust, ensure better heat dissipation, and maintain stable, long-term working performance.

If you want to learn more about the Fuji variable frequency drive, you can watch the inverter videos shared by Thanh Thai Motor. The videos guide you on how to connect with the motor, set basic parameters, check the operation of the variable frequency drive, and troubleshoot some common errors during use. Explore more useful tutorial compilation videos at Thanh Thai Motor.

Purchasing Policy and Commitment at Thanh Thai Motor

Extended 24-Month Warranty

All VFDs (VFD cabinets or VFD units) supplied by Thanh Thai Motor are from renowned Chinese VFD manufacturers and come with an official warranty of up to 24 months. We are committed to providing absolute peace of mind with transparent, fast, and dedicated after-sales service.

Nationwide Door-to-Door Delivery

No matter where you are in Vietnam, we ensure that products are delivered to you quickly, safely, and on time, without geographical limitations.

European Standard Quality, German Technology

Thanh Thai Motor's 1-phase 220V VFDs or 3-phase 220V/380V VFDs are manufactured using advanced German technology and strictly meet European quality standards. This ensures the equipment has superior durability and stable operation over a long period, suitable for industrial VFD products.

Competitive Pricing, Discounts for Partners and Bulk Orders

We always offer reasonable VFD prices for 1-phase or 3-phase VFDs, along with many attractive discount policies exclusively for dealers and bulk buyers with the most affordable VFD prices. The more you buy, the higher the discount, helping to optimize your profit.

Complete, Transparent Documentation (CO, CQ)

Each VFD is provided with a full Certificate of Origin (CO) and Certificate of Quality (CQ). These documents are clear proof of origin and quality, providing absolute confidence to customers when purchasing VFDs for projects requiring technical documentation.

Are you looking for the most suitable motor VFD for your system? Do not hesitate to contact Thanh Thai Motor immediately through the following channels:

Hotline: 0909.539.175
Zalo: 0902530445
Email: codienthanhthai@gmail.com
