Fuji 11kW Variable Frequency Drive

The Fuji 11kW Variable Frequency Drive is a frequency control device widely applied in industrial systems to precisely adjust the speed, torque, and rotational direction of electric motors. This variable frequency drive line above 10kW is particularly suitable for applications requiring high performance, continuous stable operation, and optimal energy-saving capabilities. Let’s join Thanh Thai Motor to learn in detail about the outstanding features as well as the practical applications that this inverter product brings!

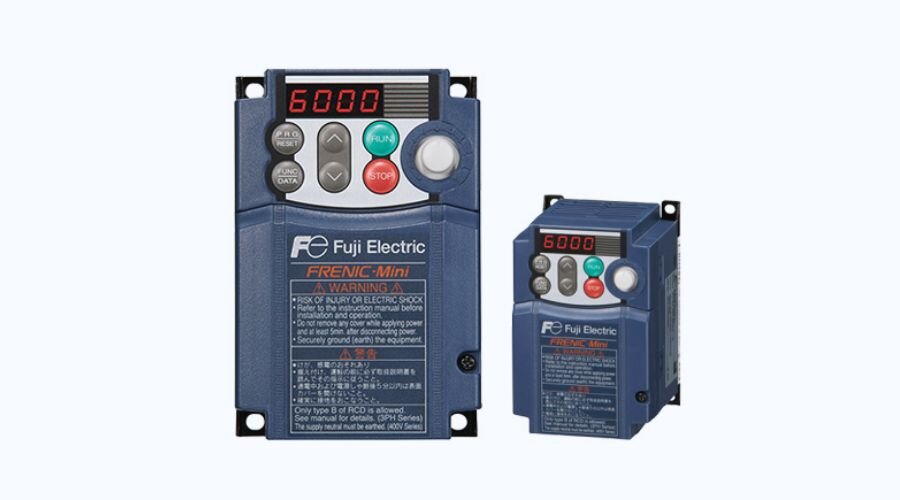

Overview Design of the Fuji 11kW Variable Frequency Drive

The Fuji Variable Frequency Drive with an 11kW power rating is designed with a modern, rugged style, suitable for installation in industrial electrical cabinets or automated control systems. The outer casing is made of heat-resistant and dust-proof materials, ensuring high durability in harsh working environments. The device is equipped with a clear display screen and a user-friendly interface, making it easy for users to set up and monitor operating parameters.

In addition, the Fuji 11kW Variable Frequency Drive is arranged with logical connection ports, convenient for integration with PLCs, sensors, and other peripheral devices within the control system.

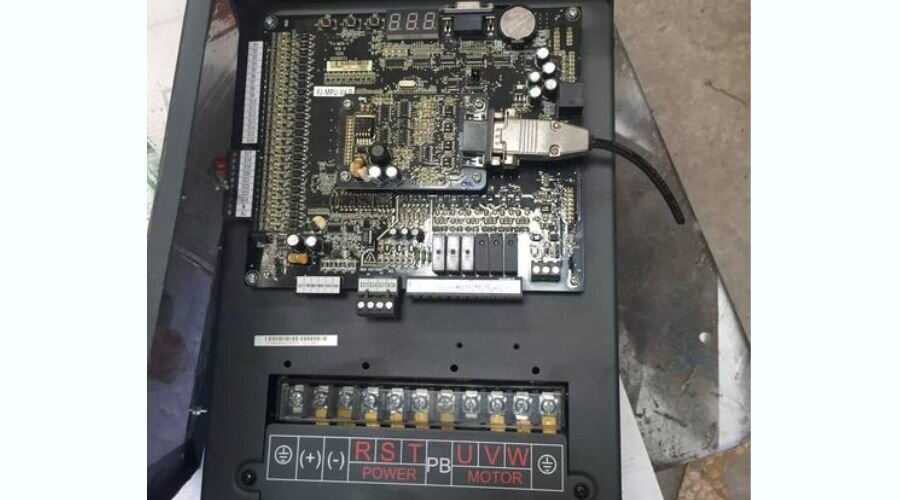

Internal Structure of the Fuji 11kW Variable Frequency Drive

The internal structure of the Fuji variable frequency drive above 10kW includes main components such:

• Rectifier: Its main function is to convert alternating current (AC) from the grid power supply into direct current (DC). Diodes or thyristors are typically used to ensure high load-bearing capacity and high conversion efficiency.
• Filter Circuit: The filter circuit includes capacitors and inductors that help smooth the DC current, reduce noise, and suppress power surges, thereby improving the quality of the voltage supplied to the inverter.
• Inverter: This is the main component that converts direct current (DC) into alternating current (AC) with variable frequency and voltage. The Fuji variable frequency drive uses high-power semiconductor components such as IGBTs (Insulated Gate Bipolar Transistors) to generate a simulated sine wave, precisely controlling motor speed and torque.
• Control Board: This is the central processor, programmed to manage all operations of the variable frequency drive such as frequency adjustment, device protection, sensor signal processing, and communication with other control systems (PLC, HMI, etc.).

Technical Specifications of the Fuji 11kW Variable Frequency Drive

Below are the specifications of the Fuji 11kW Variable Frequency Drive:

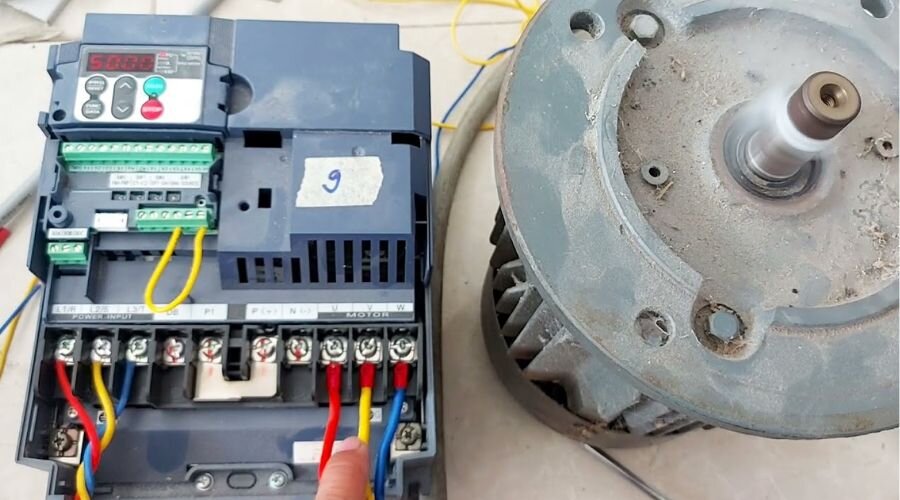

Popular Applications of the Fuji 11kW Variable Frequency Drive

The Fuji 11kW Variable Frequency Drive is widely used in many fields thanks to its flexible control and high performance. Some typical applications include:

• Industrial fan systems: Adjusting rotational speed to optimize air flow, save electricity, and reduce noise.
• Air compressors: Helping control compression power to match actual demand, thereby saving significant energy.
• Automated production lines: Enhancing precision in each stage, increasing operational efficiency, and reducing errors.
• Food processing equipment: Supporting the maintenance of production process stability, ensuring finished product quality.
• Office machines such as photocopiers: Managing internal mechanical movements smoothly and accurately.

What Products Can the Fuji 11kW Variable Frequency Drive Be Combined With?

With precise control and stable operation, the Fuji 11kW Variable Frequency Drive can effectively integrate with various machinery in production lines. This combination not only ensures optimal working performance but also helps reduce power consumption and increase equipment lifespan.

Specifically, the Fuji 11kW Variable Frequency Drive can be combined with the following products:

Electric motors such as:

• 3-phase electric motor 11kW 15Hp
• Brake Motor 11kW 15Hp
• Explosion-proof 11kW 15Hp

Gear motors such as:

• Gear motor with brake 11kW 15Hp

Air blowers such as:

• Air blower 11kW 15Hp

Water pumps such as:

• Vacuum pump 11kW 15Hp
• TECO water pump 11kW 15Hp
• 3-phase water pump 11kW 15Hp

In addition, the Fuji 11kW Variable Frequency Drive also combines with many industrial equipment such as centrifugal pumps, vertical pumps, industrial fans (such as centrifugal fans, smoke extraction fans), air compressors, grinders, mixers, and various machines in production lines.

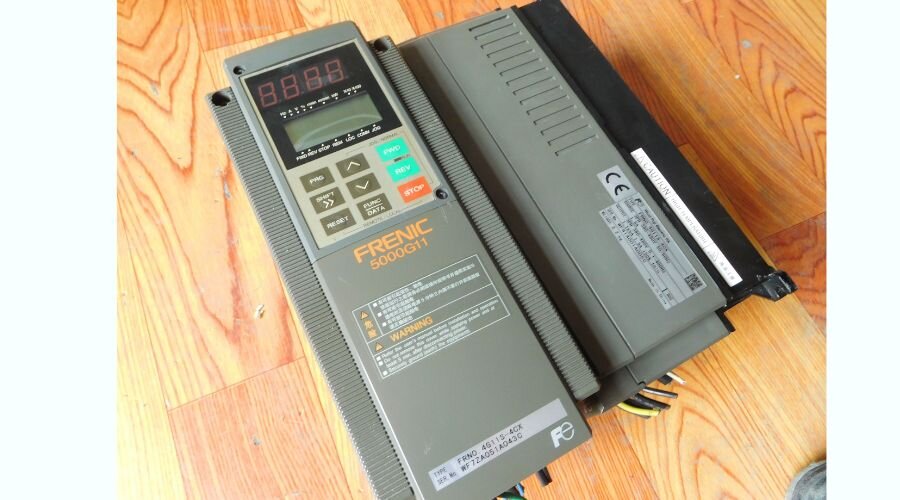

Classification of the Fuji 11kW Variable Frequency Drive

The Fuji 11kW Variable Frequency Drive is a motor control equipment series manufactured in various versions to meet diverse usage needs in industrial and civil applications. Below are three typical product lines:

• Frenic Mega: This is the high-end version of the Fuji variable frequency drive, designed for use in large factories where continuous operation with high precision is required. This series supports sensorless vector control, providing smooth speed adjustment and powerful torque, suitable for applications such as heavy-duty conveyors, steel rolling mills, plastic extruders, and other heavy industrial equipment.
• Frenic Mini: This is a compact variable frequency drive line, specialized for medium-to-low power equipment and machinery such as packaging machines, food processing machines, mini conveyor lifts, or woodworking machines. Despite its small size, this series still integrates full smart control functions, motor protection, and easy installation.
• Frenic HVAC: The Frenic HVAC series is developed by Fuji specifically for the HVAC (Heating – Ventilation – Air Conditioning) field, highly suitable for controlling equipment such as exhaust fans, ventilation fans, and water pumps in commercial buildings, shopping malls, hotels, or factories. This variable frequency drive stands out with its integrated PID control capability, energy saving, and stable long-term operation.

If you are using the Fuji 11kW Variable Frequency Drive, you can follow the variable frequency drive videos shared by Thanh Thai Motor. The content introduces wiring methods, setting basic parameters, adjusting motor speed according to actual needs, and instructions on checking and handling some common errors to keep the equipment operating stably. Watch more useful summary videos at Thanh Thai Motor.

Purchasing Policy and Commitment at Thanh Thai Motor

Extended 24-Month Warranty

All VFDs (VFD cabinets or VFD units) supplied by Thanh Thai Motor are from renowned Chinese VFD manufacturers and come with an official warranty of up to 24 months. We are committed to providing absolute peace of mind with transparent, fast, and dedicated after-sales service.

Nationwide Door-to-Door Delivery

No matter where you are in Vietnam, we ensure that products are delivered to you quickly, safely, and on time, without geographical limitations.

European Standard Quality, German Technology

Thanh Thai Motor's 1-phase 220V VFDs or 3-phase 220V/380V VFDs are manufactured using advanced German technology and strictly meet European quality standards. This ensures the equipment has superior durability and stable operation over a long period, suitable for industrial VFD products.

Competitive Pricing, Discounts for Partners and Bulk Orders

We always offer reasonable VFD prices for 1-phase or 3-phase VFDs, along with many attractive discount policies exclusively for dealers and bulk buyers with the most affordable VFD prices. The more you buy, the higher the discount, helping to optimize your profit.

Complete, Transparent Documentation (CO, CQ)

Each VFD is provided with a full Certificate of Origin (CO) and Certificate of Quality (CQ). These documents are clear proof of origin and quality, providing absolute confidence to customers when purchasing VFDs for projects requiring technical documentation.

Are you looking for the most suitable motor VFD for your system? Do not hesitate to contact Thanh Thai Motor immediately through the following channels:

Hotline: 0909.539.175
Zalo: 0902530445
Email: codienthanhthai@gmail.com
