ABB Variable Frequency Drive 7.5kW

A variable frequency drive (inverter) is a modern electronic device widely used in both industrial and civil applications to flexibly adjust the speed, torque, and rotation direction of an electric motor. Among them, variable frequency drives under 10kW are the ideal solution for systems requiring medium-power motor control, optimizing working performance, saving energy, and improving operational accuracy. Explore the ABB Variable Frequency Drive 7.5kW line and its outstanding practical applications in detail with Thanh Thai Motor!

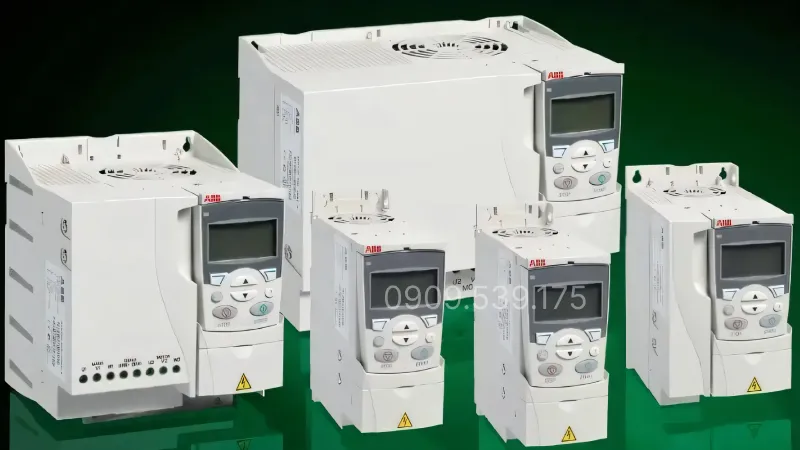

General Design of ABB Variable Frequency Drive 7.5kW

The ABB Variable Frequency Drive with a power of 7.5kW features a compact yet sturdy design, suitable for installation in electrical cabinets or on machinery surfaces in industrial working environments. The outer casing is made of high-grade insulating material, capable of dust resistance, moisture resistance, and high-temperature tolerance, ensuring the safety of internal components.

The user-friendly interface features an intuitive control keypad, integrated with an LED or LCD screen displaying clear operating parameters for easy monitoring and setting adjustments. The connection ports are reasonably arranged, supporting connectivity with various peripheral devices and control systems such as PLC and HMI.

Additionally, the cooling system with an efficiently operating cooling fan helps the variable frequency drive operate stably for a long time, even in environments with heavy loads or high temperatures. Designed for efficiency and durability, the ABB Variable Frequency Drive 7.5kW is the optimal choice for numerous applications from pumps, fans, and conveyors to automated industrial machinery.

Internal Structure of ABB Variable Frequency Drive 7.5kW

ABB variable frequency drive lines under 10kW are composed of main components that coordinate with each other to precisely and stably control the speed and torque of the electric motor. Specifically, they include:

• DC Link: Includes capacitors and inductors to smooth the DC current, reduce electromagnetic interference, and ensure stable voltage before feeding into the inverter unit.
• Inverter: Uses IGBT transistors to convert DC current into output AC current with adjustable frequency and voltage, thereby controlling the speed and rotation direction of the motor.
• Central Processing Unit (CPU/Control Unit): The “brain” of the variable frequency drive, processing control commands, monitoring operating parameters, and executing control algorithms such as V/f, vector control, or torque control.
• Sensor & Protection Circuit System: Integrates current, temperature, and pressure sensors along with protection circuits for overcurrent, overvoltage, undervoltage, short-circuit, etc., to ensure safety for both equipment and system.
• Cooling System: Consists of heat-conducting aluminum fins and cooling fans, helping maintain a stable temperature during continuous operation under high loads.

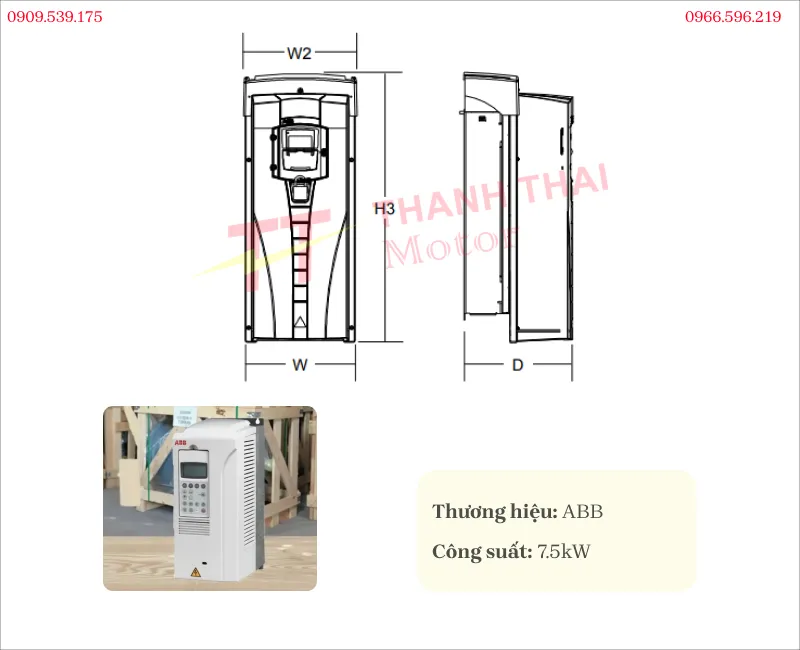

Technical Specifications of ABB Variable Frequency Drive 7.5kW

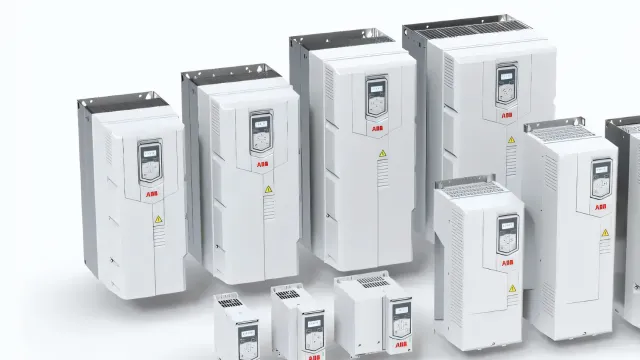

Depending on the usage needs and technical requirements of each system, the ABB Variable Frequency Drive 7.5kW is divided into various product lines. Each line has distinct characteristics optimized for specific applications. Below are the technical specifications and some popular variable frequency drive series:

• ABB ACS550 Variable Frequency Drive: Standard, easy-to-use series designed for applications such as pumps, fans, compressors, and conveyors. Built-in energy-saving and motor protection features.
• ABB ACS580 Variable Frequency Drive: Advanced series with more flexible control capabilities, suitable for both simple and complex systems. Supports multiple communication standards and integrates advanced control features.
• ABB ACS800 Variable Frequency Drive: Premium series meeting applications requiring high precision, fast response, and stable operation in heavy industrial environments. Deep parameter customization and compatibility with various automation systems.

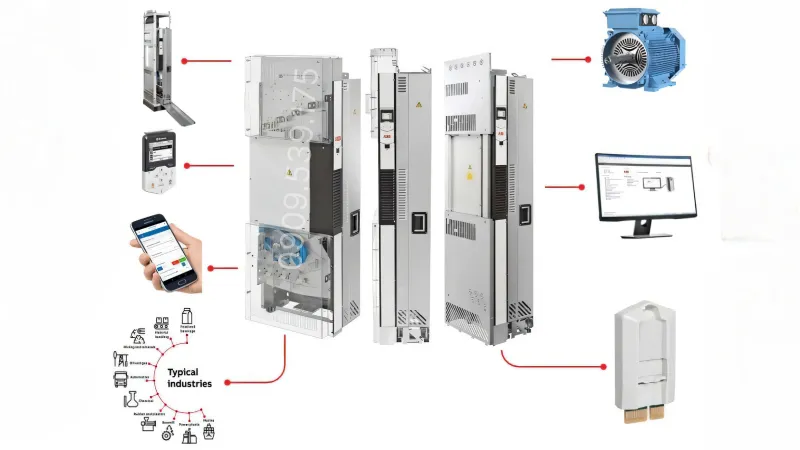

Common Applications of ABB Variable Frequency Drive 7.5kW

The ABB Variable Frequency Drive 7.5kW is an effective motor speed control solution, widely applied in many industrial and civil fields thanks to its stable operation, energy savings, and equipment protection. Some typical applications include:

• Water pump systems: Controlling pumps according to actual demand helps save electricity, reduce water hammer phenomena, and extend pump lifespan.
• Industrial and ventilation fans: Increasing or decreasing fan speed based on temperature or pressure sensors, helping improve cooling efficiency and reduce power consumption.
• Conveyors: Controlling flexible movement speed according to each production stage, ensuring safety and precision during operation.
• Air compressors: Optimizing compression efficiency and reducing motor load when full power operation is not required.
• Mixers, presses, and food processing systems: Requiring frequent torque and speed adjustments to suit each material type and processing stage.

What Equipment Can ABB Variable Frequency Drive 7.5kW Be Combined With?

Below are the main device groups that the ABB Variable Frequency Drive 7.5kW can effectively coordinate and operate with:

Direct Combination with 7.5kW (10Hp) Electric Motor Lines

The variable frequency drive works harmoniously with compatible 3-phase electric motors, helping achieve smooth speed control, optimize working performance, and protect the motor against overload incidents:

• 3-phase electric motor 7.5kW: Helps achieve smooth startup, minimizes direct starting current, and adjusts rotation speed flexibly according to each working cycle.
• Brake Motor 7.5kW: Coordinates smoothly to control lifting mechanisms, short conveyors, or auxiliary winches requiring emergency stopping capability and precise load holding.
• Explosion-proof 7.5kW motor: Meets strict safety standards, operating safely in specific environments with high explosion risks (such as chemical storage areas, fuel filling stations).
• Air blower 7.5kW: Optimizes fan speed control for medium-scale ventilation or fresh air supply systems.

Integration in Medium Industrial Machinery and Equipment Systems

In factories, water supply systems, or small and medium production lines, the ABB Variable Frequency Drive 7.5kW is an optimal solution when combined with equipment. The ABB Variable Frequency Drive 7.5kW can be combined with medium-power industrial equipment such as water pumps (centrifugal water pumps, vertical pumps), industrial fans (centrifugal fans, smoke extraction fans), air compressors, and line equipment such as mixers, grinders, and rolling mills.

• Water pump systems (Centrifugal pumps, vertical pumps): Regulates water flow and pressure according to actual demand, overcomes water hammer phenomena, and saves significantly more electricity compared to running pumps directly.
• Industrial fans (Centrifugal fans, smoke extraction fans): Changes rotation speed flexibly to adjust cooling airflow, ventilation, or dust extraction for workshops and production areas.
• Air compressors: Accurately manages output pressure, helping air compressors operate stably and reducing load effectively when compressed air demand does not reach maximum levels.

Instructions for Using ABB Variable Frequency Drive 7.5kW

For the ABB Variable Frequency Drive 7.5kW to operate stably, safely, and with high efficiency, users need to correctly follow the installation, connection, and maintenance steps according to the following guidelines.

• Carefully consult the technical documentation and user manual provided by the manufacturer before proceeding with equipment installation and operation.
• Check the input power supply to ensure compatibility with the technical specifications of the variable frequency drive to avoid overload or damage incidents.
• Perform electrical connections technically correctly, complying with connection diagrams and electrical safety standards; simultaneously choose a cool installation location, avoiding dust and high humidity to ensure effective heat dissipation.
• Set operating parameters appropriate for the motor type and practical application, using the control screen interface or supporting software from ABB.
• Conduct regular checks, cleaning, and maintenance to ensure stable system operation, extend equipment lifespan, and minimize incidents during use.

Thanh Thai Motor’s inverter video system and compilation videos provide visual information sources, helping you better understand the product and make the right choice according to your operational requirements.

Purchasing Policy and Commitment at Thanh Thai Motor

Extended 24-Month Warranty

All VFDs (VFD cabinets or VFD units) supplied by Thanh Thai Motor are from renowned Chinese VFD manufacturers and come with an official warranty of up to 24 months. We are committed to providing absolute peace of mind with transparent, fast, and dedicated after-sales service.

Nationwide Door-to-Door Delivery

No matter where you are in Vietnam, we ensure that products are delivered to you quickly, safely, and on time, without geographical limitations.

European Standard Quality, German Technology

Thanh Thai Motor's 1-phase 220V VFDs or 3-phase 220V/380V VFDs are manufactured using advanced German technology and strictly meet European quality standards. This ensures the equipment has superior durability and stable operation over a long period, suitable for industrial VFD products.

Competitive Pricing, Discounts for Partners and Bulk Orders

We always offer reasonable VFD prices for 1-phase or 3-phase VFDs, along with many attractive discount policies exclusively for dealers and bulk buyers with the most affordable VFD prices. The more you buy, the higher the discount, helping to optimize your profit.

Complete, Transparent Documentation (CO, CQ)

Each VFD is provided with a full Certificate of Origin (CO) and Certificate of Quality (CQ). These documents are clear proof of origin and quality, providing absolute confidence to customers when purchasing VFDs for projects requiring technical documentation.

Are you looking for the most suitable motor VFD for your system? Do not hesitate to contact Thanh Thai Motor immediately through the following channels:
