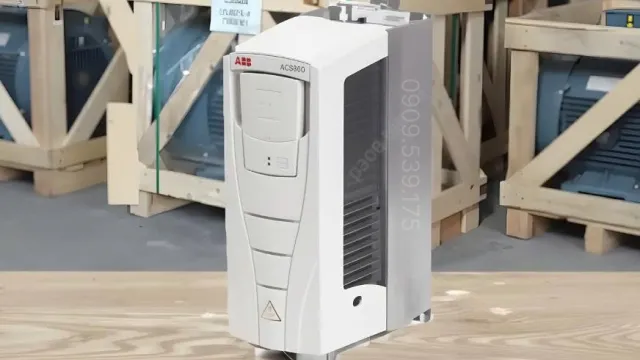

ABB Variable Frequency Drive 5.5kW

A variable frequency drive (inverter) is an advanced electronic device widely used in both industrial and civil fields to control the frequency speed, torque, and rotational direction of electric motors. Among them, the variable frequency drive under 10kW is a reliable choice for systems requiring medium-power motor control, delivering high, stable, and accurate operating performance. Let’s explore more details about the ABB variable frequency drive product as well as the prominent practical applications this device brings with Thanh Thai Motor!

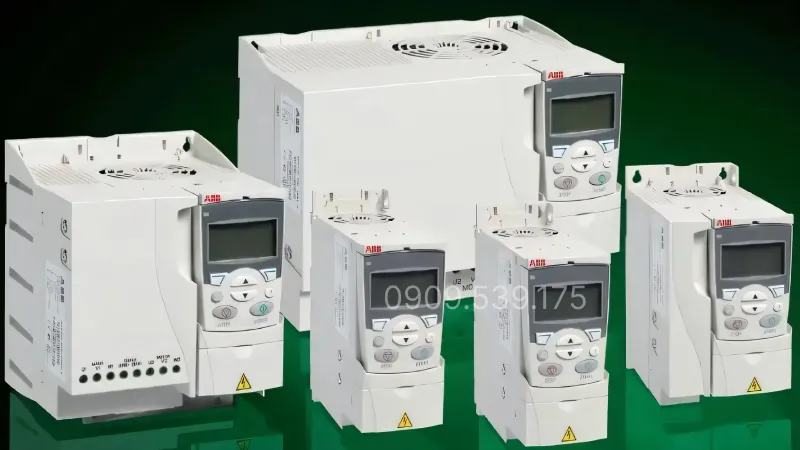

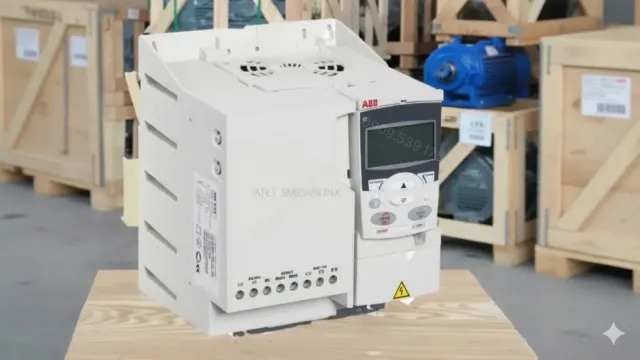

Overall design of ABB Variable Frequency Drive 5.5kW

The ABB Variable Frequency Drive 5.5kW is designed with a sturdy outer casing, using heat-resistant and impact-resistant materials to maximally protect internal components from environmental impacts such as dust, moisture, and mechanical vibration. The product features a compact design, making it easy to install in electrical cabinets or on machine walls, optimizing workspace.

The front of the variable frequency drive integrates a user-friendly control keypad and a clear LED display screen, allowing easy monitoring and adjustment of operating modes. Connection ports are arranged logically, supporting flexible communication with peripheral devices such as PLCs, sensors, or remote monitoring systems.

In addition, the scientifically arranged cooling system combined with an automatic cooling fan helps maintain a stable temperature, ensuring durable equipment operation over a long period.

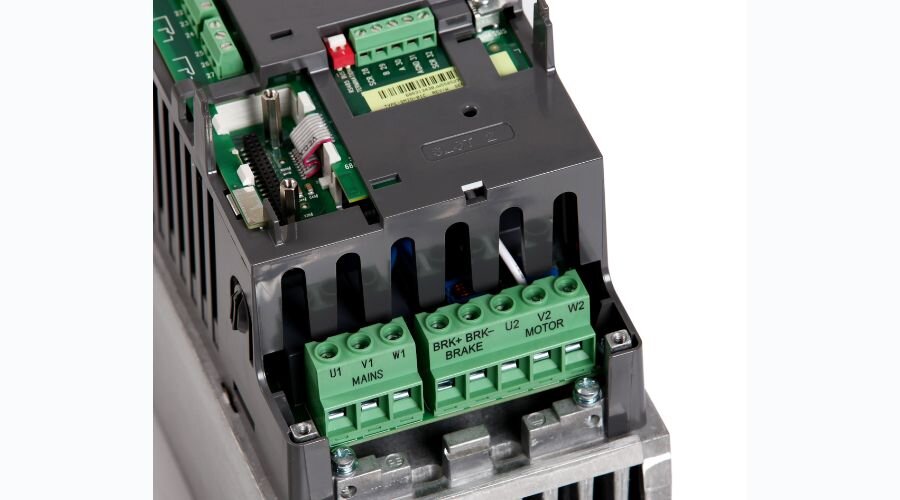

Internal structure of ABB Variable Frequency Drive 5.5kW

The ABB variable frequency drive under 10kW is composed of multiple main electronic components that closely coordinate to effectively control and adjust motor operation. The main components include:

• Rectifier: Converts alternating current (AC) from the input source into direct current (DC). Usually composed of diodes or thyristors.
• DC Link: Consisting of capacitors and inductors, responsible for smoothing the DC current and stabilizing voltage before conversion to the output, reducing noise and increasing operating efficiency.
• Inverter: Converts direct current into alternating current with variable frequency and voltage, allowing adjustment of motor speed and torque according to load requirements.

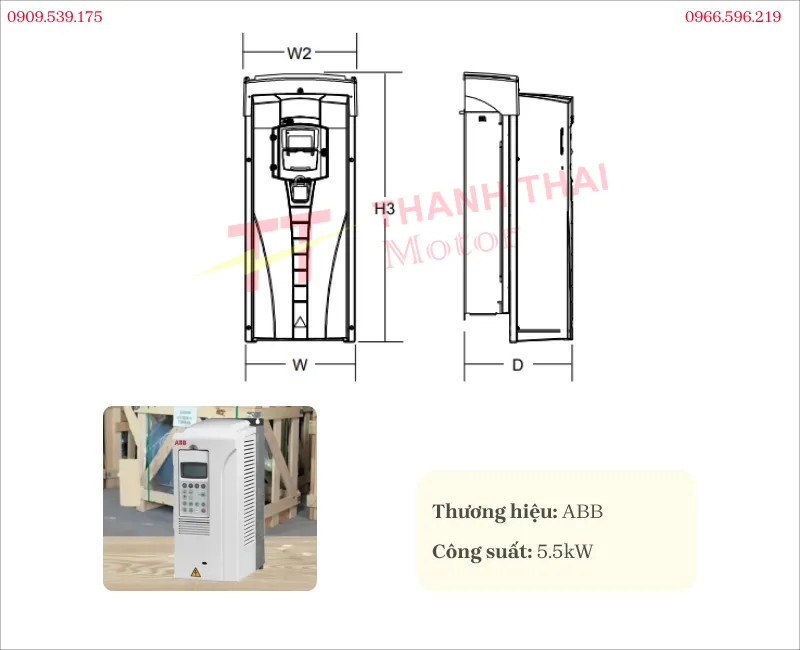

Technical specifications of ABB Variable Frequency Drive 5.5kW

The ABB Variable Frequency Drive 5.5kW is classified into various types based on input and output voltage to flexibly meet individual usage needs in civil and industrial applications. Below are the technical specifications and some popular variable frequency drive series:

• ABB ACS550 Variable Frequency Drive: Designed for various industrial applications, especially in the pump and fan sectors. This device offers high performance and easy installation.
• ABB ACS580 Variable Frequency Drive: An upgraded version of the ACS550, providing motor control solutions. This design is suitable for both simple and complex applications.
• ABB ACS800 Variable Frequency Drive: A premium product suitable for applications requiring precise and rapid motor control. Ideal for heavy industries and automation.

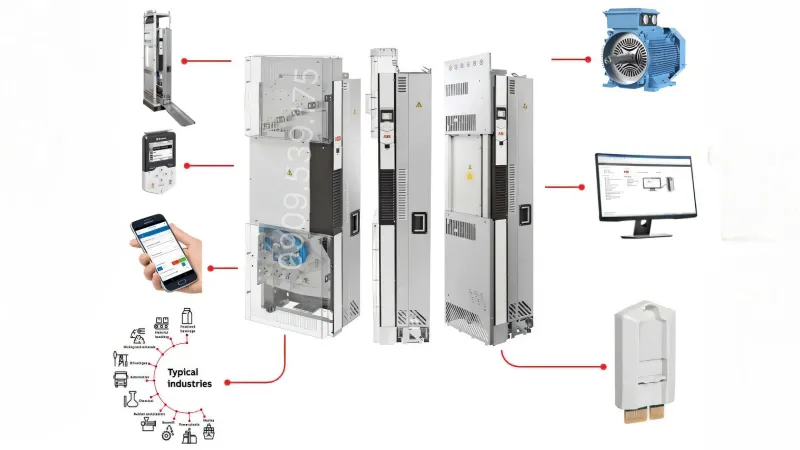

Common applications of ABB Variable Frequency Drive 5.5kW

The ABB Variable Frequency Drive 5.5kW is commonly applied in industry as follows:

• Pumping systems: The ABB Variable Frequency Drive 5.5kW adjusts water flow and pressure, helping optimize productivity and reduce energy costs.
• Industrial fans: Adjusts fan speed, reduces energy consumption, and improves ventilation systems.
• Conveyor belts: Increases the performance and durability of conveyor belts by adjusting speed according to the production process.
• Other industrial equipment: Applied in material handling, lifting, mixing, and crushing systems.

What devices can the ABB Variable Frequency Drive 5.5kW be combined with?

The ABB Variable Frequency Drive 5.5kW is designed to control a 3-phase electric motor with a capacity of 5.5kW, suitable for various drive systems in industry and civil sectors. The device helps adjust rotational speed, torque, and operating frequency of the motor according to actual needs, thereby enhancing operating efficiency, saving electrical energy, and extending equipment lifespan.

• Water pumps with a capacity of 5.5kW: Combined with centrifugal pumps, vertical pumps, booster pumps, water supply pumps, and circulation pumps. The variable frequency drive helps adjust flow rate according to usage needs, maintain stable pressure, reduce water hammer phenomena when starting or stopping the pump, and significantly save electricity costs.
• Industrial fans: Suitable for centrifugal fans, axial fans, smoke extraction fans, ventilation fans, and HVAC systems. The device allows flexible changes in fan speed according to actual load, reduces noise, saves electricity, and increases the lifespan of bearings and fan blades.
• Air compressors: The variable frequency drive helps adjust motor speed according to air consumption, maintains stable pressure, limits multiple direct starts, and reduces mechanical wear during operation.
• Rolling mills and mechanical processing machines: Applied on rolling machines, cutting machines, coiling machines, packaging machines, and many automated production equipment. The variable frequency drive helps control speed accurately, increases line stability, and improves production productivity.

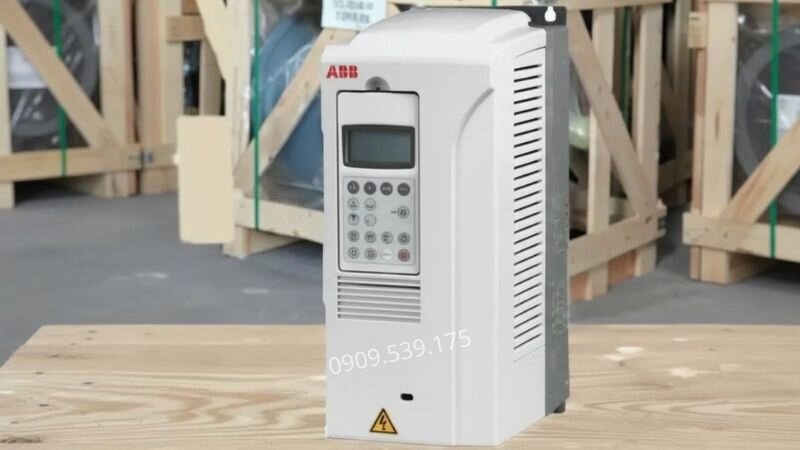

Instructions for using ABB Variable Frequency Drive 5.5kW: Installation and electrical wiring

• Mechanical installation
  • Inspection: Confirm that the drive voltage and power are fully compatible with the electrical system and motor.
  • Location: Install in a dry, cool place, avoiding dust, high humidity, and direct sunlight.
  • Heat dissipation: Maintain a clearance of at least 200mm above and below the device to ensure cooling air circulation.
• Electrical wiring
  • Power connection: Connect the input power supply (L1, L2, L3) and motor output (U, V, W) securely, tightening the screws at the connection terminals.
  • Grounding: It is mandatory to connect the ground wire to the drive enclosure and motor frame to eliminate electromagnetic interference and ensure electrical safety.
  • Signal: Route control signal wires separately from power cables to avoid Analog or Digital signal interference.

Explore the inverter videos and compilation videos to see a close-up of each product, from external design to technical specifications, making selection more accurate and efficient.

Purchasing Policy and Commitment at Thanh Thai Motor

Extended 24-Month Warranty

All VFDs (VFD cabinets or VFD units) supplied by Thanh Thai Motor are from renowned Chinese VFD manufacturers and come with an official warranty of up to 24 months. We are committed to providing absolute peace of mind with transparent, fast, and dedicated after-sales service.

Nationwide Door-to-Door Delivery

No matter where you are in Vietnam, we ensure that products are delivered to you quickly, safely, and on time, without geographical limitations.

European Standard Quality, German Technology

Thanh Thai Motor's 1-phase 220V VFDs or 3-phase 220V/380V VFDs are manufactured using advanced German technology and strictly meet European quality standards. This ensures the equipment has superior durability and stable operation over a long period, suitable for industrial VFD products.

Competitive Pricing, Discounts for Partners and Bulk Orders

We always offer reasonable VFD prices for 1-phase or 3-phase VFDs, along with many attractive discount policies exclusively for dealers and bulk buyers with the most affordable VFD prices. The more you buy, the higher the discount, helping to optimize your profit.

Complete, Transparent Documentation (CO, CQ)

Each VFD is provided with a full Certificate of Origin (CO) and Certificate of Quality (CQ). These documents are clear proof of origin and quality, providing absolute confidence to customers when purchasing VFDs for projects requiring technical documentation.

Are you looking for the most suitable motor VFD for your system? Do not hesitate to contact Thanh Thai Motor immediately through the following channels:
