ABB Variable Frequency Drive 4kW

An inverter is an advanced electronic device widely used in industrial and residential systems to flexibly and accurately control the speed, torque, and rotation direction of electric motors. Among them, ABB variable frequency drives under 10kW are an ideal choice for systems requiring medium to high power motor control, featuring stable operation and high efficiency. In this article, let’s join Thanh Thai Motor to learn in detail about the product as well as the prominent applications of the ABB Variable Frequency Drive 4kW in practice!

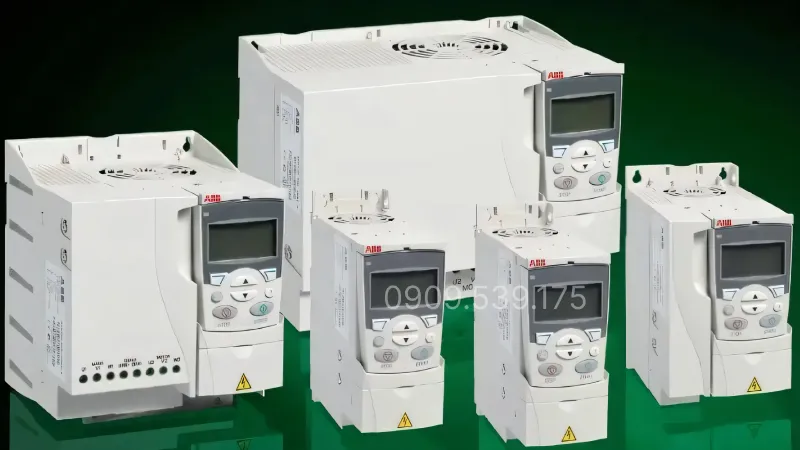

General design of the ABB Variable Frequency Drive 4kW

The ABB Variable Frequency Drive 4kW is designed to modern industrial standards, ensuring high durability, stable operation, and easy integration into various control systems. The outer casing is made of sturdy materials with dust and water resistance complying with IP20/IP21 standards, helping the device operate well in harsh environments.

The device has a compact design, optimized for installation in electrical panels or limited spaces. The heat dissipation system is scientifically arranged, combined with a high-quality cooling fan, ensuring efficient heat removal even during continuous operation for long periods.

The front of the frequency drive integrates a user-friendly control panel with an LED/LCD screen displaying full operating parameters such as voltage, current, frequency, and system errors, making it easy for users to monitor and adjust. In addition, the ABB Variable Frequency Drive 4kW also supports communication connection ports such as Modbus, CANopen, Profibus, etc., helping to quickly connect with PLCs or SCADA systems in automation applications.

Internal structure of the ABB Variable Frequency Drive 4kW

Frequency drives under 10kW are composed of multiple integrated electronic and mechanical components that work closely together to ensure accurate, stable, and safe motor control processes. The main components include:

Rectifier

• Functions to convert input alternating current (AC) into direct current (DC).
• Typically uses diodes or controlled rectifiers (thyristors) to ensure high and stable conversion efficiency.

Filter Circuit

• Used to filter noise and smooth the DC voltage after the rectifier.
• Typically includes capacitors and inductors to eliminate power surges and improve voltage quality.

Inverter Circuit

• Converts DC current into AC current with variable frequency and voltage.
• Uses semiconductor components such as IGBT (Insulated Gate Bipolar Transistor) to generate a simulated sine wave – controlling motor speed and torque.

Control Unit

• Acts as the central processor (usually a microprocessor or DSP) responsible for monitoring and controlling all operations of the frequency drive.
• Allows setting parameters, operating programs, protection functions, communication interfaces, and sensor input feedback.

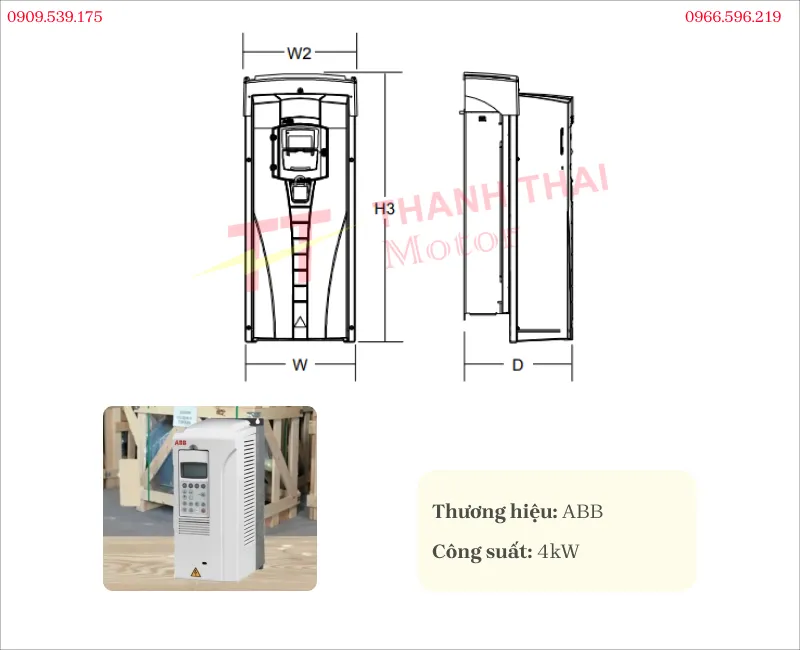

Technical specifications of the ABB Variable Frequency Drive 4kW

The ABB Variable Frequency Drive 4kW is designed with various input and output voltage types to meet diverse application needs in residential and industrial sectors. Below are the technical specifications and some popular series:

• 1-phase 220V input, 1-phase 220V output frequency drive: Suitable for household applications or small load systems using residential power supplies. The device converts voltage from a 1-phase 220V source into a stable 220V voltage for 1-phase load devices, helping to flexibly control speed.
• 3-phase 380V input, 3-phase 380V output: This is a popular type in industrial environments, supplying a stable 3-phase 380V power source to medium and large power motors, ensuring operational efficiency and high load capacity.
• 3-phase 380V input, 1-phase 220V output: Suitable for cases where 1-phase equipment needs to be used where only a 3-phase power source is available. This device converts current from 380V down to 220V while still ensuring speed control features for 1-phase loads in production environments.

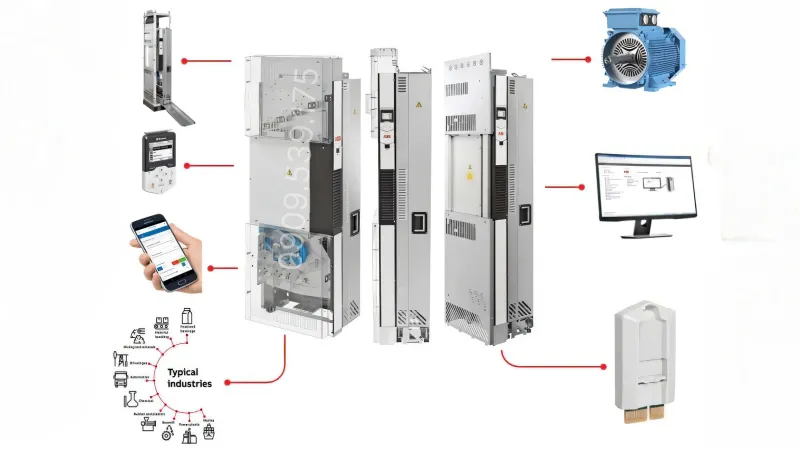

Applications of the ABB Variable Frequency Drive 4kW

With a capacity of 4kW, the ABB frequency drive is suitable for industrial and residential applications requiring continuous operation and high stability such as:

• Water pump systems (booster pumps, circulation pumps) – adjusting flow rate and pressure according to usage demands.
• Ventilation fans, industrial exhaust fans – controlling speed and airflow to save electricity and reduce noise.
• Production, packaging, and sorting conveyors – controlling transportation speed to match the production line.
• Air compressors, mixers, presses, cutting machines – ensuring starting torque and precise, stable operation.
• HVAC systems (air conditioning, ventilation) – optimizing performance and reducing operating costs.
• High-tech agricultural applications – such as automatic irrigation systems, livestock barn fans, and aerators in aquaculture ponds.

What devices can the ABB Variable Frequency Drive 4kW be combined with?

The ABB Variable Frequency Drive 4kW is the perfect match to control electric motors of equivalent power, helping to precisely control speed and torque:

• 3-phase electric motor 4kW: Supports soft starting and stopping processes, minimizes direct starting currents that cause power grid voltage drop, and flexibly changes rotational speed according to practical needs.
• 4kW gear motor: Optimizes pulling force and precisely controls slow speed in heavy-duty applications.
• 4kW brake motor: Works harmoniously in systems requiring precise positioning stop or safe load holding such as electric winches, small overhead cranes, or inclined conveyors.
• 4kW explosion-proof motor: Ensures absolute safety when combined for operation in special environments prone to electrical sparks or explosions (chemicals, textiles, mining).
• Water pump systems: Combines well with 4kW centrifugal pumps and vertical multistage pumps to build booster or circulation pump systems. The frequency drive helps maintain stable pipeline pressure and minimizes water hammer phenomena causing pipe bursts.
• Industrial and ventilation fans: Installed with dust extraction fans and factory ventilation fans to automatically adjust airflow based on temperature/pressure sensors, significantly reducing noise and saving electricity.

Instructions for using the ABB Variable Frequency Drive 4kW

To ensure that the ABB Variable Frequency Drive 4kW operates efficiently, safely, and durably over time, users must strictly follow the installation and usage procedures according to the manufacturer’s instructions.

• Read the instruction manual carefully: Before proceeding with installation or operation, read the manufacturer’s user guide carefully to understand technical specifications, wiring diagrams, and safety warnings.
• Check the input power supply: Ensure that the supplied power matches the rated voltage range of the frequency drive (1-phase or 3-phase, 220V or 380V) to avoid damaging the equipment.
• Connect wires according to the diagram: Perform power and motor wiring according to the diagram provided in the frequency drive’s technical documentation. Ensure terminals are tightened and rechecked before powering on.
• Choose a reasonable installation location: Install the frequency drive in a dry, cool place, away from direct sunlight and dust. Maintain the minimum recommended ventilation distance to ensure the device dissipates heat effectively.
• Periodic maintenance and inspection: Clean dust, check the cooling fan, terminals, and internal components periodically according to instructions. Proper maintenance will extend lifespan and maintain stable performance of the frequency drive.
