Size 42 Stepper Motor

The Size 42 Stepper Motor belongs to the precision-controlled electric motor line with standard NEMA 17 flange (42 × 42 mm), functioning to convert discrete electrical pulses into rotational motion with a fixed step angle of 1.8°. The stepper motor is made of heat-resistant materials, hardened steel shaft, and powder-coated aluminum alloy housing, ensuring high durability and stable long-term operation. Commonly used in systems requiring high positional accuracy and compact size such as: 3D printers, mini CNC machines, laser engraving machines, DIY robots, small automation equipment, desktop packaging machines, medical equipment, and technical education.

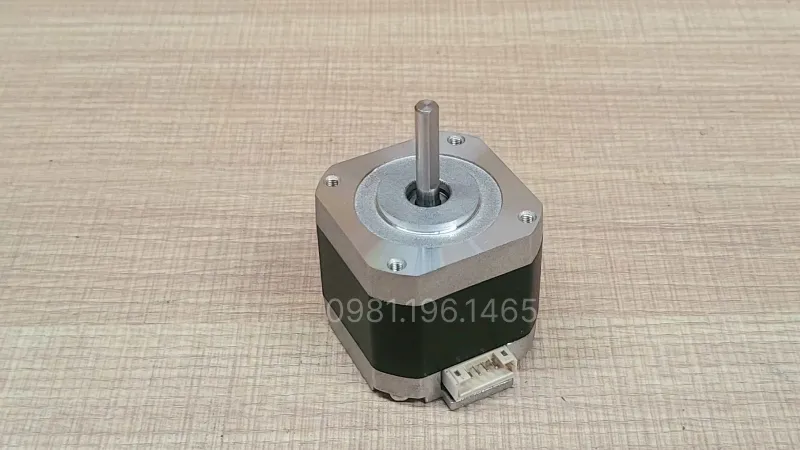

General design of the Size 42 Stepper Motor

The Size 42 Stepper Motor has a standard NEMA 17 square block motor body with a 42 × 42 mm flange size. The outer casing is cast from aluminum alloy, powder-coated in black or silver to help resist corrosion and dissipate heat well.

The motor shaft has a diameter of 5 mm or 6.35 mm, machined with a flat surface (D-cut) or keyway, helping to increase grip when installing pulleys, gears, or couplings. The rear of the motor integrates a 4-core (or 6-core) wire, firmly insulated, convenient for connecting to the control driver.

Detailed structure of the Size 42 Stepper Motor

The Size 42 Stepper Motor is constructed from high-quality magnetic materials, ensuring step accuracy and long-term lifespan, consisting of two main parts:

• Stator (Stationary part): Assembled from electrical engineering silicon steel sheets, helping to reduce eddy current losses and limit heat generation. The coils use heat-resistant pure copper wire, creating a stable and accurate magnetic field.
• Rotor (Moving part): Uses permanent magnets with a precise serrated structure (usually 50 teeth), helping the rotor interact effectively with the stator magnetic field, creating clear and decisive step-by-step rotational motion.
• Bearing system: Equipped with high-quality deep groove ball bearings at both ends of the shaft, helping to reduce friction, increase smoothness when rotating, and extend motor lifespan.
• Flange: Precisely machined according to NEMA 17 standards, ensuring quick installation, compatible with many machine frames and mechanical accessories.

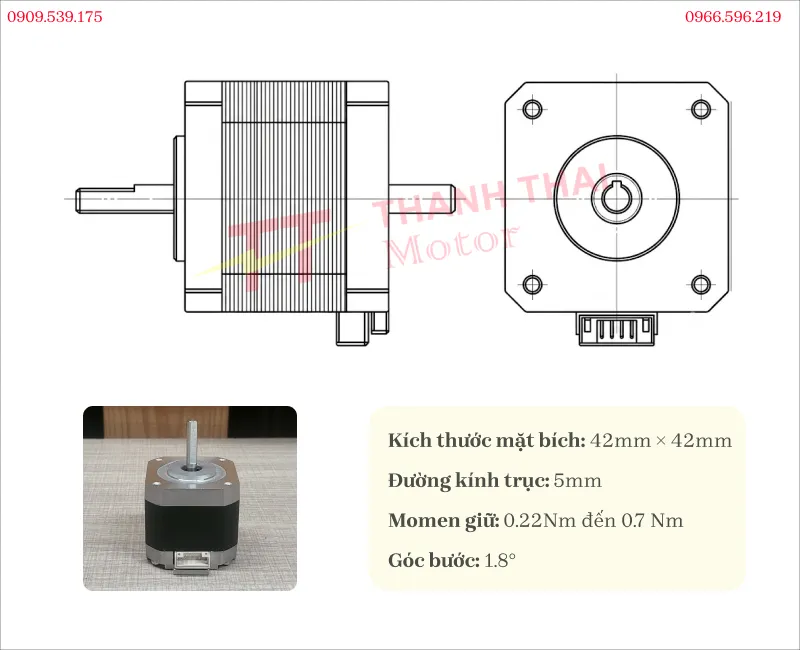

Technical specifications of the Size 42 Stepper Motor

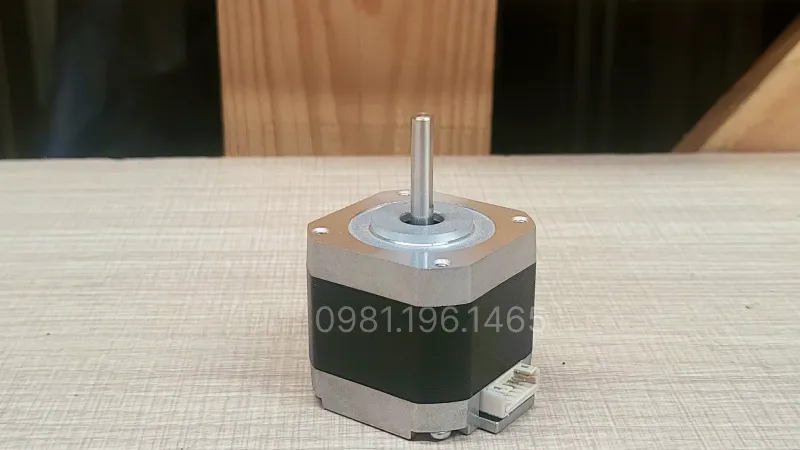

Applications of the Size 42 Stepper Motor

The Size 42 Stepper Motor is a 2-phase stepper motor line, most popular today thanks to its compact size and stable performance, suitable for many applications:

• Mini CNC machines, mini laser engraving machines: Controls the motion axis with high precision, suitable for machining small details.
• Robots and small motion mechanisms: Applied in grippers, sliding tables, rotation mechanisms.
• Desktop automation equipment: Mini labeling machines, material feeding machines, small packaging machines.
• Educational – research equipment: Arduino, Raspberry Pi, learning and experimental models.

Salient advantages of the Size 42 Stepper Motor

The Size 42 Stepper Motor is highly appreciated for the balance between accuracy – size – cost, with many outstanding advantages:

• High positioning accuracy: 1.8° step angle helps control position accurately without an encoder.
• Compact size, easy to install: Popular NEMA 17 standard, easy to replace and compatible with many systems.
• Stable torque at low speed: Suitable for applications requiring good holding force and smooth movement.
• Smooth operation, low maintenance: No carbon brushes used, reducing mechanical wear and maintenance costs.
• Reasonable price: Optimal choice for small and medium automation systems.

If you need to research thoroughly before buying, please watch the stepper motor video and summary video to reference the appearance design, technical specifications, and salient features of each model.
