3Nm Stepper Motor

The 3Nm Stepper Motor belongs to a special line of electric motors, specialized for medium to heavy load applications, typically designed with NEMA 23 (57mm size) long-body or NEMA 24 (60mm size) flange standards, capable of converting electrical pulses into rotational motion with superior pulling force. With a sturdy construction, high lifespan, and good compatibility with various controllers, the stepper motor is the optimal choice for numerous industrial automation solutions.

Overall Design of the 3Nm Stepper Motor

The 3Nm Stepper Motor features a long rectangular body shape, with the outer shell cast from matte black powder-coated aluminum alloy to optimize heat dissipation. Both ends are glossy CNC-machined square flanges with precise screw holes. The large-diameter steel motor shaft (8mm or 10mm) is flattened or keyway-milled, helping to increase grip and prevent slipping when installing timing belt pulleys.

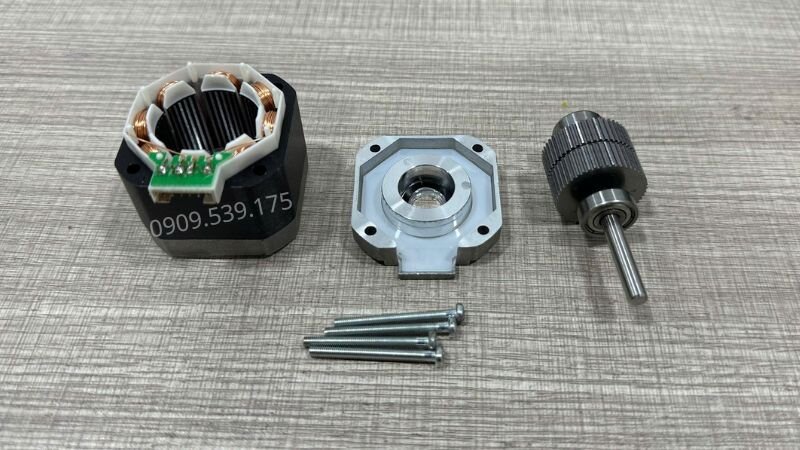

Construction of the 3Nm Stepper Motor

The 3Nm Stepper Motor is designed with an optimal structure for durability, precision, and high torque generation, detailed as follows:

• Stator: Utilizes stacked thin electrical steel laminations to reduce eddy currents causing overheating, combined with 100% high-temperature resistant pure copper windings to maintain a strong and stable magnetic field.
• Rotor: The rotor shaft is equipped with high-density rare-earth permanent magnets, and the surface is finely machined with micro-tooth grooves to enhance magnetic flux force and holding torque.
• Bearing system: Equipped with load-bearing bearings from reputable brands (such as NSK, SKF) at both ends of the shaft, helping to reduce rotational friction, withstand large radial forces from belts, and operate smoothly.
• Heat-dissipating housing: Made of die-cast aluminum alloy with a design of passive cooling fins along the body, protecting internal components from dust and rapidly releasing heat.

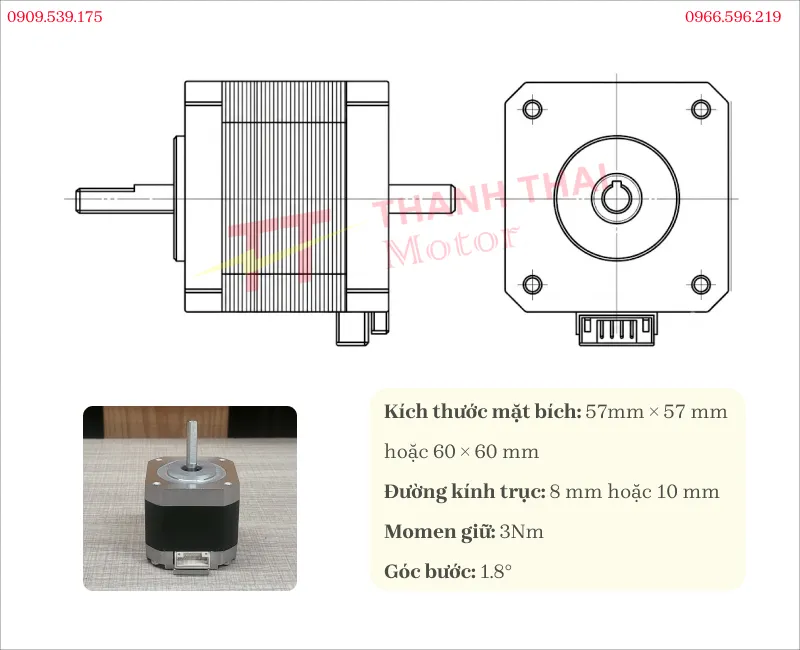

3Nm Stepper Motor Specifications

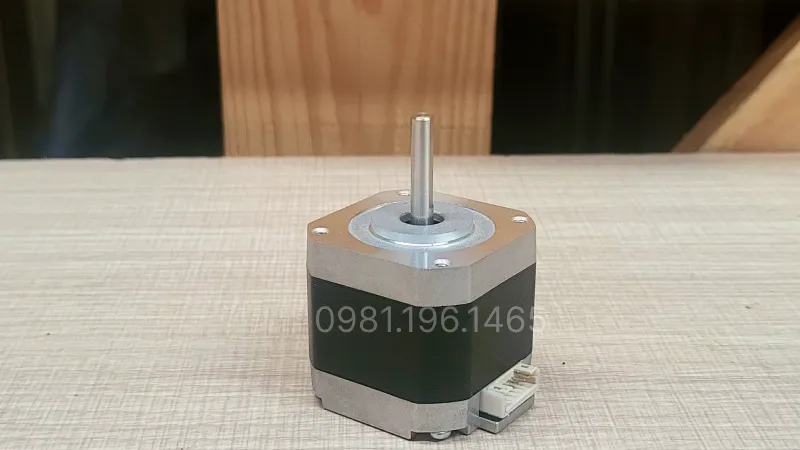

Applications of the 3Nm Stepper Motor

As a 2-phase, 4-wire stepper motor line, thanks to its powerful 3Nm torque, the 3Nm Stepper Motor is suitable for various systems requiring high pulling force and precise position control, and is applied in numerous industries:

• CNC milling and router machines: Directly drives the X, Y, and Z axes for wood, aluminum, and stone processing machines; the 3Nm force is strong enough to overcome large cutting resistance without losing steps.
• Plasma and laser cutting machines: Controls the cutting head to move at high speeds across a wide working area, ensuring sharp cuts without vibration or dimensional deviation.
• Industrial 3D printers: Applied to the Z-axis to lift heavy print beds or extrusion units requiring strong pushing force to handle hard-to-print engineering plastics.
• Automatic packaging systems: Pulling packaging films, labeling, or product conveyor belts that require continuous start-stop operation with high repeat accuracy and large acceleration.

The 3Nm Stepper Motor creates a great balance between torque, durability, and cost advantages compared to many other transmission solutions with high precision, step-loss resistance, and good thermal overload capacity.

The stepper motor video system and compilation videos at Thanh Thai Motor will help you easily evaluate the exterior design, dimensions, and specifications before investing.
