Mini Stepper Motor 1.2Nm

The Mini Stepper Motor 1.2Nm belongs to the electric motor family, featuring a compact design suitable for installation in systems with limited space while still requiring stable pulling force. The stepper motor operates on a step-by-step control principle, ensuring high accuracy during rotation and positioning. The sturdy metal housing helps protect internal components and supports effective heat dissipation during continuous operation. The motor shaft is precisely machined, making it easy to combine with various transmission mechanisms.

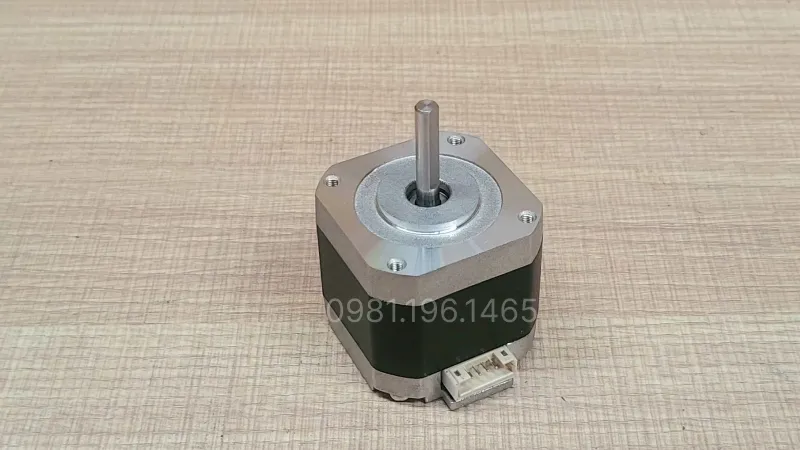

Overview design of the mini stepper motor 1.2Nm

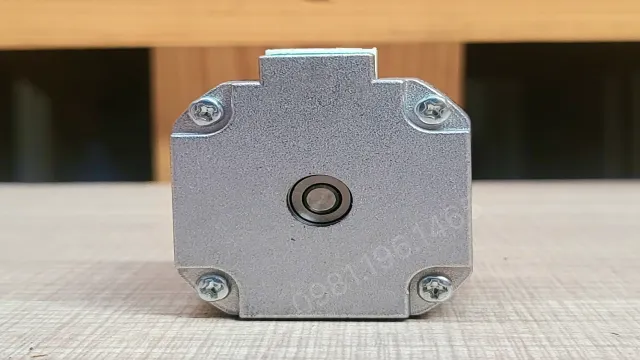

The motor body of the Mini Stepper Motor 1.2Nm features a sturdy square block shape, with sharply machined edges for easy securing during installation. The metal housing surface is treated uniformly, increasing durability and supporting heat dissipation during operation. The protruding motor shaft is precisely machined, ensuring concentricity and stable connectivity with transmission units. The overall design focuses on durability, stability, and convenience for integration into various automation devices.

Detailed structure of the mini stepper motor 1.2Nm

The Mini Stepper Motor 1.2Nm consists of multiple synchronized components to ensure precise and stable rotation capabilities:

• Motor housing: Made of hard metal, protecting internal components and supporting heat dissipation when the motor operates continuously.
• Winding system (stator): Windings are arranged by phase, creating a magnetic field to control rotational movement step by step.
• Rotating part (rotor): Balanced design, responding to the stator’s magnetic field to generate torque and precise movement.
• Motor shaft: Directly linked to the rotor, used to transmit motion to external mechanisms.
• Bearings: Installed at both ends of the shaft, helping reduce friction and increase smoothness during operation.
• Cables and connectors: Used to connect the motor to the controller, ensuring stable signal and power transmission.

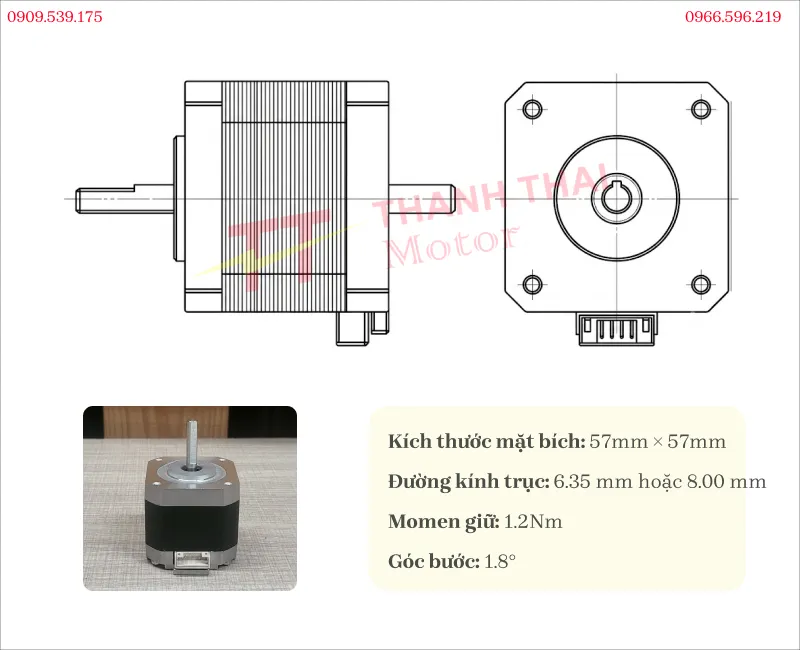

Technical specifications of the stepper motor 1.2Nm

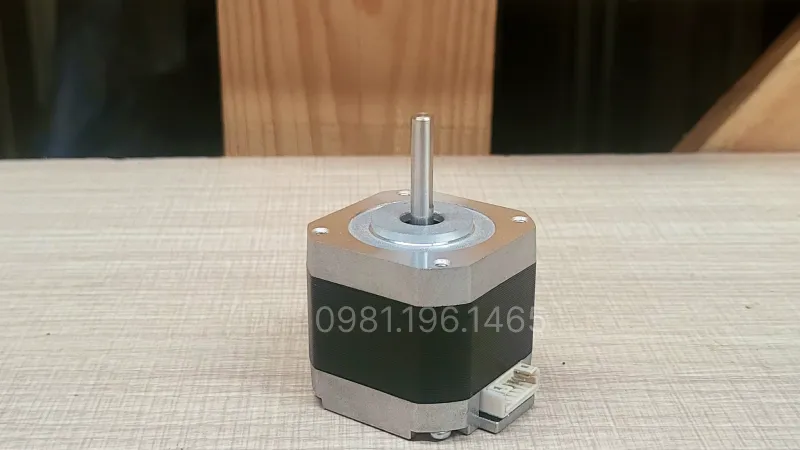

Applications of the mini stepper motor 1.2Nm

The Mini Stepper Motor 1.2Nm is a 2-phase, 4-wire stepper motor line with a pulling force of 1.2Nm, widely applied in many fields thanks to its precise control capability and compact size, such as:

• Mini CNC machines: Used to control movement axes, ensuring high precision and stability during machining.
• 3D printers: Helps control print head and print bed positions, helping printed products achieve high detail.
• Robots and small robotic arms: Serves rotational movements and positioning in narrow spaces.
• Linear slide tables: Applied in guidance, measurement, and precise positioning systems.
• Laser engraving machines, mini cutting machines: Meets smooth and uniform movement requirements.
• Small-scale automation equipment: Used in packaging machines, material feeding, and auxiliary transmission mechanisms.

The Mini Stepper Motor 1.2Nm is chosen by many users due to its outstanding advantages, well meeting the requirements for precision, durability, and stable operation in modern automation systems with stable operation capability, compatible with many popular controllers and transmission components.

Explore the stepper motor video and synthesis video to see details on styles, dimensions, technical specifications, and much more useful content about stepper motor lines distributed by Thanh Thai Motor.
