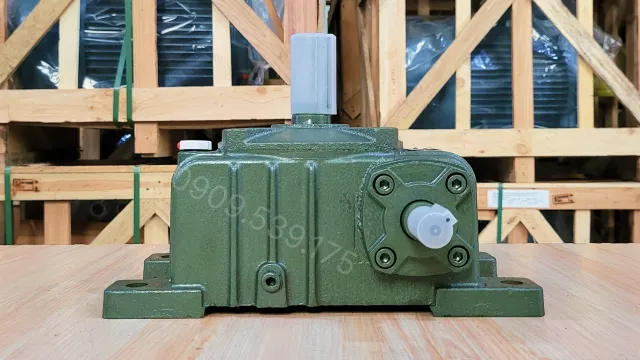

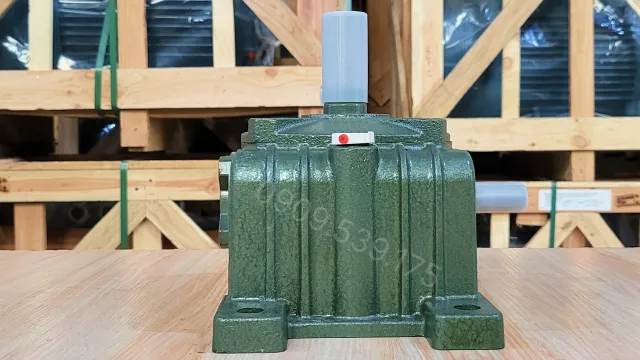

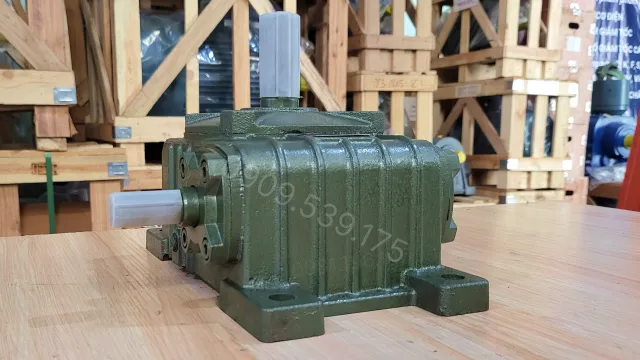

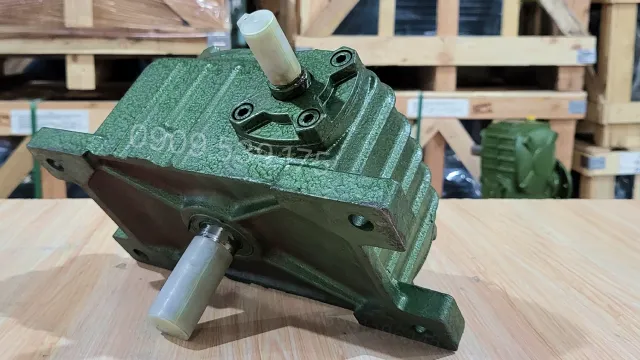

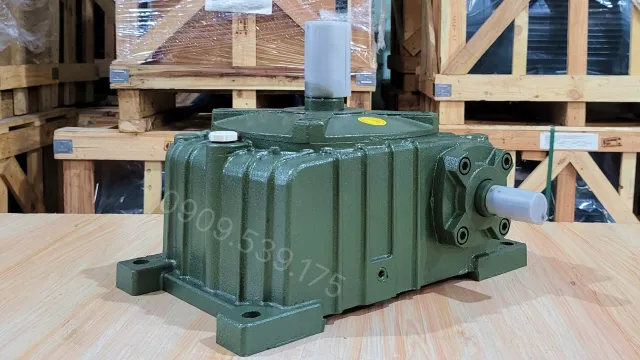

Worm Gearbox WPO 175

Worm Gearbox WPO 175 provides an efficient transmission solution thanks to its perpendicular input and output shaft design. This gearbox not only helps optimize transmission performance but also ensures durability and stable operation. Let’s follow this article to explore the standout features of the device and why it has become a top choice in many industrial applications.

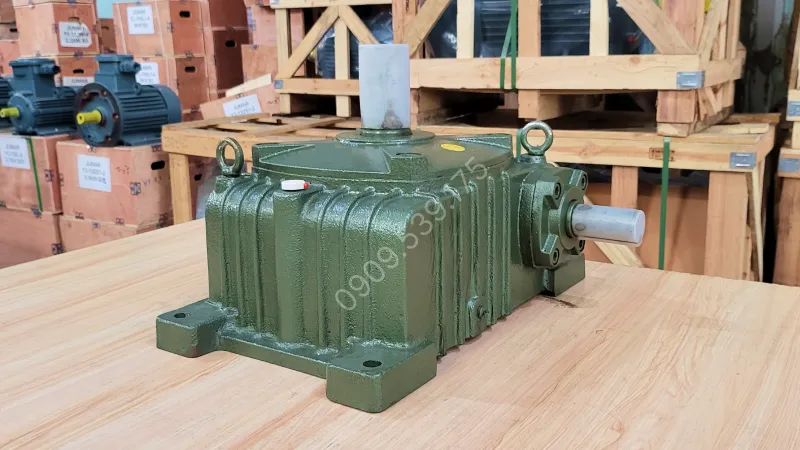

Overview design of the Worm Gearbox WPO 175

The first notable point is the outer casing of the worm gearbox, made of solid cast iron. This material not only provides sturdiness but also ensures the ability to withstand large impact forces during operation. In addition, the internal shaft of the machine is made of stainless steel, a crucial factor helping the machine operate stably, durably, and minimizing wear over time.

During operation, the WPO gearbox is typically connected flexibly with an electric motor. This combination creates a powerful and efficient drive system, also known as a gear motor. Thanks to this coordination, machinery not only operates more smoothly but also significantly enhances torque and the ability to flexibly adjust rotation speed, meeting all job requirements.

To enhance durability and resistance to harsh working environments, the Worm Gearbox WPO 175 is also equipped with a special paint coating on the outside. This coating acts as an effective protective layer, resisting negative environmental impacts and chemicals, helping machinery maintain stable working performance over a long period of use.

Detailed structure of the Worm Gearbox WPO 175

Inside the WPO Gearbox 175 consists of a worm and worm wheel assembly precisely installed to reduce rotational speed and increase output torque. The components are made of high-durability materials, helping the device work stably under heavy load conditions.

• Worm: Machined from alloy steel, surface heat-treated to increase hardness and wear resistance.
• Worm wheel: Made of copper alloy, helping transmit stable torque and reduce friction between contact surfaces.
• Meshing mechanism: The worm and worm wheel are synchronously machined to create an accurate gear ratio and maintain continuous movement.
• Transmission capability: The transmission operates stably, reduces vibration, supports heat dissipation, and increases the lifespan of the gearbox.

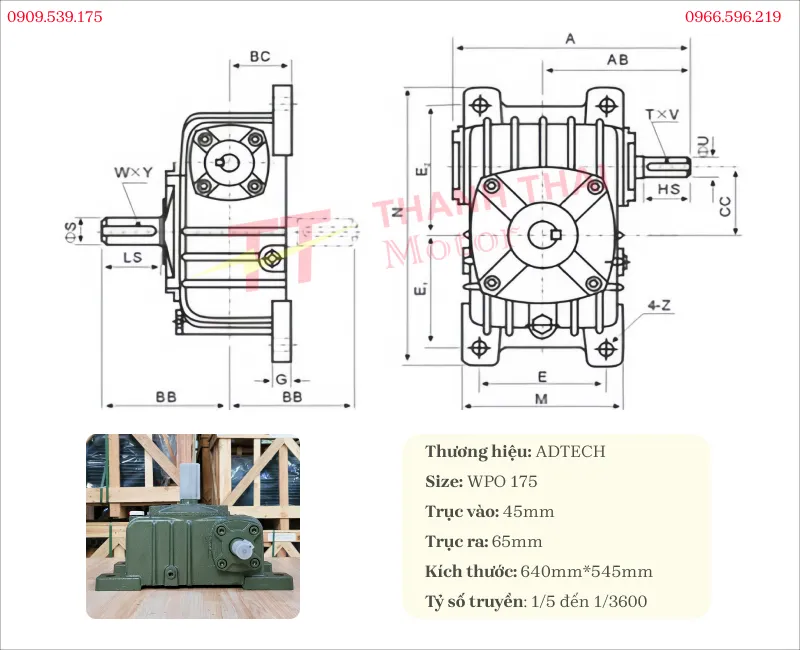

Technical specifications of the Worm Gearbox WPO 175

The parameters below help select equipment that matches the transmission requirements and installation dimensions.

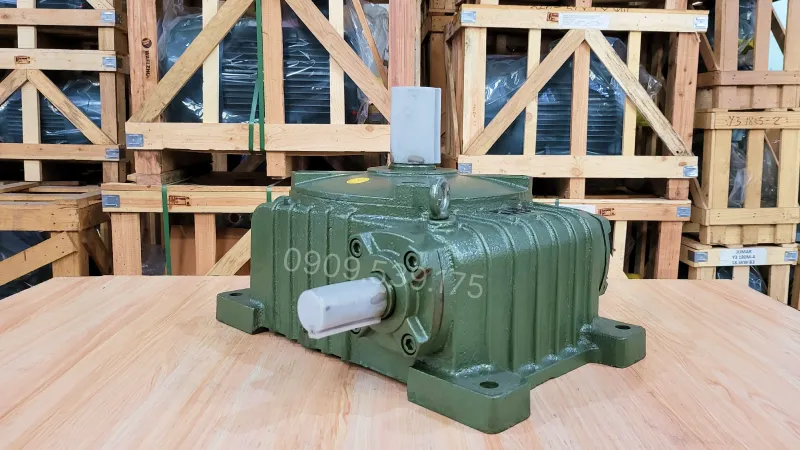

Functions and applications of the Worm Gearbox WPO 175

The Worm Gearbox WPO 175 is widely applied in various types of machinery and equipment, such as:

• In the construction field: Used in high-capacity concrete mixers, heavy material hoisting winches, and construction material transportation systems.
• In the food processing industry: Applied in industrial food production lines, thick solution agitators, and large-capacity product packaging machines.
• In conveyor systems: Used in high-load industrial conveyors, automated cargo hoisting systems in warehouses, and screw conveyors.
• In heavy industry: Plays an important role in medium-sized steel rolling mills, industrial hydraulic presses, and machinery in the mining and mineral processing industry.

Instructions for distinguishing the input and output shafts of a gearbox

To correctly identify the input shaft and output shaft of a gearbox, you can follow the procedure below:

Step 1: Check the motor mounting end

Observe the side with the flange or motor mounting hole. This is the input shaft end, where rotational motion from the motor is received.

Step 2: Identify the output transmission end

Observe the opposite shaft end. This is the output shaft, used to transmit torque and speed after reduction to the equipment.

Step 3: Check identification details

Observe the base, flange, connecting bolts, oil filling hole, and oil drain hole to determine the mounting style and characteristics of the gearbox.

Step 4: Check mounting dimensions

Compare the shaft diameter, flange size, and bolt hole spacing with the specifications of the motor and the machine to be connected.

Step 5: Confirmation before installation

Recheck all positions of the input shaft, output shaft, and technical parameters to ensure the gearbox is correctly installed before operation.

In addition to this article, you can refer to the gearbox video to see instructions on the structure, how to identify parts, and the assembly process. Besides, the summary video on the Thanh Thai Motor channel will introduce more content about motors, gearboxes, and practical transmission applications.

Warranty, Shipping, and Commitment Policy at Thanh Thai Motor

When purchasing gearboxes at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 months

Gearbox products at Thanh Thai Motor are covered by a genuine warranty for up to 24 months. Customers can be completely confident in using them with a clear, transparent, and prompt after-sales policy.

Nationwide Delivery

We support fast delivery to all provinces and cities nationwide. Wherever you are, products are guaranteed to arrive on time and safely.

Products meeting European quality standards with German technology

Gearboxes at Thanh Thai Motor are manufactured using advanced German technology, meeting European quality standards. Ensuring high durability and stable operation for extended periods.

Competitive prices, good discounts for dealers and bulk customers

Reasonable prices, many attractive offers for wholesale buyers and distribution agents. The more you buy, the higher the discount – optimizing profits for customers.

Full certification documents: CO, CQ,...

Each product comes with full Certificate of Origin (CO) and Certificate of Quality (CQ). This provides assurance for customers when using them in projects or constructions requiring technical documentation.

Contact for Purchase

Do you need advice on choosing the right gearbox for your needs? Contact Thanh Thai Motor immediately using the methods below:

• WhatsApp: +84966596219
• Email: codienthanhthai@gmail.com

In summary, the Worm Gearbox WPO 175 is a powerful, durable, and reliable transmission device, especially suitable for industrial applications requiring large torque and stable working capability. With optimal design and smooth operation, this product will surely be an indispensable part of your machinery system. Contact Thanh Thai Motor immediately for detailed consultation and to own this quality product at a preferential price!
