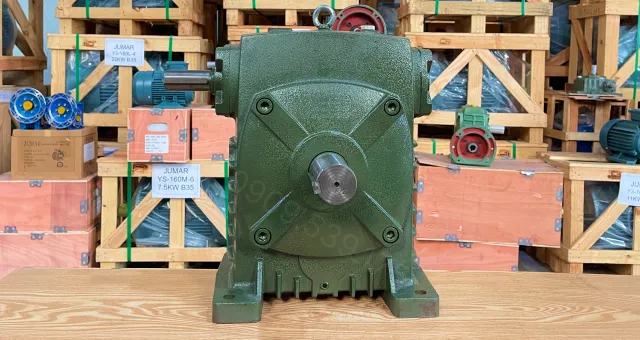

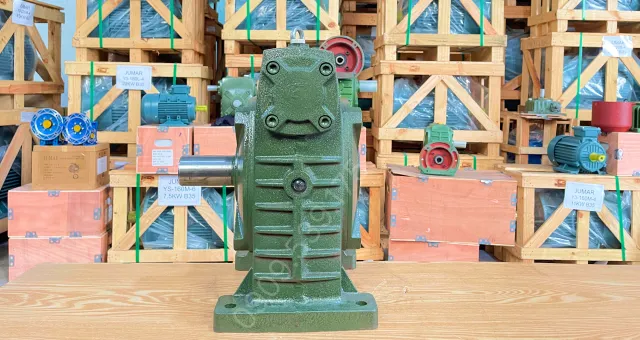

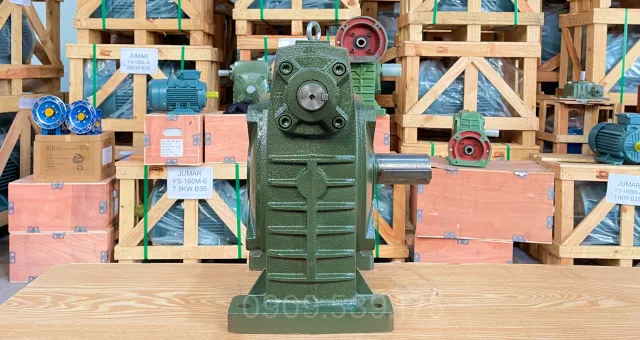

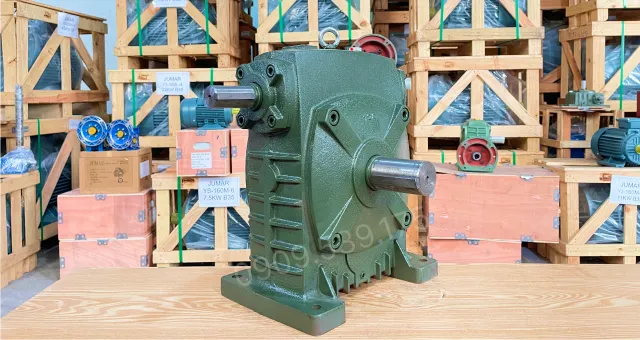

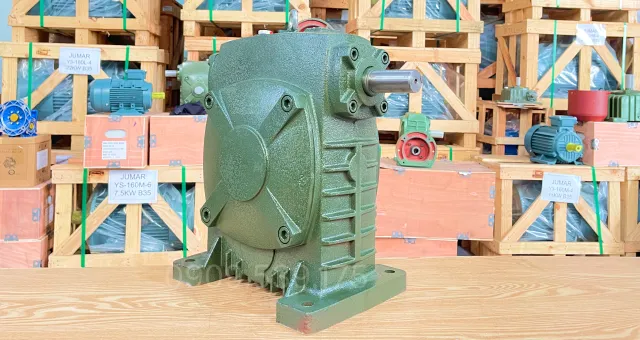

WPS 175 Worm Gearbox

The WPS 175 Worm Gearbox is a drive unit featuring a right-angle input and output shaft design, well-meeting the requirements for speed reduction and torque increase during machinery operation. Thanks to its durable structure, precision-machined parts, and stable operation in industrial environments, the gearbox becomes an indispensable choice in many production lines. Let’s explore the details of this gearbox product with Thanh Thai Motor!

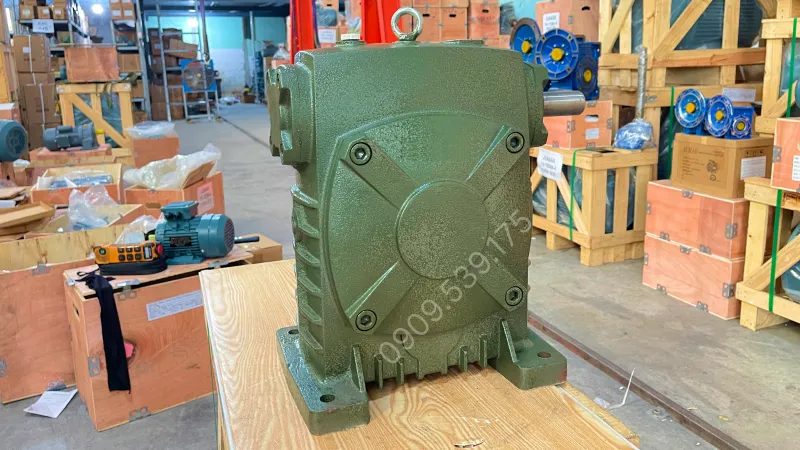

Overview design of the WPS 175 Worm Gearbox

The worm gearbox features a cast iron housing, a steel-machined worm shaft, and a pure copper worm wheel. All components are finished with durable materials over time, ensuring wear resistance during operation.

The WPS 175 Worm Gearbox is coated with an anti-rust electrostatic paint suitable for harsh environments, featuring a cap on top and a drain hole underneath to easily observe the oil level displayed inside the gearbox.

In addition, the worm gearbox is usually combined with an electric motor via a pulley and shaft coupling to form a complete, powerful gear motor.

Internal structure of the WPS 175 Worm Gearbox

The WPS 175 Worm Gearbox is designed with a sturdy structure and precision-machined mechanical details to ensure high transmission efficiency and long-term durability. The main components include:

• Worm shaft (input shaft): Made of heavy-duty alloy steel, anti-rust, with good wear resistance. The worm shaft rotates in mesh with the worm wheel, creating speed reduction and torque increase.
• Worm wheel (output shaft): Made of copper alloy or pure copper, helping reduce friction during transmission, operating smoothly, and extending equipment lifespan. The worm wheel meshes precisely with the worm shaft, ensuring stable transmission.
• Housing: Cast from high-quality cast iron, featuring high hardness and load-bearing capacity. The housing protects the entire internal transmission mechanism from environmental impacts and mechanical vibrations.
• Bearing: Supports stable shaft rotation, reduces friction, and ensures smooth movement during long periods of continuous work.
• Oil seal: Tasked with preventing lubricating oil leakage and keeping external dirt from entering, keeping internal parts in good working condition.
• Oil filling and draining holes: Facilitate easy maintenance, allowing users to replace lubricating oil periodically to ensure optimal working performance.

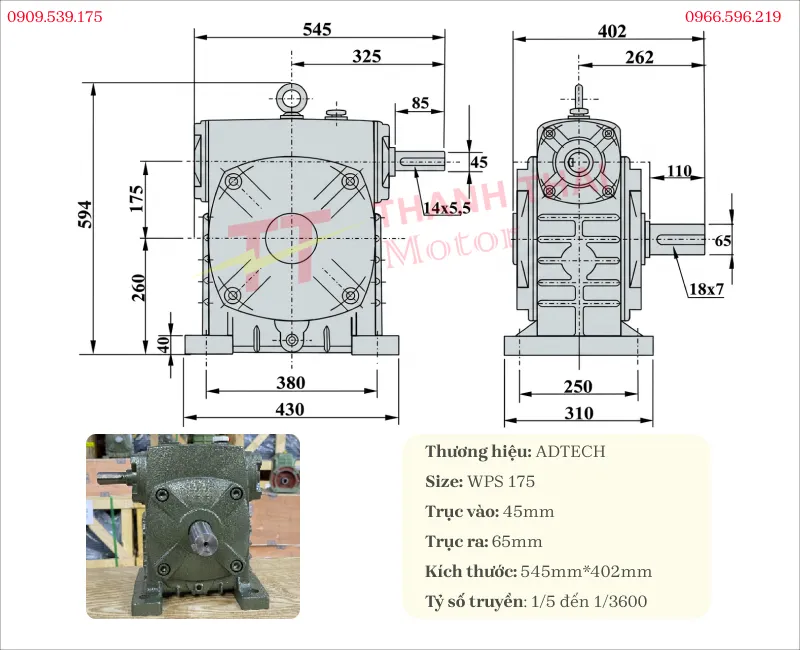

Specifications of the WPS 175 gear motor

Below is the specification table of the WPS 175 gear motor. The presented parameters include size, input shaft diameter, output shaft diameter, and overall dimensions of the product.

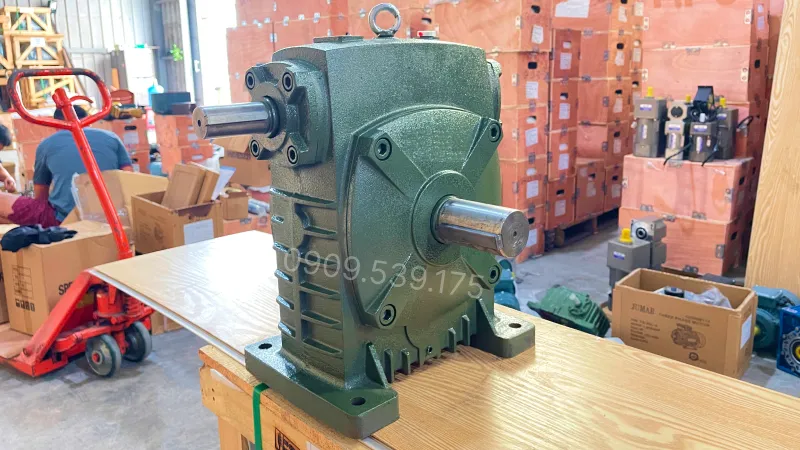

Applications of the WPS 175 Worm Gearbox

With a sturdy design, high torque transmission capability, and stable operation, the WPS 175 Worm Gearbox is widely applied in many current industrial fields.

• Mechanical manufacturing industry: Integrated into lathes, drilling machines, metal rolling machines, CNC cutting machines – equipment requiring high stability and strong transmission force.
• Agriculture and handicrafts: Applied in pellet mills, threshers, bamboo bending machines, fruit juicers – serving production from household to industrial scale.
• Construction industry: Used in concrete mixers, hoist lifts, pulleys, mini cranes, etc., where high torque and low speed are required to ensure safety and efficiency.
• Food and packaging production industry: Applied in conveyor systems, packaging machines, food presses, helping control speed precisely and operate stably.
• Recycling and raw material processing industry: Combined with plastic crushers, scrap presses, paper shredders, helping transmit strong power to process hard materials or large volumes.

Instructions for adding oil to the WPS worm gearbox

• Oil selection: Use industrial gear oil with mineral base viscosity such as ISO VG 320 or ISO VG 460.
• Location identification: Find the breather plug or oil filling plug located on the top surface of the WPS gearbox housing.
• Opening the drain plug (if refilling): Remove the drain plug at the bottom to drain all old oil. Tighten the drain plug back.
• Adding oil: Pour oil slowly through the upper filling hole. Pour until the oil level reaches 1/3 to 1/2 of the oil sight glass (or dipstick). Absolutely do not fill it to the brim.
• Completion: Tighten the oil filling plug securely to prevent leaks.

If you need further reference on operation, you can watch the gearbox video produced by Thanh Thai Motor. In addition to the summary video introducing various lines of worm gearboxes with diverse sizes and gear ratios, you can also compare the characteristics of each model to choose the right equipment for your usage needs.

Warranty, Shipping, and Commitment Policy at Thanh Thai Motor

When purchasing gearboxes at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 months

Gearbox products at Thanh Thai Motor are covered by a genuine warranty for up to 24 months. Customers can be completely confident in using them with a clear, transparent, and prompt after-sales policy.

Nationwide Delivery

We support fast delivery to all provinces and cities nationwide. Wherever you are, products are guaranteed to arrive on time and safely.

Products meeting European quality standards with German technology

Gearboxes at Thanh Thai Motor are manufactured using advanced German technology, meeting European quality standards. Ensuring high durability and stable operation for extended periods.

Competitive prices, good discounts for dealers and bulk customers

Reasonable prices, many attractive offers for wholesale buyers and distribution agents. The more you buy, the higher the discount – optimizing profits for customers.

Full certification documents: CO, CQ,...

Each product comes with full Certificate of Origin (CO) and Certificate of Quality (CQ). This provides assurance for customers when using them in projects or constructions requiring technical documentation.
