UDL 2.2kW Variator – 2-Stage WPDA 120 Gearbox

The UDL 2.2kW Variator – 2-Stage WPDA 120 Gearbox is a gearbox series featuring a combination of a mechanical speed variator and a worm gearbox, delivering stable power transmission and high output torque. Its sturdy, precisely machined housing enhances durability and efficient heat dissipation. The coaxial input and output shafts make it easy to integrate into various industrial machinery systems. This product is ideal for production lines requiring flexible speed adjustment, smooth operation, and a long service life.

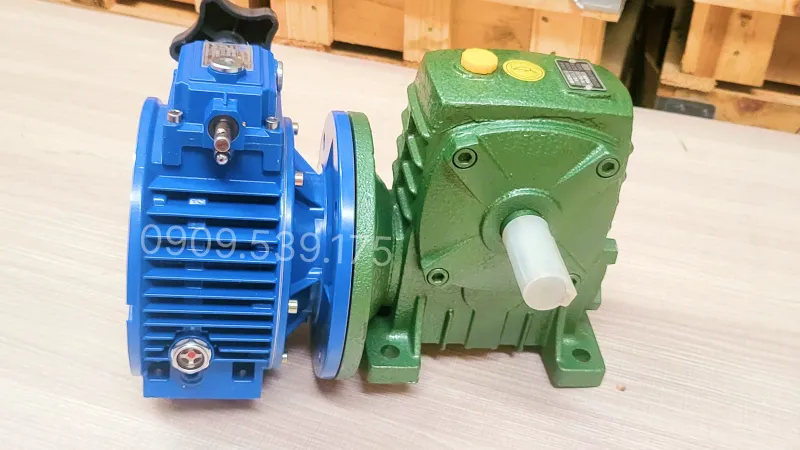

Overview Design of the UDL 2.2kW Variator – 2-Stage WPDA 120 Gearbox

The mechanical speed variator 2.2kW 3Hp is directly assembled with the WPDA 120 worm gearbox, featuring a unique design, powerful performance, and high durability. This equipment series is installed together with an electric motor to form a gear motor, more specifically, paired with a 3-phase electric motor 2.2kW 3Hp

The 2-stage gearbox is professionally designed for continuous industrial environments:

• Synchronous combination of a mechanical speed variator and a WPDA 120 worm gearbox, forming a powerful two-stage transmission assembly.
• Body shell made from aluminum alloy and cast iron, durable, lightweight, capable of bearing good loads, and supporting efficient heat dissipation.
• Surface coated with industrial blue paint to prevent rust, limit oxidation, and protect the equipment from dust and moisture.

Internal Structure of the UDL 2.2kW Variator – 2-Stage WPDA 120 Gearbox

The UDL 2.2kW Variator – 2-Stage WPDA 120 Gearbox includes the following main components:

• Mechanical speed variator attached to the electric motor, allowing flexible adjustment of the speed range according to production needs.
• WPDA 120 worm gearbox made from heat-treated steel, providing high hardness and durable torque transmission capabilities.
• Speed control knob for precise speed increase and decrease control.
• Air vent plug and oil cap arranged reasonably to balance pressure and protect lubricating oil quality during operation.

Technical Specifications of the UDL 2.2kW Variator – 2-Stage WPDA 120 Gearbox

Below are the basic technical specifications of the UDL 2.2kW – WPDA 120 gearbox

Technical Specifications of the UDL 2.2kW 3Hp Speed Variator

The data below shows the rotational speed control and fine-tuning capability before transmitting power to the final gearbox

Technical Specifications of the WPDA 120 Worm Gearbox

These parameters describe the mechanical characteristics at the final output, directly determining the connection capability and super-heavy load pulling capacity of the system

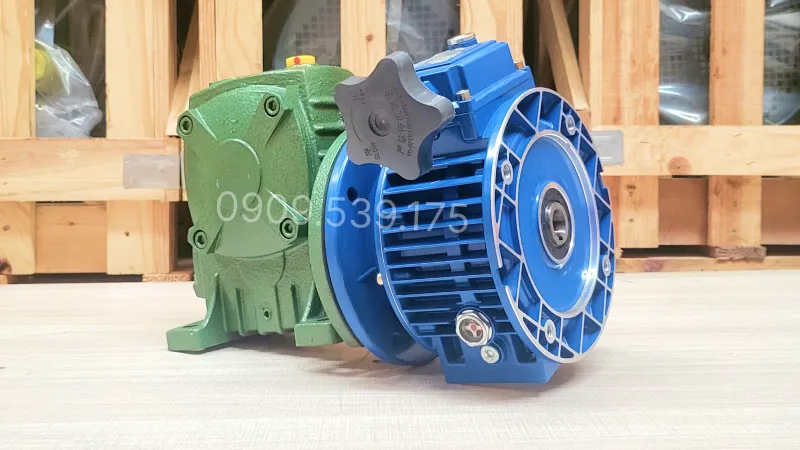

Applications of the UDL 2.2kW Variator – 2-Stage WPDA 120 Gearbox

Thanks to its smooth speed adjustment and large torque, the device is commonly used in various manufacturing industries:

• Conveyors, production lines, and industrial material handling systems.
• Mixers, agitators, grinders, and dryers in food processing, chemicals, and pharmaceuticals.
• Packaging machines, filling machines, labeling machines, and automation lines.
• Textile machines, printing machines, cutting machines, metal bending machines, and mechanical processing machines.
• Lifting equipment, turntables, roller conveyors, and industrial robots.

How to Install the UDL 2.2kW Variator – 2-Stage WPDA 120 Gearbox

• Step 1: Clean the shaft, keyway, and flange of the UDL 2.2kW variator and the WPDA 120 gearbox. Check that the key is of the correct size and undamaged.
• Step 2: Install the key onto the shaft of the UDL variator, align the output shaft of the UDL with the input shaft of the WPDA 120 gearbox, and gently push them together until they are fully engaged.
• Step 3: Press the two flanges tightly together, insert the bolts, and tighten them evenly in a diagonal pattern to ensure a secure connection and prevent misalignment.
• Step 4: Manually rotate the shaft, then run it without load to check smoothness, noise, and vibration level. If it operates stably, the gearbox is ready for use.

Through the instructional video from Thanh Thai Motor, you can easily perform the steps of oil filling, installation, and proper technical inspection of the equipment. Watch the summary video to clearly understand the usage process, and gain useful experience in operating and maintaining the gearbox.

Warranty, Shipping, and Commitment Policy at Thanh Thai Motor

When purchasing gearboxes at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 months

Gearbox products at Thanh Thai Motor are covered by a genuine warranty for up to 24 months. Customers can be completely confident in using them with a clear, transparent, and prompt after-sales policy.

Nationwide Delivery

We support fast delivery to all provinces and cities nationwide. Wherever you are, products are guaranteed to arrive on time and safely.

Products meeting European quality standards with German technology

Gearboxes at Thanh Thai Motor are manufactured using advanced German technology, meeting European quality standards. Ensuring high durability and stable operation for extended periods.

Competitive prices, good discounts for dealers and bulk customers

Reasonable prices, many attractive offers for wholesale buyers and distribution agents. The more you buy, the higher the discount – optimizing profits for customers.

Full certification documents: CO, CQ,...

Each product comes with full Certificate of Origin (CO) and Certificate of Quality (CQ). This provides assurance for customers when using them in projects or constructions requiring technical documentation.
