2-Stage UDL Speed Variator 2.2kW – WPDS 120

The 2-Stage UDL Speed Variator 2.2kW – WPDS 120 provides powerful and stable transmission. As a durable, high-performance gearbox, it features a seamless combination of a mechanical speed variator and a worm gearbox designed to deliver powerful transmission and stable operation for industrial systems. The transmission ratio suits various applications, ensuring stable performance. The product is easy to install, quick to maintain, and meets continuous operation needs.

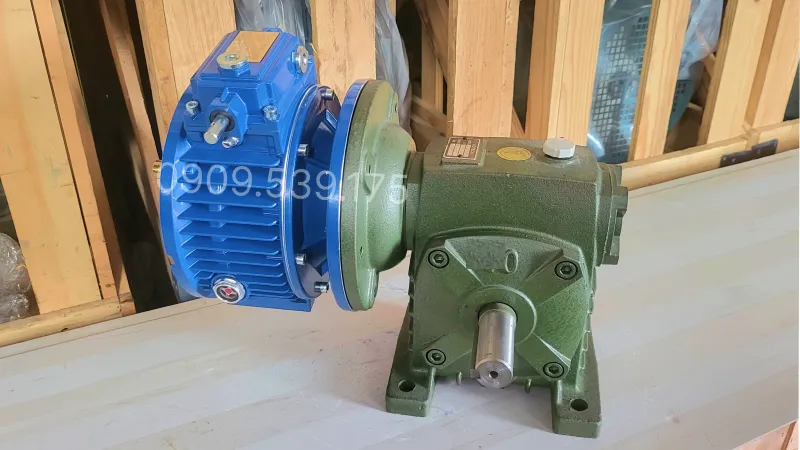

General Design of the 2-Stage UDL Speed Variator 2.2kW – WPDS 120

The 2-stage gearbox is designed according to industrial standards, ensuring continuous operation, heavy-load capacity, and stable performance. The housing is made of high-quality aluminum alloy and cast iron, enhancing rigidity, corrosion resistance, and fast heat dissipation. The surface is coated with industrial blue powder coating, creating a sturdy, aesthetic feel and protecting the equipment from environmental impacts.

The 2.2kW 3Hp motor speed controller is directly assembled with the WPDS 120 worm gearbox. With reasonable dimensions and flexible installation capabilities, the product is compatible with almost all current electric motors and transmission devices.

Internal Structure of the 2-Stage UDL Speed Variator 2.2kW – WPDS 120

This device series is assembled with an electric motor to create a gear motor product featuring powerful functional construction, smoother operation, and a longer lifespan.

The UDL – WPDS 120 gearbox consists of the following main components:

• UDL mechanical speed variator, directly connected to the 3-phase electric motor 2.2kW 3Hp, allowing easy stepless speed adjustment.
• WPDS 120 worm and worm gear transmission made of hardened alloy steel, ensuring durable transmission, reduced friction, and extended lifespan.
• Motor speed controller directly linked to the WPDS 120 worm gearbox for smooth operation.
• Breather plug and oil cap supporting cooling and internal pressure balancing, helping the lubricating oil operate more efficiently.
• Mechanical speed adjustment knob enabling precise fast-slow fine-tuning, suitable for specific applications.
• Sturdy construction, high-grade materials, and synchronous design help the product operate stably under heavy-load, continuous, and harsh conditions.

Technical Specifications of the 2-Stage UDL Speed Variator 2.2kW – WPDS 120

Below are the technical specifications of the 2-stage UDL speed variator 2.2kW – WPDS 120

Technical Specifications of the 2-Stage UDL 2.2kW 3Hp Variator

The data below shows the rotational speed control and fine-tuning capability before transmitting power to the final gearbox

Technical Specifications of the WPDS 120 Worm Gearbox

These parameters describe the mechanical characteristics at the final output, directly determining the connection and ultra-heavy load capacity of the system

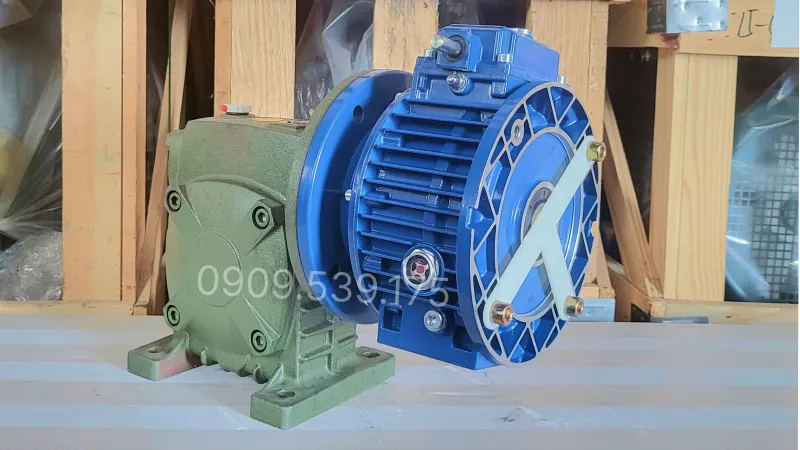

Applications of the 2-Stage UDL Speed Variator 2.2kW – WPDS 120

Thanks to its diverse speed adjustment capabilities, the UDL – WPDS 120 is widely applied in various industries:

• Conveyors, production lines, and industrial goods transportation systems.
• Mixers, agitators, grinders, and dryers in the food, chemical, and pharmaceutical industries.
• Packaging machines, filling machines, labeling machines, and automation lines.
• Turntables, roller conveyors, industrial robots, and lifting equipment.
• Textile machines, printing machines, cutting machines, metal bending machines, and woodworking machinery.
• Agricultural equipment, water treatment systems, and systems requiring frequent speed adjustments.

Installation Guide for the 2-Stage UDL Speed Variator 2.2kW – WPDS 120

Here is how to install the 2-stage gearbox:

• Step 1: Install the UDL 2.2kW mechanical speed variator onto the WPDS 120 gearbox. Align the shaft, keyway, and flange correctly, then tighten the bolts securely.
• Step 2: Attach the 2.2kW electric motor to the input of the UDL speed variator. Check the concentricity between the shafts and evenly tighten the bolts to ensure a sturdy transmission assembly.
• Step 3: Recheck all joints, lubricating oil levels, and manually rotate the shaft. If the device runs smoothly, turn on the power supply to test for stability.

After complete installation, the 2-stage UDL Speed Variator 2.2kW – WPDS 120 helps adjust speed flexibly, increases torque, and operates stably, making it suitable for conveyors, agitators, mixers, and various industrial equipment.

Watch the instructional gearbox video from Thanh Thai Motor to understand how to correctly install, operate, and assemble the 2-stage UDL Speed Variator 2.2kW – WPDS 120 according to technical standards, ensuring durable operation and high efficiency. Watch more through the video collection at Thanh Thai Motor.
