SWLD1 SWL1 Screw Jack Gearbox

The SWLD1 SWL1 Screw Jack is a type of gearbox utilizing a worm and nut (screw jack) mechanism for lifting/lowering or pushing/pressing operations. Screw jacks are suitable for applications requiring the movement of relatively small to medium loads, featuring a sturdy construction, easy assembly, and stable operation.

External Overview of the SWLD1 SWL1 Screw Jack

Designed solidly with a housing made of solid cast iron or cast aluminum alloy, enhancing durability and good heat dissipation. The surface is coated with anti-rust electrostatic paint, featuring elegant and easily recognizable colors.

The output and input shafts are precisely machined and symmetrically arranged, facilitating convenient installation in various directions. In addition, the unit features a sturdy fixed base or mounting flange, along with smoothly moving screws or nuts, ensuring stability when lifting loads.

Structure of the SWLD1 SWL1 Screw Jack

The 1-Stage Gearbox is composed of the following parts:

• Housing: Made of cast iron or cast aluminum alloy, offering high rigidity and good load-bearing capacity, protecting all internal components from impact, dust, and harsh working environments.
• Screw: The main component responsible for converting the rotational motion of the input shaft into the linear motion of the shaft or nut. The screw is made of hardened steel with precise thread pitches, capable of handling heavy loads and ensuring smooth movement.
• Worm gear: Directly connected to the input shaft, responsible for receiving torque from the motor and transmitting force down to the screw. The worm gear is made of bronze or alloy steel, with high friction and wear resistance, ensuring stable transmission.
• Output shaft: The output shaft of the 1-Stage Gearbox is typically designed to connect directly with the screw, which can be a hollow shaft (female shaft) or a solid shaft (male shaft) depending on the type. The hollow shaft type can be combined with an electric motor.

Technical Specifications of the SWLD1 SWL1 Screw Jack

The SWLD1 SWL1 Screw Jack is a small-sized lifting equipment line, optimally designed for systems requiring precise linear motion, stable operation, and moderate loads.

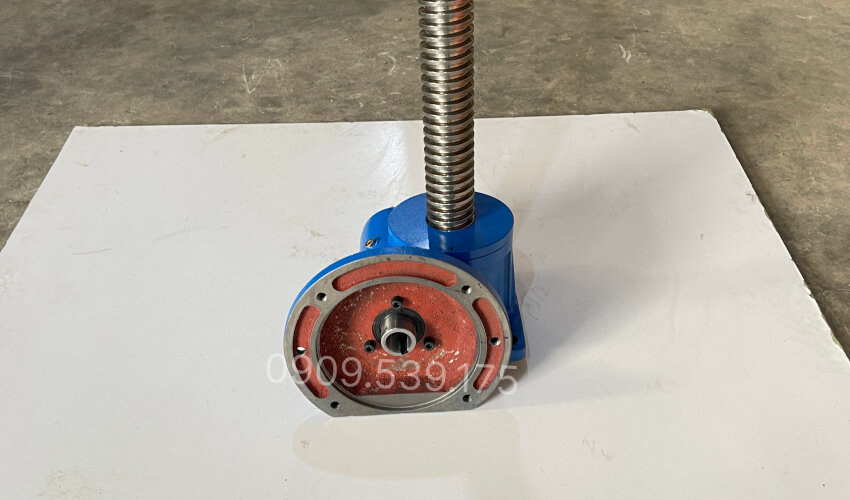

Technical Specifications of SWLD1 Lifting Gearbox (Flange Type)

The SWLD1 lifting screw jack with a bell-shaped flange features a compact design, easy connection to motors and machine mechanisms, suitable for lifting applications ranging from 100kg to 500kg.

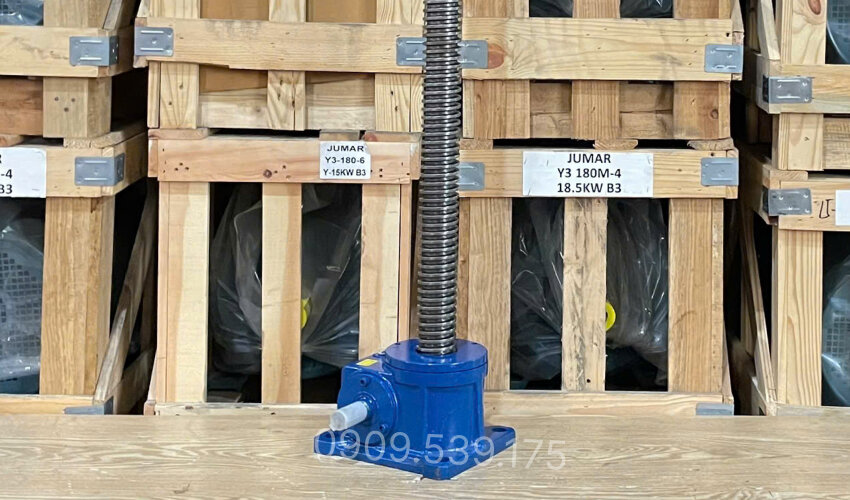

Technical Specifications of SWL1 Lifting Gearbox (Foot-Mounted Type)

The SWL1 foot-mounted lifting gearbox features a sturdy structure, convenient for installation on machine frames, well-meeting small load lifting requirements with high durability and high precision.

Applications of the SWLD1 SWL1 Screw Jack

The SWLD1 SWL1 Screw Jack is applied in many industrial systems:

• Lifting systems, lifting tables, freight elevators, presses.
• Valve opening and closing mechanisms, hydraulic sluice gates.
• Production lines.
• Mechanical machinery, metallurgy, textiles, packaging.

Decoding the Nameplate on the Screw Jack

• MODEL (SWLD): Product line symbol. SWLD is a type of lifting screw jack with a direct motor mounting base (flange).
• TYPE (10T): Maximum lifting load of the device is 10 tons.
• RATIO (8): Gear ratio of the gearbox is 1/8 (or 8:1). This means that when the input shaft rotates 8 turns, the internal screw shaft will execute a corresponding lifting/lowering cycle according to the thread pitch.
• MFG. NO (YX-20241027): Manufacturing serial number of the device, used for factory release management and warranty traceability.

The SWLD1 SWL1 Screw Jack is suitable for small load lifting systems requiring stable operation and high precision. The product is applied in various industrial equipment, presses, lifting tables, and automated production lines. Customers can refer to additional gearbox videos and compilation videos from Thanh Thai Motor to learn more about suitable product lines.

Warranty, Shipping, and Commitment Policy at Thanh Thai Motor

When purchasing gearboxes at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 months

Gearbox products at Thanh Thai Motor are covered by a genuine warranty for up to 24 months. Customers can be completely confident in using them with a clear, transparent, and prompt after-sales policy.

Nationwide Delivery

We support fast delivery to all provinces and cities nationwide. Wherever you are, products are guaranteed to arrive on time and safely.

Products meeting European quality standards with German technology

Gearboxes at Thanh Thai Motor are manufactured using advanced German technology, meeting European quality standards. Ensuring high durability and stable operation for extended periods.

Competitive prices, good discounts for dealers and bulk customers

Reasonable prices, many attractive offers for wholesale buyers and distribution agents. The more you buy, the higher the discount – optimizing profits for customers.

Full certification documents: CO, CQ,...

Each product comes with full Certificate of Origin (CO) and Certificate of Quality (CQ). This provides assurance for customers when using them in projects or constructions requiring technical documentation.
