S-Series Helical Worm Gearbox 2.2kW 3Hp

The S-Series Helical Worm Gearbox 2.2kW 3Hp is an important piece of equipment in heavy industry. Its robust and durable design allows it to operate in harsh conditions. Let’s delve deeper into the specific details of this gearbox with Thanh Thai Motor!

Overall design of the S-Series Helical Worm Gearbox 2.2kW 3Hp

S-Series Helical Worm Gearbox products are painted with an anti-rust coating, ensuring high durability. Made from cast iron, a sturdy material, the equipment can withstand heavy loads. This product is favored and trusted due to its high operating efficiency and large load capacity, achieved through increased torque. Additionally, the gearbox is resistant to external factors such as clay and harmful acids.

When combined with an electric motor, the gearbox creates a geared motor, used in heavy industries such as coal, ore, cement, steel, and ceramic tiles.

What products can the S-Series Helical Worm Gearbox 2.2kW 3Hp be combined with?

The S-Series Helical Worm Gearbox, when combined with a 3-phase electric motor, forms a heavy-duty geared motor.

Specifically, the combination of the S-Series Helical Worm Gearbox 2.2kW 3Hp and a 3-phase electric motor 2.2kW 3Hp creates an S-Series Helical Worm Geared Motor 2.2kW 3Hp.

Internal structure of the S-Series Helical Worm Gearbox 2.2kW 3Hp

The internal structure of the S-Series Helical Worm Gearbox 2.2kW 3Hp consists of two main components: the input shaft and the bevel gear:

• Input shaft: Made from durable alloy steel, capable of operating in harsh environments. The input shaft of the S-Series Helical Worm Gearbox 2.2kW 3Hp is typically larger than those of standard gearboxes.
• Bevel gear: Also known as conical gear, it ensures excellent load-bearing capacity and motor operating efficiency.

Technical specifications

• Available with various gear ratios from 1/15, 35, 55, 75, 85, 115, 145, …, 250, and even up to 420.
• Corresponding S-series gear ratios: S57, S67, S77, S87, S97.
• Mounting types: Can be foot-mounted and flange-mounted.

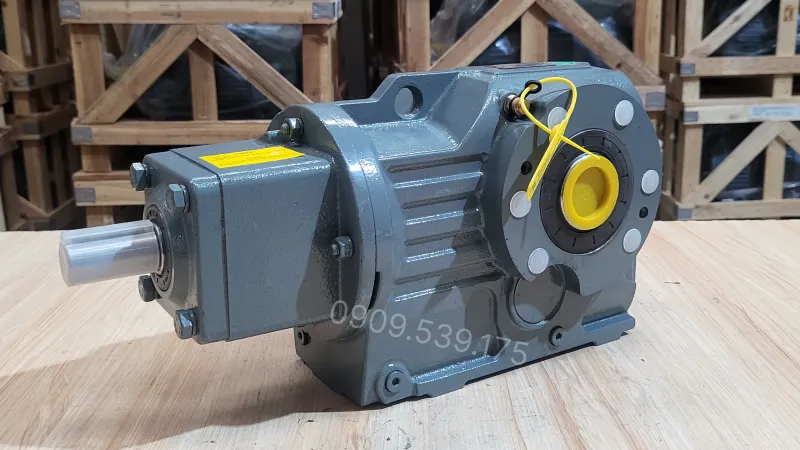

Functions and applications of the S-Series Helical Worm Gearbox 2.2kW 3Hp

• Used in automated production lines, improving and increasing motor accuracy.
• Optimizes operational efficiency in goods transportation, warehouses, and parking garages in apartment complexes and supermarkets.
• In construction projects such as cranes and hoists.

Outstanding advantages of the S-Series Helical Worm Gearbox 2.2kW 3Hp

• The product is made from sturdy cast iron, giving the equipment good load-bearing capacity and high durability to meet the demands of heavy industry.
• Robust structure and frame reduce damage and lower repair costs.
• Right-angle shaft design offers flexible mounting options and operates smoothly and stably.
• The electrostatic powder coating provides anti-rust protection and performs well in harsh environments, extending equipment lifespan.

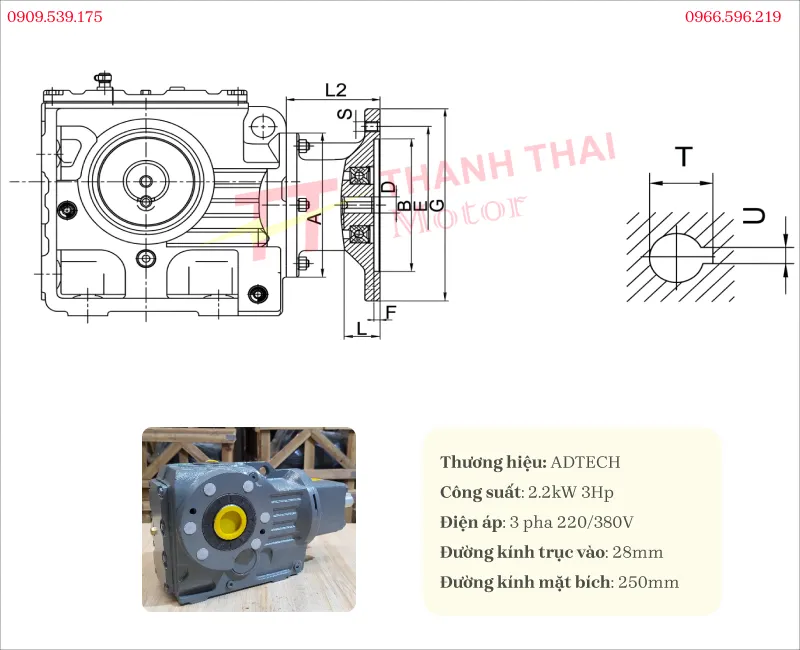

Classification of the S-Series Helical Worm Gearbox 2.2kW 3Hp

There are 3 basic types of S-Series Helical Worm Gearbox 2.2kW 3Hp:

S-Series Helical Worm Gearbox 2.2kW 3Hp with solid shaft

• Input shaft diameter: 28mm.
• Output shaft diameter: 40mm.
• Motor flange diameter: 250mm.
• Gear ratio: 1/15, 35, 55, 75, 115, …

S-Series Helical Worm Gearbox 2.2kW 3Hp with hollow shaft

• Input shaft diameter: 28mm.
• Output shaft diameter: 40mm.
• Motor flange diameter: 250mm.
• Gear ratio: 1/15, 35, 55, 75, 115, …

S-Series Helical Worm Gearbox 2.2kW 3Hp with flange

• Input shaft diameter: 28mm.
• Output shaft diameter: 40mm.
• Motor flange diameter: 250mm.
• Gear ratio: 1/15, 35, 55, 75, 115, …

User guide for the S-Series Helical Worm Gearbox 2.2kW 3Hp

• Customers should carefully read the instruction manual to understand the specifications and operating requirements of the gearbox.
• Choose a flat, spacious installation location convenient for installation and maintenance.
• Ensure the gearbox shaft and geared motor are securely connected before starting.
• Ensure the connected power supply matches the motor’s specifications to prevent the equipment from overloading and burning out.
• The entire system should be checked for safety before commissioning.
• During use, clean the gearbox surface regularly to maintain its lifespan and operational efficiency.

Warranty, Shipping, and Commitment Policy at Thanh Thai Motor

When purchasing gearboxes at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 months

Gearbox products at Thanh Thai Motor are covered by a genuine warranty for up to 24 months. Customers can be completely confident in using them with a clear, transparent, and prompt after-sales policy.

Nationwide Delivery

We support fast delivery to all provinces and cities nationwide. Wherever you are, products are guaranteed to arrive on time and safely.

Products meeting European quality standards with German technology

Gearboxes at Thanh Thai Motor are manufactured using advanced German technology, meeting European quality standards. Ensuring high durability and stable operation for extended periods.

Competitive prices, good discounts for dealers and bulk customers

Reasonable prices, many attractive offers for wholesale buyers and distribution agents. The more you buy, the higher the discount - optimizing profits for customers.

Full certification documents: CO, CQ,...

Each product comes with full Certificate of Origin (CO) and Certificate of Quality (CQ). This provides assurance for customers when using them in projects or constructions requiring technical documentation.
