Mechanical Speed Variator 3.7kW 5Hp

The Mechanical Speed Variator 3.7kW 5Hp is an essential device for flexibly controlling the rotational speed of a motor, suitable for various operating requirements. With a simple design, ease of use, and high durability, this motor speed variator is widely applied in industrial drive systems. Let Thanh Thai Motor explore the details of this Mechanical Speed Variator 3.7kW 5Hp to help you understand it clearly before making a choice!

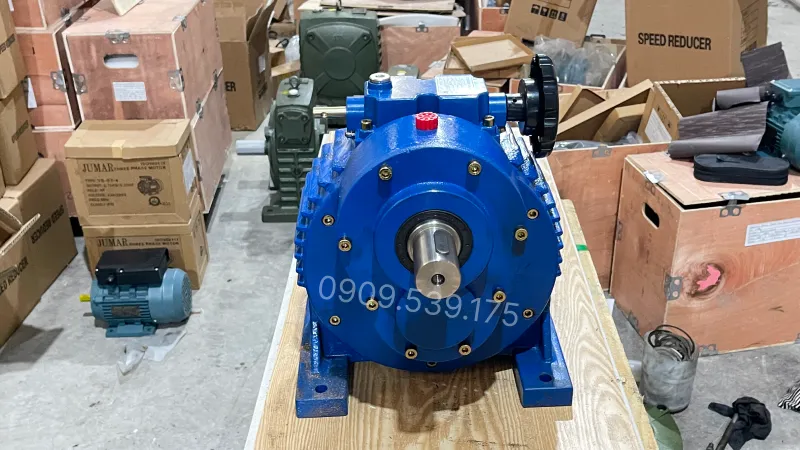

General design of the Mechanical Speed Variator 3.7kW 5Hp

The Mechanical Speed Variator 3.7kW 5Hp features a modern, compact design with a signature dark blue color, creating a sturdy and professional look. The mechanical speed variator body is equipped with a mechanical adjustment knob on the side, allowing users to easily change the speed according to operational needs. This design is not only user-friendly but also helps optimize installation space within machinery systems.

A motor speed variator is an effective solution when combined with an electric motor to form a gear motor suitable for systems requiring flexible speed adjustment.

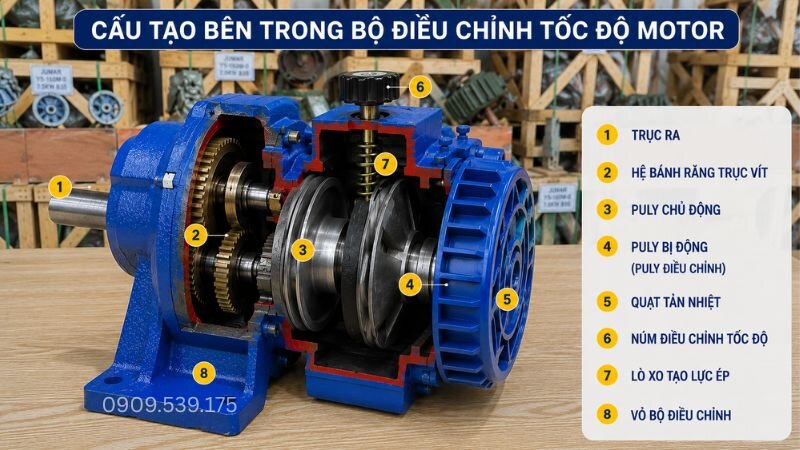

Internal structure of the Mechanical Speed Variator 3.7kW 5Hp

The internal structure of the Mechanical Speed Variator 3.7kW 5Hp consists of two main parts: the motor gears and the adjustment knob:

• Motor gears: An important component for the main operation of the machine. In the gearbox, the gears mesh smoothly and rhythmically together, creating basic speed reduction ratios.
• Adjustment knob: An essential component playing a vital role in adjusting the motor rotational speed. Designed flexibly for easy operation, it is located separately on the outside of the motor. Therefore, consumers always prioritize using it because there is no need to stop machine operation when motor adjustment is required.
• Basic transmission ratios of the reducer include: 1.4 – 7 ; 7 – 35

Technical specifications of the Mechanical Speed Variator 3.7kW 5Hp

Below are the technical specifications of the Mechanical Speed Variator 3.7kW 5Hp according to two popular mounting types: foot-mounted and flange-mounted, helping users easily choose according to actual installation needs.

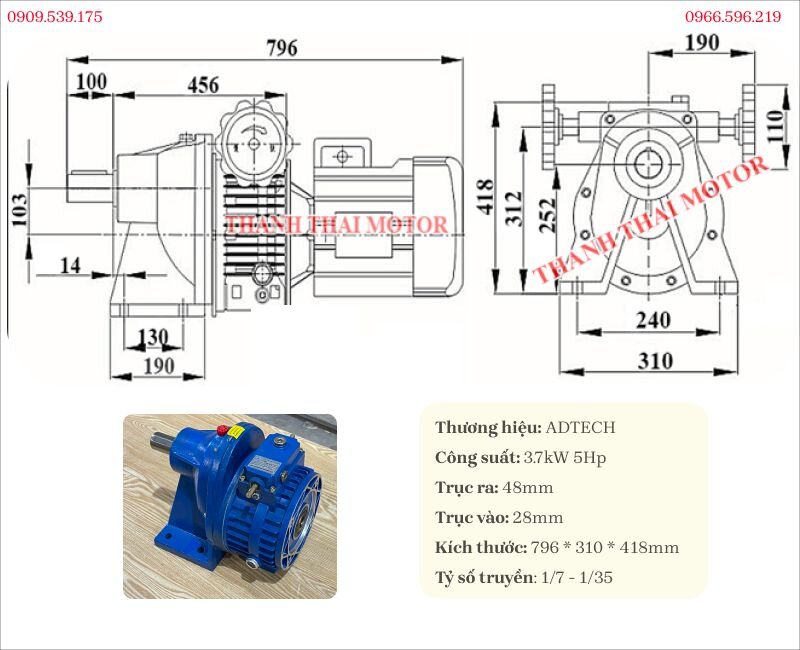

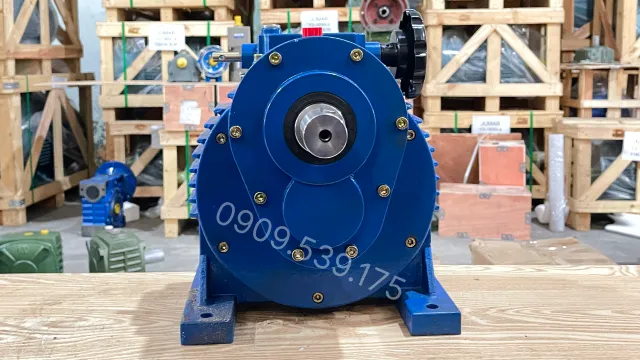

Foot-mounted Mechanical Speed Variator 3.7kW 5Hp

The foot-mounted (B3) version is commonly used in drive systems with a support base or fixed machine frame, convenient for installation and maintenance.

Technical specifications:

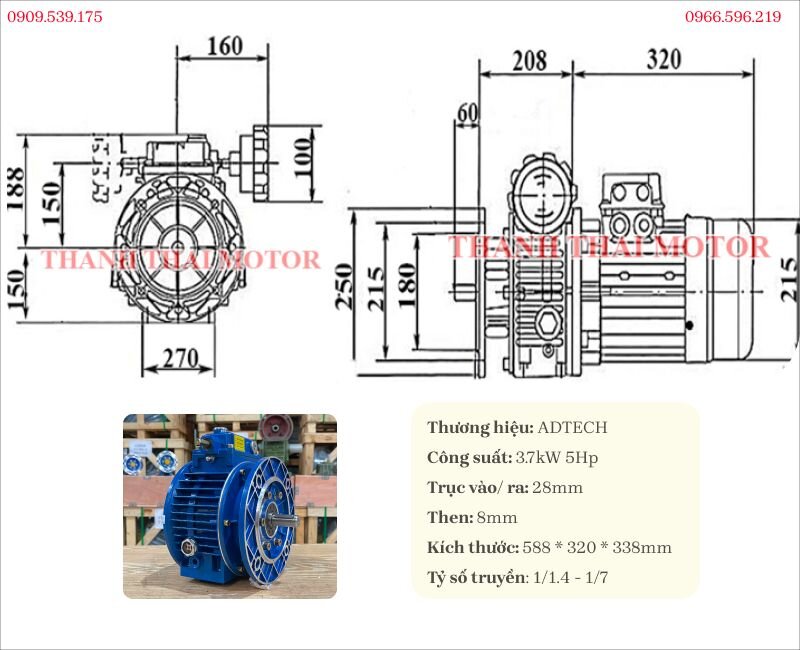

Flange-mounted Mechanical Speed Variator 3.7kW 5Hp

The flange-mounted (B5) version is suitable for equipment requiring direct installation onto the machine, helping reduce installation footprint and increase the rigidity of the drive system.

Technical specifications:

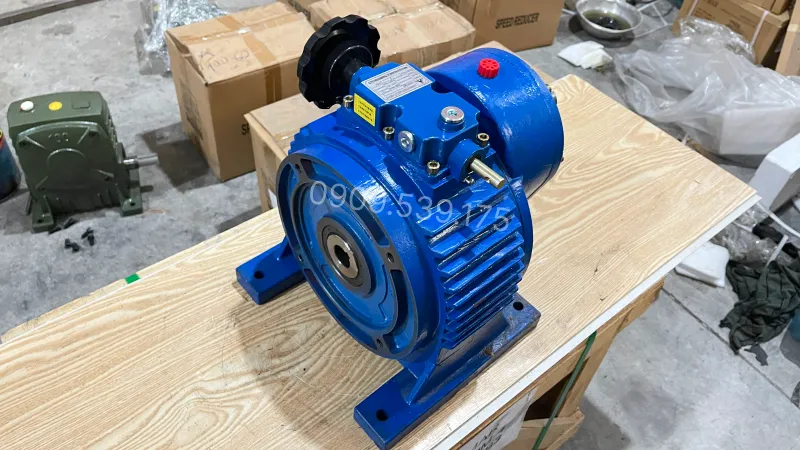

Functions and applications of the Mechanical Speed Variator 3.7kW 5Hp

The Mechanical Speed Variator 3.7kW 5Hp is commonly used in industries such as:

• Flexibly and precisely adjusting the rotational speed of a 3-phase electric motor.
• Optimizing the operating performance of industrial equipment, including conveyors, mixers, and crushers.
• Minimizing wear and tear, and extending the service life of motors and machinery systems.
• Saving energy thanks to flexible speed control capabilities.
• Protecting the motor from overload and reducing the risk of damage during operation.
• Suitable for applications requiring precise and stable speed regulation in industrial environments.

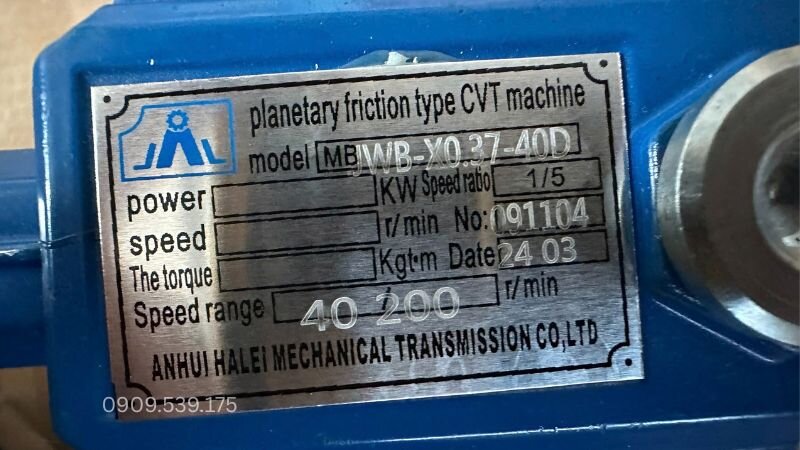

Decoding all symbols on the gearbox

To read and understand the symbols on the gearbox, check the information recorded on the nameplate and gearbox body step by step according to the following procedures.

Step 1: Identify the model

Check the product model to identify the gearbox series, mounting style, and basic dimensions.

Step 2: Read the transmission ratio

Check the transmission ratio to determine the output speed of the gearbox compared to the motor speed.

Step 3: Check technical specifications

Read parameters such as allowable power, torque, input speed, and other technical information provided by the manufacturer.

Step 4: Cross-reference mounting style

Check the symbols regarding the flange, foot mount, mounting orientation, and shaft position to select a suitable installation option.

You can watch additional gearbox videos to refer to how to read nameplates and recognize symbols on each product line. In addition, the compilation video introduces various contents on structure, technical specifications, and how to select a gearbox in drive applications.

Warranty, Shipping, and Commitment Policy at Thanh Thai Motor

When purchasing gearboxes at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 months

Gearbox products at Thanh Thai Motor are covered by a genuine warranty for up to 24 months. Customers can be completely confident in using them with a clear, transparent, and prompt after-sales policy.

Nationwide Delivery

We support fast delivery to all provinces and cities nationwide. Wherever you are, products are guaranteed to arrive on time and safely.

Products meeting European quality standards with German technology

Gearboxes at Thanh Thai Motor are manufactured using advanced German technology, meeting European quality standards. Ensuring high durability and stable operation for extended periods.

Competitive prices, good discounts for dealers and bulk customers

Reasonable prices, many attractive offers for wholesale buyers and distribution agents. The more you buy, the higher the discount – optimizing profits for customers.

Full certification documents: CO, CQ,...

Each product comes with full Certificate of Origin (CO) and Certificate of Quality (CQ). This provides assurance for customers when using them in projects or constructions requiring technical documentation.

Contact for Purchase

Do you need advice on choosing the right gearbox for your needs? Contact Thanh Thai Motor immediately using the methods below:

• WhatsApp: +84966596219
• Email: codienthanhthai@gmail.com

Watch detailed videos about the motor speed variator product.
