WPX 200 Gear Motor 11kW 15Hp

The WPX 200 Gear Motor 11kW 15Hp is formed by assembling an electric motor with a gearbox, which together create a gear motor line, helping to generate high torque to increase the system’s traction and reduce the output speed.

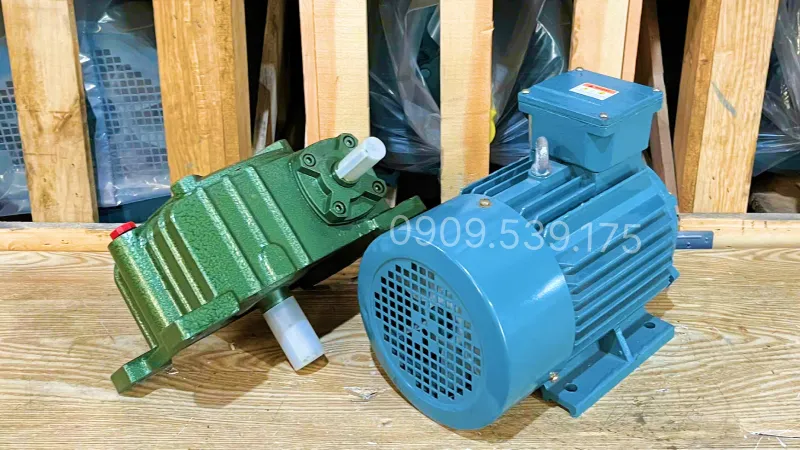

General design of the WPX 200 Gear Motor 11kW 15Hp

This worm gear motor features a 3-phase electric motor – 3-Phase Electric Motor 11kW 15Hp and a worm gearbox.

The outer casing of these parts is made of sturdy cast iron, coated with a quality powder coating on the outside to help minimize scratches. The internal components are meticulously and precisely machined, combining harmoniously with each other to minimize noise.

Detailed structure of the gear motor

The WPX 200 Gear Motor 11kW 15Hp is structured from two main parts:

Electric motor

The 3-phase electric motor performs the task of converting electrical energy into mechanical energy to supply the entire system.

• Stator: Pure copper wires wound into coils, which generate a stable rotating magnetic field when current passes through.
• Rotor: Technical steel laminations assembled into a steel block, acted upon by the magnetic field to rotate and transmit force to the equipment shaft.

WPX 155 worm gearbox

The gearbox plays the role of receiving high-rpm mechanical energy, then reducing the speed and multiplying the output traction. To better understand the gearbox line, you can refer to the practical gearbox videos from Thành Thái Motor.

• Worm shaft: Made from hardened steel, sturdy, solid, with good load and heat resistance.
• Worm wheel: Precision machined, synchronously meshed with the worm shaft, helping the equipment operate smoothly, reducing vibration and noise.

Technical specifications of the WPX 200 Gear Motor 11kW 15Hp

To ensure that the conveyor system or crusher operates without risk, it is necessary to monitor the technical indices of the gear motor. Below are the core parameters:

Technical specifications of the 11kW 3-phase electric motor

To accurately calculate the power supply and design the control electrical cabinet, you need to closely follow the technical specifications of this 11kW 15Hp 3-phase electric motor of this gear motor line

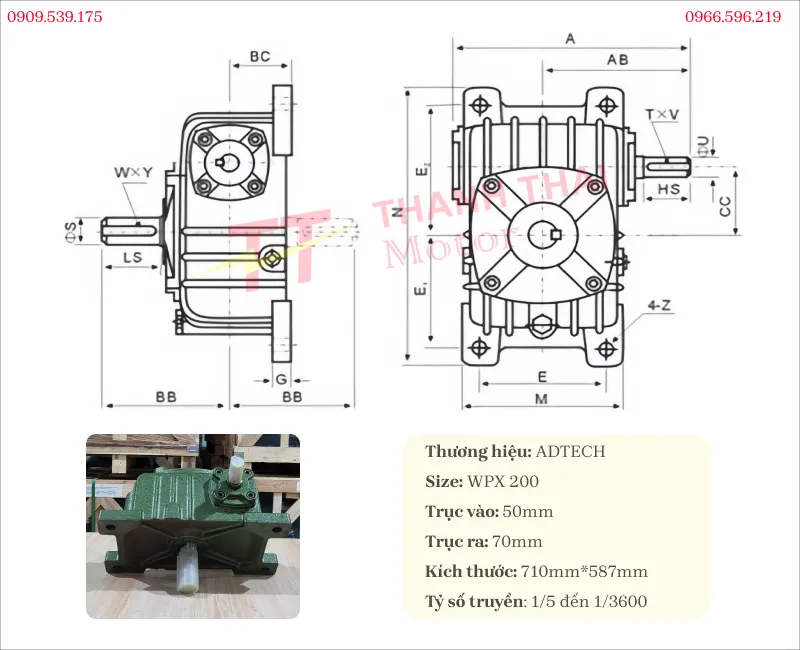

Technical specifications of the WPX 200 gearbox

The specifications of the WPX 200 worm gearbox below will directly determine the output speed of the entire production line

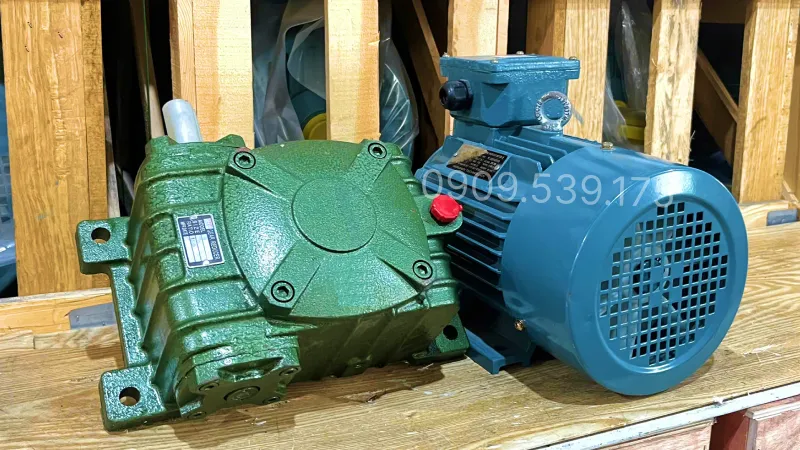

Common applications of the gear motor

With a power of 7.5kW 10Hp, the 3-phase gear motor is commonly applied in systems such as:

• Overhead cranes, material lifting equipment in factories and warehouses.
• Presses, crushers, mixers in the food processing and material production industries.
• Agitators, scrubbers in industrial production lines.

The WPX 200 Gear Motor 11kW 15Hp is a durable mechanical transmission assembly, providing a huge torque range for heavy industrial applications. To fully understand the assembly and maintenance process, you can watch more of our gear motor videos or compilation videos.

Warranty, Shipping, and Commitment Policies at Thanh Thai Motor

When purchasing gearmotors at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 Months

All gearmotor products at Thanh Thai Motor come with an official 24-month warranty. We are committed to clear after-sales service, with quick and transparent processing procedures – ensuring customer peace of mind during use.

Nationwide Delivery

No matter which province or city you are in, Thanh Thai Motor is always ready to support fast delivery, ensuring on-time delivery, careful packaging, and safe transportation. We supply a full range of 220V gearmotors, variable speed motors, etc., for the diverse needs of customers nationwide.

Products Meet European Quality Standards with German Technology

Our products are manufactured using modern German technology, meeting European standards. Models such as integrated gearmotors, variable speed motors, or 220V gearmotors all ensure stable operation and superior durability.

Competitive Pricing, Good Discounts for Dealers and Bulk Purchasers

We offer affordable gearmotors, suitable for projects with limited budgets. In addition, Thanh Thai Motor has special policies and offers for dealers and bulk purchasers.

Quality Commitment

All 220V gearmotors here are wound with pure copper wire. This ensures powerful, smooth operation and energy savings.

Full Certification Documents: CO, CQ,...

All products such as integrated gearmotors, conveyor motors, or speed reducers come with full Certificates of Origin (CO) and Quality (CQ), meeting stringent technical requirements in industry.
