Product Introduction
WPS 155 Gear Motor 7.5kW 10Hp heavy-duty right-angle drive, upward-facing output shaft design. Cast iron housing with excellent impact resistance and fast heat dissipation, specially applied for mixing tanks, crushers, and lifting systems.
⚡ After-sales: Thành Thái Motor commits to distributing standard technical equipment. We support careful packaging, nationwide delivery via transport companies, and a 12-month official warranty.
WPS 155 Gear Motor 7.5kW 10Hp is a gear motor line combined by an electric motor and a gearbox, being one of the top choices at Thành Thái Motor for customers needing a large capacity gear motor, flexible gear ratio, and smooth operation.
Worm gear motor is a specialized transmission device for industrial machinery systems that require high pulling force, durable and stable operation over a long period. It features a durable cast iron outer casing, along with an external powder-coated paint layer to help minimize corrosion.
It is a combination of a worm gearbox and a 3-phase electric motor.

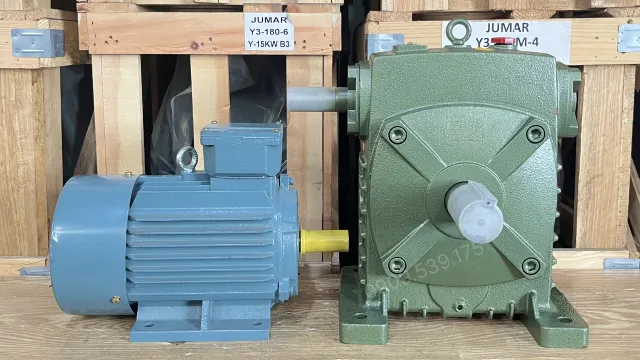

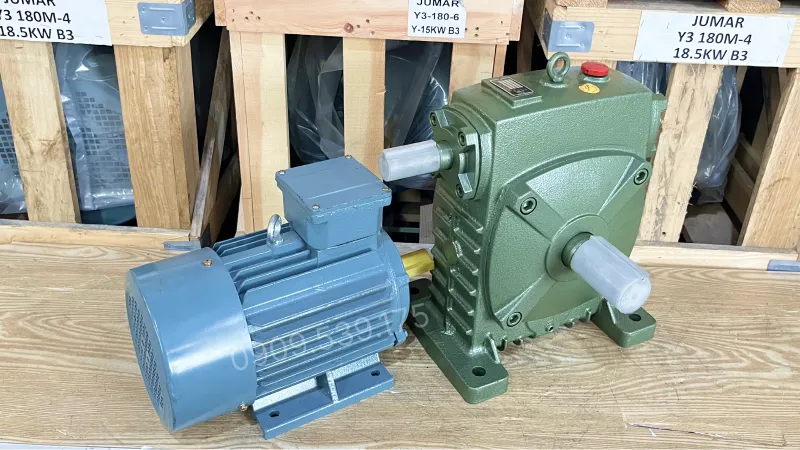

WPS 155 Gear Motor 7.5kW 10Hp has a specific detailed structure as follows:
It is combined by the WPS 155 worm gearbox and a 7.5kW 10Hp 3-phase electric motor.
WPS 155 Gear Motor 7.5kW 10Hp is a high-capacity transmission device, commonly used in industrial machinery systems that require strong pulling force and continuous working capability. The combination of the 7.5kW 3-phase electric motor and the WPS 155 gearbox helps optimize output speed, increase torque, and improve operating efficiency for the equipment.

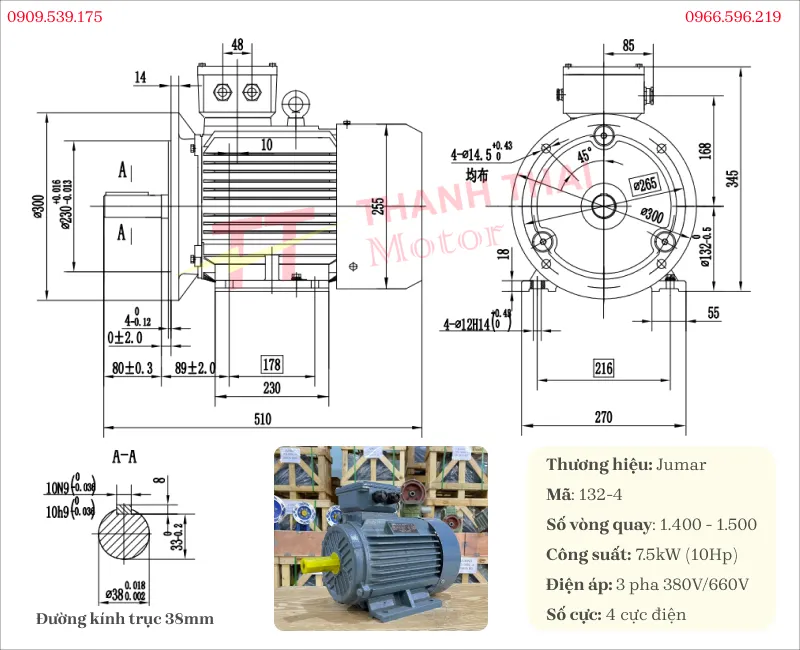

The 7.5kW 10Hp 3-phase electric motor features a sturdy design, well meeting the demands for continuous operation in industrial environments, while supporting various mounting styles.
| Model | 132M |
| Shaft diameter | 38mm |
| Keyway | 10 |
| Flange diameter | 300mm |
| Dimensions | 510* 270mm * 345mm |
| Mounting style | Foot-mounted (B3) |
| Protection class | IP55 |
| Insulation class | Class F |
The WPS 175 gearbox is designed with a robust structure, ensuring stable transmission capability and high longevity, suitable for use in conveyor systems, mixers, blenders, and many other industrial equipment.
| Size | 155 |
| Input shaft diameter | 40mm |
| Output shaft diameter | 60mm |
| Dimensions | 504mm*382mm |

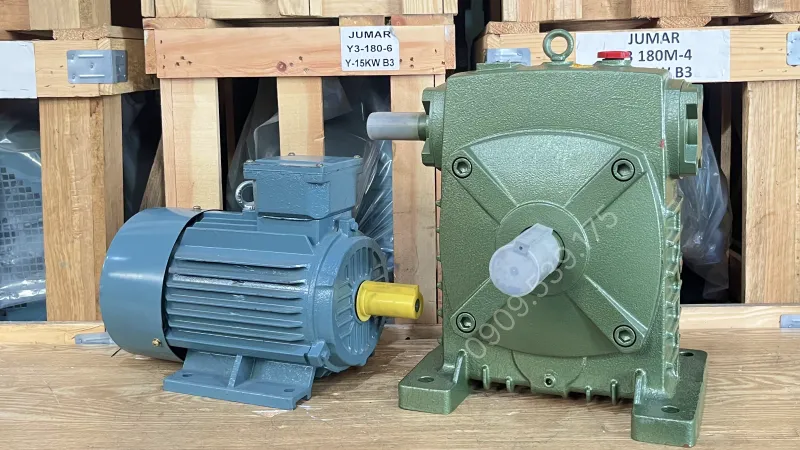

WPS 155 Gear Motor 7.5kW 10Hp is a gear motor above 3.7kW widely applied in many industries requiring high capacity and high stability:
Customers can refer to additional gear motor videos made by Thành Thái Motor to view detailed structures, transmission capabilities, and operating efficiency of the equipment in various practical industrial machinery systems. In addition, the comprehensive video library also provides many useful contents related to maintenance instructions, periodic inspections, and important notes during use, helping customers maximize work performance and extend equipment lifespan.
When purchasing gearmotors at Thanh Thai Motor, you will receive benefits such as: Warranty up to 24 Months All gearmotor products at Thanh Thai Motor come with an official 24-month warranty. We are committed to clear after-sales service, with quick and transparent processing procedures – ensuring customer peace of mind during use. Nationwide Delivery No matter which province or city you are in, Thanh Thai Motor is always ready to support fast delivery, ensuring on-time delivery, careful packaging, and safe transportation. We supply a full range of 220V gearmotors, variable speed motors, etc., for the diverse needs of customers nationwide. Products Meet European Quality Standards with German Technology Our products are manufactured using modern German technology, meeting European standards. Models such as integrated gearmotors, variable speed motors, or 220V gearmotors all ensure stable operation and superior durability. Competitive Pricing, Good Discounts for Dealers and Bulk Purchasers We offer affordable gearmotors, suitable for projects with limited budgets. In addition, Thanh Thai Motor has special policies and offers for dealers and bulk purchasers. Quality Commitment All 220V gearmotors here are wound with pure copper wire. This ensures powerful, smooth operation and energy savings. Full Certification Documents: CO, CQ,... All products such as integrated gearmotors, conveyor motors, or speed reducers come with full Certificates of Origin (CO) and Quality (CQ), meeting stringent technical requirements in industry. Need advice on choosing the right gearmotor for your needs? Contact Thanh Thai Motor immediately using the methods below:Warranty, Shipping, and Commitment Policies at Thanh Thai Motor
Contact Us
| Product Type | WPS Geared Motor |
| Rated Power | 7.5kW – 10Hp |
| Power Range | 0.18kW -15kW |
| Frequency | 50HZ |
| Voltage | 380/660V |
| Material | Cast iron or aluminum |
| Place of Manufacture | German technology manufactured and assembled in China |
| Brand | JUMAR, ADTECH |
| Warranty Period | Up to 24 months |
| Shaft Diameter | 38mm |
| Keyway | 10mm |
| Speed | 1,400 – 1,500 rpm |
| Input Shaft Diameter | 38mm |
| Output Shaft Diameter | 60mm |
| Gear Ratios | 1/10 – 1/60 |
WPS 155 Gear Motor 7.5kW 10Hp
