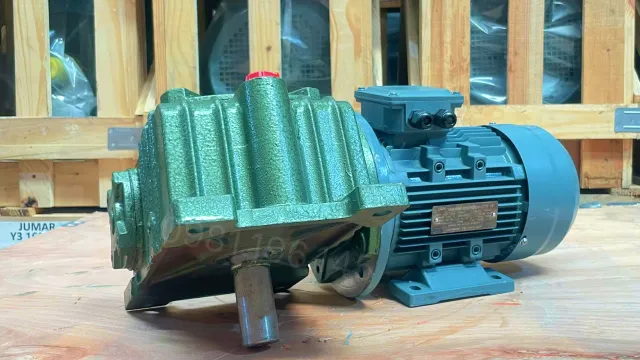

WPDX 155 Gear Motor 5.5kW 7.5Hp

The WPDX 155 Gear Motor 5.5kW 7.5Hp is the perfect combination of an electric motor and a gearbox, forming a gear motor that helps adjust rotational speed and effectively increase torque.

The product can use a 3-phase electric motor suitable for various working environments and medium to large-scale production. With a sturdy design, smooth operation, and high load capacity, the WPDX 155 Gear Motor 5.5kW 7.5Hp is rated as a powerful and reliable drive solution for businesses.

Overview of the WPDX 155 Gear Motor 5.5kW 7.5Hp

The worm gear motor has a solid structure, stable operation, and ensures transmission precision. The gearbox housing is made from solid cast iron or high-grade aluminum alloy, coated with anti-corrosion and oxidation-resistant electrostatic paint, helping to increase lifespan when working in harsh environments.

The motor core is wound with 100% copper wire, providing good electrical conductivity, even heat dissipation, and energy saving. The motor shaft is made from hardened steel with high load-bearing capacity, helping to transmit torque stably and accurately throughout operation.

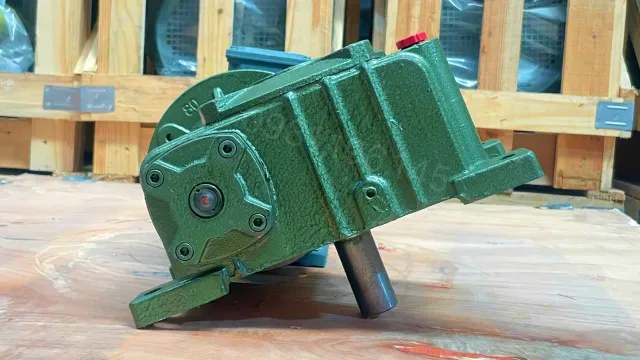

• WPDX 155 Worm Gearbox:
  • Gearbox housing: Solid cast, high load-bearing, coated with anti-rust paint.
  • Worm shaft: Precisely machined from hardened alloy steel, durable, excellent load capacity.
  • Worm gear: Made of high-grade bronze, accurately meshed with the worm shaft to reduce friction and noise.
  • Lubricating oil and oil seals: Ensure smooth equipment operation, prevent oil leakage, and extend service life.

Technical Specifications of the WPDX 155 Gearbox

Below are the detailed specifications of the WPDX size 155 gearbox

Step-by-Step Guide to Installing WPDX Gearbox with an Electric Motor

Below is the 5-step process for safe and precise assembly of the WPDX gear motor:

• Equipment preparation: Select an electric motor and WPDX gearbox that ensure consistency in shaft dimensions.
• Alignment: Place the two devices at the same level, ensuring the motor shaft head is aligned with the center of the gearbox input shaft hole.
• Shaft engagement: Slowly and firmly insert the motor shaft deep into the shaft hole of the WPDX gearbox.
• Flange mating: Continue pushing the two devices closely together so that the motor flange surface fits snugly against the gearbox flange without warping.
• Securing bolts: Use bolts through the flange holes and tighten them evenly. Make a final check to ensure the machine assembly is securely locked and vibration-free before supplying power for operation.

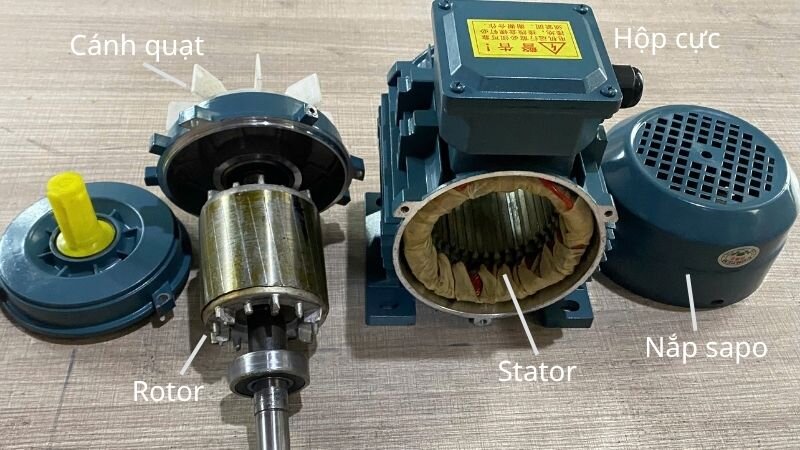

The WPDX 155 Gear Motor 5.5kW 7.5Hp asserts its superior class thanks to its exceptionally smooth operation. The system integrates a technical steel rotor and a 100% copper-core stator, helping the 5.5kW motor completely optimize power consumption.

Thanh Thai Motor is proud to distribute top-quality industrial machinery. We cordially invite our partners to watch the video summarizing machine models or watch in-depth gear motor videos to help businesses easily evaluate technical specifications before deciding to invest.

Warranty, Shipping, and Commitment Policies at Thanh Thai Motor

When purchasing gearmotors at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 Months

All gearmotor products at Thanh Thai Motor come with an official 24-month warranty. We are committed to clear after-sales service, with quick and transparent processing procedures – ensuring customer peace of mind during use.

Nationwide Delivery

No matter which province or city you are in, Thanh Thai Motor is always ready to support fast delivery, ensuring on-time delivery, careful packaging, and safe transportation. We supply a full range of 220V gearmotors, variable speed motors, etc., for the diverse needs of customers nationwide.

Products Meet European Quality Standards with German Technology

Our products are manufactured using modern German technology, meeting European standards. Models such as integrated gearmotors, variable speed motors, or 220V gearmotors all ensure stable operation and superior durability.

Competitive Pricing, Good Discounts for Dealers and Bulk Purchasers

We offer affordable gearmotors, suitable for projects with limited budgets. In addition, Thanh Thai Motor has special policies and offers for dealers and bulk purchasers.

Quality Commitment

All 220V gearmotors here are wound with pure copper wire. This ensures powerful, smooth operation and energy savings.

Full Certification Documents: CO, CQ,...

All products such as integrated gearmotors, conveyor motors, or speed reducers come with full Certificates of Origin (CO) and Quality (CQ), meeting stringent technical requirements in industry.
