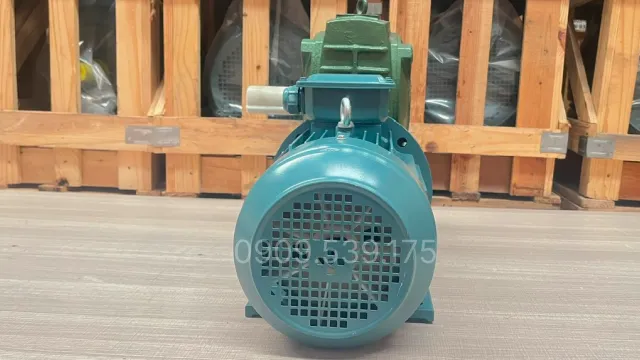

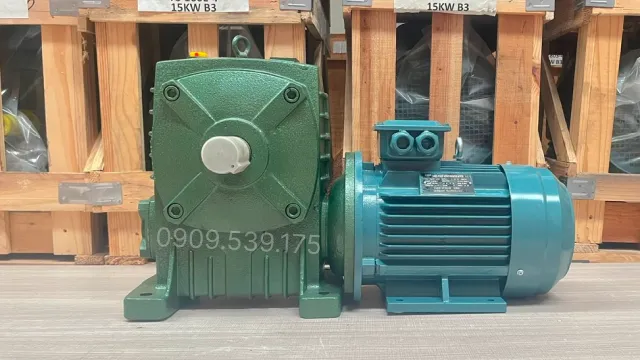

WPDA 155 Gear Motor 7.5kW 10Hp

WPDA 155 Gear Motor 7.5kW 10Hp is the perfect combination of an electric motor and a gearbox, creating a powerful, stable, and easy-to-use drive device – gear motor. With a sturdy flange-mounted design, the motor ensures precise power transmission, minimizes vibration, and well meets continuous operation requirements in demanding environments.

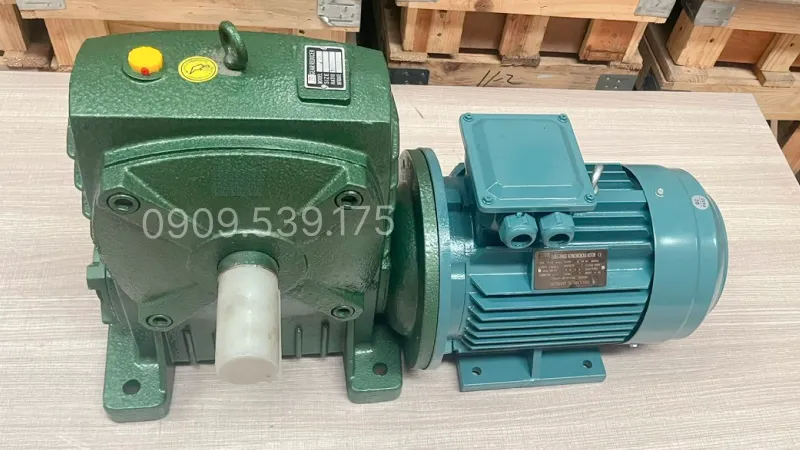

Overview of WPDA 155 Gear Motor 7.5kW 10Hp

The worm gear motor series is made of high-quality materials, with a one-piece cast gearbox housing made of cast iron or aluminum alloy, and a powder-coated surface to prevent rust and oxidation, keeping the product durable and beautiful over time. Designed by combining a 3-phase electric motor and a WPDA gearbox.

The motor core is wound with 100% copper wire, helping to increase power transmission efficiency, reduce heat loss, and save energy. The motor shaft is made of hardened steel with high load capacity, ensuring stable operation under heavy-duty conditions.

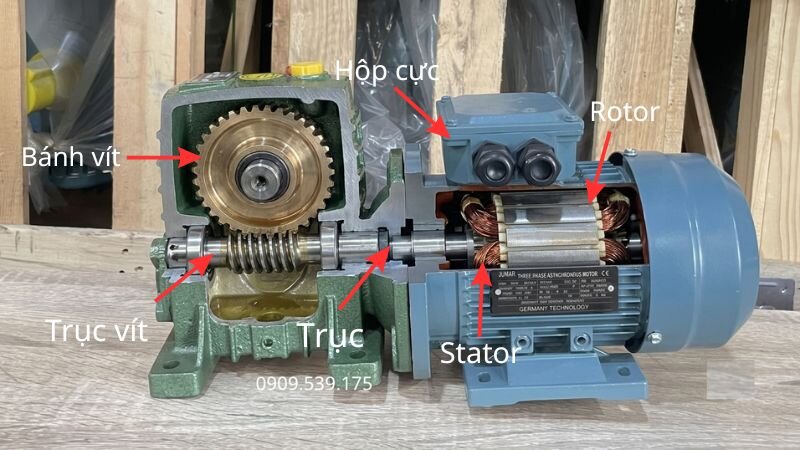

Detailed structure of WPDA 155 Gear Motor 7.5kW 10Hp

WPDA 155 Gear Motor 7.5kW 10Hp belongs to the gear motor line over 3.7kW, manufactured with an optimal structure consisting of the main components:

• 3-phase electric motor 7.5kW 10Hp
  • Motor housing: Made of thick, durable cast iron or aluminum alloy, capable of withstanding impacts and environmental influences. The exterior is powder-coated to prevent rust, increase durability, and enhance aesthetics.
  • Stator (Stationary part): Consists of pure copper coils wound around a technical steel core, creating a strong magnetic field to help the motor run smoothly and save electricity.
  • Rotor (Rotating part): Machined from high-quality alloy steel, ensuring accurate torque transmission and reduced energy loss.
  • Cooling fan: Mounted at the rear of the motor, responsible for rapid heat dissipation to ensure the equipment operates continuously without overheating.
• WPDA 155 worm gearbox
  • Gearbox housing: One-piece cast, sturdy, coated with anti-rust paint to increase corrosion resistance.
  • Worm shaft: Made of hardened alloy steel for smooth and durable transmission.
  • Worm wheel: Machined from pure copper, meshing perfectly with the worm shaft to reduce noise and increase service life.
  • Lubricating oil and oil seal: Help reduce friction and ensure smooth gearbox operation. Prevent oil leakage and maintain stable transmission efficiency throughout operation.

Technical specifications of WPDA 155 Gear Motor 7.5kW 10Hp

Below is the detailed technical specification table of WPDA 155 Gear Motor 7.5kW 10Hp

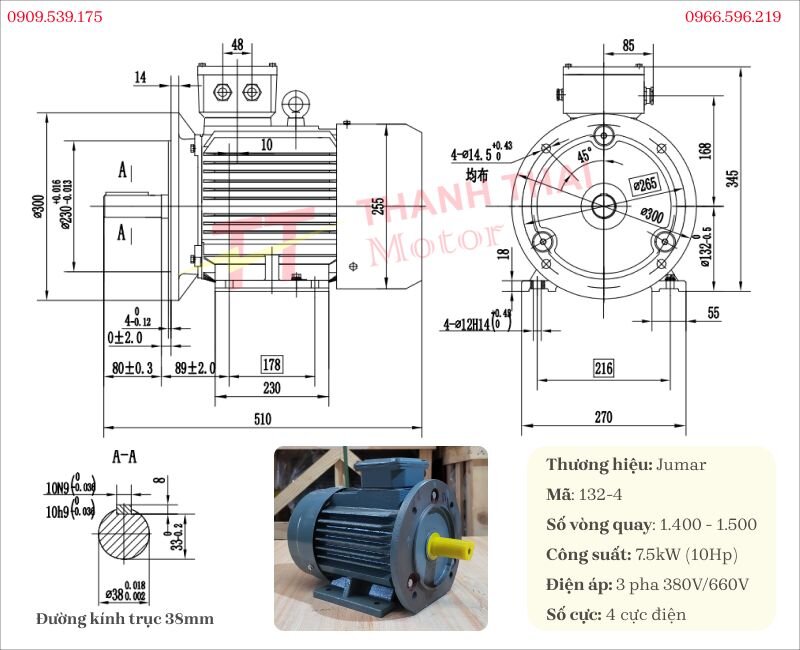

Technical specifications of 3-phase electric motor 7.5kW 10Hp

The 3-phase electric motor 7.5kW 10Hp features a sturdy design and solid construction. Below are the specifications and drawing of the electric motor

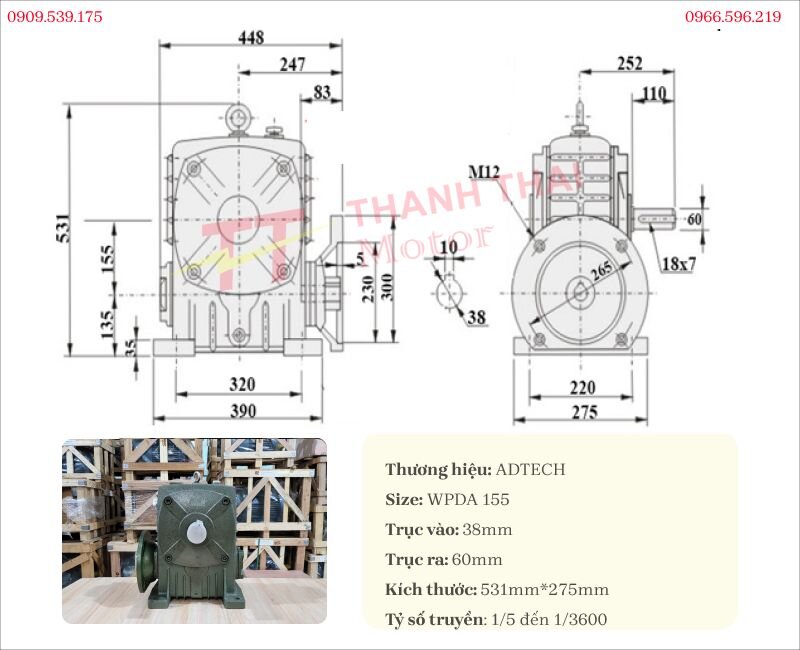

Technical specifications of WPDA 155 gearbox

The WPDA 155 gearbox is built with a sturdy structure, ensuring stable transmission processes

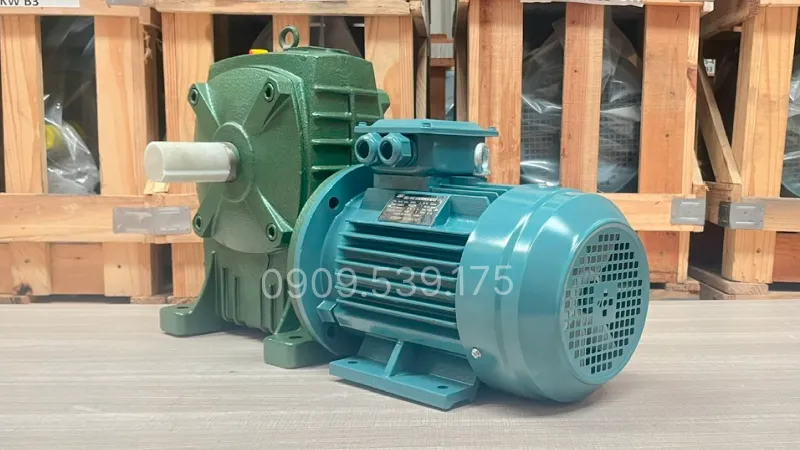

Practical applications of WPDA 155 Gear Motor 7.5kW 10Hp

3-phase gear motors are widely used in many industrial fields, especially where high power and precise transmission are required, such as:

• Conveyor lines and cargo conveyors in manufacturing plants and warehouses.
• Mixers, grinders, and agitators in food processing, chemical, and building materials industries.
• Packaging, filling, and labeling equipment in automated production lines.
• Hoist systems, lift tables, industrial rolling doors, or other motorized lifting equipment.

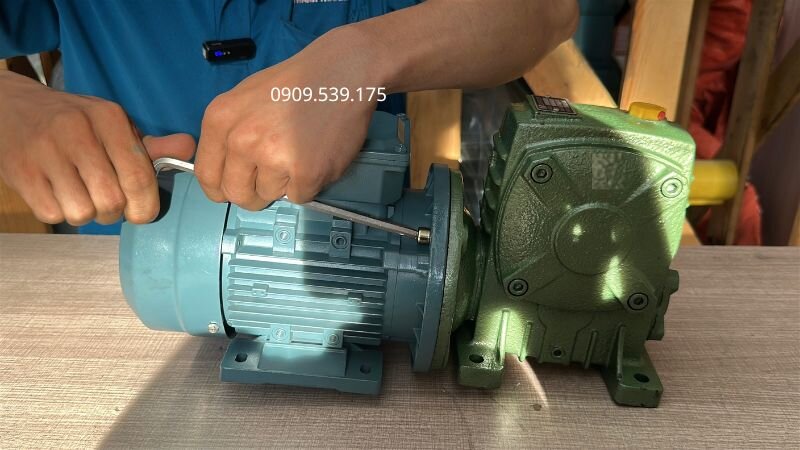

Detailed installation guide

The steps to connect the electric motor with the worm gearbox are as follows:

• Step 1: Place the electric motor and the WPDA gearbox on a stable surface, and accurately align the shaft positions to ensure concentricity between the two parts before assembly.
• Step 2: Use specialized bolts to securely fasten the connection between the motor and the gearbox, ensuring tightness and safety during operation.

The gear motor installation guide video details each step of the operation from alignment to complete assembly, helping users perform correctly, improve stability, and minimize errors during use. Watch more tutorial summary videos at Thanh Thai Motor.

Warranty, Shipping, and Commitment Policies at Thanh Thai Motor

When purchasing gearmotors at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 Months

All gearmotor products at Thanh Thai Motor come with an official 24-month warranty. We are committed to clear after-sales service, with quick and transparent processing procedures – ensuring customer peace of mind during use.

Nationwide Delivery

No matter which province or city you are in, Thanh Thai Motor is always ready to support fast delivery, ensuring on-time delivery, careful packaging, and safe transportation. We supply a full range of 220V gearmotors, variable speed motors, etc., for the diverse needs of customers nationwide.

Products Meet European Quality Standards with German Technology

Our products are manufactured using modern German technology, meeting European standards. Models such as integrated gearmotors, variable speed motors, or 220V gearmotors all ensure stable operation and superior durability.

Competitive Pricing, Good Discounts for Dealers and Bulk Purchasers

We offer affordable gearmotors, suitable for projects with limited budgets. In addition, Thanh Thai Motor has special policies and offers for dealers and bulk purchasers.

Quality Commitment

All 220V gearmotors here are wound with pure copper wire. This ensures powerful, smooth operation and energy savings.

Full Certification Documents: CO, CQ,...

All products such as integrated gearmotors, conveyor motors, or speed reducers come with full Certificates of Origin (CO) and Quality (CQ), meeting stringent technical requirements in industry.
