From 14.800.000₫
Product Introduction
WPA 175 Gear Motor 7.5kW 10Hp operates stably, withstands heavy loads, and is suitable for harsh industrial environments. The product helps optimize working performance, save costs, and enhance system durability.
Thanh Thai Motor specializes in supplying quality transmission equipment at factory prices, with full CO/CQ certifications. Customers receive consultation support and nationwide delivery.
The WPA 175 Gear Motor 7.5kW 10Hp is a new product designed by assembling an electric motor and a gearbox. The device is easy to install even in tight spaces, making it a popular choice in industrial plants and factories.
The worm gear motor features an outer casing made of 100% solid cast iron combined with an electrostatic paint layer that provides impact resistance, heat resistance, and high pressure tolerance, helping the motor operate stably for a long time. It is a worm gearbox coupled with a 3-phase electric motor.
The WPA 175 Gear Motor 7.5kW 10Hp combines an electric motor fitted with a WPA gearbox.
It is a WPA 175 worm gearbox coupled with a 3-phase electric motor (7.5kW 10Hp 3-phase electric motor) via a pulley and coupling.
The WPA 175 Gear Motor 7.5kW 10Hp is composed of a 3-phase electric motor 7.5kW 10Hp and a WPA 175 gearbox. Below are the detailed specifications of each component, helping customers easily reference, compare, and select the product that suits their application requirements.
Below are the standard specifications of the 3-phase electric motor 7.5kW 10Hp, used as a basis for equipment selection and integration.
| Code | 132M |
| Shaft diameter | 38mm |
| Key | 10 |
| Flange diameter | 300mm |
| Dimensions | 510* 270mm * 345mm |
| Mounting type | Foot mount (B3) |
| Protection class | IP55 |
| Insulation class | Class F |

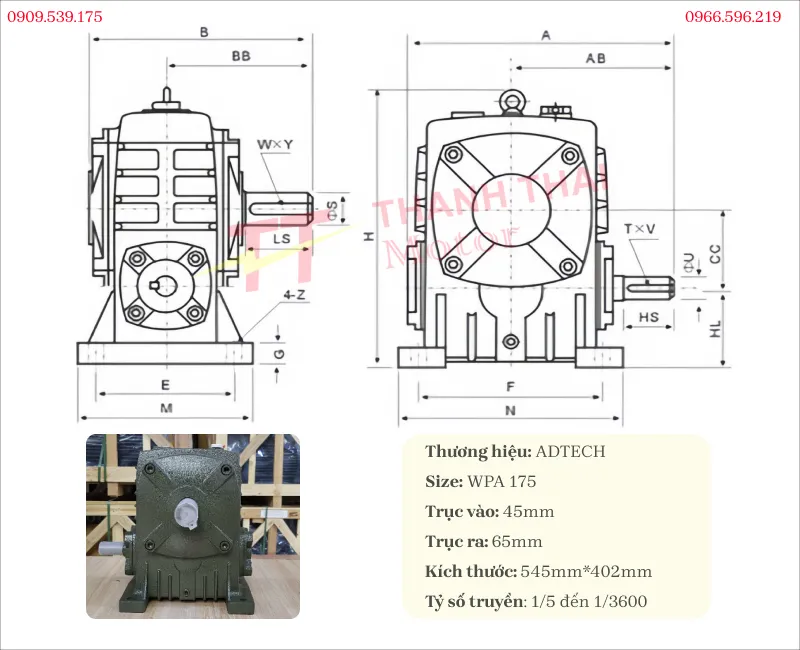

For convenience in selection and installation, customers can refer to the specifications table of the WPA 175 gearbox below. The parameters are compiled to support the design process and synchronization with the transmission system.
| Size | 175 |
| Input shaft diameter | 45mm |
| Output shaft diameter | 65mm |
| Dimensions | 545mm*402mm |
The WPA 175 Gear Motor 7.5kW 10Hp is a gear motor above 3.7kW that is typically integrated into transmission systems requiring heavy loads and operating under demanding conditions such as:
To learn more about the structure, technical specifications, and practical operating capabilities of the product, customers can refer to the summary video produced by Thanh Thai Motor. The gear motor video content will help customers easily observe the actual design, installation dimensions, and select the correct WPA 175 Gear Motor 7.5kW 10Hp model suited to their usage needs.
The WPA 175 Gear Motor 7.5kW 10Hp is an effective transmission solution for industrial systems requiring high torque and continuous working capabilities. With a sturdy structure, stable operation, and high durability, the product well meets many applications in production and automation. If you need technical consultation, selection of the appropriate ratio, or the latest quotation, please contact Thanh Thai Motor via Hotline 0909.539.175 for prompt support.
When purchasing gearmotors at Thanh Thai Motor, you will receive benefits such as: Warranty up to 24 Months All gearmotor products at Thanh Thai Motor come with an official 24-month warranty. We are committed to clear after-sales service, with quick and transparent processing procedures – ensuring customer peace of mind during use. Nationwide Delivery No matter which province or city you are in, Thanh Thai Motor is always ready to support fast delivery, ensuring on-time delivery, careful packaging, and safe transportation. We supply a full range of 220V gearmotors, variable speed motors, etc., for the diverse needs of customers nationwide. Products Meet European Quality Standards with German Technology Our products are manufactured using modern German technology, meeting European standards. Models such as integrated gearmotors, variable speed motors, or 220V gearmotors all ensure stable operation and superior durability. Competitive Pricing, Good Discounts for Dealers and Bulk Purchasers We offer affordable gearmotors, suitable for projects with limited budgets. In addition, Thanh Thai Motor has special policies and offers for dealers and bulk purchasers. Quality Commitment All 220V gearmotors here are wound with pure copper wire. This ensures powerful, smooth operation and energy savings. Full Certification Documents: CO, CQ,... All products such as integrated gearmotors, conveyor motors, or speed reducers come with full Certificates of Origin (CO) and Quality (CQ), meeting stringent technical requirements in industry. Need advice on choosing the right gearmotor for your needs? Contact Thanh Thai Motor immediately using the methods below:Warranty, Shipping, and Commitment Policies at Thanh Thai Motor
Contact Us
| Product Type | WPA Gear Motor |
| Rated Power | 7.5kW – 10Hp |
| Power Range | 0.18 KW – 315 KW |
| Frequency | 50Hz |
| Voltage | 380/660V |
| Material | Aluminum Casing and Cast Iron Casing |
| Place of Manufacture | German Technology, Assembled in China |
| Brand | JUMAR, ADTECH |
| Warranty Period | up to 24 months |
| Shaft Diameter | 38mm |
| Keyway | 10mm |
| Speed | 1,400 – 1,500 RPM |
| Input Shaft Diameter | 45mm |
| Output Shaft Diameter | 65mm |
| Gear Ratios | 1/10 – 1/60 |
