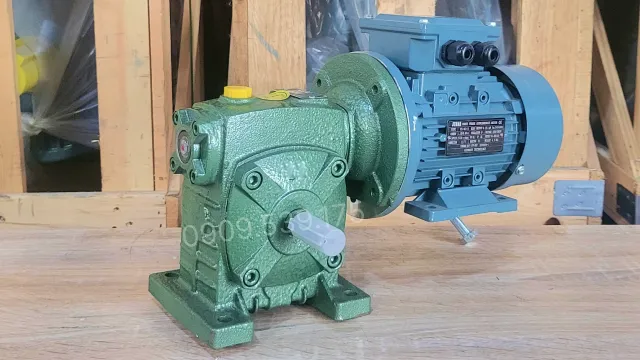

WPDS 80 1.1kW 1.5Hp Gear Motor

The Wpds 80 Gear Motor 1.1kW 1.5Hp is a gear motor line. This device is assembled from an electric motor and a gearbox. Thanks to the design combining these two different devices, the product operates smoothly, minimizes noise, and meets customer demands.

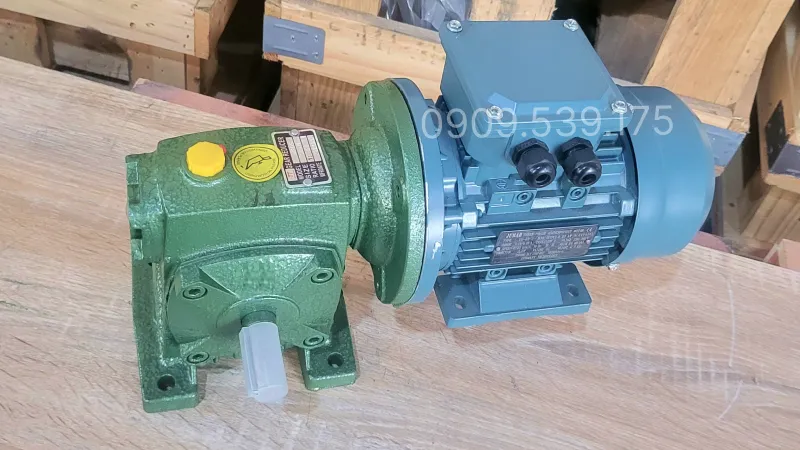

Overview of the design of the Wpds 80 Gear Motor 1.1kW 1.5Hp

The worm gear motor is a gear motor line ranging from 1.1kW to 3.7kW. The exterior of the casing is coated with electrostatic paint to prevent fading and resist scratches during operation and delivery.

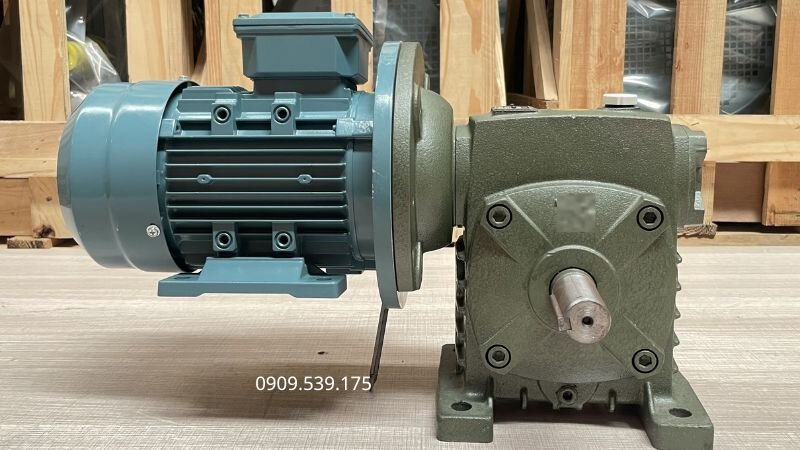

Detailed structure of the Wpds 80 Gear Motor 1.1kW 1.5Hp

The 1-phase gear motor or 3-phase gear motor is assembled from a 1-phase electric motor or 3-phase electric motor combined with a WPDS worm gearbox.

The WPDS gearbox is coupled with the electric motor via a flange.

• 1-Phase Electric Motor 1.1kW 1.5Hp or 3-Phase Electric Motor 1.1kW 1.5Hp:
  • Stator: Wound with 100% copper wire, helping to increase electrical conductivity and reduce energy loss.
  • Rotor: Made of high-grade technical steel, ensuring stable long-term rotation.
• Structure of the WPDS worm gearbox
  • Worm shaft: Precisely machined from sturdy bearing steel for smooth and stable transmission.
  • Worm gear: Made of high-grade steel alloy, providing a large transmission ratio and ensuring effective gear reduction.

Specifications of the Wpds 80 Gear Motor 1.1kW 1.5Hp

Below is the specification table and drawing of the Wpds 80 Gear Motor 1.1kW 1.5Hp

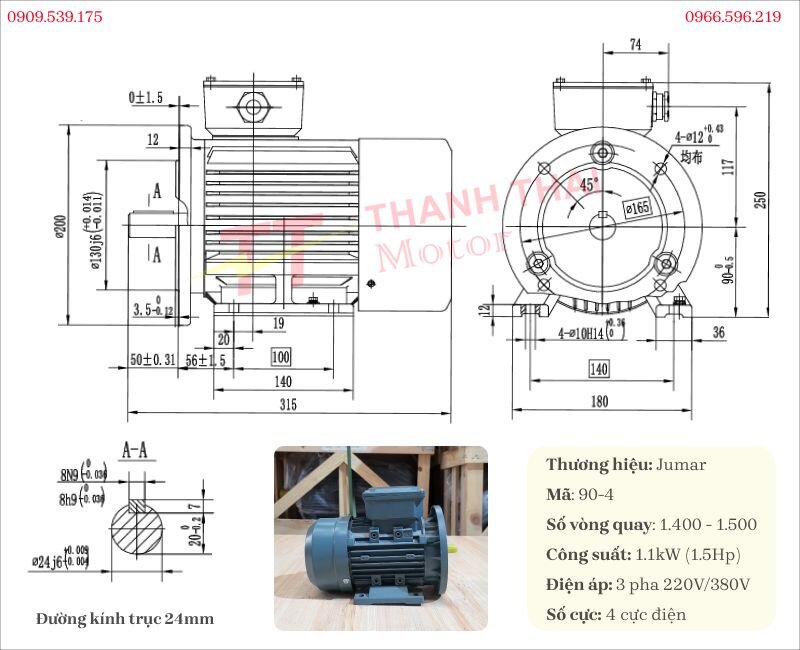

Specifications of the 3-phase electric motor 1.1kW 1.5Hp

Below are the drawings and specifications for the 3-phase electric motor 1.1kW 1.5Hp

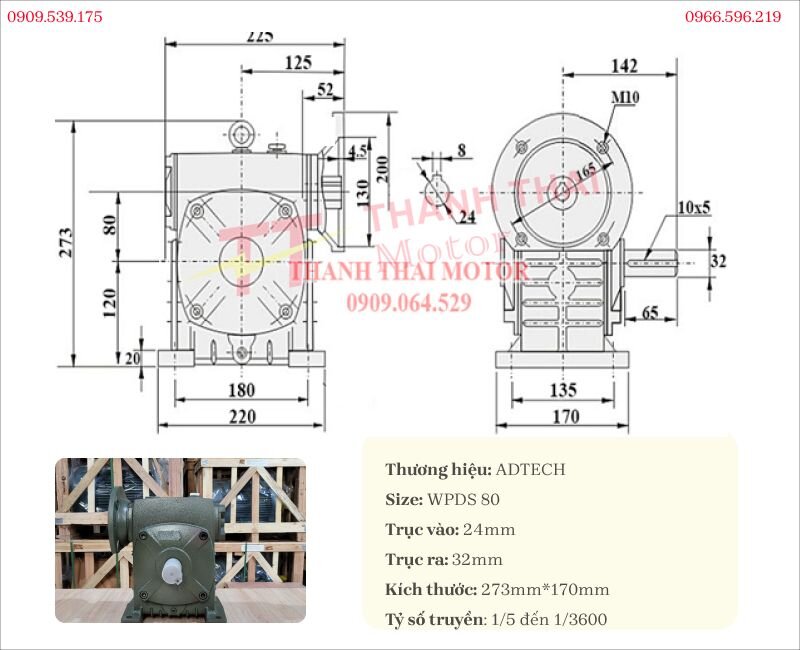

Specifications of the WPDS 80 gearbox

WPDS 80 gearbox specification table and technical drawing

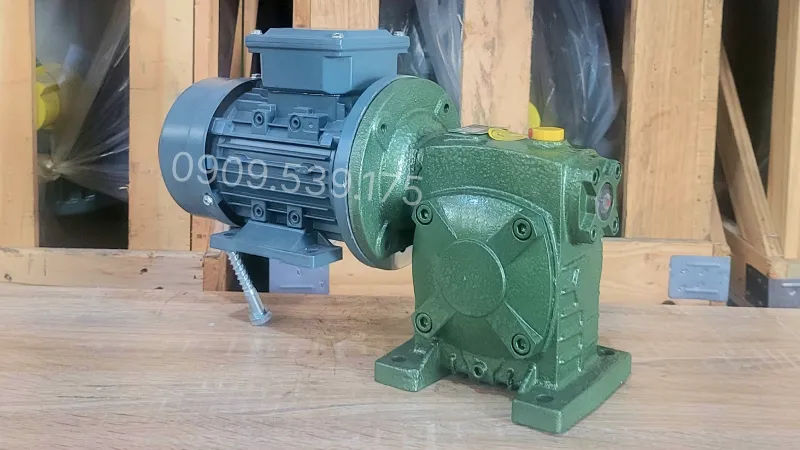

Common applications of the Wpds 80 Gear Motor 1.1kW 1.5Hp

The Wpds 80 Gear Motor 1.1kW 1.5Hp has a variety of common applications as follows:

• Used in industrial conveyors in the cement, packaging, and fertilizer production industries.
• Used in coal and mineral production plants.
• Used in presses and small-to-medium-scale wood shaping plants.

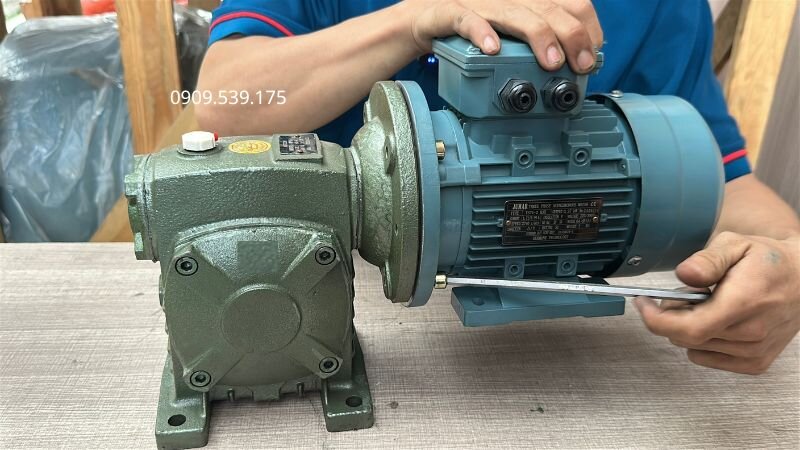

Guide on how to install the electric motor into the WPDS gearbox

To complete the WPDS gear motor assembly and ensure stable transmission performance, users need to follow these installation steps:

• Step 1: Fully prepare the electric motor, WPDS gearbox, and connection accessories. Check the technical condition of all components, ensuring that the shaft, flange, and joint positions are not damaged or misaligned.
• Step 2: Position the motor to connect with the gearbox, aligning the shaft to precisely match the input of the WPDS. Then, tighten the fixing bolts and check the sturdiness of the assembly before putting the system into operation.

The gear motor video guiding how to install the electric motor with the WPDS gearbox from Thanh Thai Motor provides a visual demonstration of the entire execution process. Viewers can easily follow each step from preparation, equipment positioning to final assembly. The content helps improve installation efficiency, ensures accuracy during connection, and contributes to extending the lifespan of the transmission system. To explore more useful technical content, customers can watch other compilation videos at Thanh Thai Motor.

Warranty, Shipping, and Commitment Policies at Thanh Thai Motor

When purchasing gearmotors at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 Months

All gearmotor products at Thanh Thai Motor come with an official 24-month warranty. We are committed to clear after-sales service, with quick and transparent processing procedures – ensuring customer peace of mind during use.

Nationwide Delivery

No matter which province or city you are in, Thanh Thai Motor is always ready to support fast delivery, ensuring on-time delivery, careful packaging, and safe transportation. We supply a full range of 220V gearmotors, variable speed motors, etc., for the diverse needs of customers nationwide.

Products Meet European Quality Standards with German Technology

Our products are manufactured using modern German technology, meeting European standards. Models such as integrated gearmotors, variable speed motors, or 220V gearmotors all ensure stable operation and superior durability.

Competitive Pricing, Good Discounts for Dealers and Bulk Purchasers

We offer affordable gearmotors, suitable for projects with limited budgets. In addition, Thanh Thai Motor has special policies and offers for dealers and bulk purchasers.

Quality Commitment

All 220V gearmotors here are wound with pure copper wire. This ensures powerful, smooth operation and energy savings.

Full Certification Documents: CO, CQ,...

All products such as integrated gearmotors, conveyor motors, or speed reducers come with full Certificates of Origin (CO) and Quality (CQ), meeting stringent technical requirements in industry.
