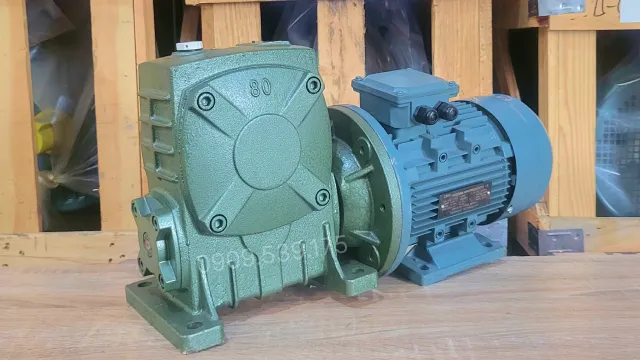

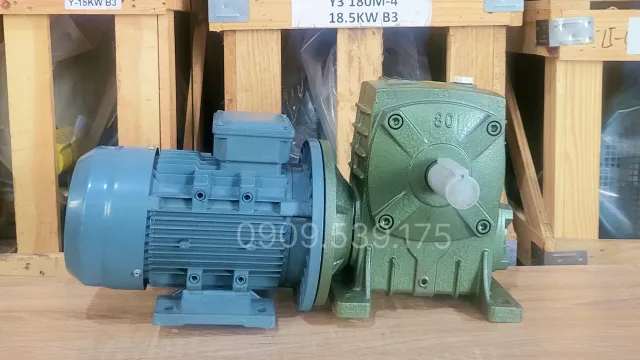

WPDA 80 Gear Motor 1.1kW 1.5Hp

The WPDA 80 Gear Motor 1.1kW 1.5Hp is a gear motor assembled from an electric motor and a gearbox, featuring a worm gearbox. These two devices create an efficient drive mechanism, helping to rapidly reduce rotational speed and effectively increase pulling force.

Depending on the application requirements, the motor can be a 1-phase electric motor or a 3-phase electric motor, suitable for various working environments. With the advantages of smooth operation, energy saving, and easy maintenance, this device is widely applied in industrial sectors.

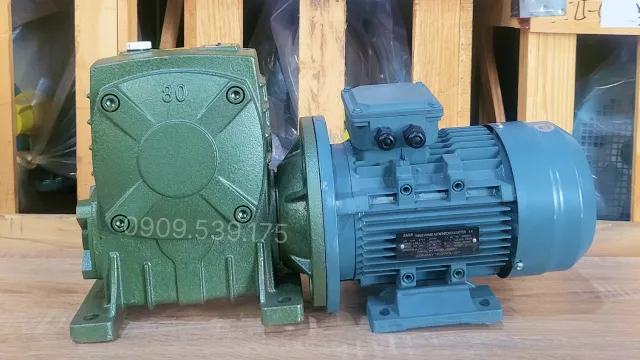

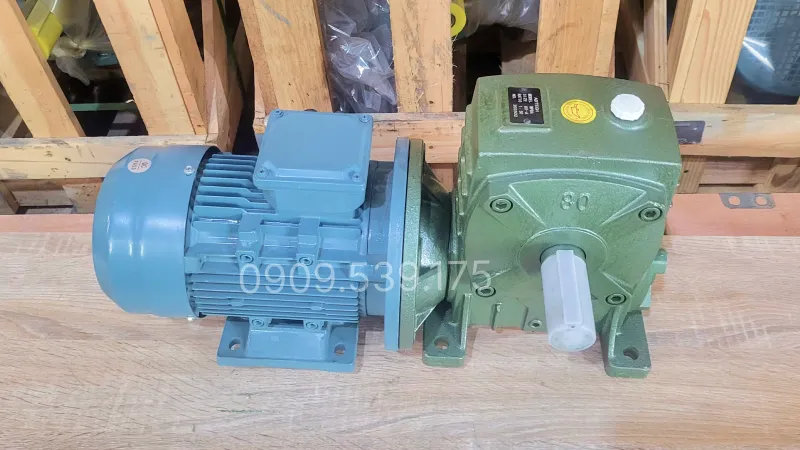

Overview of WPDA 80 Gear Motor 1.1kW 1.5Hp

This 1-phase gear motor or 3-phase gear motor belongs to the gear motor range from 1.1kW to 3.7kW with a durable structure from inside out. The gearbox housing is solidly cast from high-grade cast iron or aluminum, coated with anti-rust powder coating, helping the equipment maintain high durability in harsh environments.

The motor core is wound with 100% pure copper wire, providing good power transmission, reducing losses, and increasing operating efficiency. The motor shaft is made of hardened steel, capable of withstanding heavy loads, transmitting stable torque, and ensuring long-lasting and smooth equipment operation. The connection between the motor and the gearbox is designed with a flange type, helping to transmit motion accurately and limit vibration during operation.

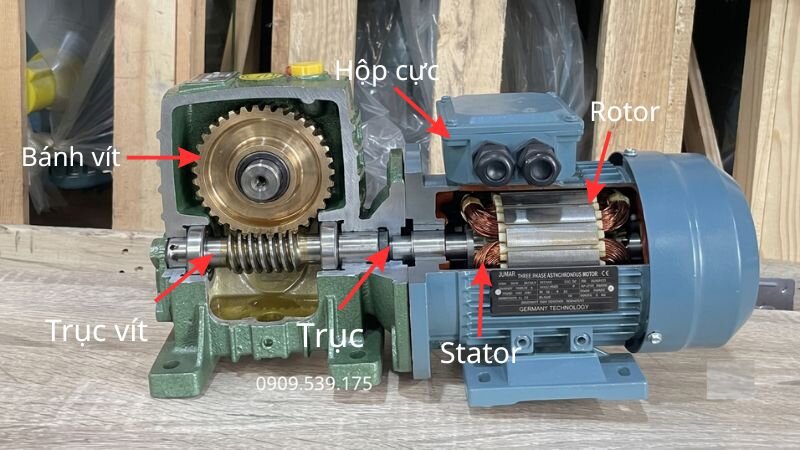

Detailed construction of WPDA 80 Gear Motor 1.1kW 1.5Hp

This worm gear motor is composed of the following main parts:

• Electric motor: With 1-phase electric motor 1.1kW 1.5Hp or 3-phase electric motor 1.1kW 1.5Hp
  • Outer housing: Made of solid cast iron or hard aluminum, coated with high-grade powder coating to prevent scratches, oxidation, and increase service life.
  • Stator – Stationary part: Consists of 100% copper windings, creating a strong magnetic field to help the motor run smoothly, stably, and durably over time.
  • Rotor – Rotating part: Machined from high-technical steel, precise transmission, ensuring good mechanical efficiency and limiting wear.

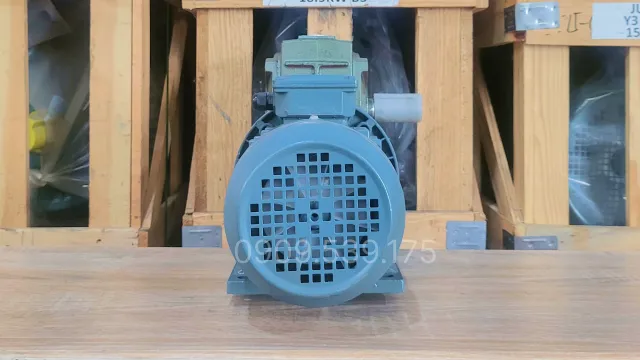

  • Cooling fan: Placed at the rear of the motor, helping with fast cooling and maintaining a stable temperature during continuous operation.
• WPDA 80 worm gearbox:

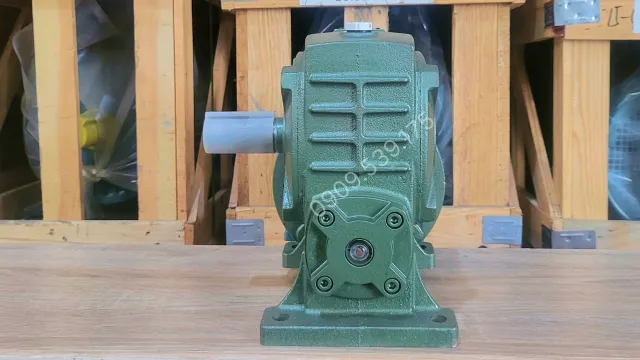

  • Gearbox housing: The outer shell of the gearbox is cast from solid iron, with an anti-rust powder-coated surface to protect the equipment housing from external impacts.
  • Worm shaft: Made of alloy steel, hardened surface to reduce friction and provide smooth transmission.
  • Worm gear: Made of high-grade bronze, perfectly meshing with the worm shaft, smooth operation, low noise.
  • Oil seal and lubricating oil: The oil seal helps retain oil in the gearbox, preventing dust and impurities from entering, while the lubricating oil ensures smooth operation and reduces wear.

Specifications of WPDA 80 Gear Motor 1.1kW 1.5Hp

Below is the specification table and drawing of the WPDA 80 Gear Motor 1.1kW 1.5Hp

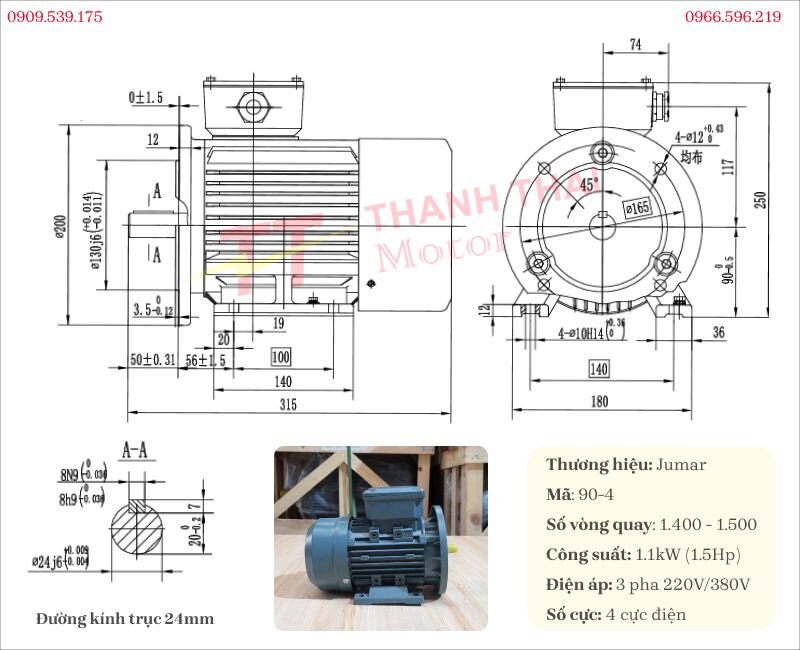

Specifications of 3-Phase Electric Motor 1.1kW 1.5Hp

The 3-phase electric motor 1.1kW 1.5Hp features a sturdy design and specifications

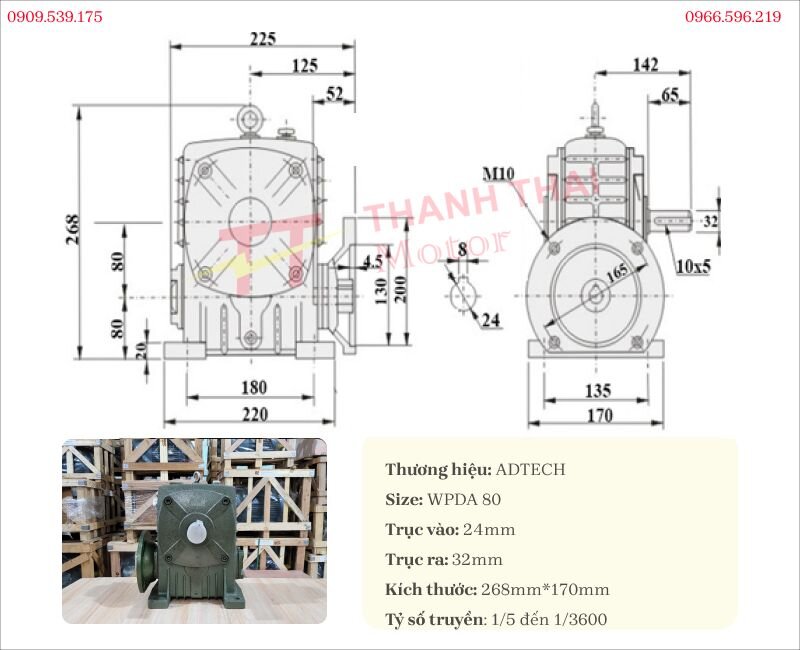

Specifications of WPDA 80 Gearbox

The WPDA 80 gearbox has a sustainable design and solid structure. Below are the specifications and drawing

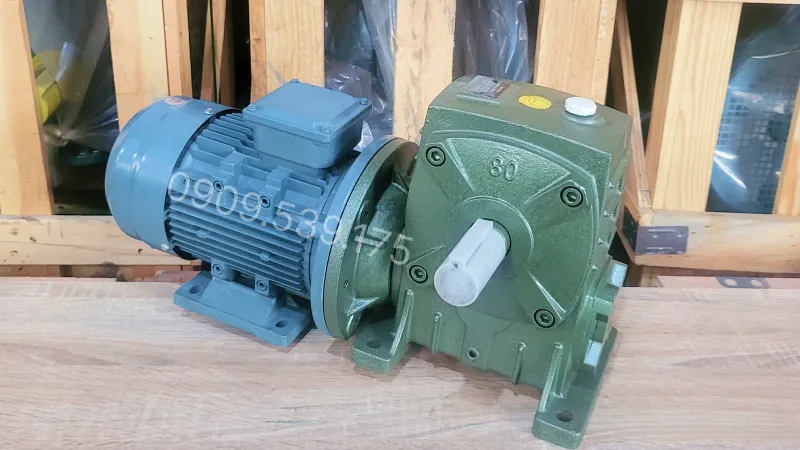

Practical applications of WPDA 80 Gear Motor 1.1kW 1.5Hp

The WPDA 80 Gear Motor 1.1kW 1.5Hp is widely applied in many industries such as:

• Conveyors and conveyor belts for transporting goods in factories and manufacturing workshops.
• Mixers, agitators, and grinders in the food, pharmaceutical, and chemical industries.
• Packaging, labeling, and filling machines in automation lines.
• Sliding doors, lifting tables, winches, lifting equipment, and many other mechanical systems.

Guide to installing electric motor with WPDA gearbox

To ensure that the WPDA gear motor assembly operates stably and transmits motion efficiently, the assembly process must be performed according to proper technical standards as follows:

• Step 1: Prepare the electric motor, WPDA gearbox, and accompanying assembly accessories. Check the compatibility between parts, the condition of the mounting surfaces, and shaft accuracy before proceeding.
• Step 2: Align the concentricity between the motor shaft and the gearbox input, then secure them using specialized flanges and bolts. Complete the installation by checking the tightness of the connection and the smooth rotation of the shaft to ensure safe operation.

The gear motor assembly guide video for the WPDA gear motor demonstrates detailed practical steps, from equipment preparation to the completion of the drive assembly. The content is clearly presented, helping users easily apply the correct technical process, minimize installation errors, and enhance the durability and operating efficiency of the system. Viewers can refer to other technical video compilations at Thanh Thai Motor for more practical application options.
