WPDS 155 Gear Motor 5.5kW 7.5Hp

WPDS 155 Gear Motor 5.5kW 7.5Hp is a gear motor device installed between an electric motor and a gearbox. As the most popularly used product on the market today, it is widely utilized in large-scale industrial plants and factories.

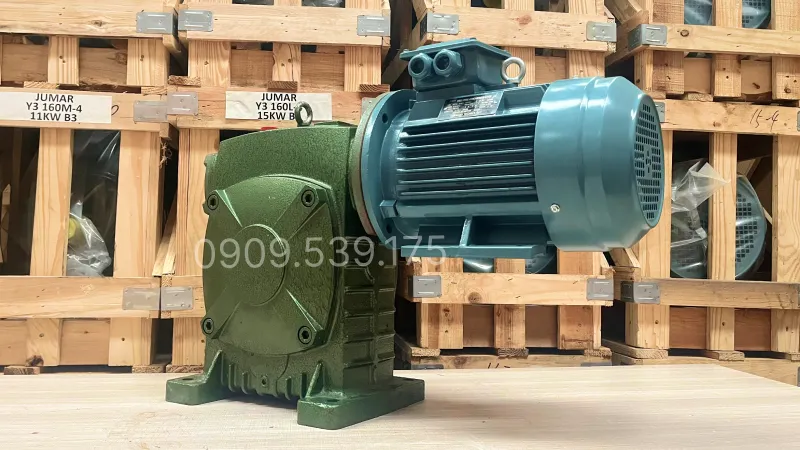

Design Overview of WPDS 155 Gear Motor 5.5kW 7.5Hp

The worm gear motor is a 3 phase gear motor assembled from a 3-phase electric motor and a worm gearbox. Overall, the external housing is made of sturdy, durable cast iron, minimizing rust and withstanding high temperatures in external environments.

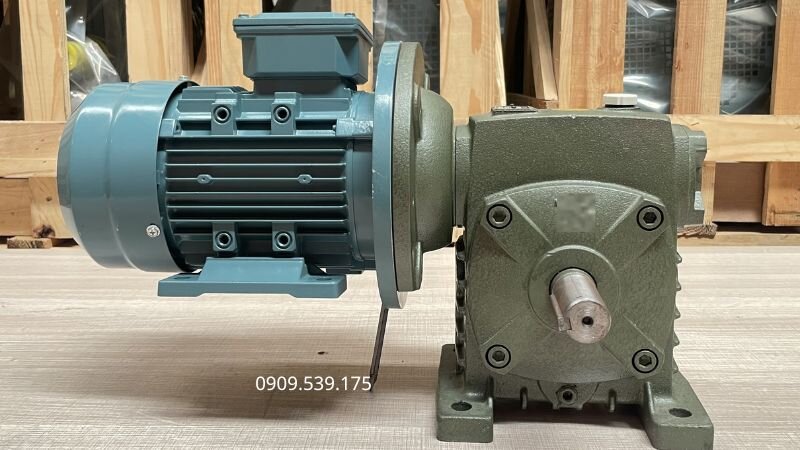

Detailed Structure of WPDS 155 Gear Motor 5.5kW 7.5Hp

WPDS 155 Gear Motor 5.5kW 7.5Hp is a gear motor line exceeding 3.7kW.

• 3-phase electric motor 5.5kW 7.5Hp:
  • Stator: Constructed from pure copper, optimizing electromagnetic efficiency and increasing motor lifespan.
  • Rotor: Made from laminated electrical steel sheets, tightly pressed, helping the motor rotate powerfully, stably, and save energy.
• WPDS 155 gearbox:
  • The worm gear is made of alloy steel with high precision, ensuring stable transmission and long-term durability.
  • Housing: Made from solid cast iron with high strength and strong impact resistance, coated with an anti-rust powder coating.

Technical Specifications of WPDS 155 Gear Motor 5.5kW 7.5Hp

Below is the specifications table and drawing of WPDS 155 Gear Motor 5.5kW 7.5Hp

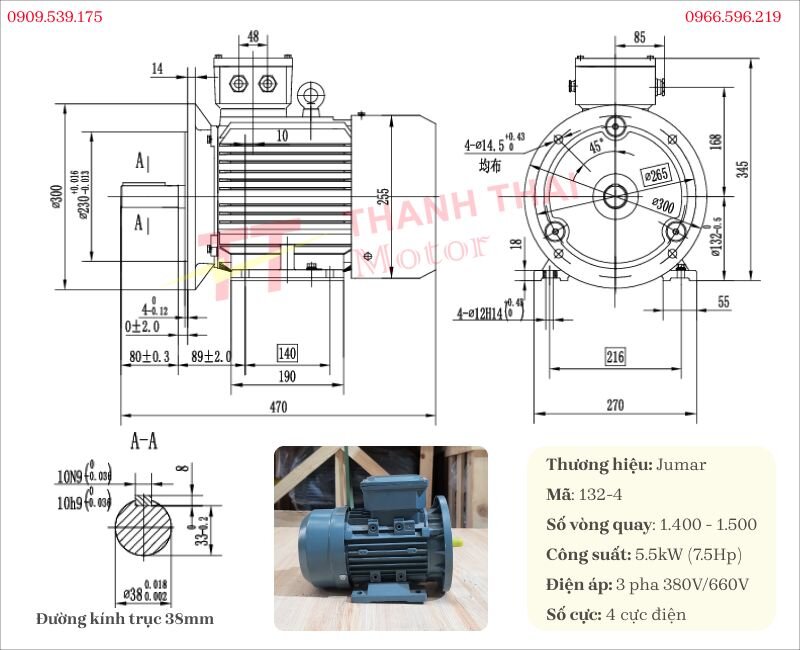

Technical Specifications of 3-Phase Electric Motor 5.5kW 7.5Hp

Below are the drawing and technical specifications for the 3-phase electric motor 5.5kW 7.5Hp

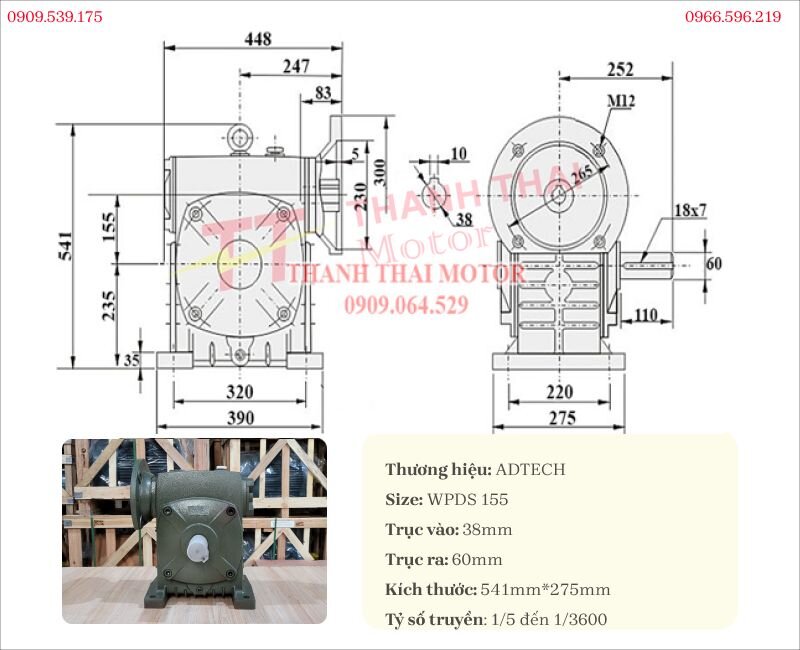

Technical Specifications of WPDS 155 Gearbox

Specifications table and drawing of WPDS 155 gearbox

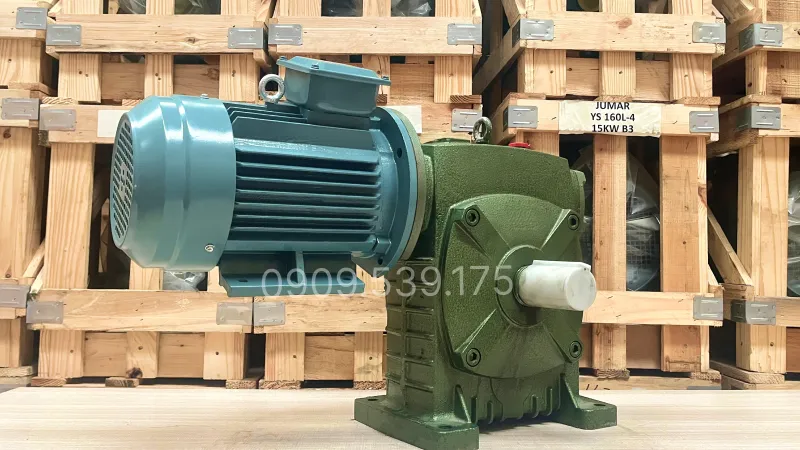

Common Applications of WPDS 155 Gear Motor 5.5kW 7.5Hp

WPDS 155 Gear Motor 5.5kW 7.5Hp features common applications as follows:

• Used in industrial hydraulic presses and steel rolling mills.
• Used in large-scale concrete mixers and heavy chemical mixers.
• Heavy-duty conveyor systems transporting heavy materials in cement, brick, and mineral plants.

Guide to Connecting Electric Motor and WPDS Gearbox

To create a complete WPDS drive system, the assembly process must be carried out correctly to ensure stable equipment operation, minimize wear and tear, and enhance working efficiency.

• Step 1: Prepare the electric motor and WPDS gearbox on a flat installation surface. Check details such as the motor shaft, bolt holes, connecting flange, and included accessories to ensure no misalignment occurs during connection.
• Step 2: Insert the motor shaft end into the receiving part of the gearbox while precisely aligning the axis center between the two devices. Once the positions are fully engaged, tighten the fixing bolt system and recheck the solidity of the entire transmission assembly.

The instructional video on installing the WPDS gear motor produced by Thanh Thai Motor will help viewers visually follow each step from equipment preparation, position alignment to completing the connection. Practical and easy to understand, the content helps users quickly grasp the necessary technical requirements, thereby shortening installation time and improving reliability when putting the system into operation. Watch more through the summary video.
