WPDS 135 Gear Motor 4kW 5.5Hp

Thành Thái Motor would like to introduce to our customers the new WPDS 135 Gear Motor 4kW 5.5Hp product line, which is a gear motor device installed between the electric motor and the gearbox. With a compact design, easy installation, high lifespan, and reasonable price, this is the most popular product line used by customers in the market today.

Design Overview of WPDS 135 Gear Motor 4kW 5.5Hp

Featuring a unique worm gear design, this 3-phase gear motor is constructed by assembling a 3-phase electric motor with a WPDS worm gearbox. The housing is cast from iron or aluminum, coated with electrostatic paint to prevent rust and provide good heat resistance in high-humidity environments.

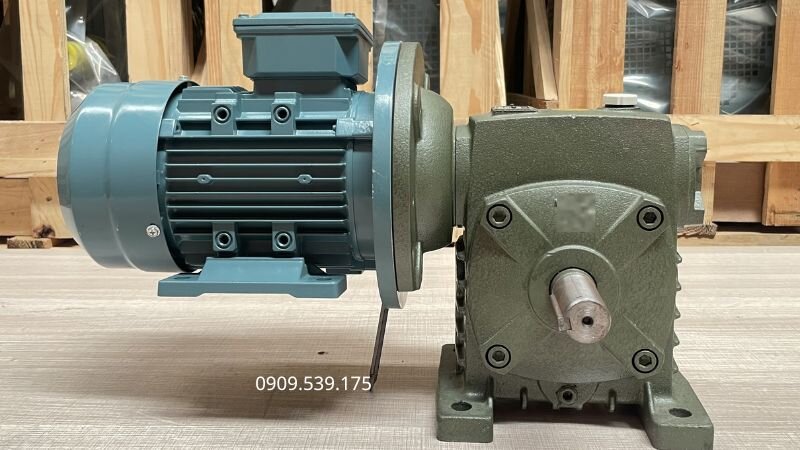

Structure of WPDS 135 Gear Motor 4.0kW 5.5Hp

WPDS 135 Gear Motor (WPDS 135 gearbox) is coupled with a 3-phase 4.0kW 5.5Hp electric motor (3-phase 4kW 5.5Hp electric motor) via a pulley and shaft coupling.

• 3-Phase 4.0kW 5.5Hp Electric Motor:
  • Stator: Made of 100% solid, sturdy copper, located inside the motor as the stationary part.
  • Rotor: Made of durable steel, located inside the motor as the rotating part, which rotates thanks to the action generated by the stator.
• WPDS 155 Gearbox:
  • Worm gear: Constructed from sturdy and durable thin steel sheets, helping the device operate powerfully.
  • Worm shaft: Constructed from anti-rust steel sheets, helping the device handle heavy loads and minimizing vibration and noise during operation.

Specifications of WPDS 135 Gear Motor 4.0kW 5.5Hp

Below is the specification table and drawing of the WPDS 135 4.0kW 5.5Hp gear motor

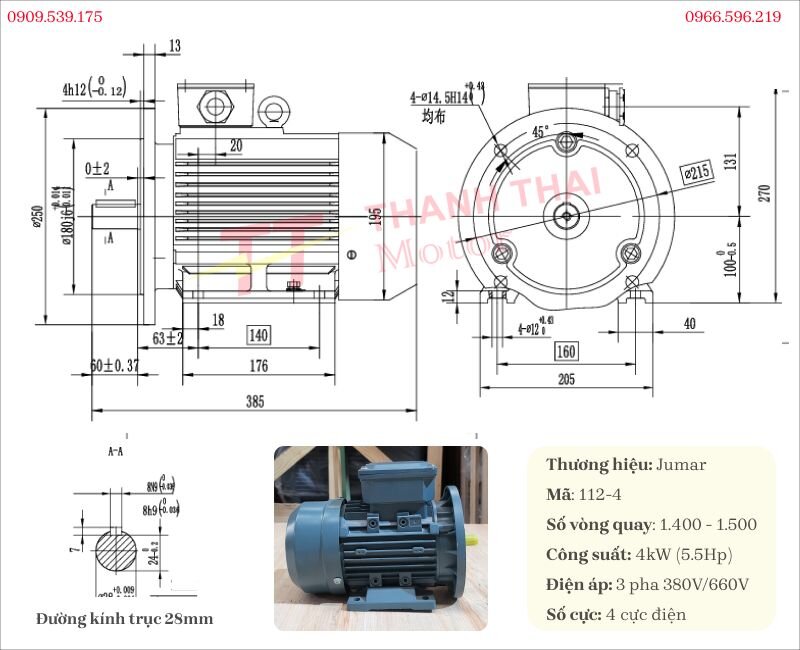

Specifications of 3-Phase 4.0kW 5.5Hp Electric Motor

Below are the drawing and specifications of the 3-phase 4.0kW 5.5Hp electric motor

Specifications of WPDS 135 Gearbox

Specification table and drawing of WPDS 135 gearbox

Popular Applications of WPDS 135 Gear Motor 4kW 5.5Hp

WPDS 135 Gear Motor 4kW 5.5Hp is a gear motor equipment over 3.7kW (gear motor over 3.7kW) with many popular applications in factories such:

• Used in lifting infrastructure, conveyors in the food production and building materials industries.
• Commonly used for steel rolling mills, mini stone crushers requiring large and stable power transmission.
• Widely used for large-scale industrial factories such as wood pressing plants, rice milling plants.

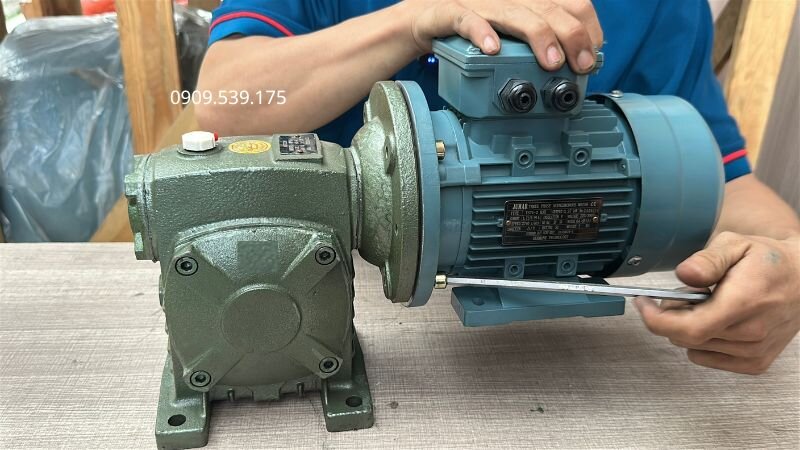

Instructions for Assembling Electric Motor with WPDS Gearbox

To ensure that the WPDS gear motor assembly operates efficiently and maintains long-term durability, installation must be carried out precisely right from the preparation and equipment connection stages.

• Step 1: Position the electric motor and WPDS gearbox in a suitable installation area. Check the condition of contact surfaces, transmission shafts, keys, and connection details to ensure the equipment meets requirements before assembly.
• Step 2: Connect the motor to the gearbox by inserting the motor shaft into the exact input position of the gearbox. Align the coaxiality between the two parts, then tighten the connecting bolts and check the rotation capability of the shaft to ensure a stable transmission process.

The gear motor video guiding the installation of WPDS gear motor from Thành Thái Motor helps viewers follow the assembly steps between the electric motor and gearbox in practice. The content is presented concisely and understandably, helping users grasp how to align, connect, and fix components technically correctly. The video is suitable for customers, technicians, and those looking to understand how to install WPDS gear motors. Watch more compilation videos to refer to various knowledge and experiences in using gear motors in practice.

Warranty, Shipping, and Commitment Policies at Thanh Thai Motor

When purchasing gearmotors at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 Months

All gearmotor products at Thanh Thai Motor come with an official 24-month warranty. We are committed to clear after-sales service, with quick and transparent processing procedures – ensuring customer peace of mind during use.

Nationwide Delivery

No matter which province or city you are in, Thanh Thai Motor is always ready to support fast delivery, ensuring on-time delivery, careful packaging, and safe transportation. We supply a full range of 220V gearmotors, variable speed motors, etc., for the diverse needs of customers nationwide.

Products Meet European Quality Standards with German Technology

Our products are manufactured using modern German technology, meeting European standards. Models such as integrated gearmotors, variable speed motors, or 220V gearmotors all ensure stable operation and superior durability.

Competitive Pricing, Good Discounts for Dealers and Bulk Purchasers

We offer affordable gearmotors, suitable for projects with limited budgets. In addition, Thanh Thai Motor has special policies and offers for dealers and bulk purchasers.

Quality Commitment

All 220V gearmotors here are wound with pure copper wire. This ensures powerful, smooth operation and energy savings.

Full Certification Documents: CO, CQ,...

All products such as integrated gearmotors, conveyor motors, or speed reducers come with full Certificates of Origin (CO) and Quality (CQ), meeting stringent technical requirements in industry.
