WPA 200 Gear Motor 11kW 15Hp

The WPA 200 Gear Motor 11kW 15Hp is manufactured on a modern production line, combining superior mechanical durability and stable operation. This is a new product designed by assembling an electric motor and a gearbox.

Design Overview of the WPA 200 Gear Motor 11kW 15Hp

The worm gear motor features a sturdy exterior made of cast iron, combined with an electrostatic powder coating on the outside to protect the device from external harmful factors such as fading and high-temperature weather.

More specifically, it combines a worm gearbox assembled with a 3-phase electric motor.

Detailed Structure of the WPA 200 Gear Motor 11kW 15Hp

The WPA 200 Gear Motor 11kW 15Hp combines an electric motor assembled with a WPA gearbox. More specifically, it is a WPA 200 worm gearbox coupled with an 11kW 15Hp 3-phase electric motor via a pulley and a shaft coupling.

• 11kW 15Hp Electric Motor:
  • Stator: Wound with 100% pure copper wire, enhancing heat resistance and reducing energy loss.
  • Rotor: Made from a laminated steel core, ensuring smooth rotation, cool operation, and durability in harsh environments.

• WPA 200 Gearbox:
  • Worm gear: Cast from a special bronze alloy, featuring superior wear resistance, efficient power transmission, and long-term operation without performance degradation.
  • Worm shaft: Made of stainless alloy steel, machined with high precision, ensuring smooth meshing, quiet transmission, and minimizing noise.

Specifications of the WPA 200 Gear Motor 11kW 15Hp

The WPA 200 Gear Motor 11kW 15Hp is a combination of an 11kW 15Hp 3-phase electric motor and a WPA 200 gearbox. Below are the detailed specifications of each component, serving as a basis for designing, installing, and synchronizing the transmission system.

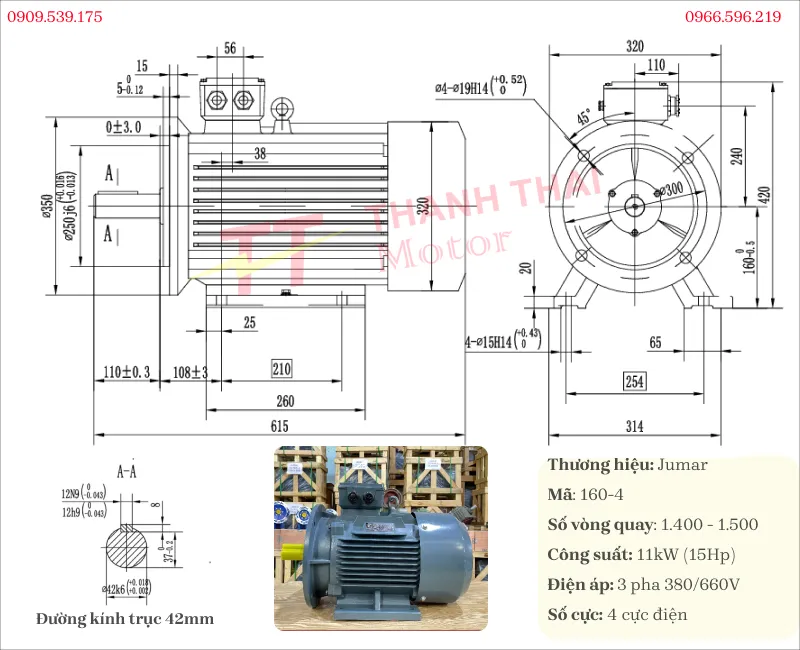

Specifications of the 11kW 15Hp 3-Phase Electric Motor

To synchronize with the transmission system and select the appropriate installation method, please refer to the technical specifications of the 11kW 15Hp 3-phase electric motor below before putting it into operation.

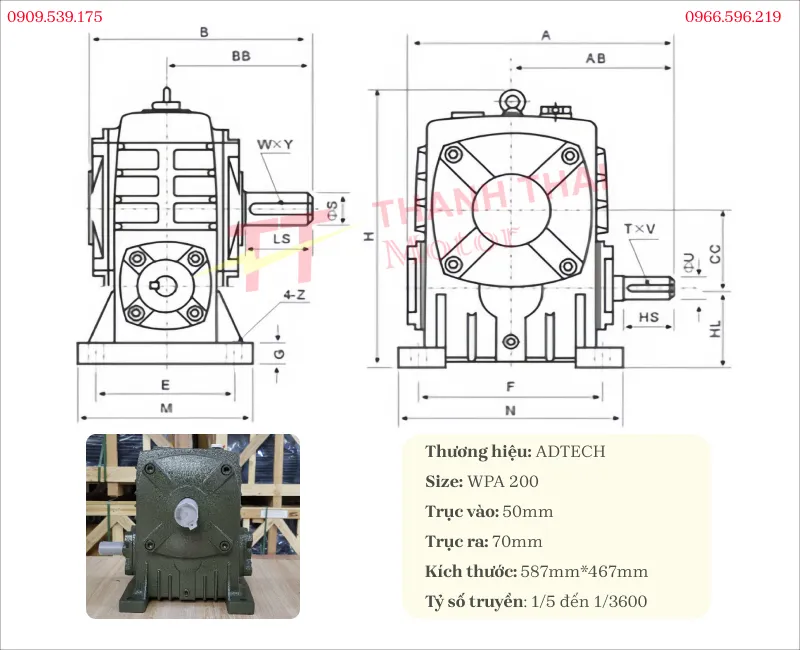

Specifications of the WPA 200 Gearbox

Below is the technical specification table of the WPA 200 gearbox, including basic information on dimensions and shaft diameters for installation and equipment synchronization.

Practical Applications of the WPA 200 Gear Motor 11kW 15Hp

The WPA 200 Gear Motor 11kW 15Hp is a gear motor above 3.7kW widely used in production fields requiring strong and stable transmission, especially in heavy-duty or continuous operation systems:

• Large-capacity raw material mixers in the construction, waste treatment, or chemical industries.
• Stone crushers, coal crushers, and metal rolling mills requiring high traction force and continuous operation.
• Automated production lines: Including bagging machines, industrial conveyors, heavy material lifting equipment, timber, and food processing.

To help customers easily evaluate quality and choose the right product, Thanh Thai Motor has built a gear motor video library with practical content on structure, operating principles, and installation instructions. In addition, comprehensive videos are updated regularly to help customers visually observe the product before making an investment decision.

The WPA 200 Gear Motor 11kW 15Hp is an effective transmission solution for industrial systems requiring high torque and continuous operation. With a sturdy design, stable performance, and high durability, the product well meets various demands in modern manufacturing industries. To receive the latest quotation or consult on selecting the appropriate product, please contact Thanh Thai Motor via Hotline 0909.539.175 for prompt and accurate support.

Warranty, Shipping, and Commitment Policies at Thanh Thai Motor

When purchasing gearmotors at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 Months

All gearmotor products at Thanh Thai Motor come with an official 24-month warranty. We are committed to clear after-sales service, with quick and transparent processing procedures – ensuring customer peace of mind during use.

Nationwide Delivery

No matter which province or city you are in, Thanh Thai Motor is always ready to support fast delivery, ensuring on-time delivery, careful packaging, and safe transportation. We supply a full range of 220V gearmotors, variable speed motors, etc., for the diverse needs of customers nationwide.

Products Meet European Quality Standards with German Technology

Our products are manufactured using modern German technology, meeting European standards. Models such as integrated gearmotors, variable speed motors, or 220V gearmotors all ensure stable operation and superior durability.

Competitive Pricing, Good Discounts for Dealers and Bulk Purchasers

We offer affordable gearmotors, suitable for projects with limited budgets. In addition, Thanh Thai Motor has special policies and offers for dealers and bulk purchasers.

Quality Commitment

All 220V gearmotors here are wound with pure copper wire. This ensures powerful, smooth operation and energy savings.

Full Certification Documents: CO, CQ,...

All products such as integrated gearmotors, conveyor motors, or speed reducers come with full Certificates of Origin (CO) and Quality (CQ), meeting stringent technical requirements in industry.
