Mini Gear Motor 40W

The Mini Geared Motor 40W is a mini gear motor line (also known as a gear motor) assembled to have a very compact size and applied very diversely in speed reduction. This mini gear motor has many outstanding advantages and is widely applied in robotic machines, CNC cabinets, or automation equipment.

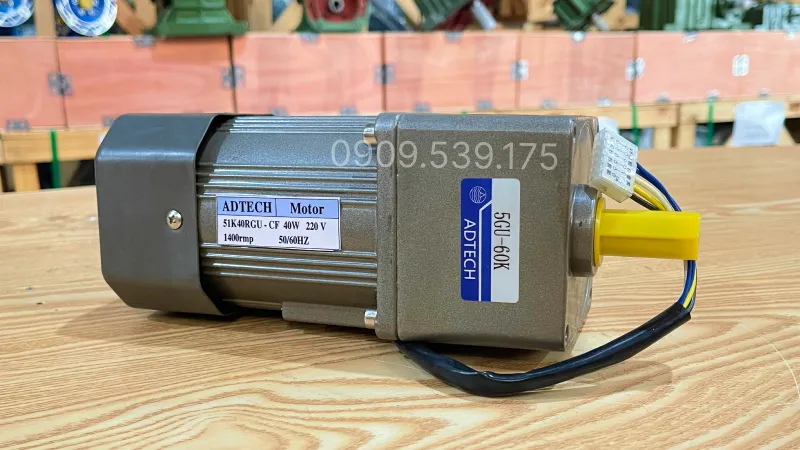

Overview of the Mini Geared Motor 40W Design

The Mini Geared Motor 40W is a 1-phase gear motor or 3-phase gear motor designed and installed with an external aluminum housing that provides excellent protection for internal components and superb heat dissipation for the motor. The outer casing of the mini gear motor is also coated with a layer of paint to prevent the aluminum surface from corrosion and rust due to weather conditions.

The cooling fan of the mini gear motor helps cool and dissipate heat very effectively for the motor body. The rear part of the mini gear motor is also designed with a fan cover to protect the fan from collisions and ensure user safety when approaching the mini gear motor operating below 1.1kW.

Internal Structure of the Mini Geared Motor 40W

The Mini Geared Motor 40W is structured from an electric motor connected to a gearbox, with 100% pure copper wire with no impurities used internally, providing excellent heat resistance, while the cooling fan also assists in heat dissipation during operation.

• Stator: Contains precisely wound copper coils that create a magnetic field when powered.
• Rotor: Receives the magnetic field’s effect to create rotational motion and transmit power to the gearbox.
• Copper winding: Uses copper wire with good electrical conductivity, contributing to enhanced efficiency and thermal stability during operation.
• Motor shaft: Directly connected to the first drive stage of the gearbox.
• Gearbox: Consists of gears arranged according to the corresponding gear ratio, helping to reduce rotational speed and increase output torque.
• Bearing: Supports the rotating shaft, reduces friction, and supports smoother operation.

Classification of the Mini Geared Motor 40W

Mini gear motors are very diverse in mounting styles such as foot mount, flange mount, right-angle output shaft, hollow shaft, and solid shaft, etc.

Inline Mini Geared Motor 40W (Model: IKR)

The inline version is suitable for systems requiring coaxial transmission and simple layout. This design is usually chosen when the horizontal installation space is relatively convenient.

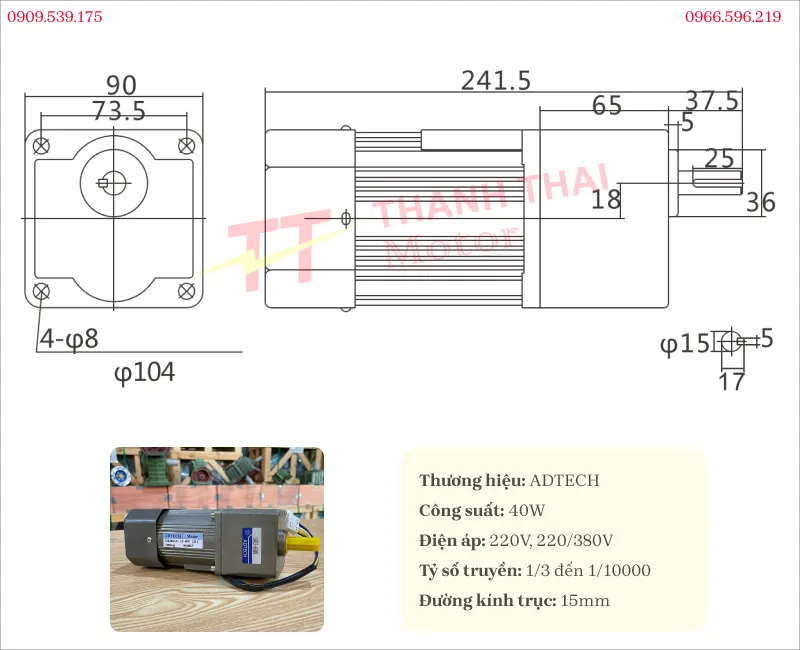

Specifications:

Practical applications:

• Electronic component industry: Applied to run microchip sorting lines on anti-static rubber conveyors.
• Supermarket equipment industry: Applied to drive rollers of small-scale sausage grills and chestnut stir-fry machines.
• STEM education industry: Applied as a driving system for model Automated Guided Vehicles (AGVs) in university projects.

Right-Angle Hollow Shaft Mini Geared Motor 40W (Model: RH)

The right-angle hollow shaft style helps change the transmission direction by 90 degrees and saves installation space. This design is suitable for machines with limited layout space.

Specifications:

Practical applications:

• Carton packaging industry: Applied to drive roller cylinders for shaping plastic film on carton edges.
• Garment processing industry: Applied to automatically collect and wind fabric waste on laser edge-cutting machine systems.
• Mechanical assembly industry: Applied to drive screw-feeding rotary tables on vibratory machines.

Right-Angle Solid Shaft Mini Geared Motor 40W (Model: RA)

The right-angle solid shaft series has a protruding output shaft, making it convenient for connecting with couplings, sprockets, or pulleys in various mechanical systems.

Specifications:

Practical applications:

• Restaurant equipment industry: Applied to rotate vertical automatic Kebab meat skewer grilling systems.
• Livestock agriculture industry: Applied to rotate the paddle mixer for blending ingredients in ultra-small pellet feed machines.
• Cosmetics and chemicals industry: Applied by attaching a stainless steel rod to mix essential oils and liquid fragrances in storage tanks.

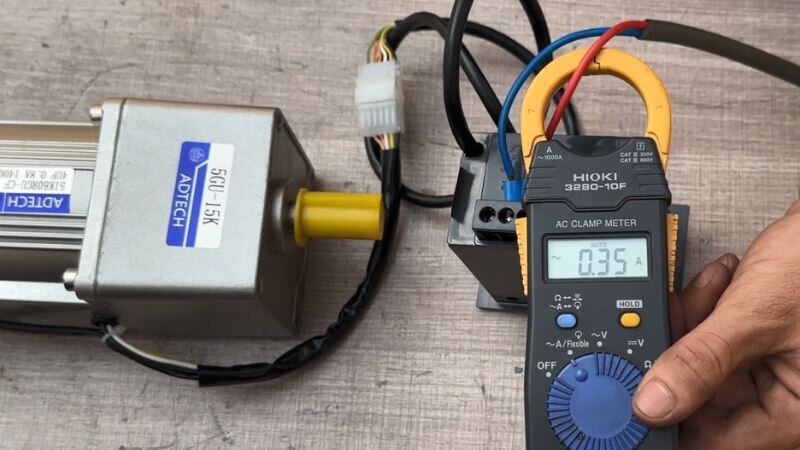

How to Measure No-Load Current of a Mini Gear Motor

Measuring the no-load current helps preliminarily evaluate the operating condition of the motor before putting it into use or after maintenance processes. The testing process should be carried out at the correct voltage and using the correct measurement method.

• Step 1: Activate no-load running-in: Synchronously connect the 1-phase motor (60W model, 14mm shaft diameter) to the speed controller. Turn on the power to let the system rotate smoothly on its own, ensuring all mechanical loads are released from the machine shaft to accurately collect pure current loss parameters.
• Step 2: Apply the inductive current measurement technique: Separate the power supply cables and open the clamp meter jaw, clamping it around a single electrical conductor. Pay attention to overcoming a common mistake: never clamp 2 power cables together at the same time to avoid magnetic flux cancellation leading to loss of the measurement signal.
• Step 3: Finalize data and quality assessment: Keep the clamping state for 2 – 3 seconds for the meter’s microprocessor to automatically filter out frequency noise. When the screen stabilizes at a fluctuation range from 0.35A to 0.36A, this proves that the internal stator winding impedance is meeting safety standards and is ready to load.

The Mini Geared Motor 40W is a suitable choice for drive systems requiring compact dimensions, low output speed, and stable working capabilities in various environments.

To gain a more visual perspective on the structure and practical application methods, you can refer to the summary video or gear motor video. If you need advice on selecting the gear ratio, mounting style, or technical specifications suitable for your equipment, Thanh Thai Motor is always ready to assist and provide solutions tailored to each specific requirement.
