Mini 90W Gear Motor

The Mini 90W Gear Motor (mini gear motor). This is a type of gear motor designed and assembled with a very compact size for easy transportation. Mini gear motors also feature many prominent advantages such as being used in manufacturing applications, industries, or automated equipment.

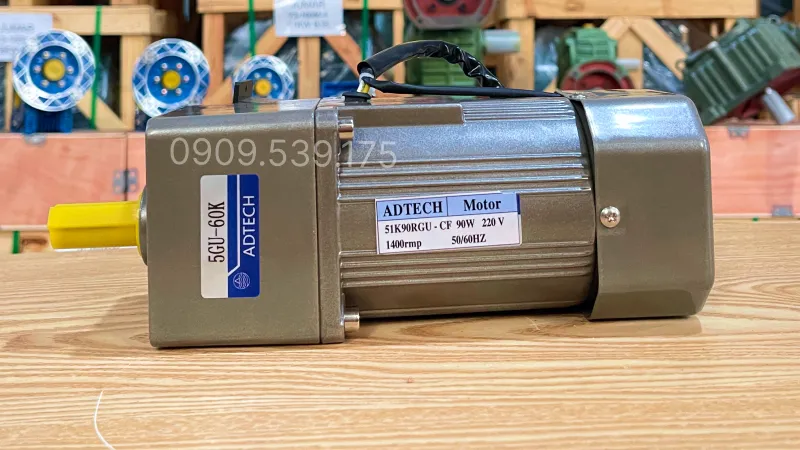

Overall design of the Mini 90W Gear Motor

The Mini 90W Gear Motor can be a 1-phase gear motor or a 3-phase gear motor, featuring an aluminum outer housing that enhances heat dissipation and protects the inner copper windings. The exterior surface is coated with paint to prevent aluminum corrosion caused by weather conditions.

The rear part of the mini gear motor is designed with a cooling fan. During machine operation, the rotating fan generates airflow to dissipate heat for the motor body, while a fan cover (fan guard) protects the fan from damage, impacts, or collisions during operation.

Internal structure of the motor

The Mini 90W Gear Motor belongs to the category of mini gear motors under 1.1kW, composed of two main parts: an electric motor and a gearbox. The entire stator inside the motor uses 100% pure copper wire without impurities, providing excellent heat resistance, while the cooling fan also contributes to cooling the motor during operation.

• Electric motor: This is the power-generating component for the entire system. The stator is wound with 100% pure copper wire, offering good electrical conductivity, high heat resistance, and enhanced operating efficiency. The rotor is manufactured from high-quality silicon steel material, combined with precision bearings to help the motor operate stably, reduce vibration, and minimize noise during use.
• Gearbox: Functions to reduce the motor rotation speed and increase torque at the output shaft. Inside the gearbox is a system of alloy steel gears precisely machined and heat-treated to increase hardness and wear resistance. The gears operate in a lubrication environment, ensuring smooth transmission, extending equipment lifespan, and providing various gear ratios to suit different operating requirements.

Classification of the Mini 90W Gear Motor

Mini gear motors are very diverse in mounting styles such as foot mount, flange mount, right-angle output shaft, hollow shaft, and solid shaft, etc.

Inline Mini 90W Gear Motor (Symbol: IKR)

The IKR inline version features a coaxial design between the motor and the output, suitable for systems requiring direct drive and installation on machine bases. Thanks to its simple structure and stable operation, this product line is widely used in various industrial and civil equipment.

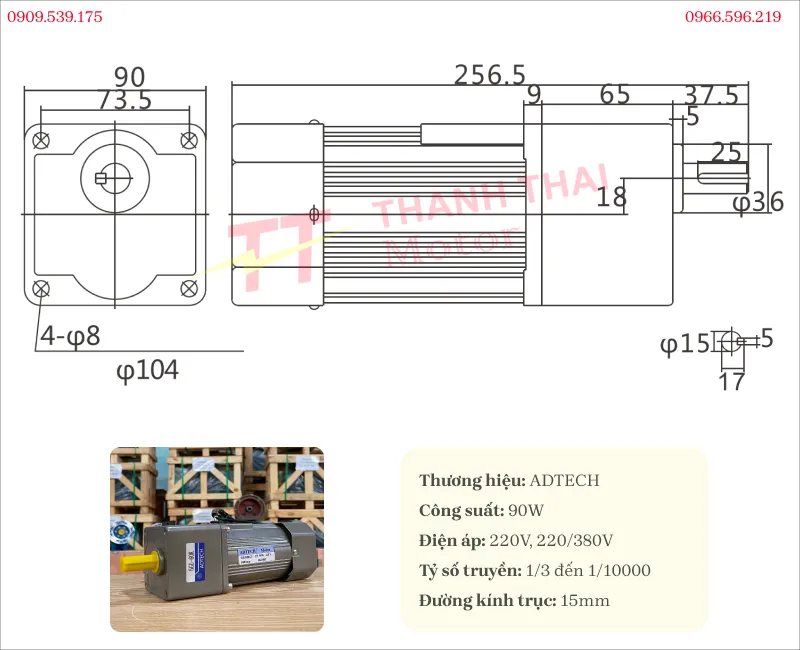

Specifications:

Practical applications:

• F&B equipment industry: Applied for power transmission to the skewer shaft of kebab roasters, automated milk tea cup conveyor systems.
• Electronics assembly industry: Applied for running anti-static circuit board component conveyors at extremely slow and steady speeds.
• Microbiology technology industry: Applied for rotating test tube shaker drums, small-scale centrifuges in laboratories.

Right-Angle Hollow Shaft Mini 90W Gear Motor (Symbol: RH)

The RH right-angle hollow shaft Mini 90W Gear Motor is designed with a hollow output shaft, facilitating direct connection to the machine shaft and saving installation space. This design style is particularly suitable for systems requiring neat and flexible layouts.

Specifications:

Practical applications:

• Packaging industry: Applied by threading the roller shaft to tension and pull plastic film in bag-sealing machine systems.
• Fine woodworking industry: Applied to automatically push wood blanks sliding through a small roller sander drum.
• Supermarket retail industry: Applied by attaching directly to the center of the rotating base of 360-degree glass display cabinets for watches and jewelry.

Right-Angle Solid Shaft Mini 90W Gear Motor (Symbol: RA)

The RA right-angle solid shaft series uses a protruding output shaft, convenient for installing pulleys, sprockets, or other transmission mechanisms. The 90-degree bent design optimizes power transmission direction and expands application capabilities across various machinery.

Specifications:

Practical applications:

• Aquaculture industry: Applied to drive water paddlewheel systems, generating microbial oxygen for shrimp seed rearing ponds.
• Pharmaceutical and chemical industry: Applied by attaching 304 stainless steel impellers to uniformly mix small-volume syrup solutions.
• Civil automation industry: Applied as winch systems for pulling sun-and-rain shading awnings, and as motorized sliding aluminum doors.

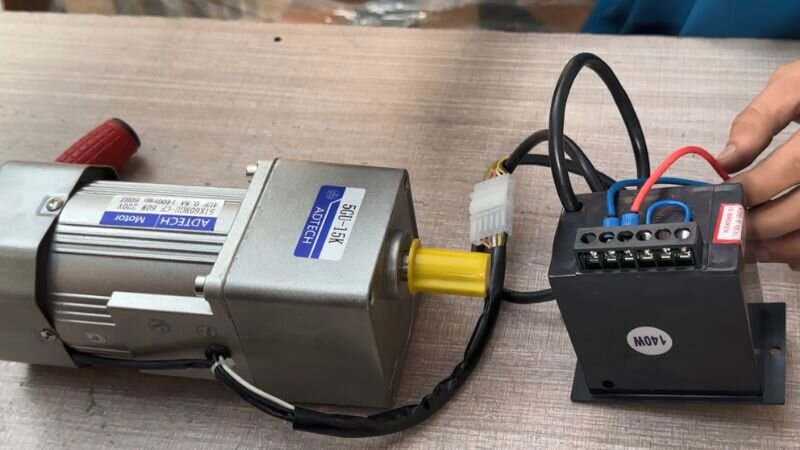

How to measure no-load amperage of a mini gear motor

Here are 5 concise, technically standard steps to measure no-load current:

• Step 1: Equipment connection: Connect the motor to the speed controller and prepare the digital clamp meter.
• Step 2: No-load running-in: Plug in the power supply to run the system, ensuring the shaft rotates freely without attaching any load.
• Step 3: Measurement procedure: Open the meter clamp jaw and isolate it to clamp precisely onto a single power wire within the power cable.
• Step 4: Record displayed data: Hold the measurement state for 2 – 3 seconds to allow the clamp meter to automatically stabilize the signal and display the final result.
• Step 5: Read results and notes: Confirm the current intensity is at the standard level (fluctuating between 0.35A – 0.36A); meanwhile, remember never to clamp both power wires together to avoid ratio distortion.

The Mini 90W Gear Motor is an optimal transmission solution, perfectly combining compact design with durable operational performance. Constructed from premium materials such as a 100% pure copper wire stator core, an efficient heat-dissipating aluminum housing, and a wear-resistant alloy gear system, this product line flexibly accommodates all installation spaces through various configurations: inline (IKR), right-angle hollow shaft (RH), and right-angle solid shaft (RA). From F&B lines and packaging to civil automation, the equipment demonstrates extremely diverse application capabilities.

For a visual understanding and better insight into operating principles, wiring methods, or practical amperage measurement procedures, you can refer to additional video summaries or detailed technical guide videos on the Thanh Thai Motor system.
