Heavy Duty K-Series Helical Bevel Gear Motor 5.5kW 7.5Hp

The Heavy Duty K-Series Helical Bevel Gear Motor 5.5kW 7.5Hp is a specialized device for industrial drive systems requiring high capacity, stable, and efficient operation. With a power of 5.5kW (equivalent to 7.5Hp), the product well meets continuous operation applications, delivering strong torque transmission capacity, energy savings, and optimized installation space thanks to the right-angle output shaft design.

Overall design of the Heavy Duty K-Series Helical Bevel Gear Motor 5.5kW 7.5Hp

The heavy-duty gear motor is coated with an anti-oxidation electrostatic paint, making the device durable in dusty, humid industrial environments or environments exposed to mild chemical impacts. The machine housing is solidly cast from cast iron, featuring excellent impact and load-bearing capacity. The output shaft is arranged at a right angle to the input shaft, saving space and making it easy to arrange in various machinery systems.

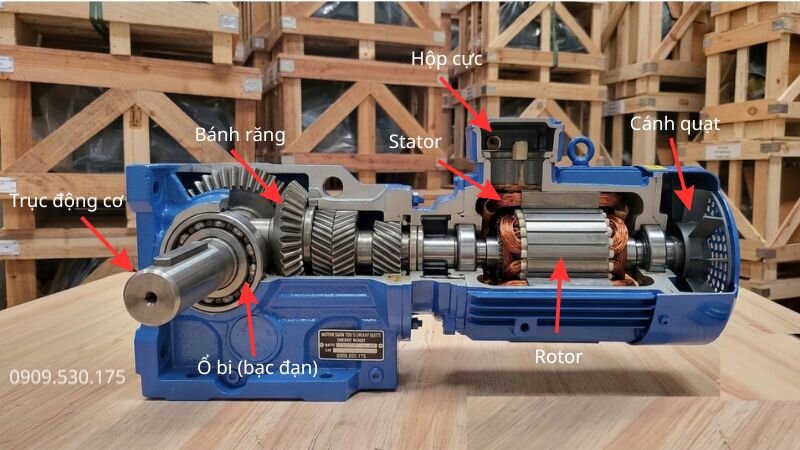

Structure of the Heavy Duty K-Series Helical Bevel Gear Motor 5.5kW 7.5Hp

The motor consists of 2 main parts: the electric motor and the gearbox. More specifically, it is a close combination of a 3-phase electric motor and a K-series heavy-duty right-angle gearbox.

Internal structure of the 3-phase electric motor

The 3-phase electric motor 5.5kW 7.5Hp is wound with 100% copper wire, featuring an external aluminum housing to help cool the motor and increase product lifespan.

• Motor housing: This part is usually made of cast iron or cast aluminum, ensuring both sturdiness and assisting heat dissipation when the motor operates continuously. Depending on the design, the capacitor can be placed in the terminal box or arranged in a separate position on the motor body.
• Stator (stationary part): Composed of a magnetic steel core and a copper winding system. When current flows through the windings, the stator creates a rotating magnetic field, playing an important role in generating motion for the motor.
• Rotor (moving part): Constructed inside the stator, responsible for receiving the impact of the magnetic field to create rotational motion.
• Motor shaft: Directly connected to the rotor, functioning to transmit torque outward to drive devices such as gearboxes, pulleys, or industrial machinery.
• Bearings: Positioned at both ends of the shaft to support the rotation of the rotor, reduce friction between mechanical parts, help the motor operate smoothly, reduce noise, and enhance durability.

Internal structure of the K-Series Helical Bevel Gearbox 5.5kW 7.5Hp

The structure of the K-series heavy-duty right-angle gearbox consists of two main parts: the motor shaft and the helical gears.

• Motor shaft: The motor shaft of this gearbox series has a larger size compared to standard load series, helping the device easily withstand heavy loads, meeting work requirements in heavy industrial environments, while enhancing durability and lifespan for the device.
• Helical gears: The helical gear design helps increase the contact area between the gears, improving load-bearing capacity and ensuring the gearbox operates smoothly and stably for a long time.

Specifications of the Heavy Duty K-Series Helical Bevel Gear Motor 5.5kW 7.5Hp

The following specifications summarize the installation dimensions and operating parameters of the electric motor and gearbox in industrial applications.

Specifications of 3-Phase Electric Motor 5.5kW 7.5Hp

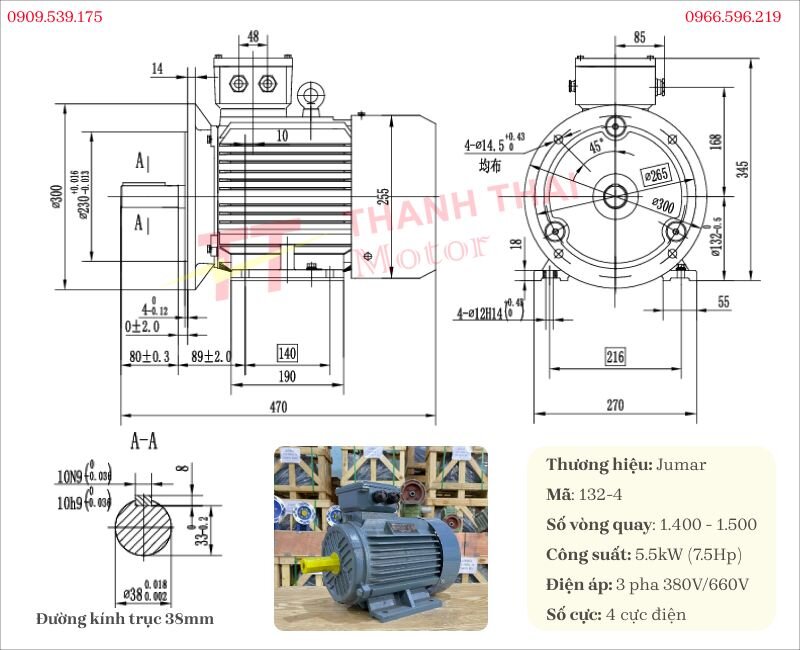

Below is an illustrative drawing along with important technical specifications of the 5.5kW 7.5Hp electric motor

Specifications of K-Series Helical Bevel Gearbox 5.5kW 7.5Hp

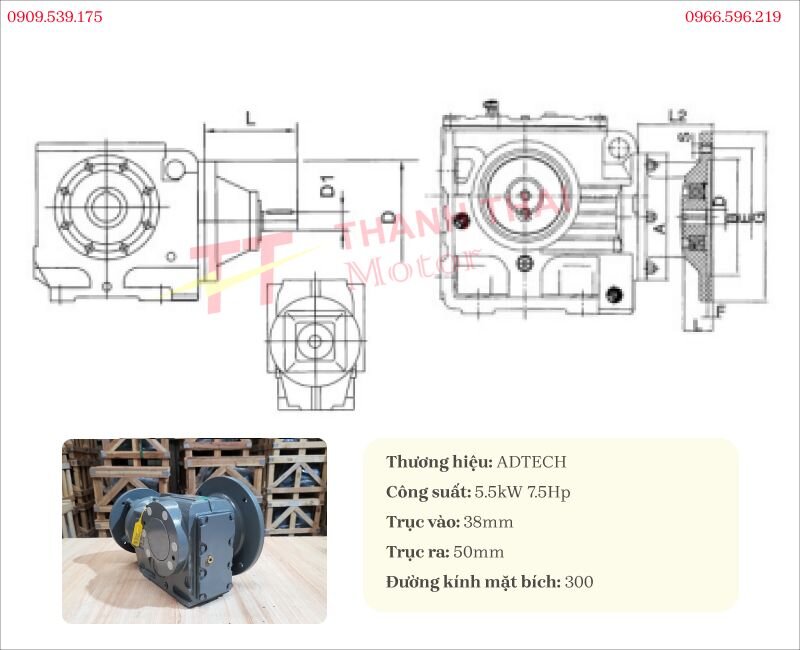

Below are the technical specifications for the K-series heavy-duty right-angle gearbox line

Applications of the Heavy Duty K-Series Helical Bevel Gear Motor 5.5kW 7.5Hp

The product is suitable for many industrial fields such as:

• Conveyors in food, beverage, and logistics factories

• Medium and large capacity mixers, crushers, and material presses

• Wastewater treatment equipment, crane and lifting systems

• Medium to large automated production lines

• Mechanical and machine manufacturing systems requiring powerful and stable transmission

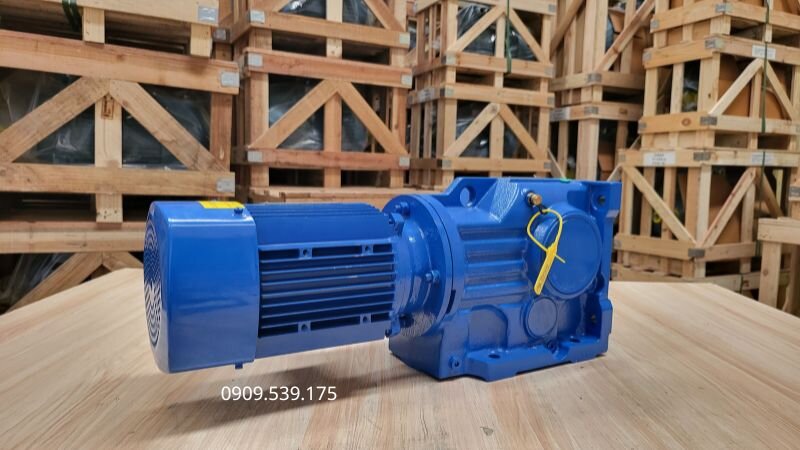

Installation Guide for the Heavy Duty K-Series Helical Bevel Gear Motor 5.5kW 7.5Hp

Proper installation will help the Heavy Duty K-Series Helical Bevel Gear Motor 5.5kW 7.5Hp operate effectively, limit vibration, and increase equipment lifespan.

• Step 1: Thoroughly inspect the motor, output shaft, flange or foot mount, and accompanying accessories. Prepare a solid, dust-free installation location with sufficient load-bearing capacity.
• Step 2: Place the motor into position, align it concentrically with the drive mechanism, tighten the bolts to the correct torque, and test run to check smoothness, noise, and transmission capability.

The instructional gear motor video details every step of installing the Heavy Duty K-Series Helical Bevel Gear Motor 5.5kW 7.5Hp, helping users easily execute it with proper techniques, ensuring the equipment operates stably, safely, and achieves high working efficiency. Watch more through the video collection at Thanh Thai Motor.
