Heavy Duty Cycloid Gear Motor 7.5kW 10Hp

Heavy Duty Cycloid Gear Motor 7.5kW 10Hp is an ideal gear motor for industrial systems requiring strong and stable power transmission. With a power of 7.5kW (equivalent to 10Hp), this device helps optimize the power transmission process, ensuring high torque and efficient long-term operation. The heavy duty gear motor line is extremely suitable for harsh production environments and applications requiring high durability.

Overview of Heavy Duty Cycloid Gear Motor 7.5kW 10Hp

Electric motor

• Material: The machine body uses thick solid cast iron, the surface is treated with high-grade electrostatic paint, providing effective anti-corrosion. Convective air duct designs provide superior heat dissipation during continuous operation.
• Characteristics: Integrates pure copper wire core and high-temperature resistant insulation class. The motor provides strong starting torque, maintaining stable energy efficiency in heavy working environments.

Gearbox

• Function: A speed conversion component that significantly increases output torque. This is an ideal solution for systems requiring high torque in confined spaces.
• Characteristics: Uses a Cycloidal disc to transmit force through multiple contact points, offering mechanical shock resistance completely superior to conventional gear systems.

Structure of Heavy Duty Cycloid Gear Motor 7.5kW 10Hp

This device is formed by combining a Cycloidal Gearbox with a 3-phase electric motor system, creating a high-performance and durable transmission unit.

3-phase electric motor 11kW 15Hp (Power generation part)

• Stator: Uses thick magnetic steel sheets, precisely stamped and securely fixed, helping to increase the conversion efficiency from electrical energy to magnetic field, minimizing heat generation.
• Rotor: Squirrel-cage structure with high dynamic balance, allowing the rotating shaft to maintain stability and eliminate vibration to the maximum when reaching rated speed.

Cycloidal Gearbox (Transmission part)

• Cycloid disc: Machined from hardened alloy steel using modern technology, capable of withstanding extremely high compressive forces at planetary contact points.
• Eccentric shaft: High-precision machined component responsible for converting concentric rotational movement from the motor into eccentric movement to drive the Cycloid disc.
• Power transmission pin set: Rollers wrapped in high friction-resistant material, supporting the Cycloid disc to roll smoothly inside the outer ring, reducing noise and providing durable wear resistance.
• Oil chamber: Sealed system with high-quality oil seals, maintaining a circulating oil-bath environment, continuously lubricating all moving parts, ensuring the highest transmission efficiency.

Specifications of Heavy Duty Cycloid Gear Motor 7.5kW 10Hp

Providing comprehensive information on structural dimensions and transmission capabilities, the data table below will help you optimize operating performance for your production line:

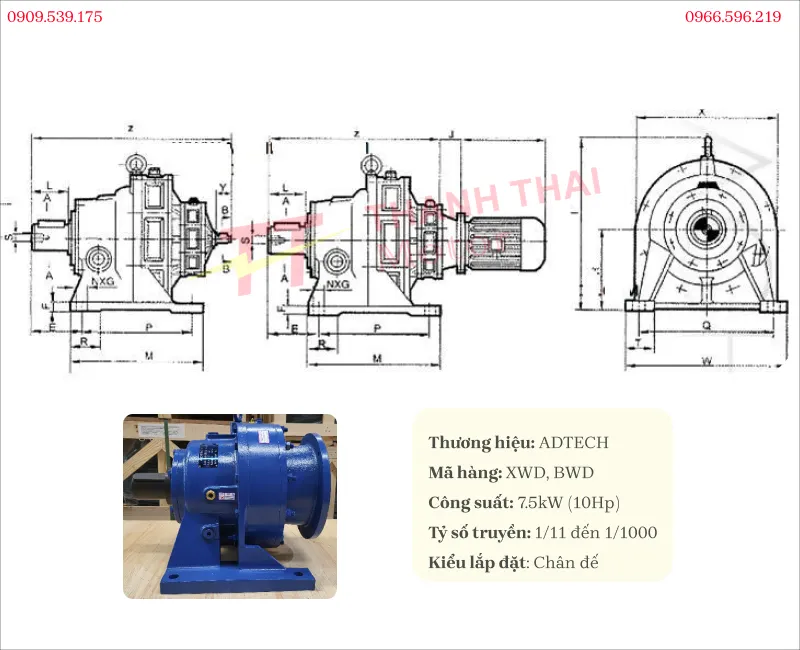

Foot-mounted Heavy Duty Cycloid Gear Motor 7.5kW 10Hp

This is a specialized transmission equipment line for industrial systems requiring large load capacities, notable for its sturdy structure, stable operation, and superior lifespan. Detailed product specifications:

Specifications:

Applications:

• Heavy industrial conveyor and bucket elevator systems: Smooth transmission for long conveyors, high-rise bucket elevators, or screw conveyors in cement manufacturing, mineral mining, and metallurgy plants due to their ability to withstand extremely heavy loads without gear slipping.
• High-capacity mechanical mixers: Operates thick-tank agitators, concrete mixers, chemical mixers, or wastewater treatment equipment. The sturdy foot-mounted design helps the motor withstand strong shaking forces and continuous torque resistance from viscous liquids.
• Lifting equipment and steel rolling mills: Directly controls crane hoisting winches, brick pressing machines, or sheet metal rolling mills. The cycloid planetary disc mechanism helps the machine perfectly withstand sudden shock loads when materials pass through the rolling rolls.

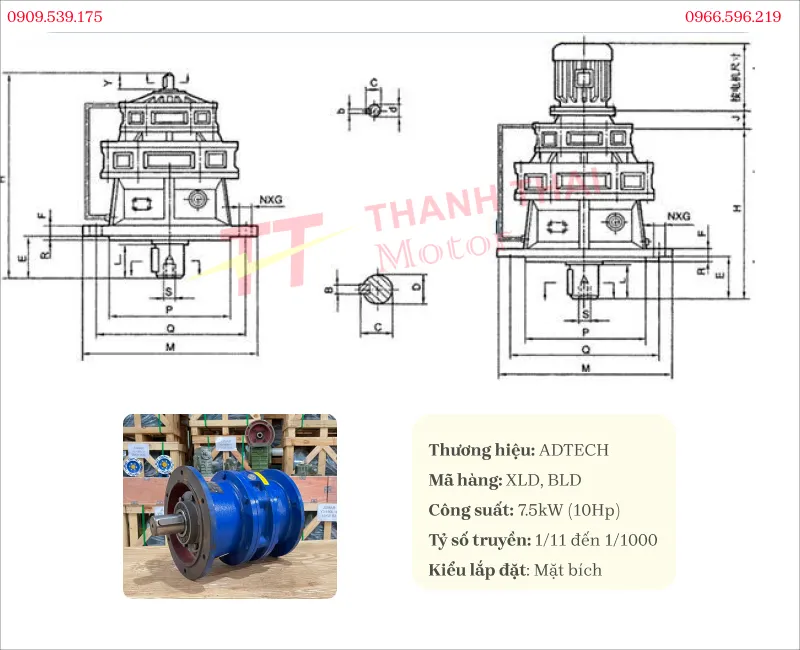

Flange-mounted Heavy Duty Cycloid Gear Motor 7.5kW 10Hp

Optimal transmission solution for vertical installation or direct connection systems, delivering extremely high load capacity and durable operation in industrial environments. Detailed product specifications:

Specifications:

Applications:

• Industrial mixing systems: Installed for chemical mixing tanks, concrete mixers, or viscous liquid stirring equipment thanks to its extremely sturdy downward-facing or horizontally mounted flange structure.
• Heavy conveyors and bucket elevators: Operates stone, coal, mineral conveyor systems, or cement bucket elevators in building material manufacturing plants requiring non-stop continuous operation.
• Environmental and waste treatment equipment: Drives sludge dewatering machines, trash skimming systems, or waste shredders thanks to the ball planetary gear mechanism for good shock load resistance without worrying about gear breakage when encountering hard objects.

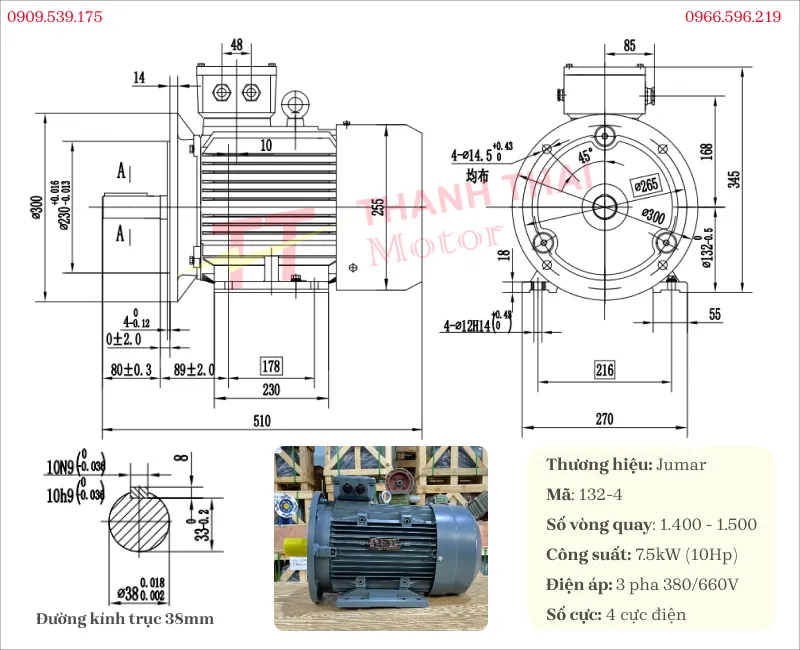

Specifications of 3-phase electric motor 7.5kW 10Hp 4-pole

A standard industrial motor widely applied in production systems, delivering powerful and stable operating performance. Detailed product specifications:

Specifications:

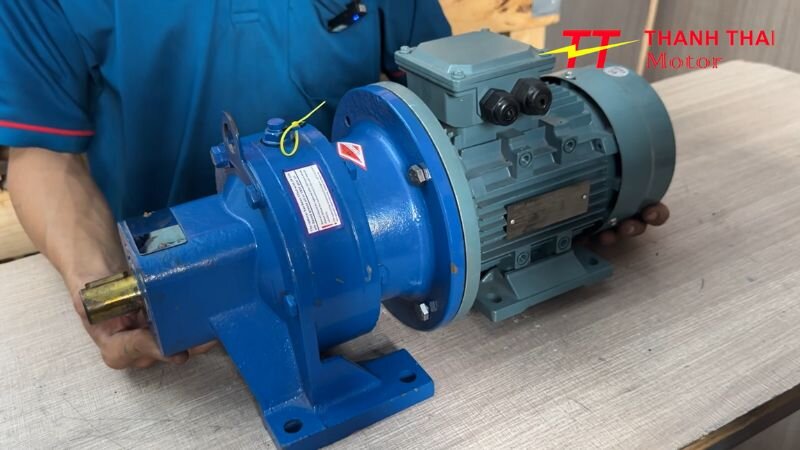

Instructions for installing heavy duty cycloid gearbox onto 3-phase electric motor

Step 1: Prepare equipment and check technical specifications

• You need a Cycloidal Gearbox and a 3-phase electric motor.
• Ensure that the motor shaft and the mounting position of the gearbox are compatible with each other to make the connection process smooth.

Step 2: Connect the motor to the gearbox

• Place the electric motor into the junction position on the flange of the Cycloidal Gearbox so that the motor shaft fits completely into the internal coupling.

Step 3: Install fixing screws

• Use the included screws to fix the motor body to the gearbox. Turn the screws by hand into the pre-designed holes on the flange to ensure the parts are in the correct position.

Step 4: Tighten screws with specialized wrench

• Use a wrench to tighten the screws installed in the previous step.
• You need to tighten evenly and ensure that the screws are securely fixed, without looseness, helping the system operate stably and safely.
