Heavy Duty Cycloidal Gear Motor 5.5kW 7.5Hp

Heavy Duty Cycloidal Gear Motor 5.5kW 7.5Hp is a premium gear motor, specialized in machinery systems requiring high pulling force and durable operation. The heavy duty gear motor is an integration of an electric motor and a gearbox, delivering superior performance and high stability. With optimized design and excellent load-bearing capacity, this is an ideal choice for heavy industrial manufacturing enterprises.

Overview of Heavy Duty Cycloidal Gear Motor 5.5kW 7.5Hp

5.5kW 7.5Hp Motor Unit

• Material: Housing cast from high-strength grey cast iron, designed with deep cooling fins to optimize heat dissipation in continuous operating environments.
• Characteristics: Uses pure copper winding with F/H insulation class, helping the motor withstand local overloads and maintain stable performance during heavy duty work cycles.

Cycloidal Gearbox

• Function: Converts high rotational speed from the motor into large torque at the output, ensuring powerful and precise pulling force for heavy load systems.
• Characteristics: The cycloidal transmission mechanism distributes force across multiple contact points, providing superior mechanical impact resistance and allowing the machine to operate much smoother than conventional gearboxes.

Structure of Heavy Duty Cycloidal Gear Motor 5.5kW 7.5Hp

The Cycloidal motor 5.5kW 7.5Hp is composed of two main parts: a 3-Phase Electric Motor and a Cycloidal Gearbox, synchronized with each other to achieve maximum efficiency.

3-Phase Electric Motor 5.5kW 7.5Hp (Power Generation Part)

• Stator: Technical steel core rolled and pressed with extremely tight tolerances, optimizing magnetic flux to achieve the highest energy conversion efficiency.
• Rotor: Precisely dynamically balanced squirrel-cage design, helping eliminate vibrations when operating at 7.5Hp power.

Cycloidal Gearbox (Transmission Part)

• Cycloidal Disc: Made from hardened alloy steel, withstanding extreme torsional stress thanks to a special geometric structure.
• Eccentric Shaft: Central component machined with high CNC precision, driving the Cycloid disc to operate stably.
• Power Transmission Pin Set: Pin shafts wrapped with high friction-resistant material, supporting uniform force distribution and effective wear resistance.
• Oil Chamber: High-quality oil seal system, maintaining a circulating oil immersion environment, which helps lubricate and extend the periodic maintenance lifespan of the machine.

Technical Specifications of Heavy Duty Cycloidal Gear Motor 5.5kW 7.5Hp

Below is a summary of all detailed specifications including foot-mounted, flange-mounted configurations, and the accompanying electric motor, helping customers easily choose the appropriate configuration:

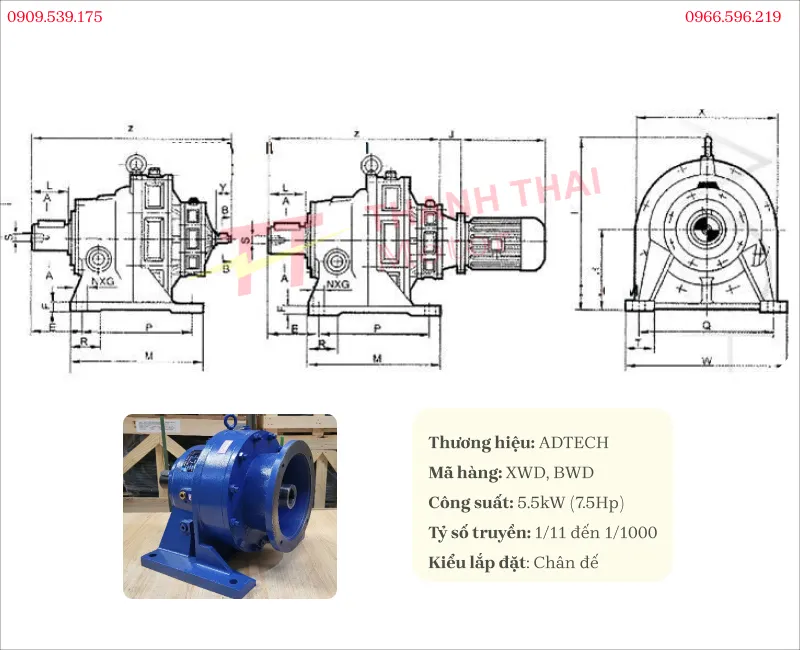

Foot-Mounted Heavy Duty Cycloidal Gear Motor 5.5kW 7.5Hp

Delivering powerful transmission performance and high durability, the product is the perfect solution for continuous heavy duty production lines and machinery systems. Let’s learn more details through the following specification table:Specifications:

Application:

• Industrial Conveyor and Bucket Elevator Systems: Powerful transmission equipment for long conveyor systems, trough belt conveyors, or vertical bucket elevators in cement plants, mineral mining, and concrete batching plants to continuously transport heavy materials.
• Viscous Liquid and Chemical Agitator Equipment: Provides extremely high torque at low speeds to operate industrial agitator shafts in wastewater treatment tanks, chemical mixing tanks, or paint and thick adhesive mixing equipment without worrying about overload or shaft breakage.
• Heavy Material Rolling, Pressing, and Crushing Equipment: Optimal coupling and force transmission for brick pressing machines, stone crushers, plastic film rolling machines, or industrial steel production lines which require extremely strong mechanical pressing force and good shock load resistance.

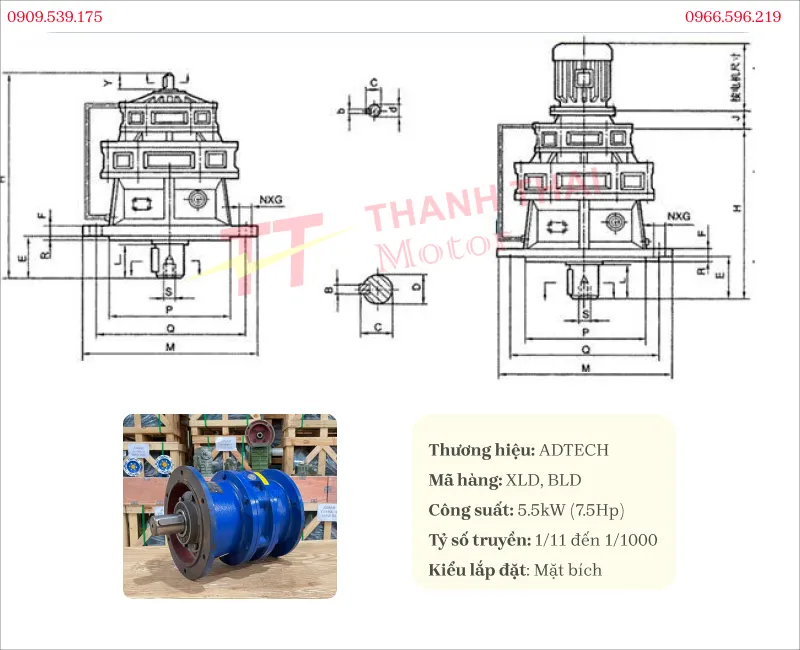

Flange-Mounted Heavy Duty Cycloidal Gear Motor 5.5kW 7.5Hp

The optimal transmission solution for vertically installed or directly connected systems, providing extremely high load capacity and durable operation in industrial environments. Detailed product specifications:Specifications:

Application:

• Industrial Agitation Systems: Transmission for chemical tanks, paint mixing tanks, and wastewater treatment thanks to its extremely high torque load capacity and convenient vertical flange installation design.
• Heavy Duty Conveyor and Bucket Elevator Systems: Operates mineral, coal, and cement conveyor lines thanks to the Cycloidal planetary gear mechanism which withstands heavy impacts and prevents load slipping.
• Material Rolling, Pressing, and Crushing Equipment: Used in brick manufacturing lines, plastic pressing, and rice husk briquette presses thanks to high transmission efficiency (over 95%) helping the machine run continuously without overheating.

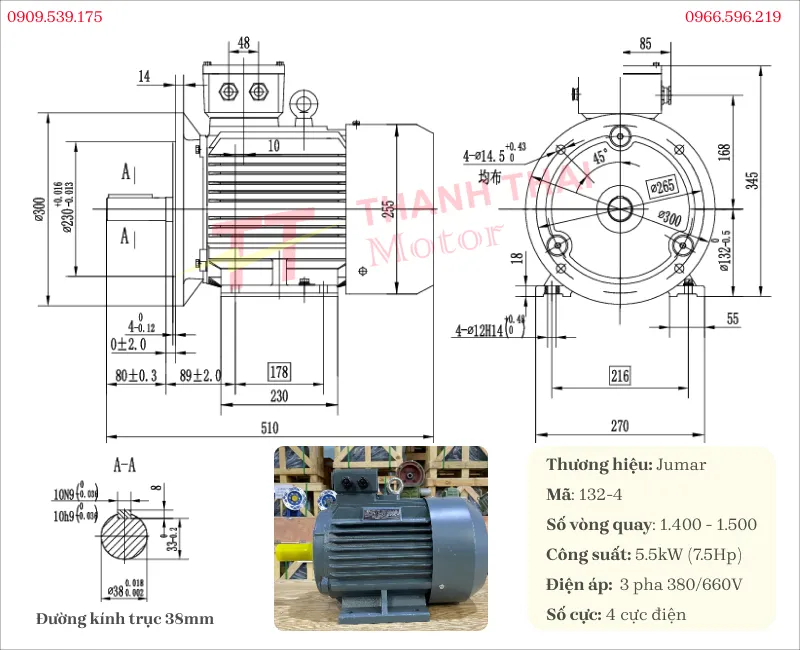

Technical Specifications of 3-Phase Electric Motor 5.5kW 7.5Hp 4-Pole

As a standard industrial motor widely applied in production systems, delivering powerful and stable operating performance. Detailed product specifications:Specifications

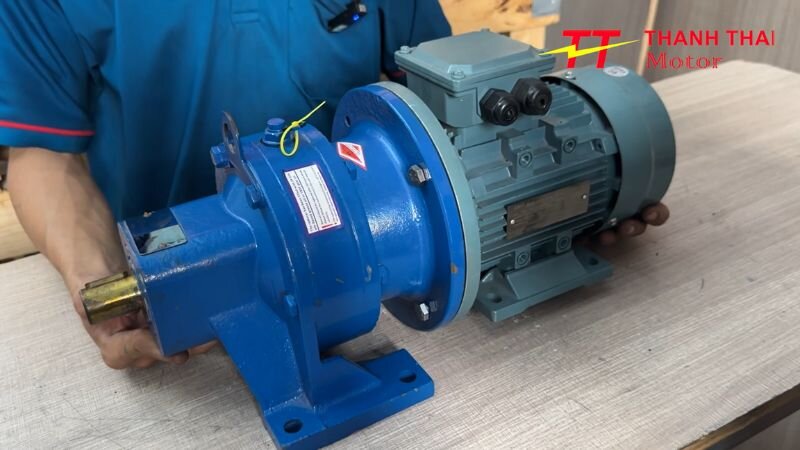

Instructions on Installing Heavy Duty Cycloidal Gearbox onto 3-Phase Electric Motor

Step 1: Equipment Preparation

• First, prepare the Cycloidal gearbox and the 3-phase electric motor to be installed.
• Carefully verify the technical parameters listed on the nameplate to ensure the two devices are fully compatible before starting.

Step 2: Coupling Connection

• Bring the electric motor close and align the motor flange with the mounting position on the gearbox.
• Adjust so that the motor shaft fits smoothly and precisely into the coupling inside the gearbox, ensuring the two devices press tightly against each other with no gaps left.

Step 3: Installing Fixing Screws

• Use the screws included with the machine, placing them into the pre-made holes around the flange.
• Turn these screws by hand to secure the position of the motor to the gearbox, ensuring the screws have engaged the threads properly before using supporting tools.

Step 4: Tightening with Tools

• Use a 14 wrench to alternately tighten the installed screws.
• You should tighten evenly in a symmetrical order to ensure pressure is distributed evenly, helping the gearbox and motor connect securely and safely during operation.

Heavy Duty Cycloidal Gear Motor 5.5kW 7.5Hp is an effective transmission solution for industrial systems requiring high torque and high load-bearing capacity. To learn more about the product, technical specifications, and practical installation methods, you can refer to the gear motor video library made by Thanh Thai Motor. In addition, summary videos are also updated regularly to support effective equipment selection and operation. Contact Hotline 0909.539.175 for prompt consultation and quotation.
