Heavy Duty Cycloid Gear Motor 18.5kW 25Hp
From 29.500.000₫
Product Introduction
The Heavy Duty Cycloid Gear Motor 18.5kW 25Hp is an advanced cycloidal gear transmission device featuring exceptional load-bearing capacity and superior impact resistance. With a solid cast iron housing design, the product ensures optimal transmission efficiency and extreme durability for large-scale stone crushers or concrete batching plants.
- Output shaft diameter: 90mm
- Power: 3-phase electric motor 18.5kW 25Hp
- Structure: 3-phase electric motor and Cycloidal Gearbox
- Housing material: Solid cast iron
- Brand: JUMAR, ADTECH
- Gear ratio: 1/11 to 1/1505
- Voltage: 380/660V
24-month genuine warranty – Nationwide express delivery – Full CO/CQ certificates – Committed to durable anti-rust electrostatic paint coating.
Product Description
The Heavy Duty Cycloid Gear Motor 18.5kW 25Hp is a high-power gear motor specially designed for durable operation in heavy industrial environments. The product is a perfect combination of a powerful electric motor and a modern gearbox, delivering superior transmission efficiency, high output torque, and stable speed. With a power of 18.5kW (equivalent to 25Hp), this is the ideal choice for machinery systems requiring high load capacity, continuous operation, and maximum reliability.
Overview of the Heavy Duty Cycloid Gear Motor 18.5kW 25Hp
Electric Motor
- Material: Thick ductile cast iron housing, high-load frame to minimize vibration. The cooling system is scientifically arranged, helping the device maintain stable operation in harsh working environments.
- Function: Provides a powerful drive force, maintaining stable torque even when frequently undergoing heavy starts or reversing operations.
Gearbox
- Function: Converts motor speed into maximum torque. The impact load capacity of the cycloidal gearbox is superior, with rated torque achieved through a special power transmission mechanism.
- Design: Utilizes the planetary disc principle, evenly distributing force across multiple contact points instead of concentrating on individual teeth. This design makes the device compact, smooth-running, and extremely mechanically durable.
Structure of the Heavy Duty Cycloid Gear Motor 18.5kW 25Hp
The product consists of 2 main parts including a 3-phase electric motor and a Cycloidal Gearbox:
3-Phase Electric Motor 18.5kW 25Hp (Power generation part)
- Stator: Uses high-quality magnetic steel cores and pure copper wire, ensuring optimal energy conversion efficiency and minimizing thermal losses.
- Rotor: Squirrel-cage design with precise dynamic balance, ensuring the rotating shaft operates smoothly under heavy loads and eliminating mechanical vibrations.
Cycloidal Gearbox (Transmission part)
- Cycloid Disc: Made of hardened alloy steel, offering good impact resistance thanks to a planetary mechanism that distributes force across multiple contact points.
- Eccentric Shaft: A component machined with micrometer precision, acting to drive the cycloid disc for stable operation.
- Pin & Roller Assembly: Helps reduce friction and noise while protecting moving parts from wear.
- Lubrication Chamber: A tightly sealed oil seal system maintains a continuous lubricating oil film for internal components, extending operating life.
Technical specifications of the Heavy Duty Cycloid Gear Motor 18.5kW 25Hp
Understanding the technical specifications of this heavy-duty gear motor line is a core factor ensuring accuracy when designing and installing the system. Below is a detailed lookup table of specifications for each product design:
Foot-mounted Heavy Duty Cycloid Gear Motor 18.5kW 25Hp
This is a specialized transmission device for industrial systems requiring large load capacity, outstanding with its sturdy structure, stable operation, and superior lifespan. Detailed product specifications:
Technical specifications:
- Mineral mining: Operates coal and sand mining machinery systems, well drilling machines, and offshore oil/gas drilling rigs.
- Heavy industry and construction: Applied in wood board pressing machines, concrete mixing equipment, or heavy-duty, large-volume material conveyor systems.
- Industrial mixing: Used as a motor for stirring chemicals, mud, or aeration fans in large-scale aquaculture.

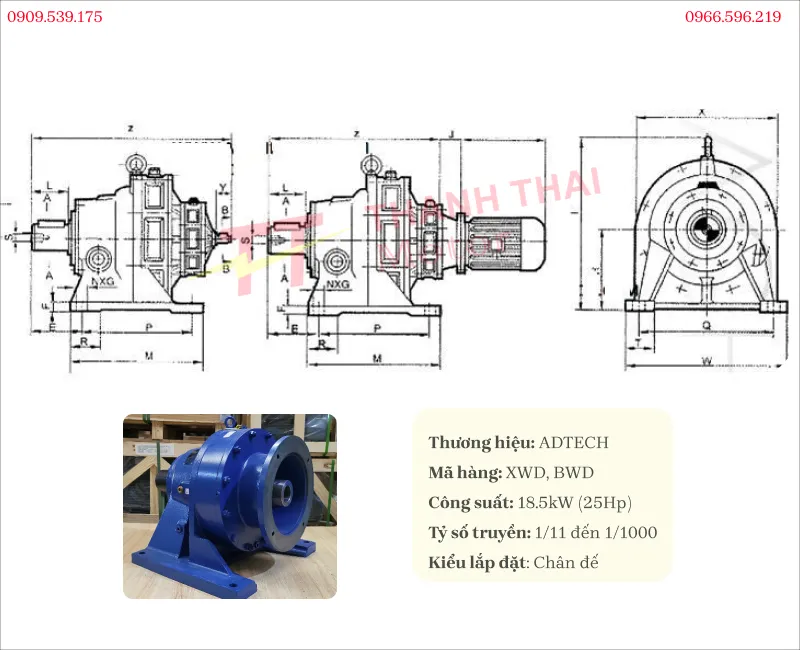

Drawing and technical specifications of foot-mounted heavy duty Cycloid gearbox 18.5kW 25Hp Flange-mounted Heavy Duty Cycloid Gear Motor 18.5kW 25HpThis is the optimal transmission solution for vertical installation or direct connection systems, delivering extremely high load capacity and durable operation in industrial environments. Detailed product specifications:
Technical specifications:
Code XLD8 Input shaft 48mm Output shaft 90mm Gear ratio 1/11 to 1/1000 Flange diameter 350mmApplications: - Mining and Construction Materials: Operates large-scale conveyor and belt systems in cement plants, coal, sand, and stone mining, and concrete batching plants.
- Heavy mechanical engineering: Drives heavy industrial crushers and presses, lifting equipment, drilling machines, and other mining equipment.
- Automation lines: Provides traction force for continuous drive systems in manufacturing and processing plants, as well as uninterrupted lines requiring high durability.

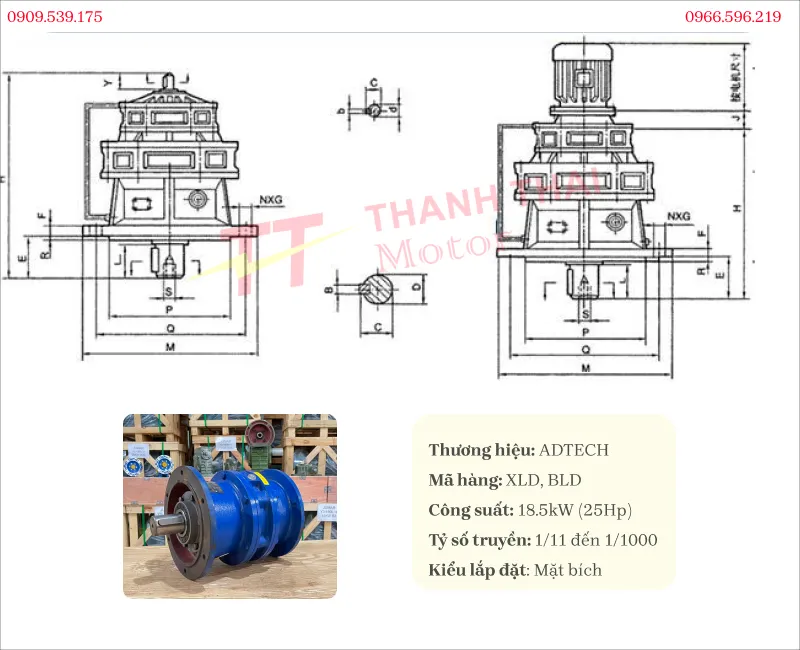

Drawing and technical specifications of flange-mounted heavy duty Cycloid gearbox 18.5kW 25Hp Technical specifications of 3-phase electric motor 18.5kW 25Hp 4-poleThis is a standard industrial motor widely applied in production systems, delivering powerful and stable operating performance. Detailed product specifications:
Technical specifications
Code 180M Shaft diameter 48mm Key 14 Flange diameter 350mm Dimensions 700mm * 355mm * 455mm Mounting type Foot-mounted (B3), Flange-mounted (B35, B5, B14) Protection class IP55 Insulation class Class F Drawing and technical specifications of 3-phase electric motor 18.5kW 25Hp 4-pole Instructions for installing heavy duty cycloid gearbox onto 3-phase electric motorStep 1 – Preparation:
- The technician starts by aligning the cycloid gearbox with the shaft of the 3-phase electric motor.
- This alignment is crucial to ensure the motor shaft fits precisely into the input position of the gearbox, preventing shaft misalignment that causes vibration or damage during operation.Step 2 – Installing fixing bolts:
- Once the components have fully engaged with each other, the technician proceeds to insert bolts into the positioning holes around the connecting flange between the gearbox and the motor.Step 3 – Tightening and inspection:
- Use a wrench to tighten the installed bolts one by one.
- This tightening makes the connection between the two devices solid and capable of withstanding vibration and torque during actual operation.
Technical standard method for installing heavy duty cycloid gearbox onto 3-phase electric motor The Heavy Duty Cycloid Gear Motor 18.5kW 25Hp is a suitable drive solution for industrial systems requiring large torque, high load capacity, and stable operation. Customers can refer to additional gear motor videos to better understand the structure and actual operational capability of the product. In addition, Thanh Thai Motor’s comprehensive video library also provides many useful technical guides. Contact Hotline 0909.539.175 for quick consultation and quotations.
Warranty, Shipping, and Commitment Policies at Thanh Thai Motor
When purchasing gearmotors at Thanh Thai Motor, you will receive benefits such as:
Warranty up to 24 Months
All gearmotor products at Thanh Thai Motor come with an official 24-month warranty. We are committed to clear after-sales service, with quick and transparent processing procedures – ensuring customer peace of mind during use.
Nationwide Delivery
No matter which province or city you are in, Thanh Thai Motor is always ready to support fast delivery, ensuring on-time delivery, careful packaging, and safe transportation. We supply a full range of 220V gearmotors, variable speed motors, etc., for the diverse needs of customers nationwide.
Products Meet European Quality Standards with German Technology
Our products are manufactured using modern German technology, meeting European standards. Models such as integrated gearmotors, variable speed motors, or 220V gearmotors all ensure stable operation and superior durability.
Competitive Pricing, Good Discounts for Dealers and Bulk Purchasers
We offer affordable gearmotors, suitable for projects with limited budgets. In addition, Thanh Thai Motor has special policies and offers for dealers and bulk purchasers.
Quality Commitment
All 220V gearmotors here are wound with pure copper wire. This ensures powerful, smooth operation and energy savings.
Full Certification Documents: CO, CQ,...
All products such as integrated gearmotors, conveyor motors, or speed reducers come with full Certificates of Origin (CO) and Quality (CQ), meeting stringent technical requirements in industry.
Contact Us
Need advice on choosing the right gearmotor for your needs? Contact Thanh Thai Motor immediately using the methods below:
- WhatsApp: +84966596219
- Email: codienthanhthai@gmail.com
Specifications
GeneralProduct Type
Heavy dutyRated Power
18.5kW 25HpFrequency
50HzVoltage
380/660VMaterial
Cast iron casing and aluminum casingPlace of Manufacture
German Technology, Assembled in ChinaWarranty Period
Up to 24 monthsFrequently Asked Questions (FAQs)
Is the product available in stock or does it need to be pre-ordered?
Typically, for high-power models like 25Hp, customers should contact Thanh Thai Motor in advance to check stock availability or place an order according to their needs.Is the Heavy Duty Cycloid Gear Motor 18.5kW 25Hp suitable for industrial material crushing systems?
Yes. With its high power of 18.5kW and Cycloid gearbox for high torque transmission, this equipment is particularly suitable for heavy-duty material crushing systems such as rock crushing, plastic grinding, or construction material processing.What is the difference between a Cycloid gearbox and conventional gearboxes?
Cycloid gearboxes operate based on cycloidal gear movement, which helps reduce vibration, increase durability, and handle overload better than spur or planetary gearboxes. This is why Cycloid is highly favored in continuous heavy-duty applications.Does using an 18.5kW electric motor consume a lot of electricity?
Despite its high power, thanks to the optimized structure and high transmission efficiency of the electric motor and gearbox, the equipment helps save electricity compared to other asynchronous drive options. Additionally, high efficiency also helps reduce operating time.Can the Cycloid Motor 25Hp be used in high-temperature or dusty environments?
Yes. The equipment features an anti-rust electrostatic paint coating, a robust cast iron gearbox casing, and copper-wound motor, ensuring good performance in harsh industrial environments with high temperatures, dust, or humidity.Reviews: Heavy Duty Cycloid Gear Motor 18.5kW 25Hp
