Heavy Duty K-Series Helical Bevel Gear Motor 11kW 15Hp

Heavy Duty K-Series Helical Bevel Gear Motor 11kW 15Hp is a specialized product line for heavy-duty machinery systems requiring high loads and continuous operation. With the characteristic design where the output shaft of the heavy-duty gear motor is positioned perpendicularly to the input shaft, combined with a powerful 11kW (15Hp) power output generating high torque, this product effectively meets the demands of various heavy industries such as material production, metallurgy, mining, and conveyors.

General design of Heavy Duty K-Series Helical Bevel Gear Motor 11kW 15Hp

Sturdily designed with two main components: electric motor and gearbox, creating synchronization between the 3-phase electric motor with a capacity of 11kW (15Hp) and the K-series right-angle heavy-duty gearbox, finished with an anti-rust blue electrostatic paint coating capable of withstanding harsh working environments.

The entire body is cast from high-grade cast iron, enhancing durability and reducing vibration during operation. Despite its large capacity, the product maintains a compact size, allowing for easy installation in various positions, even in limited spaces.

Structure of Heavy Duty K-Series Helical Bevel Gear Motor 11kW 15Hp

The K-series heavy-duty gear motor is a perfect combination of an 11kW 15Hp electric motor and a K-series right-angle gearbox. Specifically:

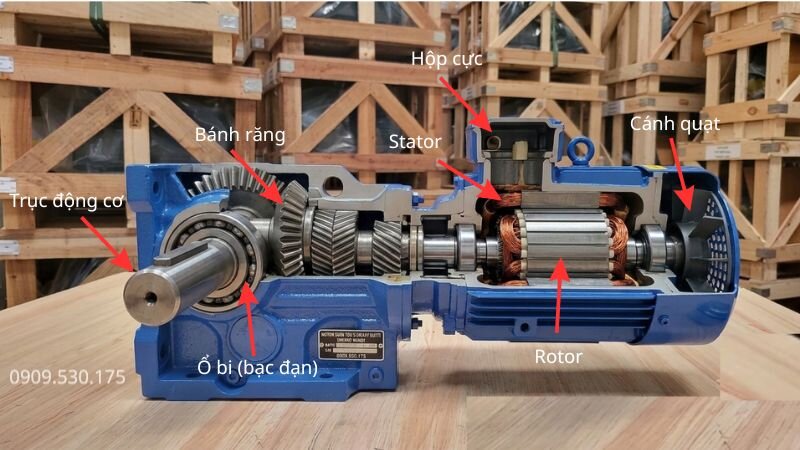

Internal structure of the 3-phase electric motor 11kW 15Hp

To handle heavy workloads and operate stably at 15 horsepower, every internal component of the machine must meet strict precision and material quality standards:

• Stator: The fixed magnetic induction block tightly pressed from magnetic-oriented technical steel sheets. Inside the slots is an electromagnetic winding system wound with 100% pure copper wire, impregnated with high-grade insulating varnish (Class F) to prevent electrical discharge at high temperatures.
• Rotor: The rotating squirrel-cage core made of cast alloy steel integrated with guide bars. The rotor is CNC-machined and dynamically balanced using digital technology to completely eliminate vibration and centrifugal eccentricity during high-speed rotation.
• Bearings: Installed at both ends of the shaft (front and rear flanges), utilizing high-friction-resistant industrial bearings integrated with specialized lubricating grease to ensure the shaft rotates smoothly and quietly.
• Cooling system: Uses a centrifugal fan made of synthetic plastic or lightweight aluminum, mounted coaxially at the rear of the machine to continuously draw circulating air along the cast iron housing ribs.

Internal structure of the K-series right-angle heavy-duty gearbox 11kW 15Hp

The K-series right-angle heavy-duty gearbox consists of two main parts:

• Motor shaft: The motor shaft of the K 11kW 15Hp right-angle gearbox has a larger size compared to that of standard-duty gearboxes. This design enhances load-bearing capacity and improves equipment durability in heavy industrial applications.
• Helical gears: Also known as bevel gears, helical gears function to increase the contact area between gears. As a result, the load-bearing capacity of the Heavy Duty K-Series Helical Bevel Gear Motor 11kW 15Hp is improved, ensuring stable and efficient operating performance.

Technical specifications of Heavy Duty K-Series Helical Bevel Gear Motor 11kW 15Hp

The technical information below includes installation dimensions, operating parameters, and connection standards for each type of electric motor and gearbox, meeting usage requirements in various industrial fields

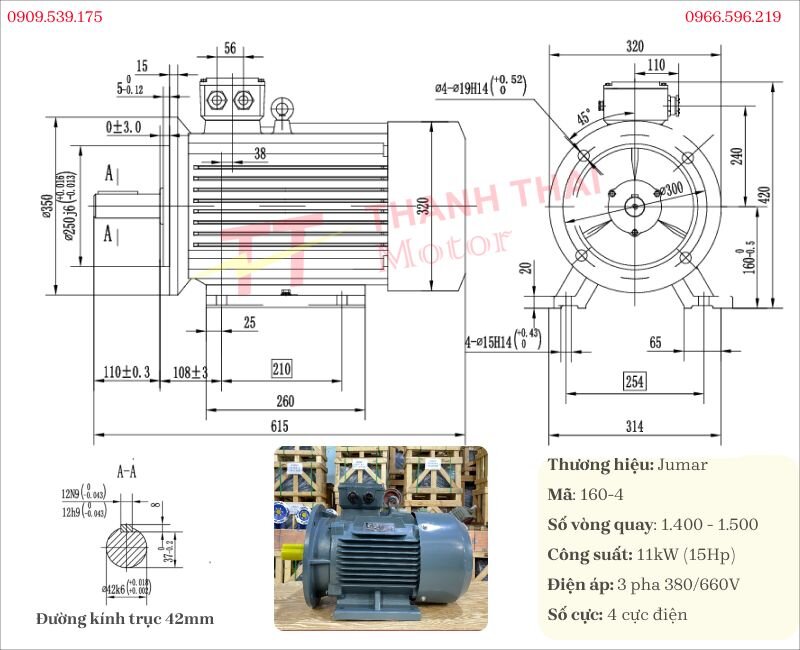

Technical specifications of the 3-phase electric motor 11kW 15Hp

Below are the drawing and technical specifications for the 11kW 15Hp electric motor

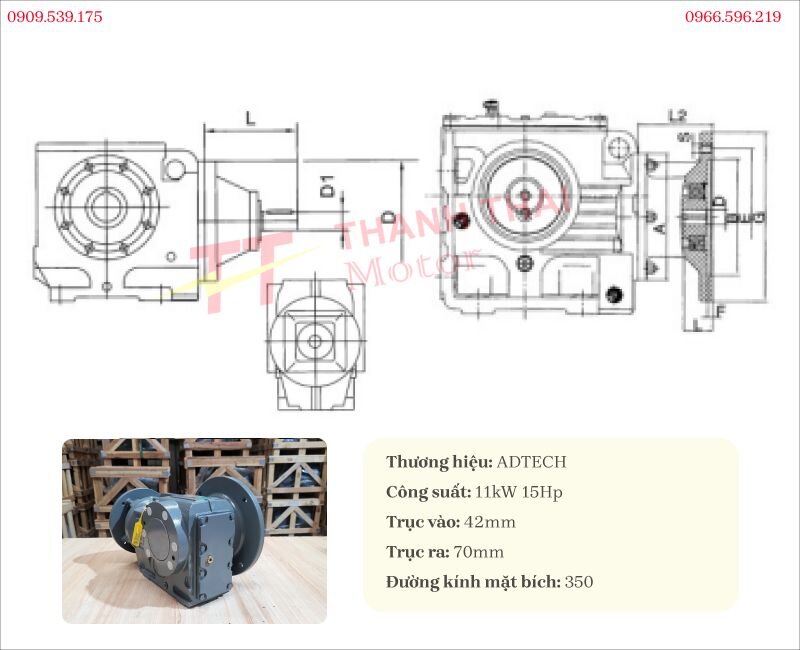

Technical specifications of the K-series right-angle heavy-duty gearbox 11kW 15Hp

The K-series right-angle heavy-duty gearbox 11kW 15Hp is an industrial bevel gear type gearbox

Applications of Heavy Duty K-Series Helical Bevel Gear Motor 11kW 15Hp

With high load-bearing capacity and continuous operation, the K-series gear motor 11kW 15Hp is commonly applied in:

• Heavy-duty conveyor systems in cement, steel, and mineral mining plants.
• Lifting equipment, winches, and presses in mechanical engineering.
• Industrial agitators, rolling mills, and material mixing machines in the food and chemical industries.
• Automated production lines requiring precise and stable power transmission.

Installation instructions for Heavy Duty K-Series Helical Bevel Gear Motor 11kW 15Hp

To ensure the Heavy Duty K-Series Helical Bevel Gear Motor 11kW 15Hp operates safely and achieves optimal performance, proper installation according to technical procedures is required.

• Step 1: Inspect the gear motor, output shaft, coupling, and mounting base. Ensure that all assembly components are of correct dimensions, clean, and free from signs of damage.
• Step 2: Place the motor into the installation position, align the concentricity between the output shaft and the transmission equipment, then tighten the bolts and run a test operation to check stability.

Through the motor video guiding the installation of the Heavy Duty K-Series Helical Bevel Gear Motor 11kW 15Hp, viewers can follow all execution steps from preparation to operational testing. The content is presented visually, helping the installation process take place accurately, contributing to enhanced transmission efficiency and increased equipment lifespan. View more through the comprehensive video collection at Thành Thái Motor.
